0.8mm Tweco 4 Kit with Eliminator to Tweco 4 Torch Adaptor

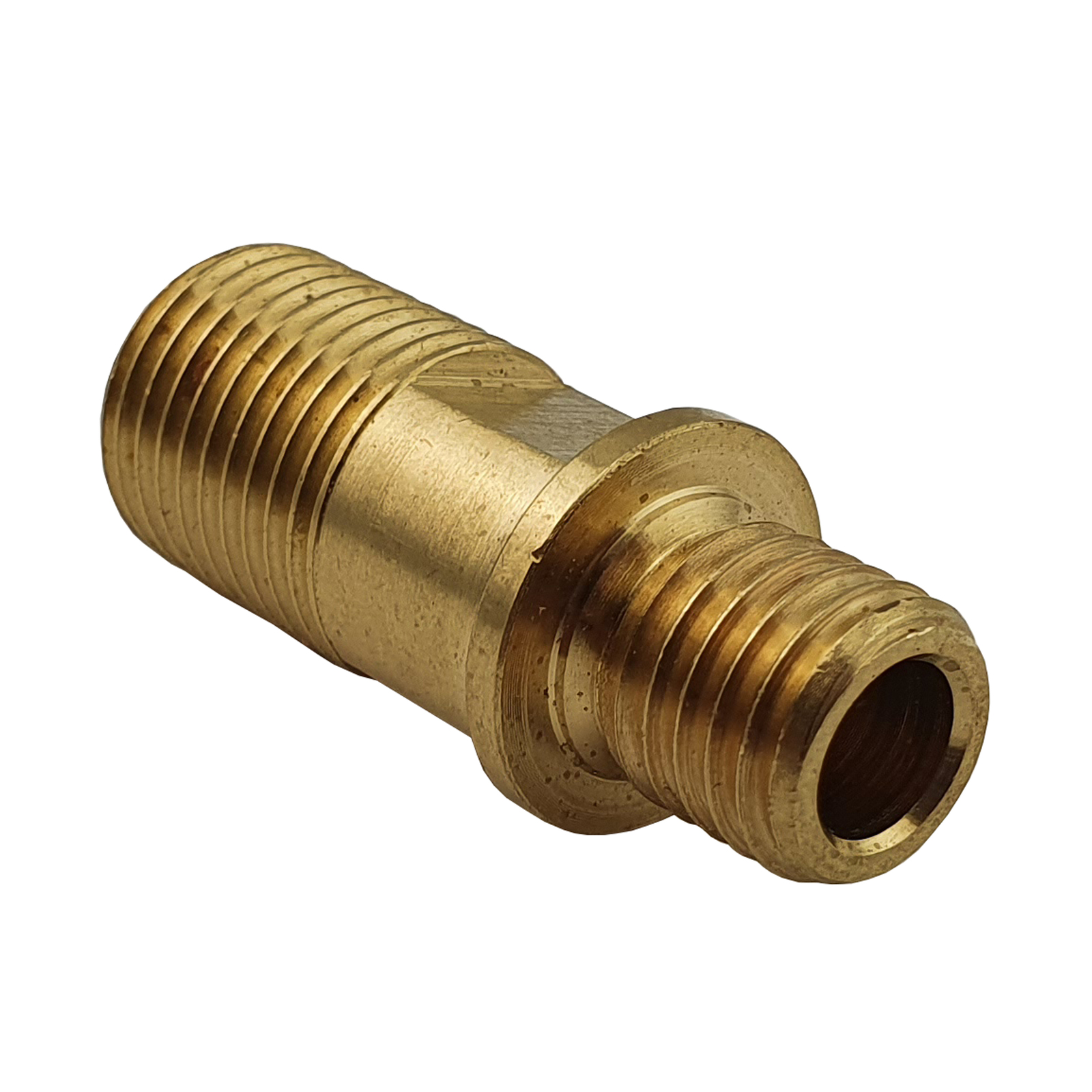

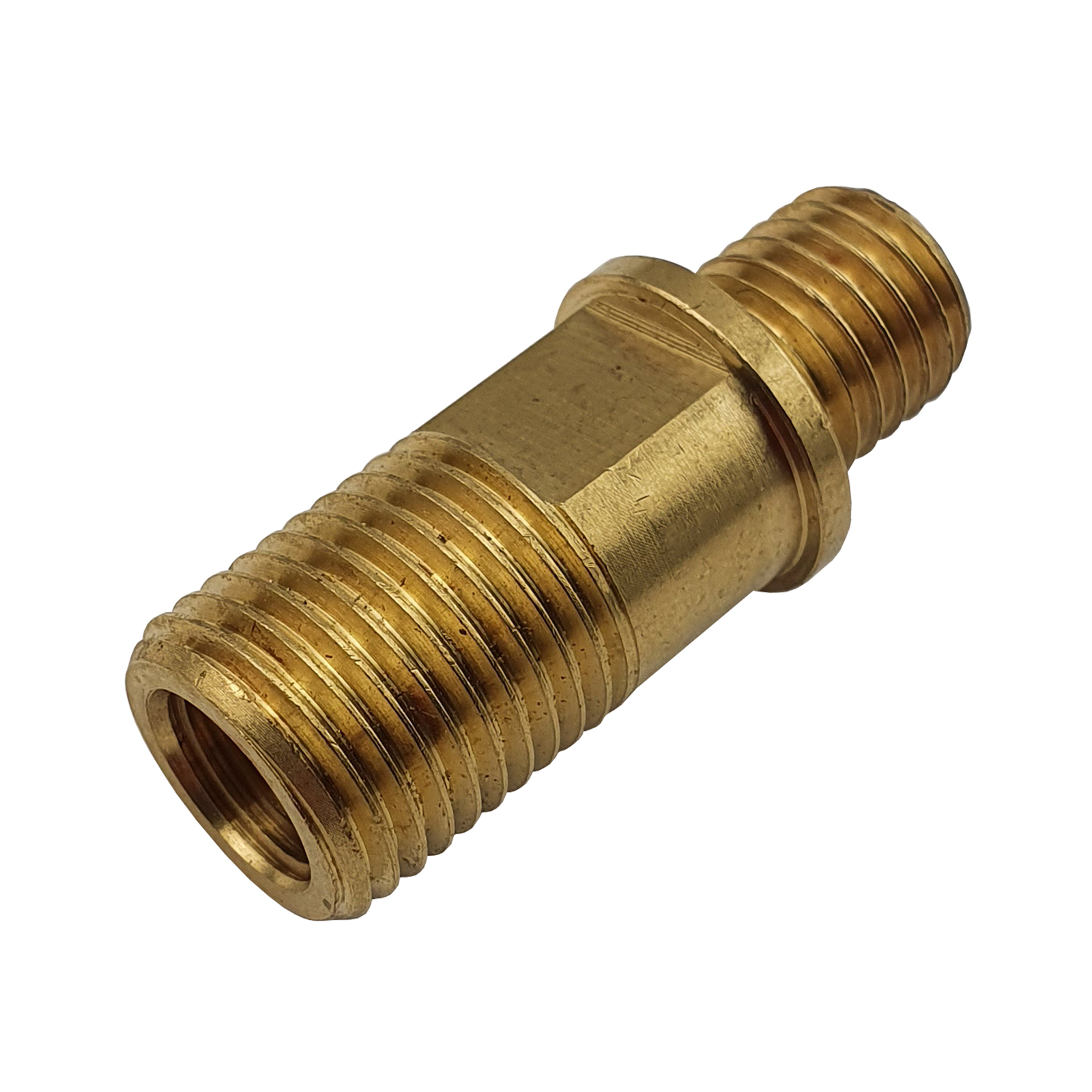

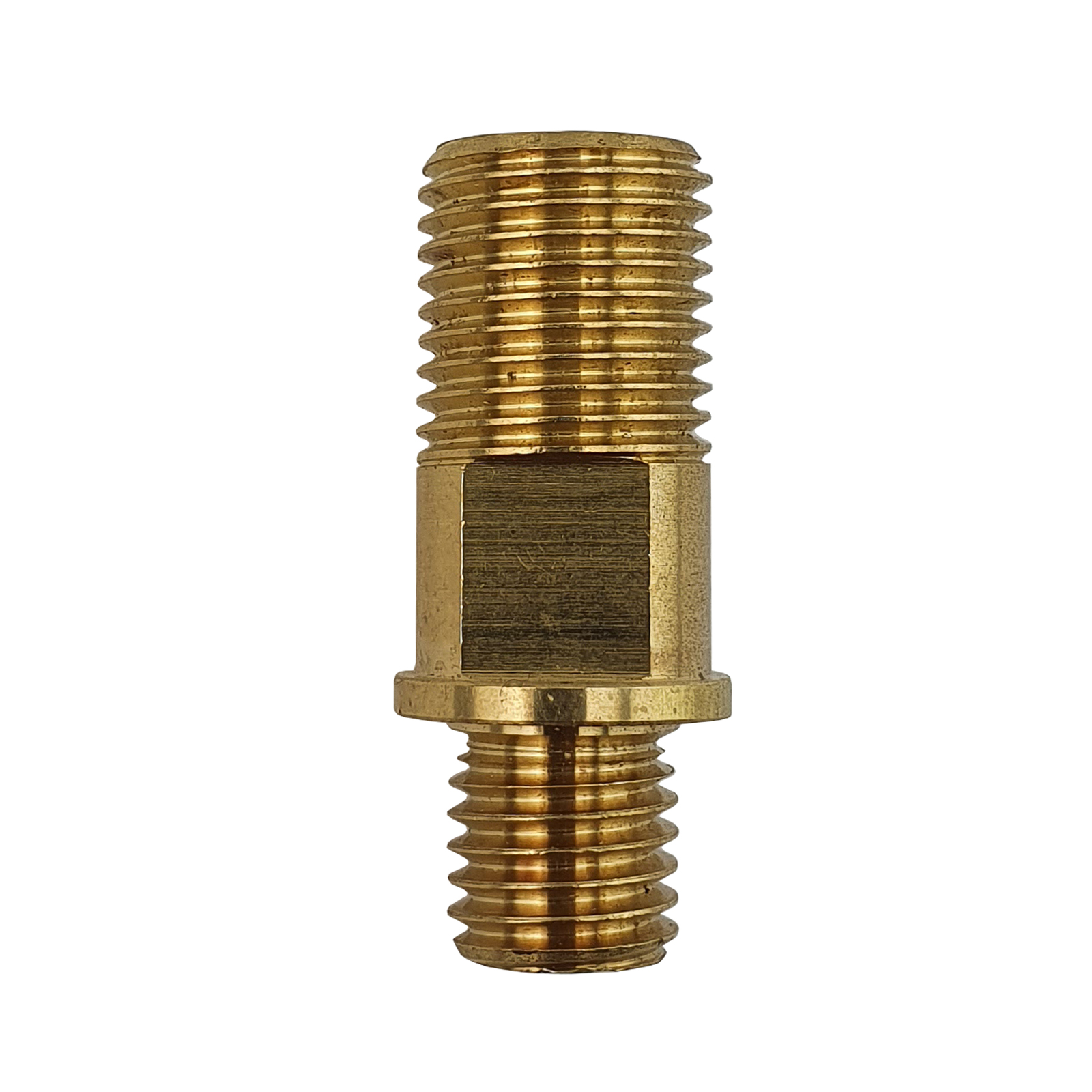

Adaptor for Eliminator Torches 717578 to Suit Threaded Tweco 4 Consumables

With the use of this adaptor, you can now use Tweco 4 consumables on your eliminator torch saving you money on costly replacements. Parts such as the 54A Tip Holder and the 23-62 Shroud are a direct fit and are less than half the price for similar eliminator replacements.

Base / Neck connection thread = M11 x 1.5mm

Contact tip thread is 1/4 UNF

Gas nozzle thread is 9/16 UNF base

Features:

• Converts eliminator consumables to tweco 4 consumables
• Saves you money on costly replacements
• Made from high-quality brass
• Screws into the eliminator swan neck

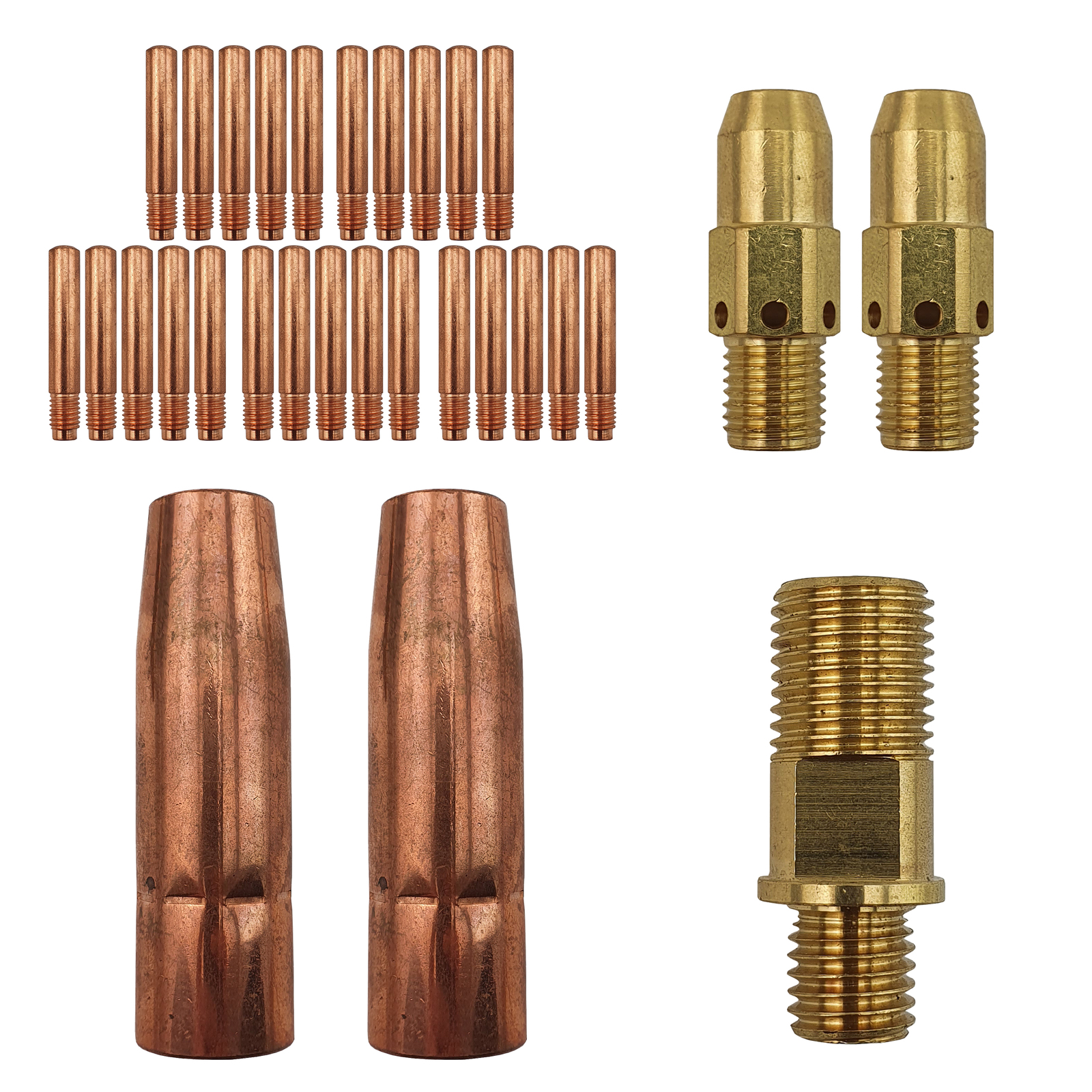

Kit Includes:

• 1 x Adaptor (X52)

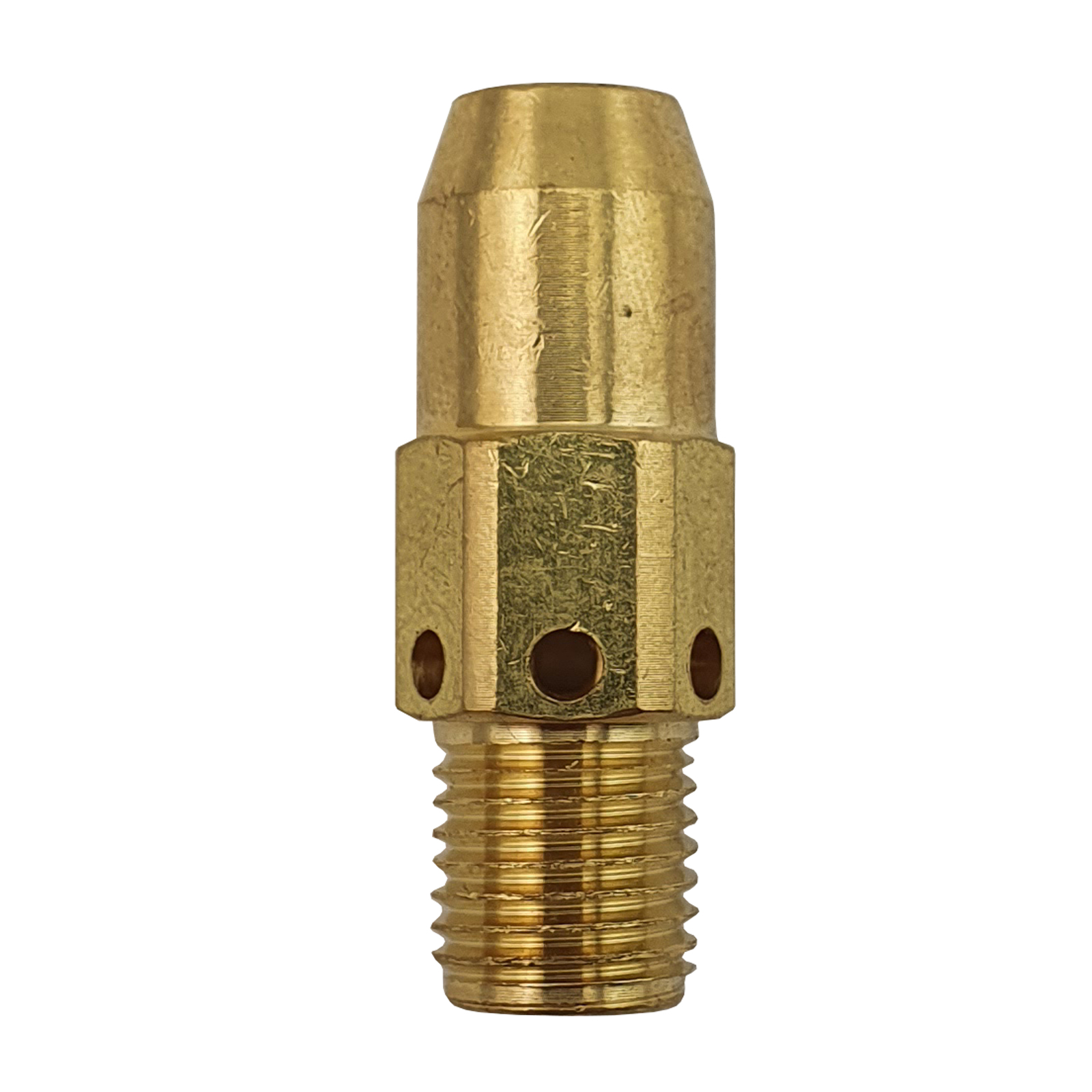

• 2 x Diffusers (54A) UNIMIG Equivalent Part #: PWGA54A

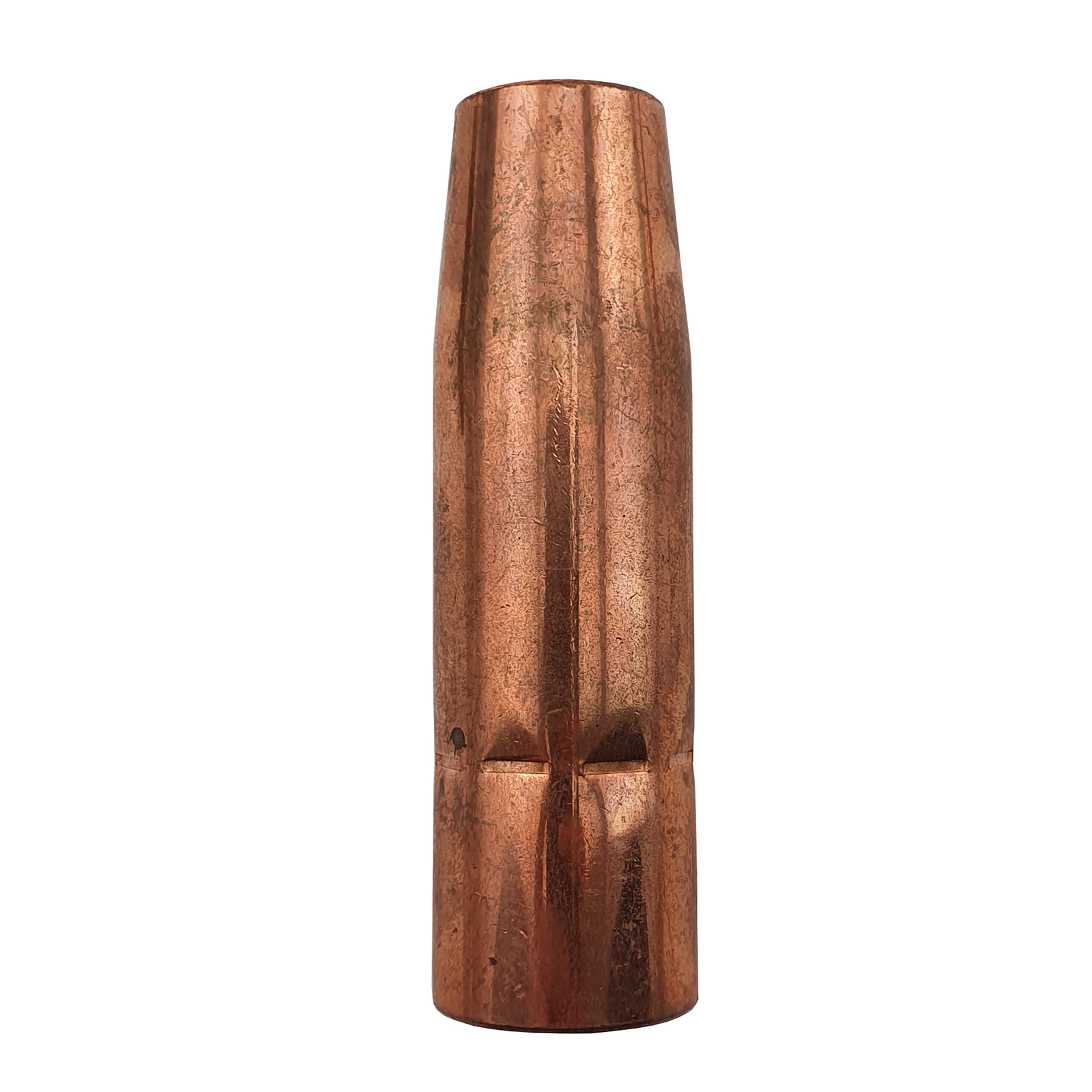

• 2 x Nozzles (23-62)

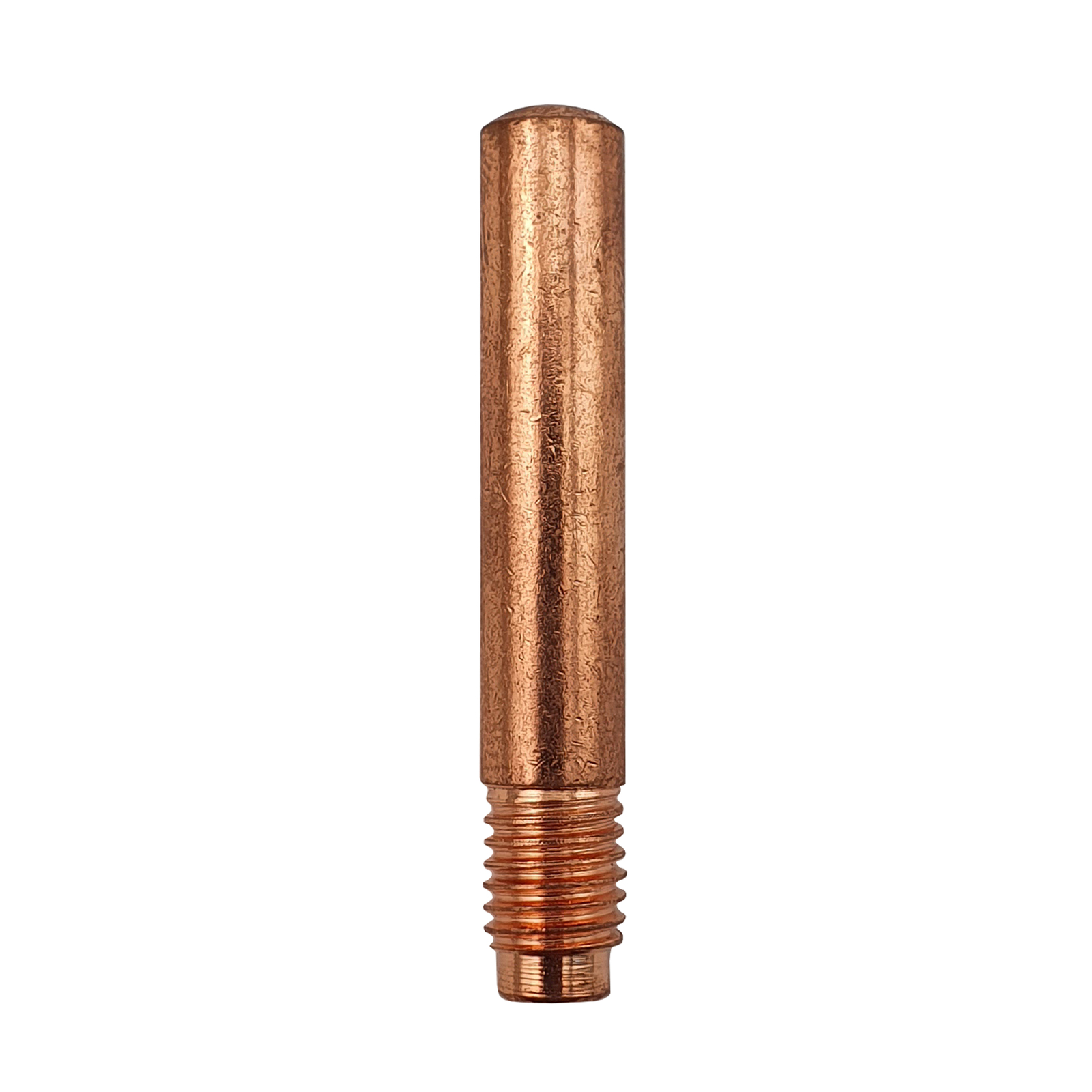

• 25 x 0.8mm Contact Tips (14-30)

Spare Parts:

Nozzles:

• 23-50 - 13mm Bore
• 23-62 - 16mm Bore

Tips:

• 0.6mm - (14-23)
• 0.8mm - (14-30)
• 0.9mm - (14-35)
• 1.0mm - (14-40)
• 1.2mm - (14-45)
• 1.3mm - (14-52)
• 1.6mm - (14-116)

Gas Diffusers: 54A
