1.6mm - 2 PACK - TIG Gas Lens Collet Body LARGE DIAMETER - WP-17 | 18 | 26

WP-17 | 18 | 26

$29.95

AfterPay More info.

Make 4 payments of $7.49 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $9.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

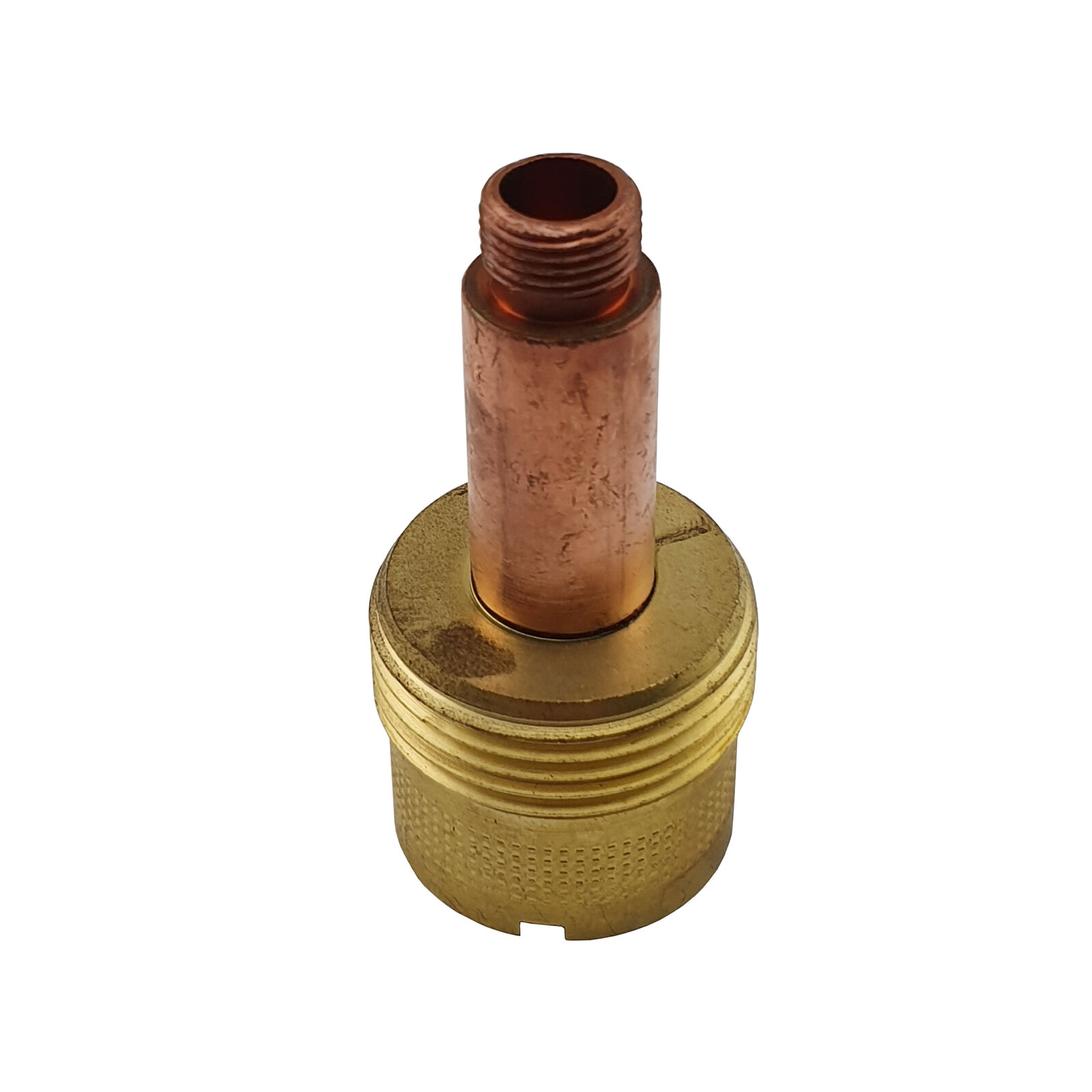

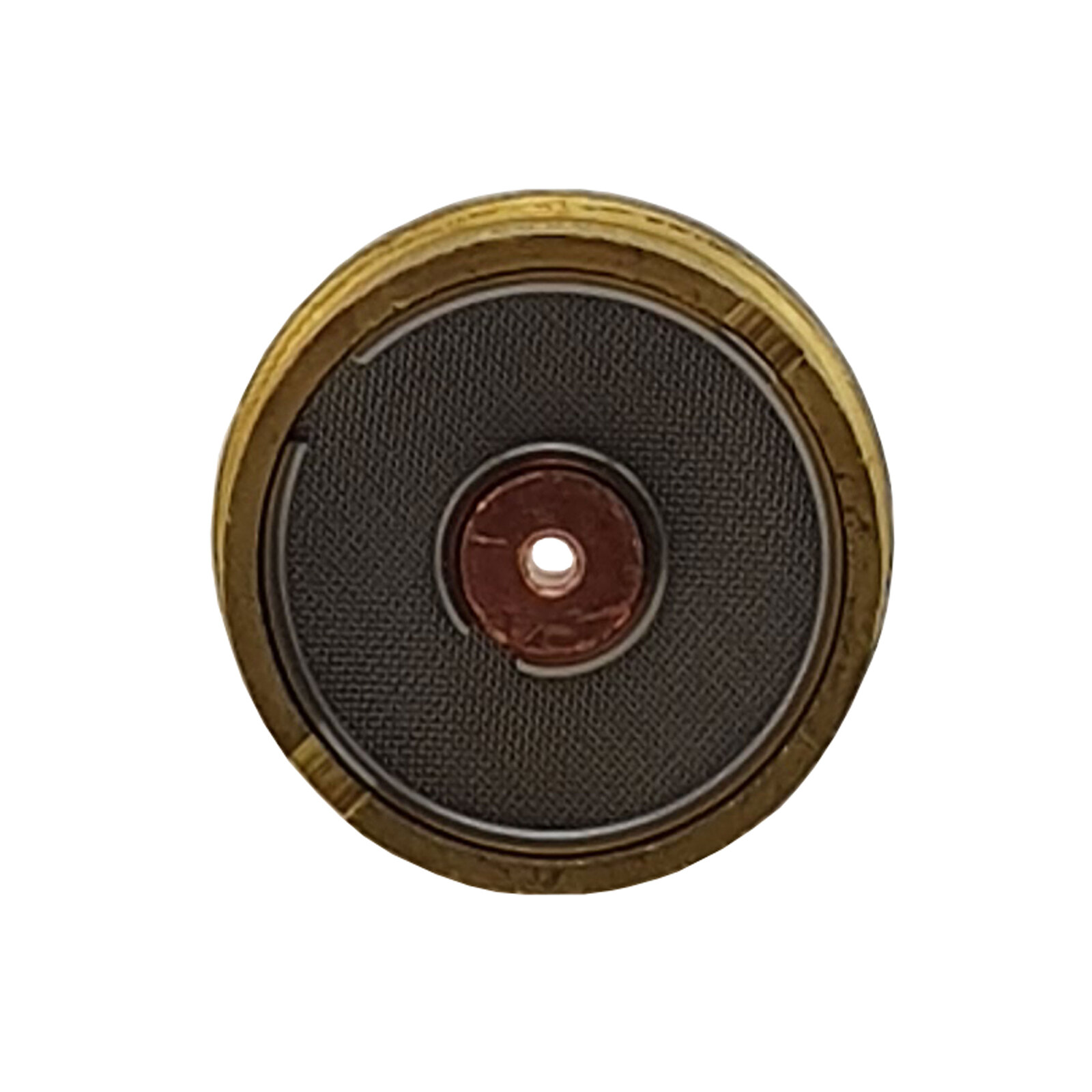

These collet bodies are to suit 17 18 & 26 series TIG torches. One of the best improvements you can make to the performance of your torch is to replace the standard collet body with a gas lens collet body. A gas lens version is an enhanced collet body constructed of a series of concentric, layered screens of varying mesh engineered to improve shield gas coverage. The screens generate a laminar gas flow, optimizing the weld zone coverage and eliminating turbulence, which can draw in contaminants from the surrounding air.

Features:

  • To suit 1.6mm collets
  • 2 Pack
  • To suit 17 / 18 / 26 style torches (WP or SR)
  • The high-quality mesh prevents foreign material sticking and clogging
  • Additional mesh layers allow more even gas flow
  • Suits Large Diameter ceramic cups

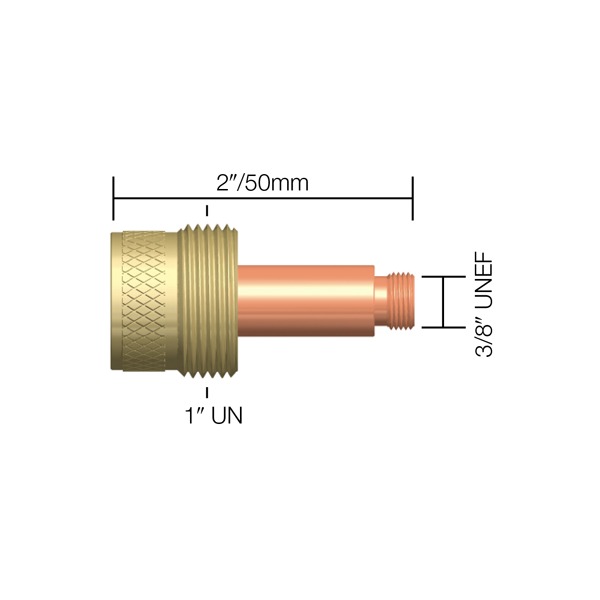

  • 50mm in length
  • 3/8 UNF Lower thread
  • 1" UNF Upper thread



Consumables

  • WP-17 | 18 |26 TIG Collets 1.6mm- #10N23
  • TIG Insulator LARGE DIAMETER Insulator Series- #54N63
  • TIG Ceramic Cup Nozzle #12 GAS LENS LARGE DIAMETER- #53N87
  • TIG Ceramic Cup Nozzle #15 GAS LENS LARGE DIAMETER- #53N89
  • TIG Ceramic Cup Nozzle #10 Gas LENS LARGE DIAMETER- #53N88
  • TIG Ceramic Cup Nozzle #8 GAS LENS LARGE DIAMETER- #57N74
  • TIG Ceramic Cup Nozzle #6 GAS LENS LARGE DIAMETER- #57N75
  • 1.6mm Standard TIG Torch Wedge Collets- # PYR17LC116_5



(45V116_2pk)

SKU 45V116_2pk
Brand TIG
Shipping Weight 0.0250kg
Shipping Width 0.355m
Shipping Height 0.010m
Shipping Length 0.220m

12 Months Warranty. If you change your mind, or are not happy with the product, Please return the item to us within 30 days for a full refund.

Be The First To Review This Product!

Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

2 x Gas Lens collet body
