40 Pack of Bernard MIG Gas Diffuser / Head 4435 for Short Contact Tips

40 Pack of Bernard MIG Gas Diffuser / Head 4435 for Short Contact Tips

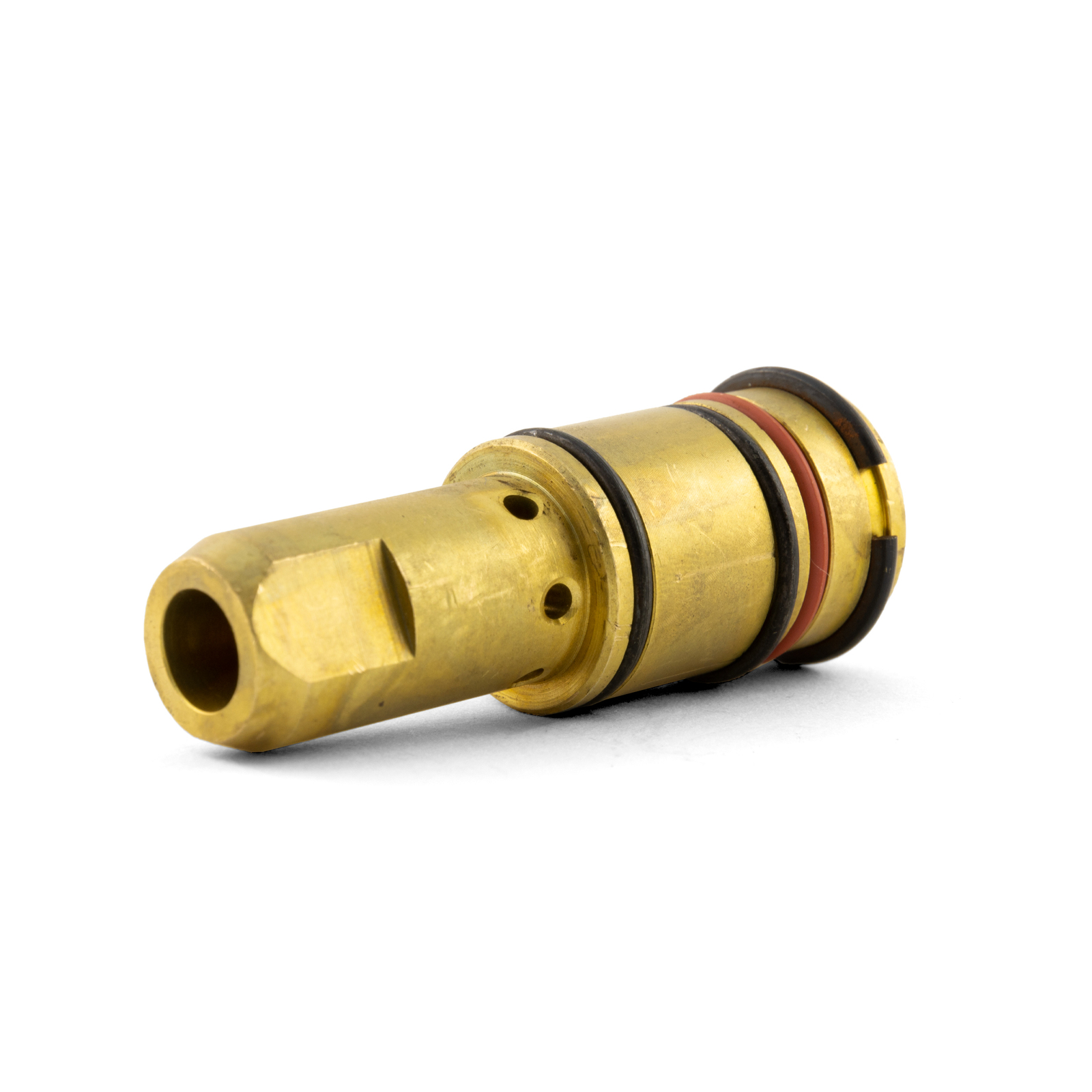

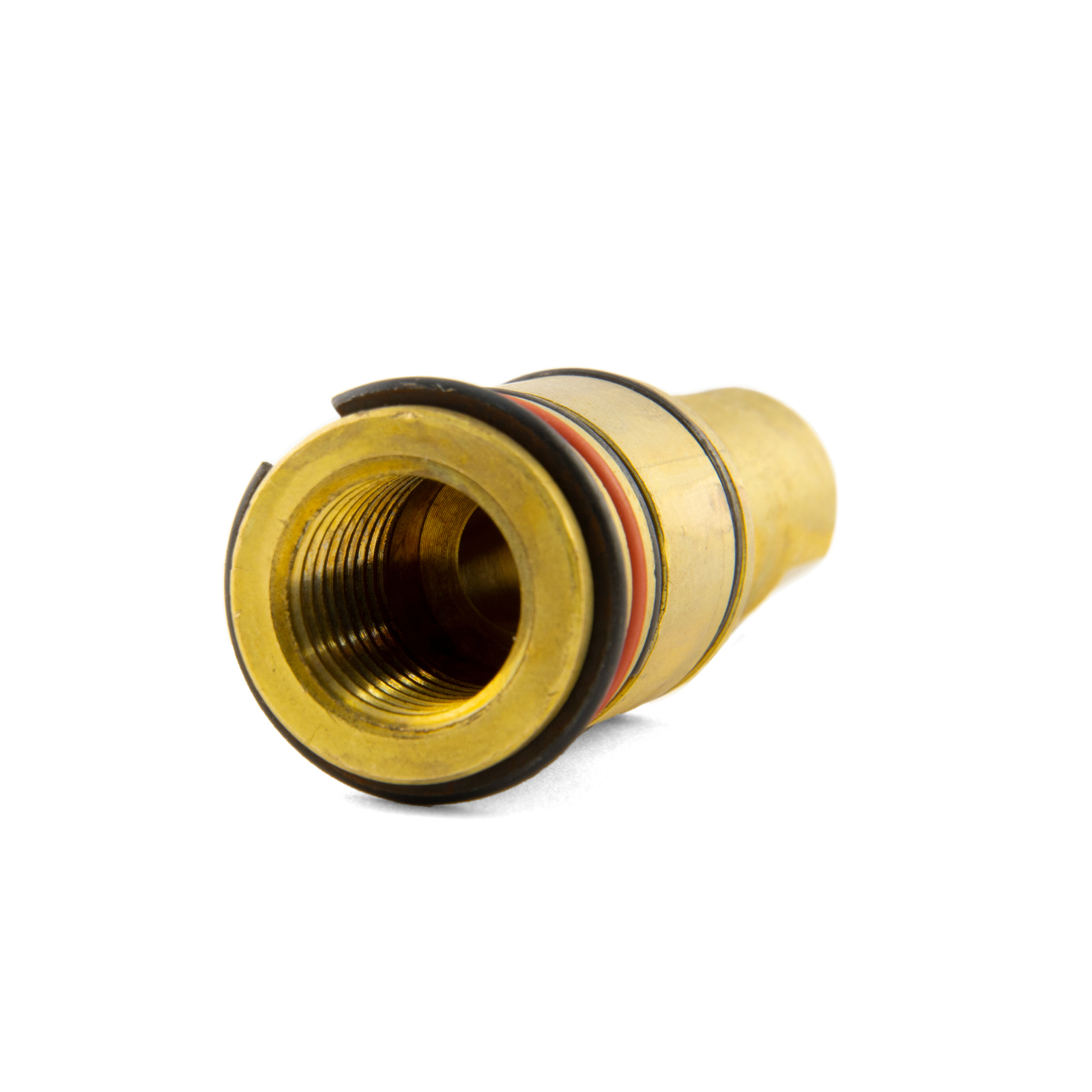

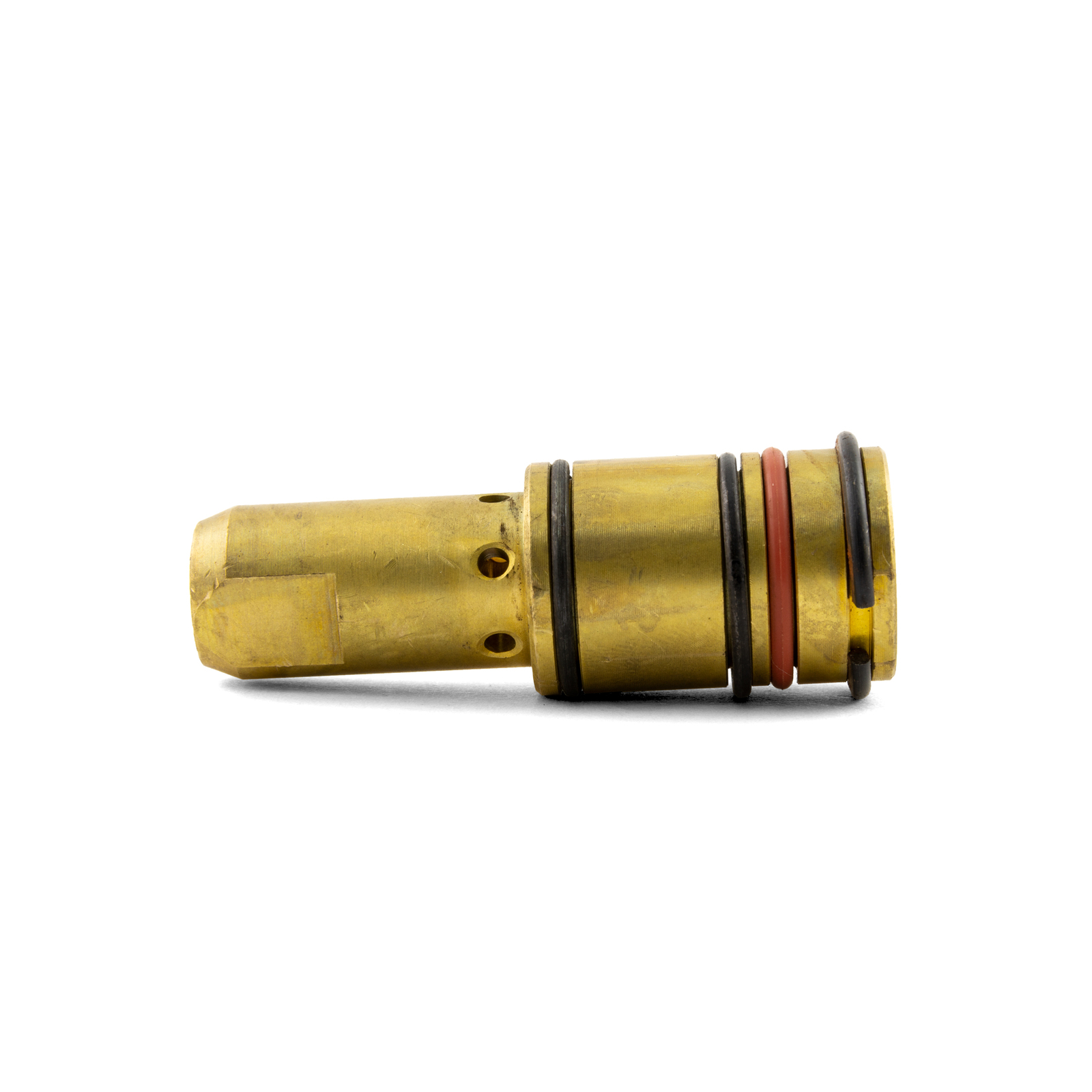

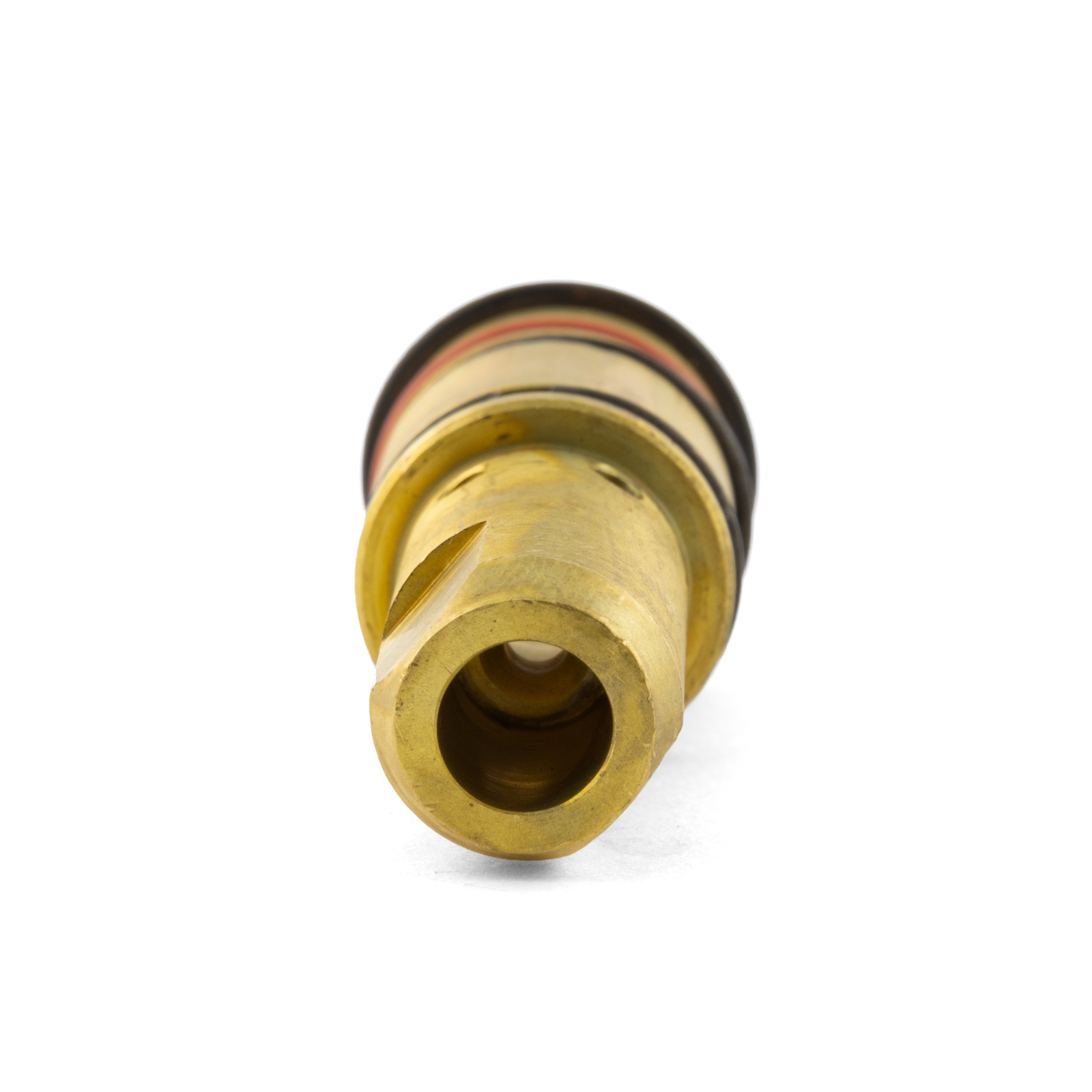

Bernard Style Gas Diffuser Head Assembly is a heavy-duty gas diffuser/head for greater heat dissipation, allowing smooth gas flow and long life. It is matched with Bernard MIG guns ranging from 400-500A. This gas diffuser also holds the contact tip and secures the nozzle.

Features:

• Bernard Style Gas Diffuser
• Part No. 4435
• Premium Materials used to far exceed the quality of OEM
• High-Quality Seals
• Suits Short Bernard Tips

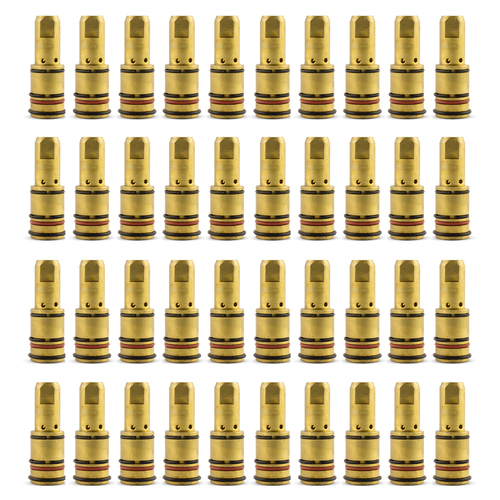

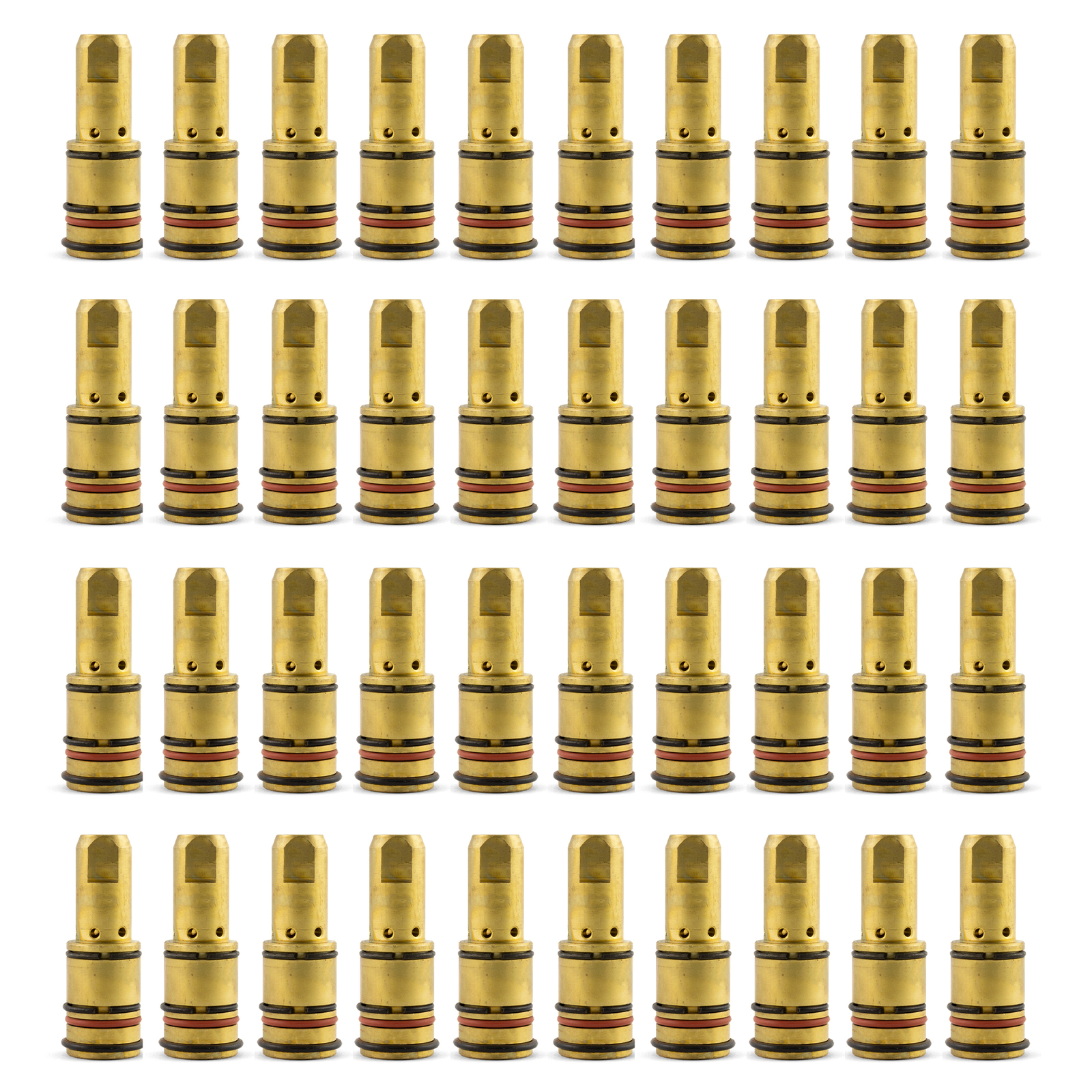

• 40x Each Pack
• UNIMIG Part #: PWGA4435

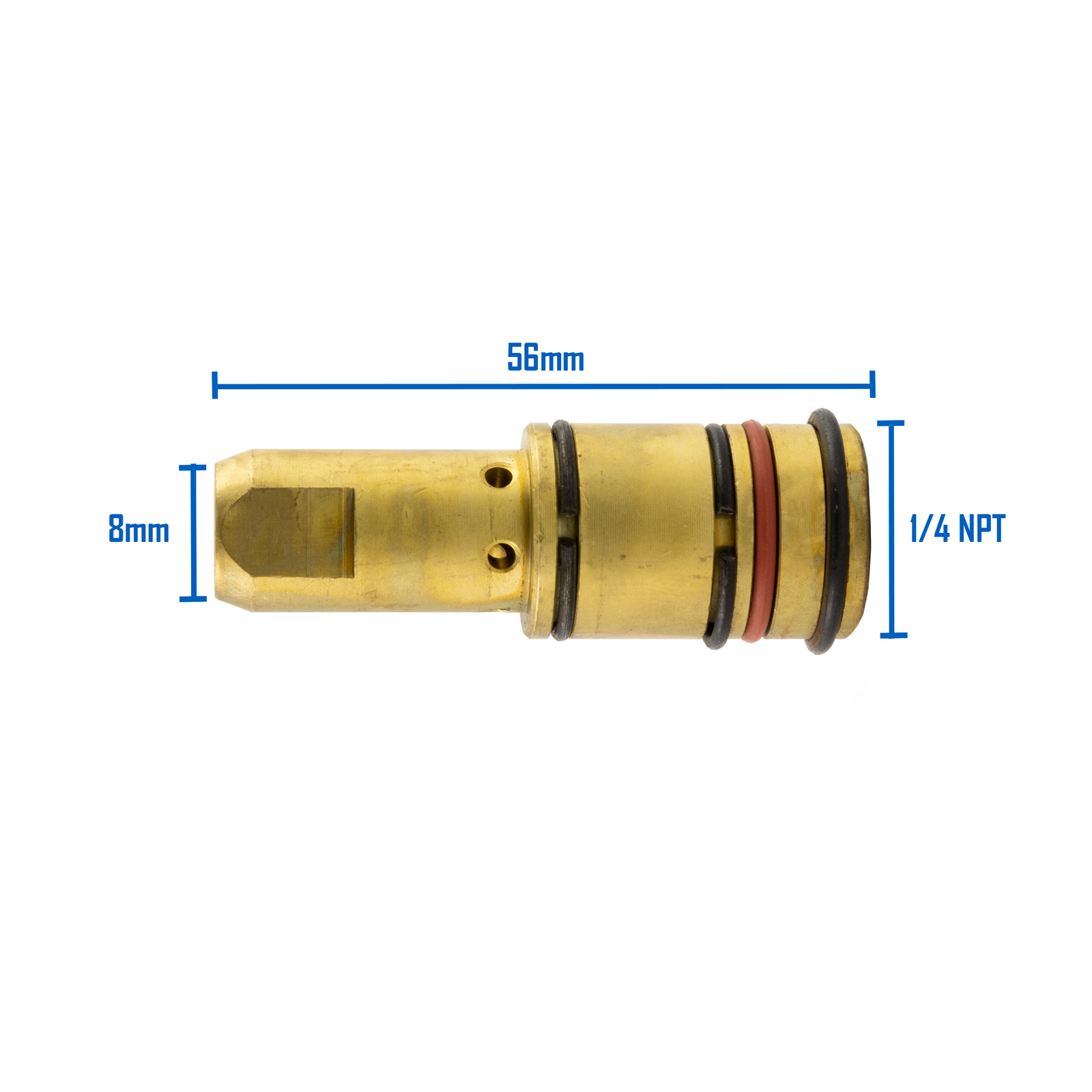

Dimensions:

• 56mm length
• 1/4 NPT base
• 8mm diffuser tip

Compatible With:

  Contact Tips:

• 0.8mm 7488
• 0.9mm 7489
•  1.0mm 7496
•  1.2mm 7490
• 1.3mm 7498
• 1.6mm 7491
• 2.0mm 7492

Nozzle:

•   19mm Bore Brass Nozzle 4491*
•   14mm Bore Brass Nozzle 4492
•   19mm Bore Copper Nozzle 4591
•   14mm Bore Copper Nozzle 4592

Swan Neck:

• 4790

Rubber Cap:

• 4423R

O Rings:

•  7127R
