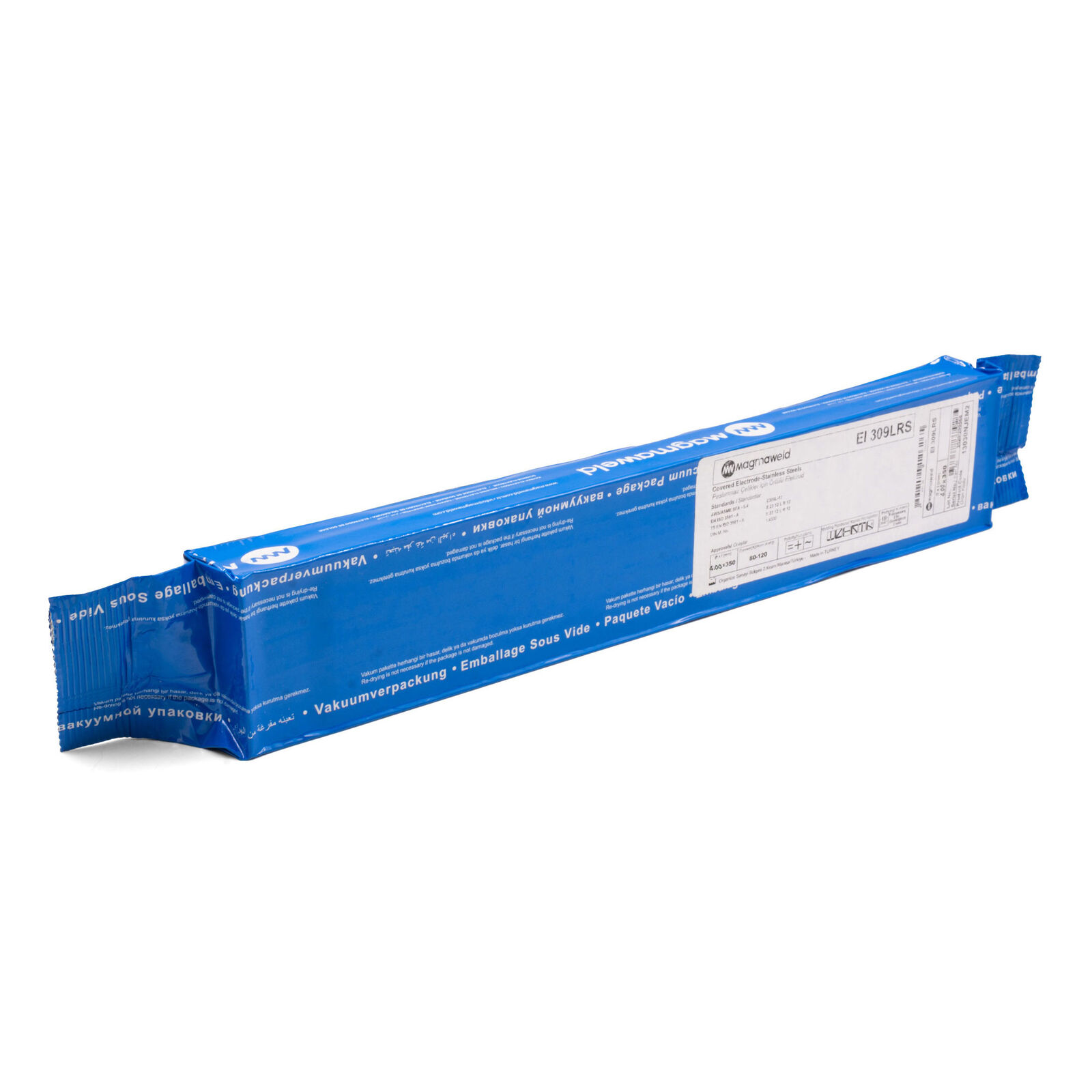

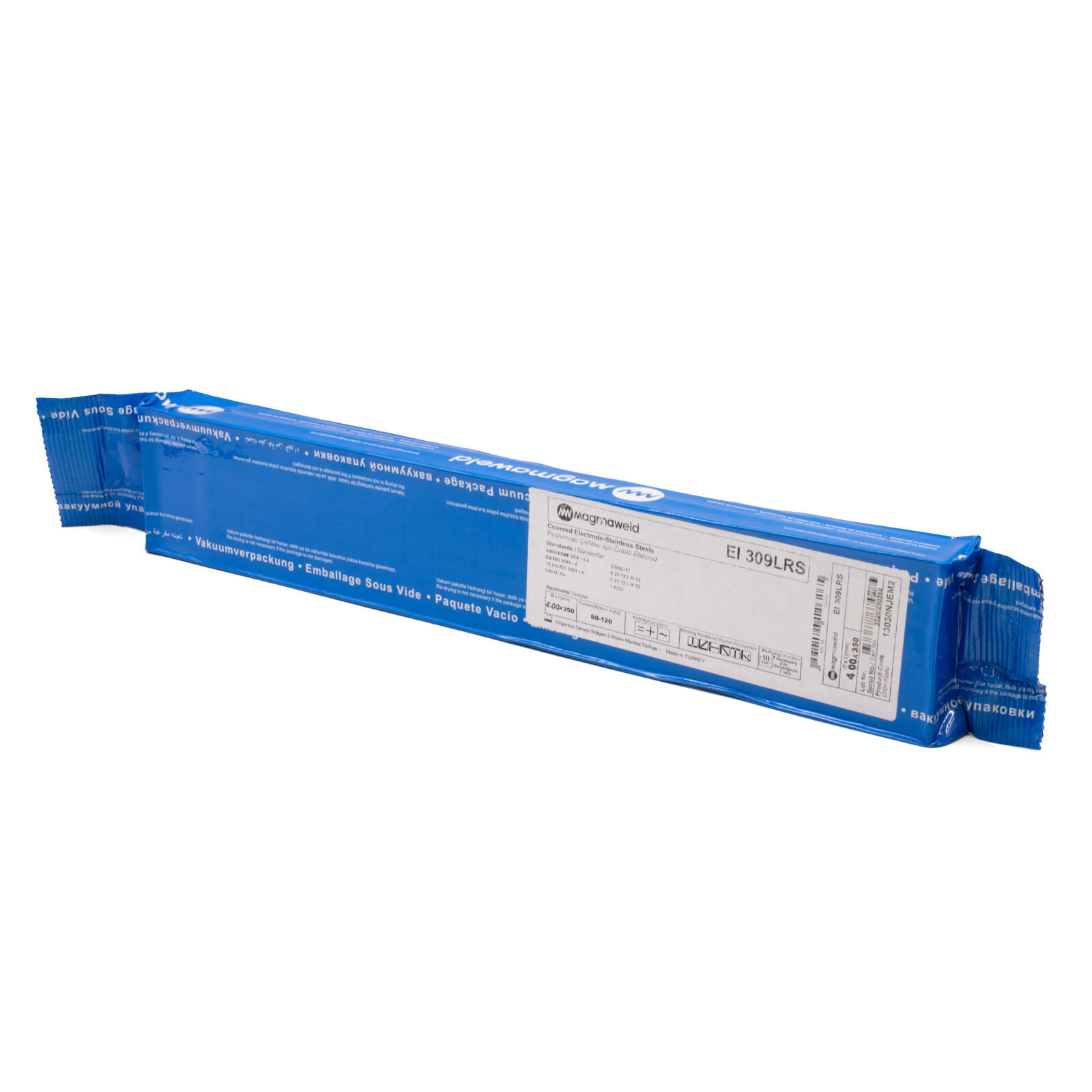

MAGMAWELD 309 - 4.0mm Stick Electrodes - 10KG Pack

Hampdon Industrial stocks the premium range of Magmaweld Welding Electrodes. EI 309LRS Stainless Steel is most commonly known for joining of dissimilar materials. Such examples are mild steel or low alloy steel to stainless steels, 409 to itself or to 304L stainless, as well as for joining 309 base metals. Like other stainless electrodes 309L has an excellent general corrosion resistance and produces a very cosmetically pleasing weld cap.

Features:

• Made in Turkey
• 4.0mm thickness diameter
• 350mm length
• 10kg weight
• 185 sticks approximate
• Product code – 13030QJEM2
• Stick code – EI 309LRS
• Market-leading Magmaweld brand
• Industrial Quality
• For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
• Equivalent to Cigweld Satincrome part # 611694
• Equivalent to Cigweld Weldskill part # WES309240
• Hamdpon Part # 309-4.0-10KG

Properties and Applications:

Rutile type electrode for joining dissimilar steels (austenitic steels to ferritic steels) and for austenitic claddings on ferritic steels. Weld metal consists of austenite with approx. 15% delta-ferrite. Claddings on unalloyed and low alloy steels are already corrosion resistant in the first layer. Higher operating temperature for joints between dissimilar steels is 300°C. Fine metal droplet transfer, good fusion of joint faces, finely ripped flat and smooth bead surface, especially in fillet welds. Easy slag removal of slag.

Manufactured to international standards:

• AWS/ASME SFA - 5.4
• EN ISO 3581 - A
• TS EN ISO 3581 - A
• E309L-17

Typical Chemical Values of Weld Metal

Typical Mechanical Values of Weld Metal(%)

Welding Position Applications:

• PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
• PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
• PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
• PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
• PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
• PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical.
