10x 3 Seat Acetylene Cutting Nozzle Tip Size 1

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping

DG Freight - $0.00
Charge for Dangerous Goods Freight

Free Shipping - $0.00

Express Shipping - $14.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

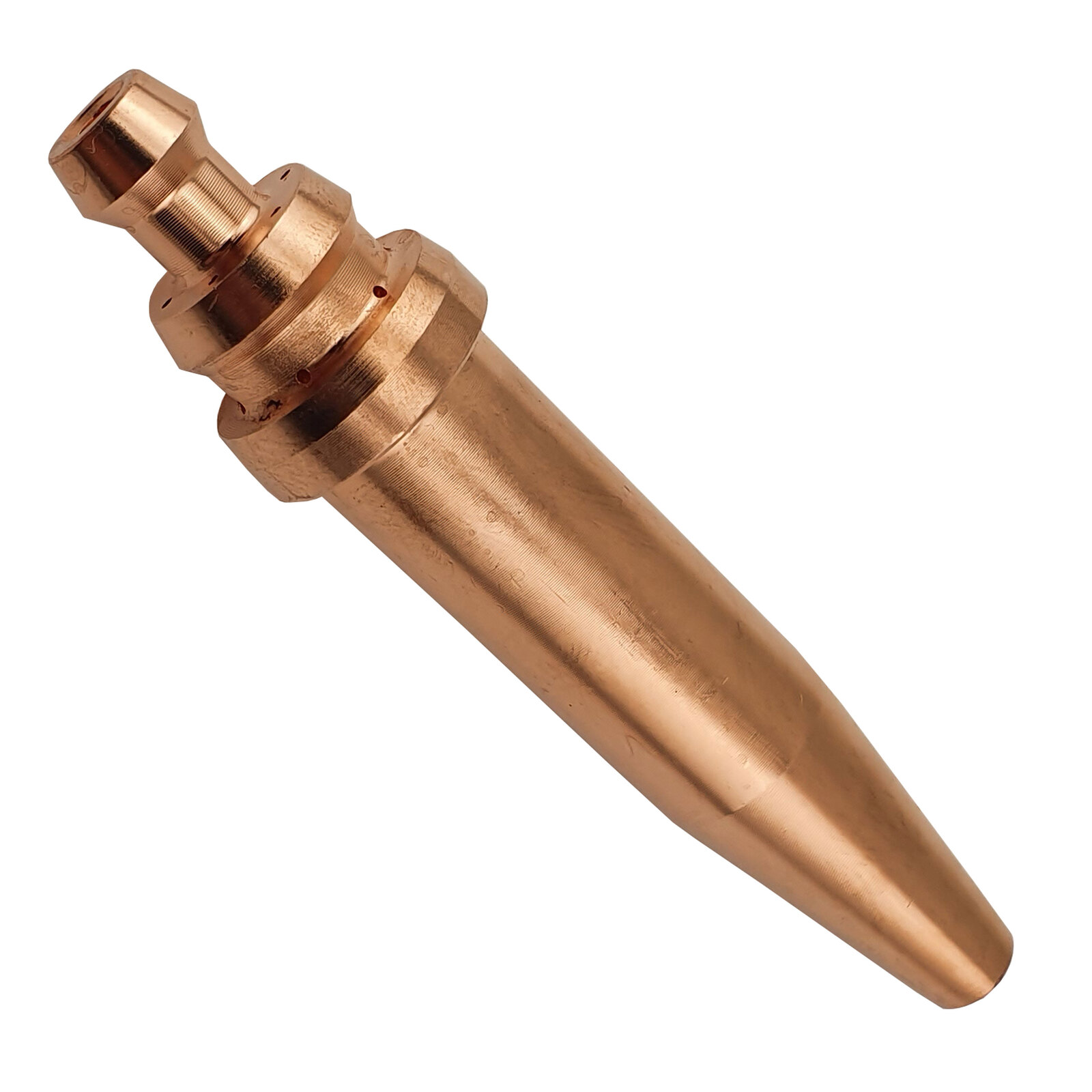

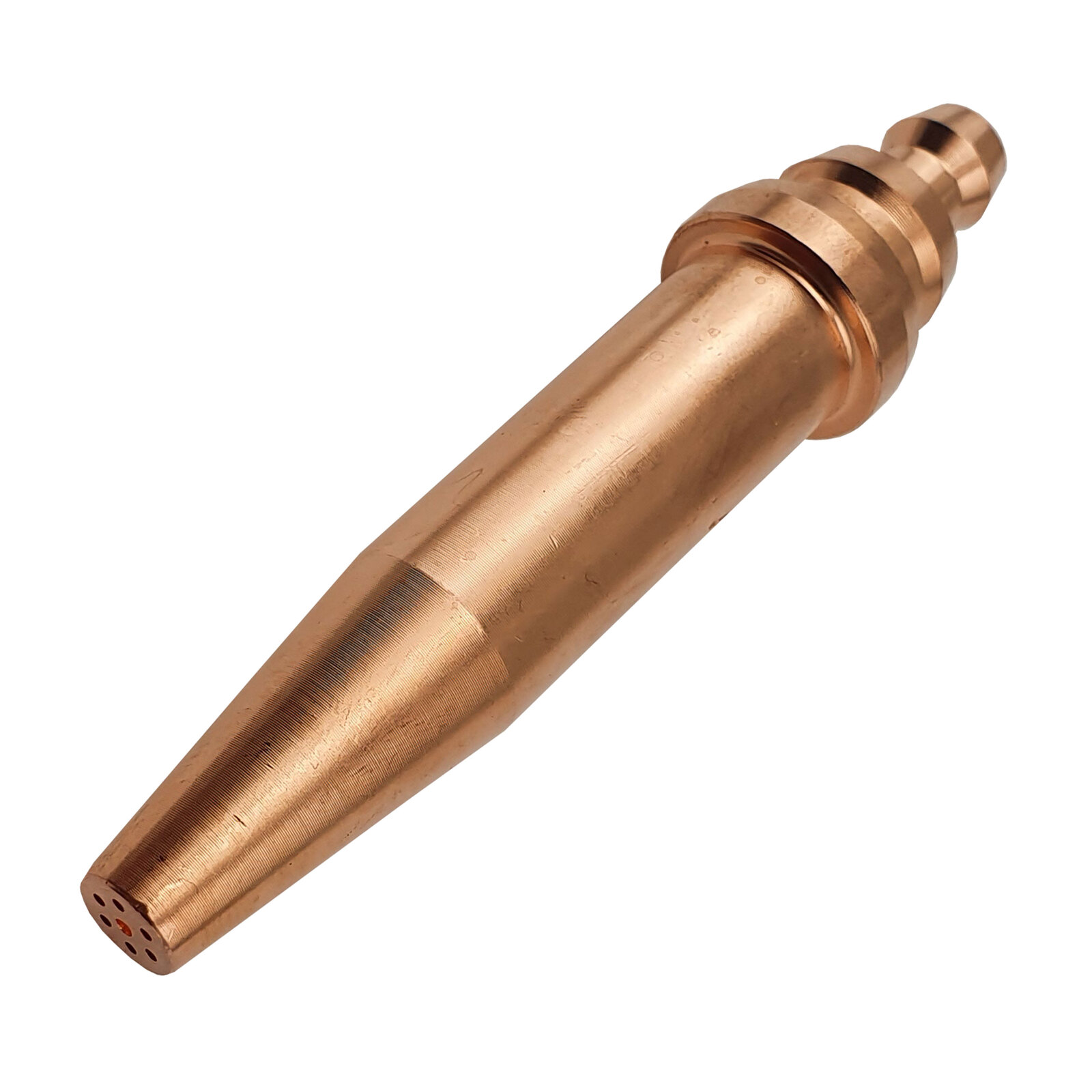

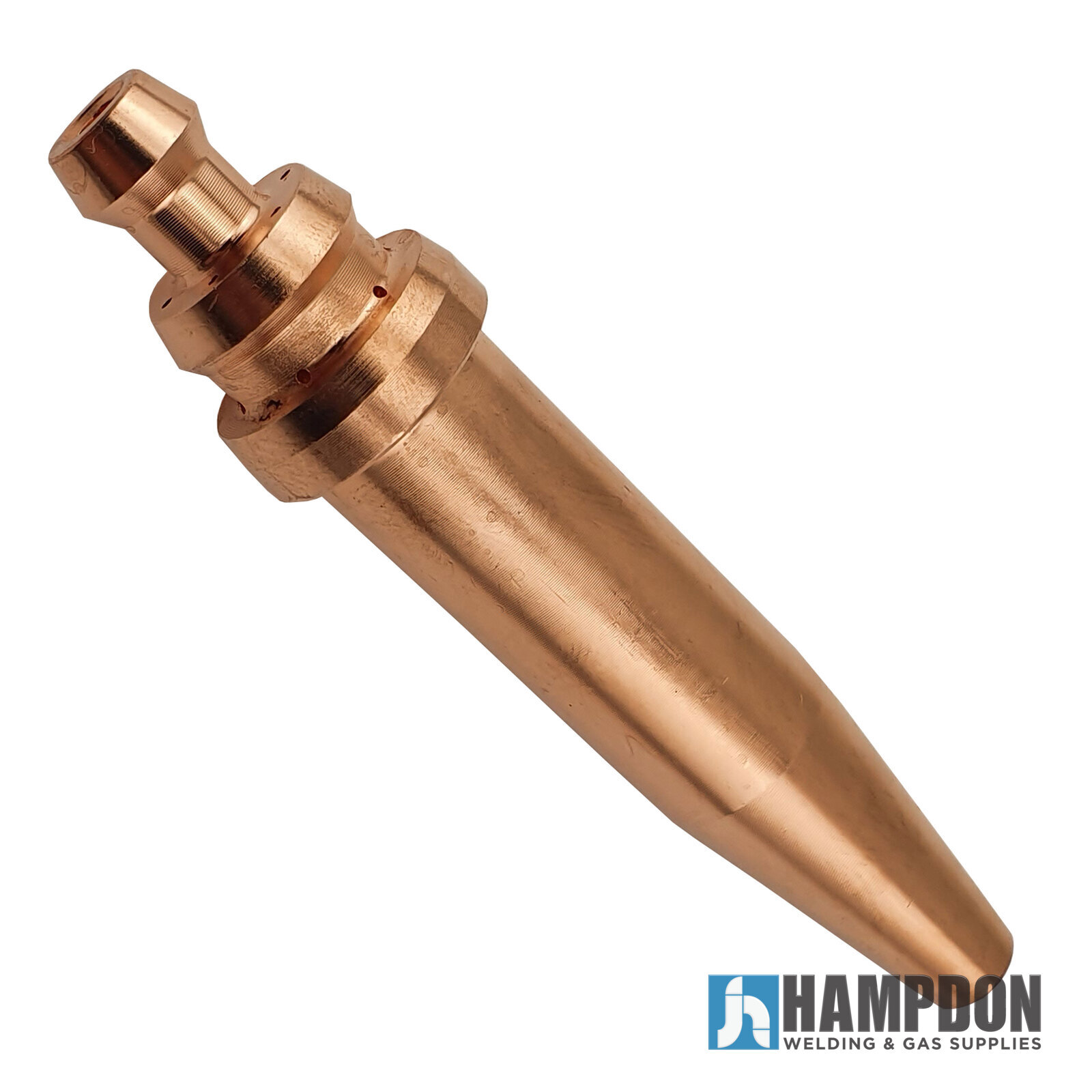

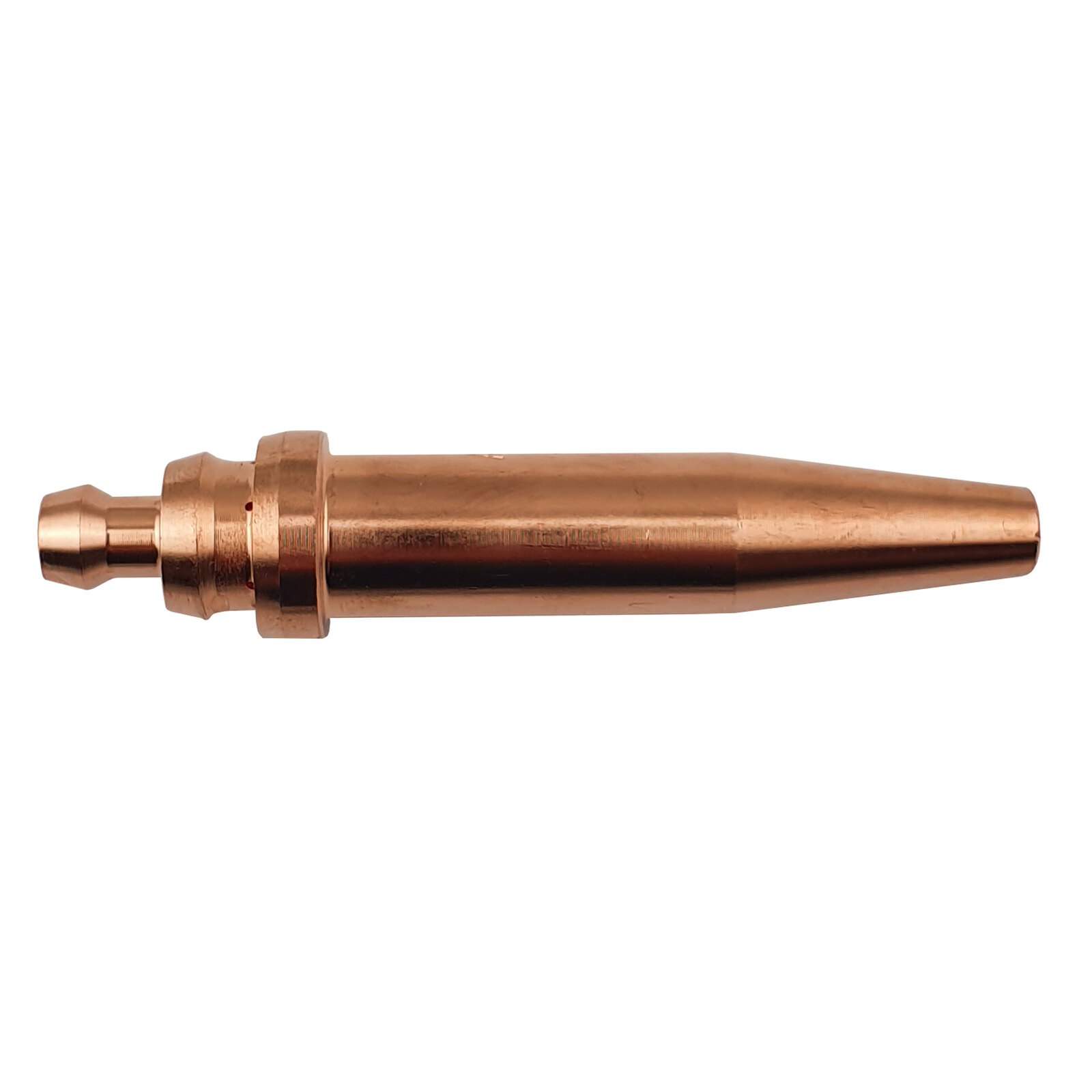

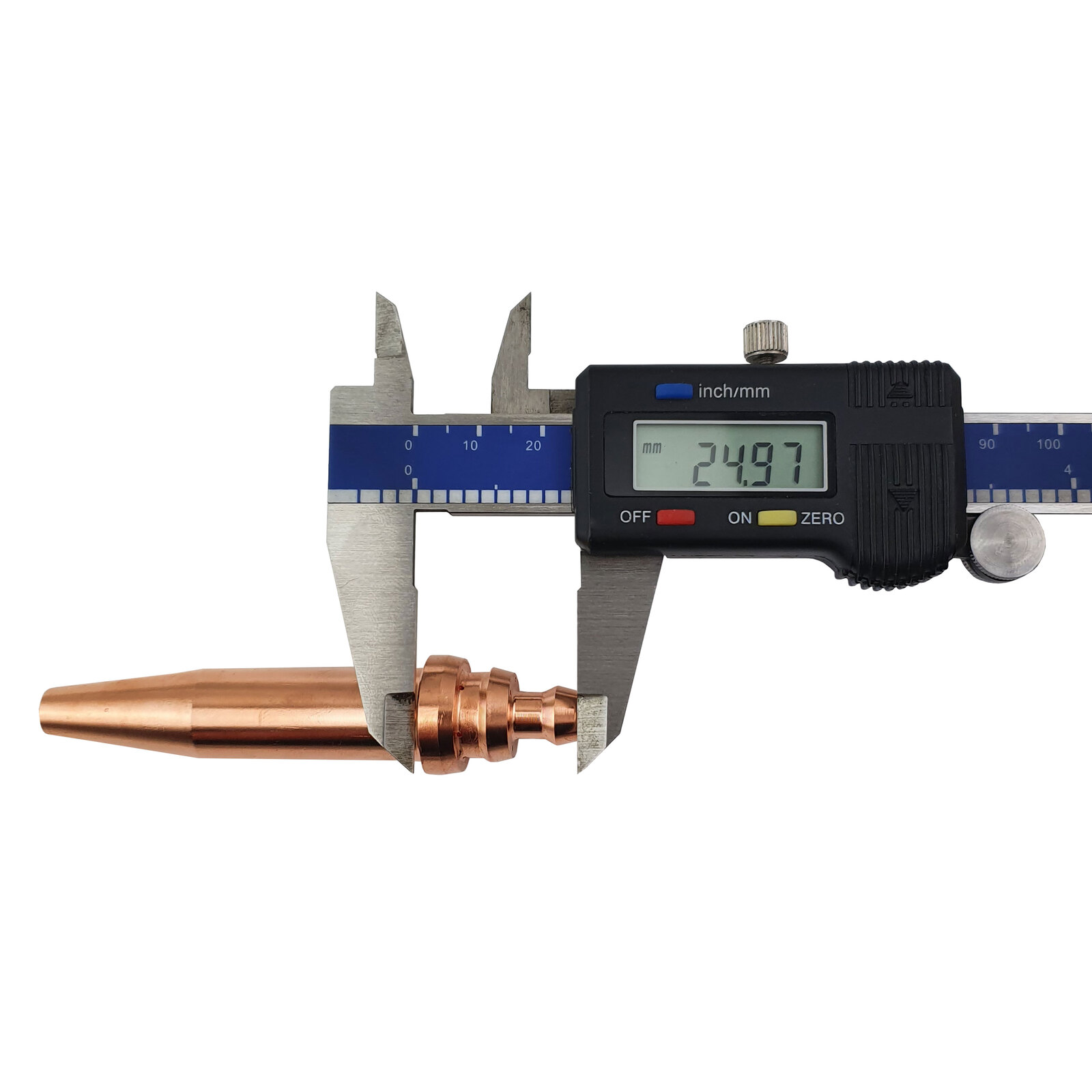

Three seated cutting tip suitable for use on Quickie Gas cutting machines

Features

10 Each
For use with Oxygen and Acetylene gases
Comply with AS 4603-1999
Manufactured from High Quality raw materials
Cutting Thickness 10 – 15mm
Cutting speed = >650mm/min
Gas Consumption (Fuel): <> 9 L/min
Gas Consumption (Oxy): <> 10 L/min
Recommended Operating Pressure (Fuel): 20 kPa
Recommended Operating Pressure (Oxy): 200Pa
For use with Oxy / Acetylene

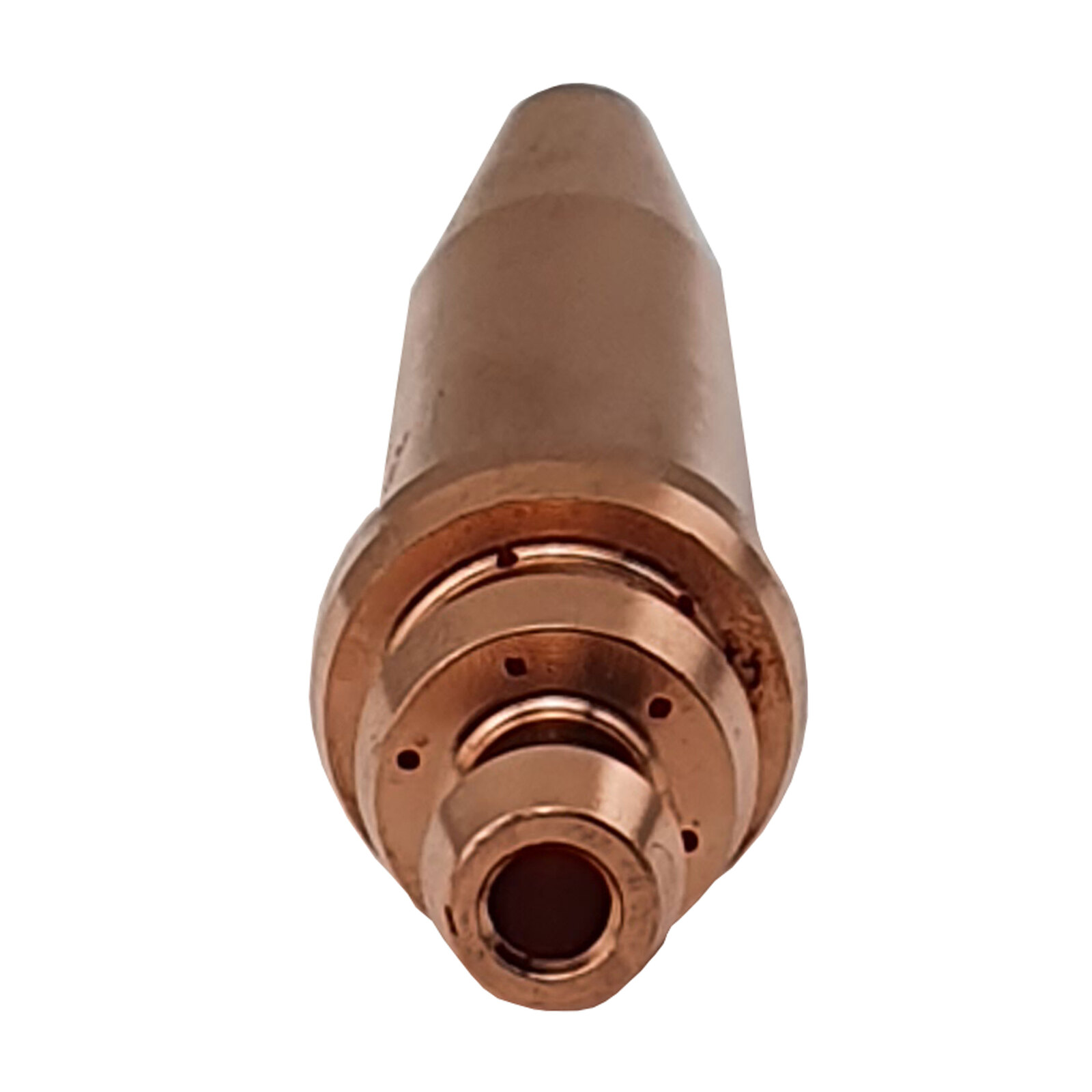

3 Seat Design
Made for industrial/daily use
CIG Equivalent part # 306116
BOC Equivelent part # ANM 16
UNIMIG Part #: ANME1

Acetylene Cutting Tip Sizes & part Number (SKU)

00 - 0-5mm = 400079
0 - 5-10mm = 400080
1 - 10-15mm = 400081
2 - 15-30mm = 400082
3 -  30 - 40mm = 400083
4 -  40 - 50mm = 400084
5 -  50 - 100mm = 400085
6 - 100 - 150mm = 400086
7 - 150 - 250mm = 400087
8 - 250 - 300mm = 400088
