10x Bossweld 3 Seat LPG Cutting Nozzle Size 2 - Fuel - Oxygen - 400102

10x 3 Seat LPG Cutting Nozzle Tip Size 2 - Type 54 Cuts 15mm to 30mm

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping

DG Freight - $0.00
Charge for Dangerous Goods Freight

Free Shipping - $0.00

Express Shipping - $14.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

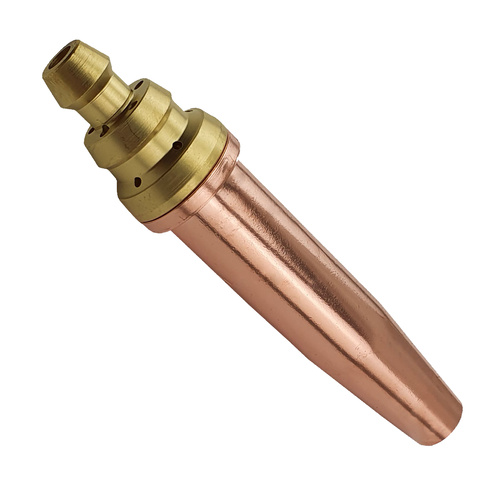

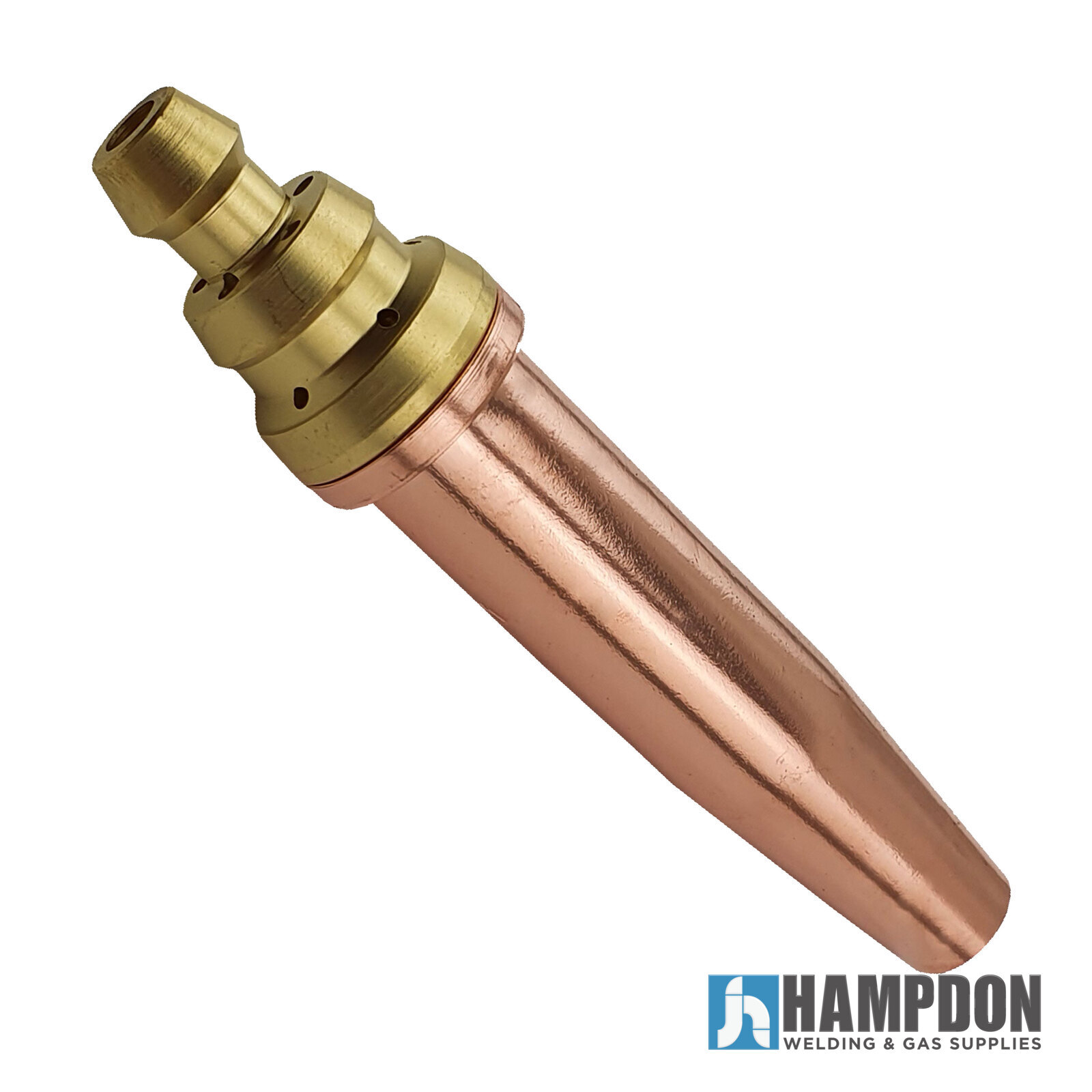

Three seated cutting tip suitable for use on Quickie Gas cutting machines

Features

For use with Oxygen and LPG gases
Comply with AS 4603-1999
Manufactured from High Quality raw materials
Cutting Thickness 15-30mm Cut
Gas Consumption (Fuel): <> 10 L/min
Gas Consumption (Oxy): <> 41 L/min
Recommended Operating Pressure (Fuel): 20 kPa
Recommended Operating Pressure (Oxy): 300Pa
3 Seat Design
Made for industrial/daily use
CIG Equivalent part # 306099
BOC Equivelent part # PNM 16
10 x tips each pack
UNIMIG Part #: PNME-02

LPG 3 Seat Cutting Tip Sizes & part Number (SKU)

00 - 0-5mm = 400099
0 - 5-10mm = 400100
1 - 10-15mm = 400101
2 - 15-30mm = 400102
3 - 30 - 40mm = 400103
4 - 40 - 50mm = 400104
5 - 50 - 100mm = 400105
6 - 100 - 150mm = 400106
7 - 150 - 250mm = 400107
8 - 250 - 300mm = 400108

(400102-10)

SKU	400102-10
Brand	Comet
Shipping Weight	0.0800kg
Shipping Width	0.150m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000375000m3
