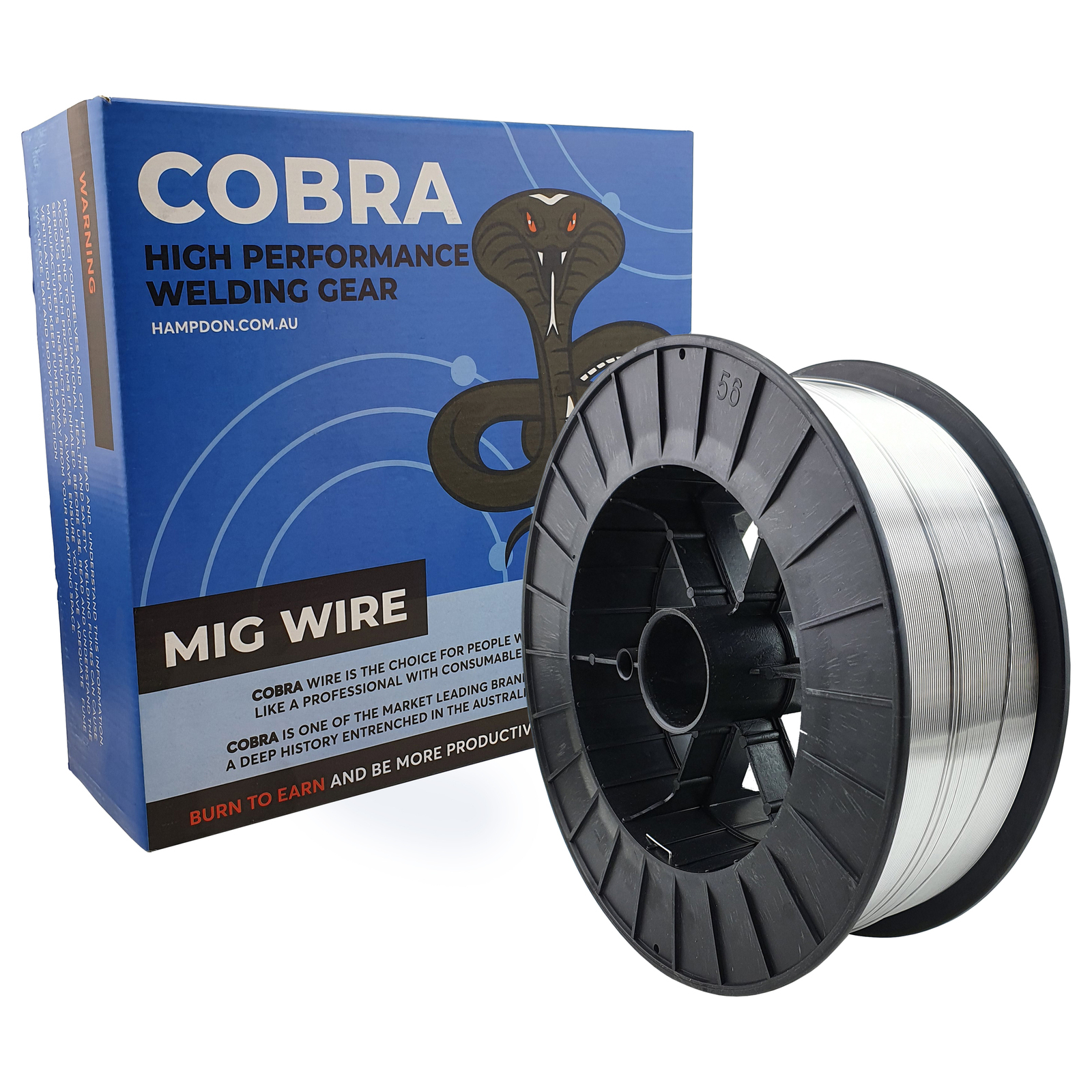

15kg - 1.2mm ER2209T1 Flux Cored Duplex Stainless Steel MIG Wire Dual Shield

15kg - 1.2mm ER2209 Duplex Stainless Steel Flux cored wire

For welding wrought, forged or cast 22Cr duplex stainless steels for severe service in the as-welded condition.
Heterogeneous welding between 22Cr duplex stainless steels and other stainless and low alloyed steels.

Welding typically of materials EN 1.4462, S32205, SAF 2205 or Casting grade equivalents.

Classifications

• AWS A5.9 - ER2209

Features:

• Resistance to Pitting and Chloride induced stress corrosion cracking is maintained with Ferrite levels >30-50FN & PREN >35 typically.
• The microstructure of the weld metal consists of austenite and ferrite
• Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties
• Care should be taken with welding heat input & Interpass temperature to ensure correct microstructure is achieved with approximately 50/50 austenite and Ferrite matrix.
• Flux-cored 1.2mm Dual shield Wire.
• Use with 100% Co2 or Argon Heavy mix 20% minimum Co2.
• For welding 2205 Base material also.
• High-Quality Cobra Brand Wire.

Classifications.

• NB/T 47018.3-2017  S2209
• GB/T29713-2013 S2209
•  YB/T 5092-2016  H022Cr22Ni9Mo3N
• ASME SFA-5.9-2019 ER2209
