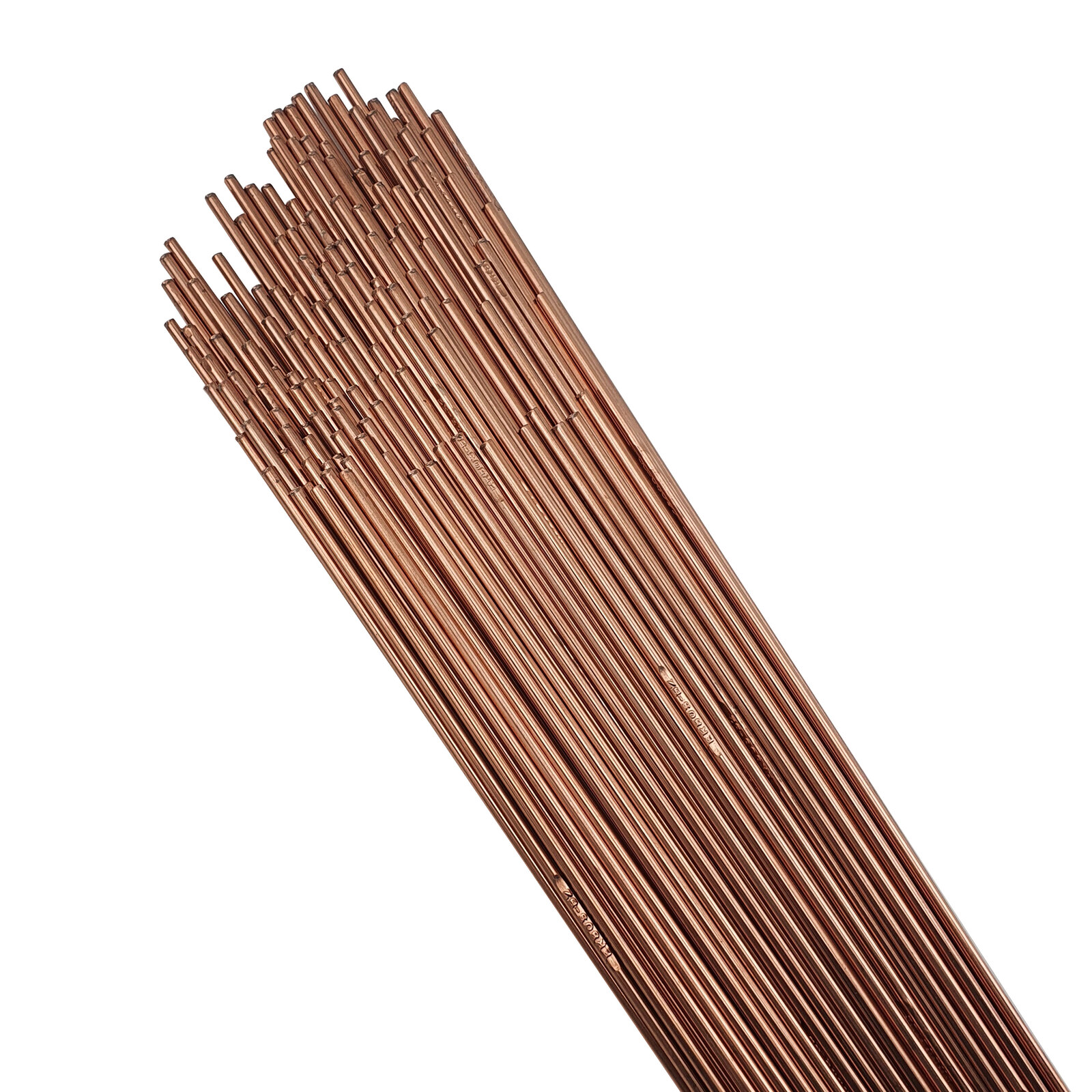

1kg Pack - 2.4mm Chrome Moly TIG Filler Rods - ER80S-D2

ER80S-D2 is designed to give high strength welds compared to standard ER70S-X filler materials. This wire contains additional amounts of manganese and silicon which produces weld deposits which have high ductility, excellent impact values and tensile strengths of approximately 100,000 psi.

ER80S-D2 is commonly used on low carbon and low alloy steels where standard tensile strengths provided by plain carbon steel wires are inadequate.

Item Specifications

• Grade – ER80S-D2

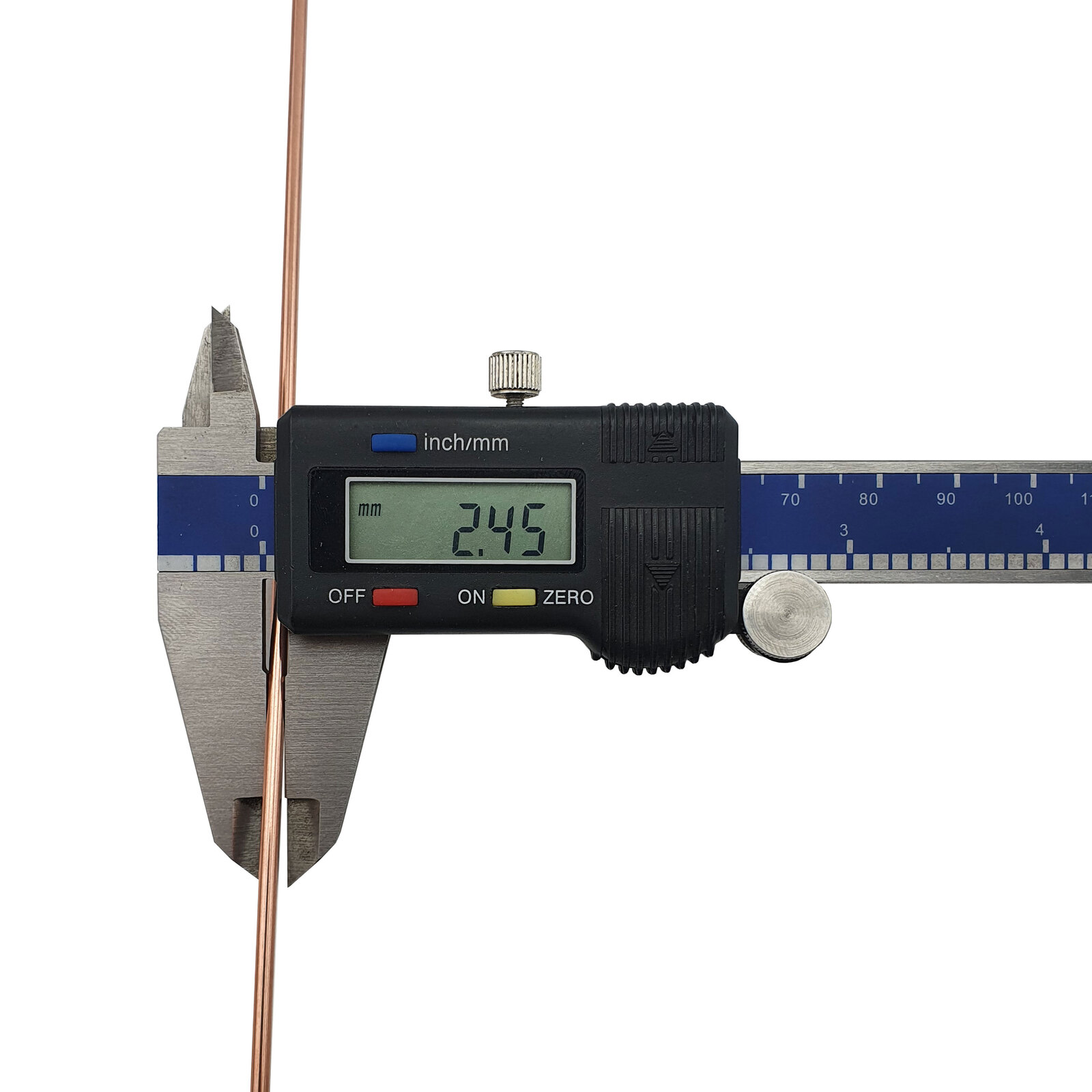

• Diameter 2.4mm
• 1kg pack
• Roughly 30 Sticks
• 1000mm Long
• Copper coated which keeps your wire pure whilst in storage.

Product Specifications

• Often used when fabricating vehicle roll cages and high strength / Impact components.
• Can be used to join 4140 to Mild steel
• High weld metal toughness
• AWS specification: A5.28: ER 80S-D2
• Individually packed and labelled
• Transported in a sturdy tube or box which ensures your wire stays in great condition during transport.
• Sensational flow characteristics
• Produces exceptional welds that are free of cracks, Fusion defects and other problems which inferior wires are prone to.

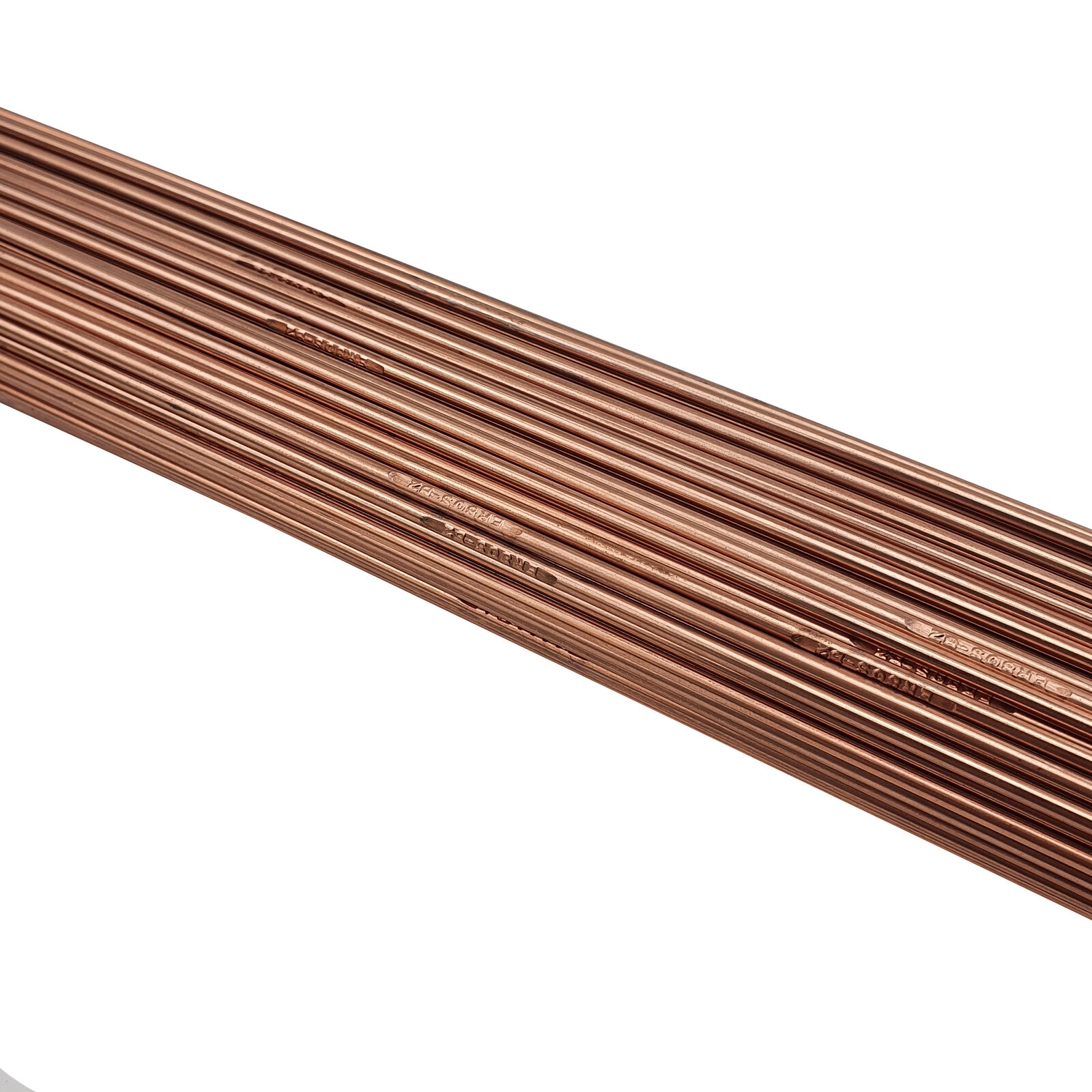

• Each rod is individually stamped, or laser engraved with its grade identification marking.
• All filler wire and electrodes that Hampdon industrial stock is and premium quality and can be supplied with a certificate of conformance which is essential for manufactures data reports (MDR).

Applications

• Boilers and pressure vessels
• Earth moving repairs and fabrication
• Petrochemical industry
• Automotive industry.
