Hampdon Industrial stocks the premium range of Magmaweld Rutile & Basic Electrodes. E6012 is a general purpose electrode that offers outstanding joining characteristics, particularly for applications with wide gaps due to poor fit up. These Electrodes maintain a stable arc and operates at high currents with low spatter. Extremely versatile, E6012 is a great multipurpose electrode which can be used with both AC and DC power. Typical applications include Farming, General repairs, metal furniture construction, tanks, ornamental iron and sheet metal.
Features:
- Made in Turkey
- 2.0mm thickness diameter
- 350mm length
- 400g weight
- Product code – 11107DREM2
- Stick code – ESR 12
- 33 Sticks Approximate
- Market-leading Magmaweld brand
- Industrial Quality
- For Storage & Re-Drying Information: Generally not required. If required, redry for 1 hour at 110°C. It should be stored in a dry room (relative humidity < 50%, room temperature > 20°C) on wooden pallets.
- Equivalent to Gemini Part # 100011
- Hampdon Part # 6012-2.0
Properties and Applications:
Especially suitable for welding in sheets thinner then 5 mm, galvanized sheets and tubes, primer painted, painted and slightly rusty steels and in production of tanks and boilers, tube installations. Very easily operated in positional welding, including vertically-down. Good gap-bridging even at wide root openings. Smooth arc, well suited for tack-welding due to its easy arc striking and re-striking properties. Possible to use equally well both with AC and DC. Welds are smooth and blending into base metal without undercutting.
Manufactured to international standards:
- AWS/ASME SFA - 5.1
- EN ISO 2560 - A
- E6012
- E38 0 RC 11

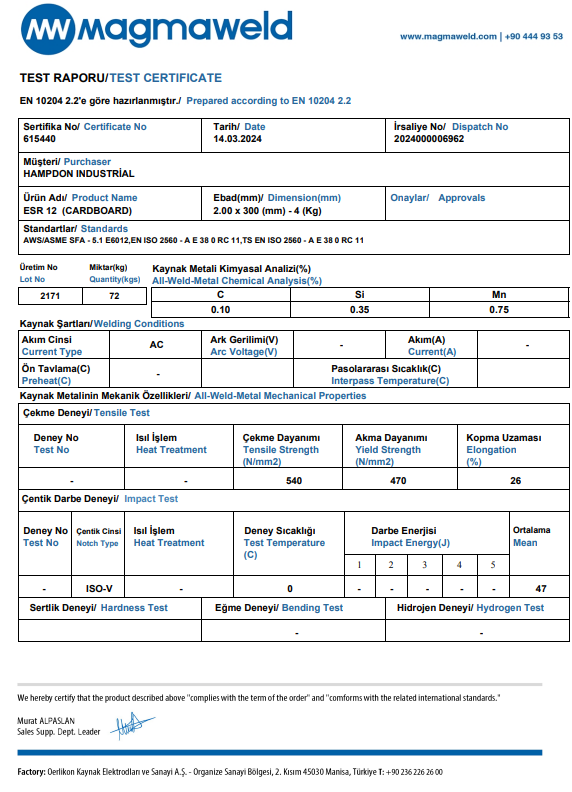

Typical Chemical Values of Weld Metal
Type of Analysis |
C |
Si |
Mn |
Weld Deposit |
0.10 |
0.35 |
0.75 |
Typical Mechanical Values of Weld Metal(%)
Test Condition |
Yield Strength (N/mm²) |
Tensile Strength (N/mm²) |
Elongation A5 (%) |
Charpy V-Notch Properties (J) |
As welded |
470 |
540 |
26 |
0°C → ≥47 |
Welding Position Applications:
- PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
- PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
- PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
- PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
- PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
- PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
- PG - 3G Position: This refers to a groove weld performed on the vertical surface of a plate in the vertical position
(6012-2.0)
SKU | 6012-2.0 |
Brand | Magmaweld |
Shipping Weight | 0.4200kg |
Shipping Width | 0.230m |
Shipping Height | 0.010m |
Shipping Length | 0.330m |
