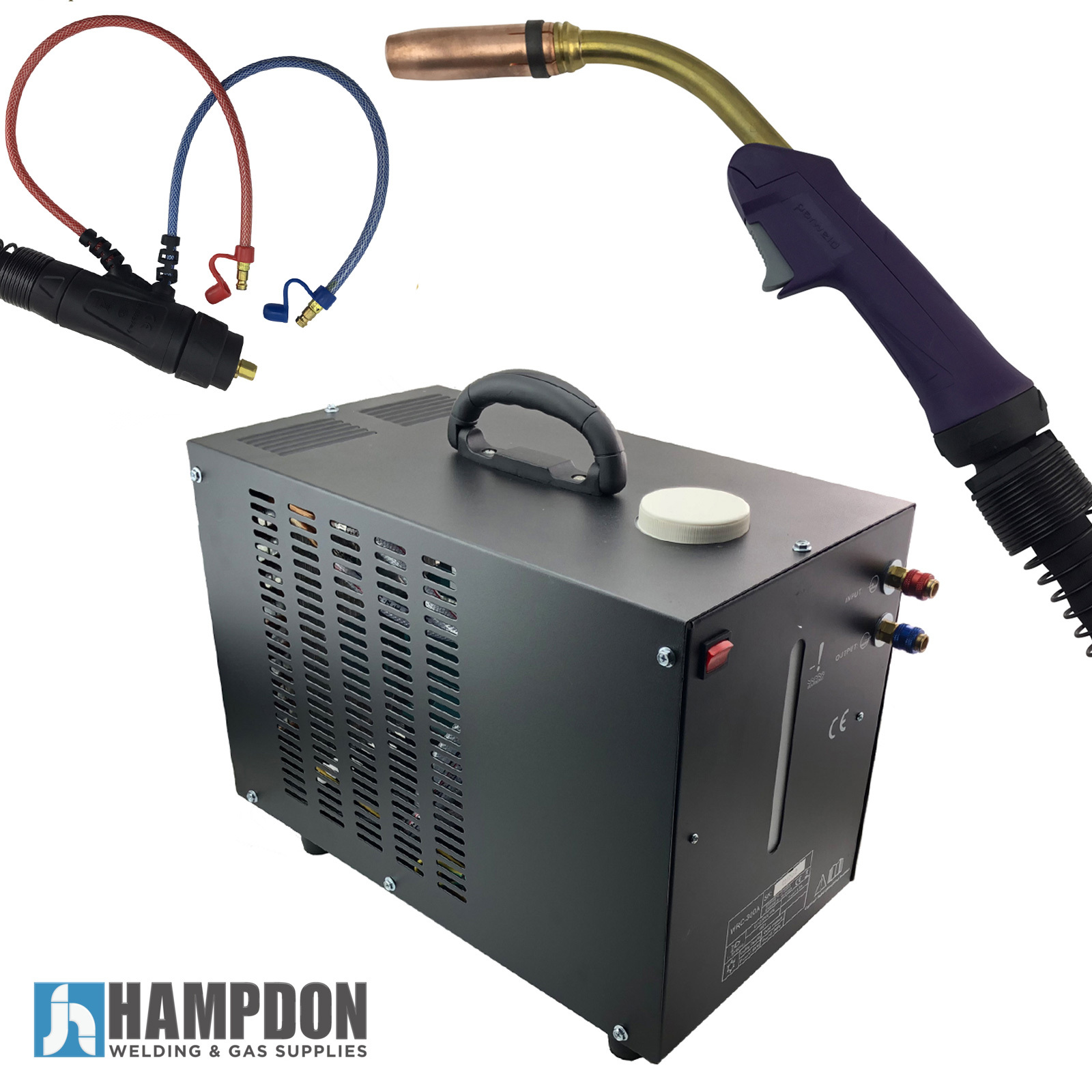

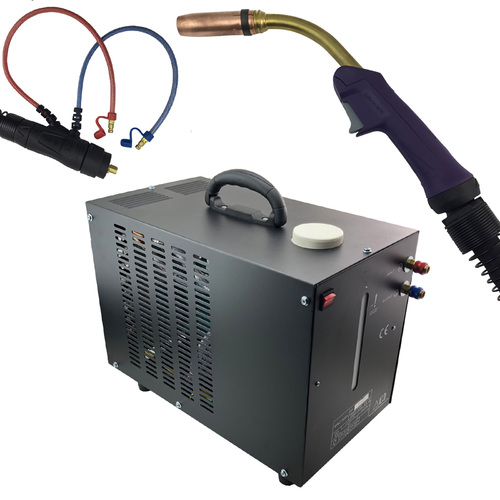

240V 9 Litre Water Cooler with 520 Amp 4m Water Cooled Euro MIG Torch

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping

DG Freight - $0.00
Charge for Dangerous Goods Freight

Free Shipping - $0.00

Express Shipping - $14.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

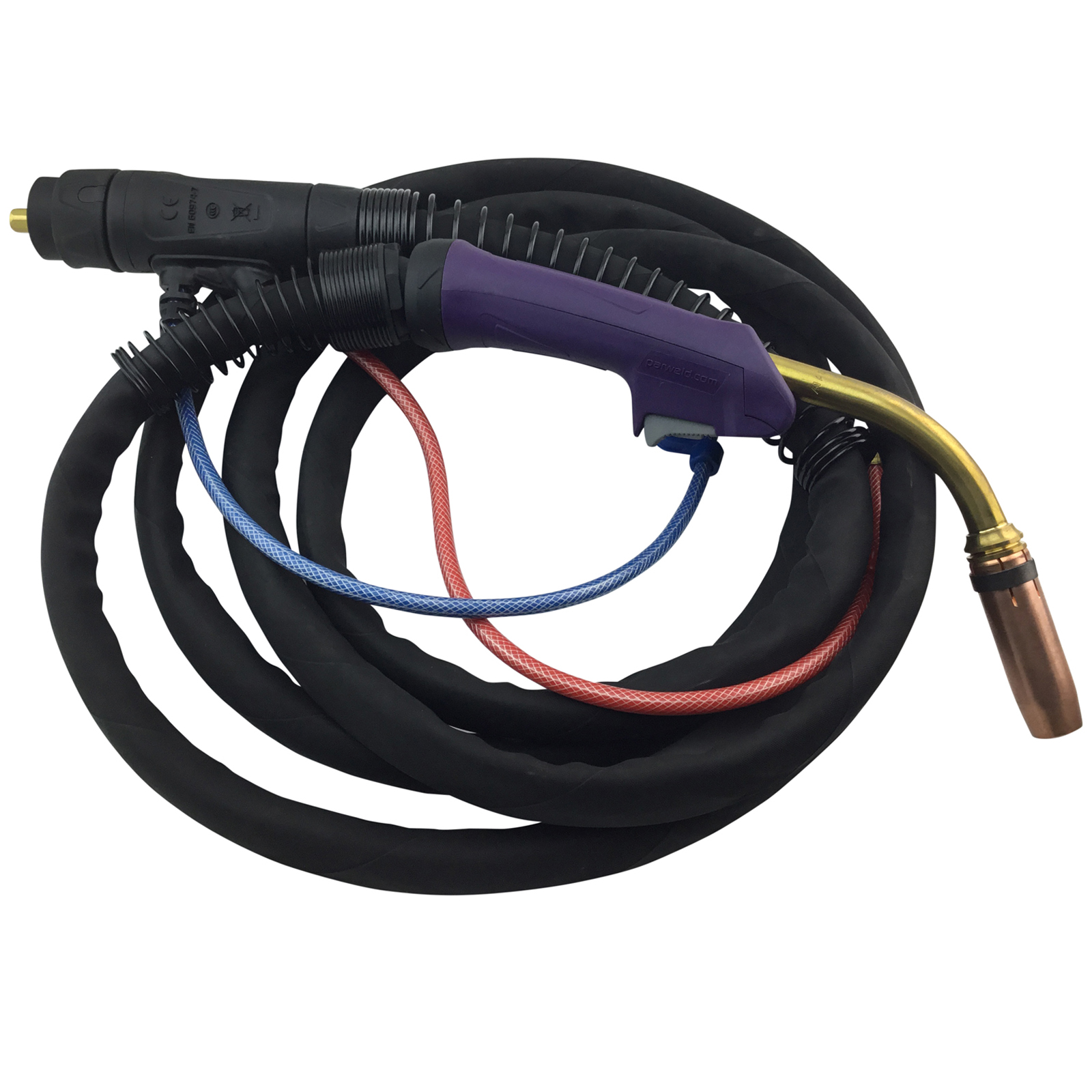

The Parweld range of water-cooled MIG torches are built for operator comfort and provide excellent performance and ergonomics when welding with the greater heat levels generated by higher amperage applications

Features (Water Cooler)

Rated Power 150W
Flow Rate of 5.3 l/min
Maximum start pressure of 500 kpa (70 psi)
Well made unit
Reservoir volume of 9 litre
520A CO2 @ 100% duty cycle
430A mixed gas @ 100% duty cycle
Water Cooled
4-meter lead

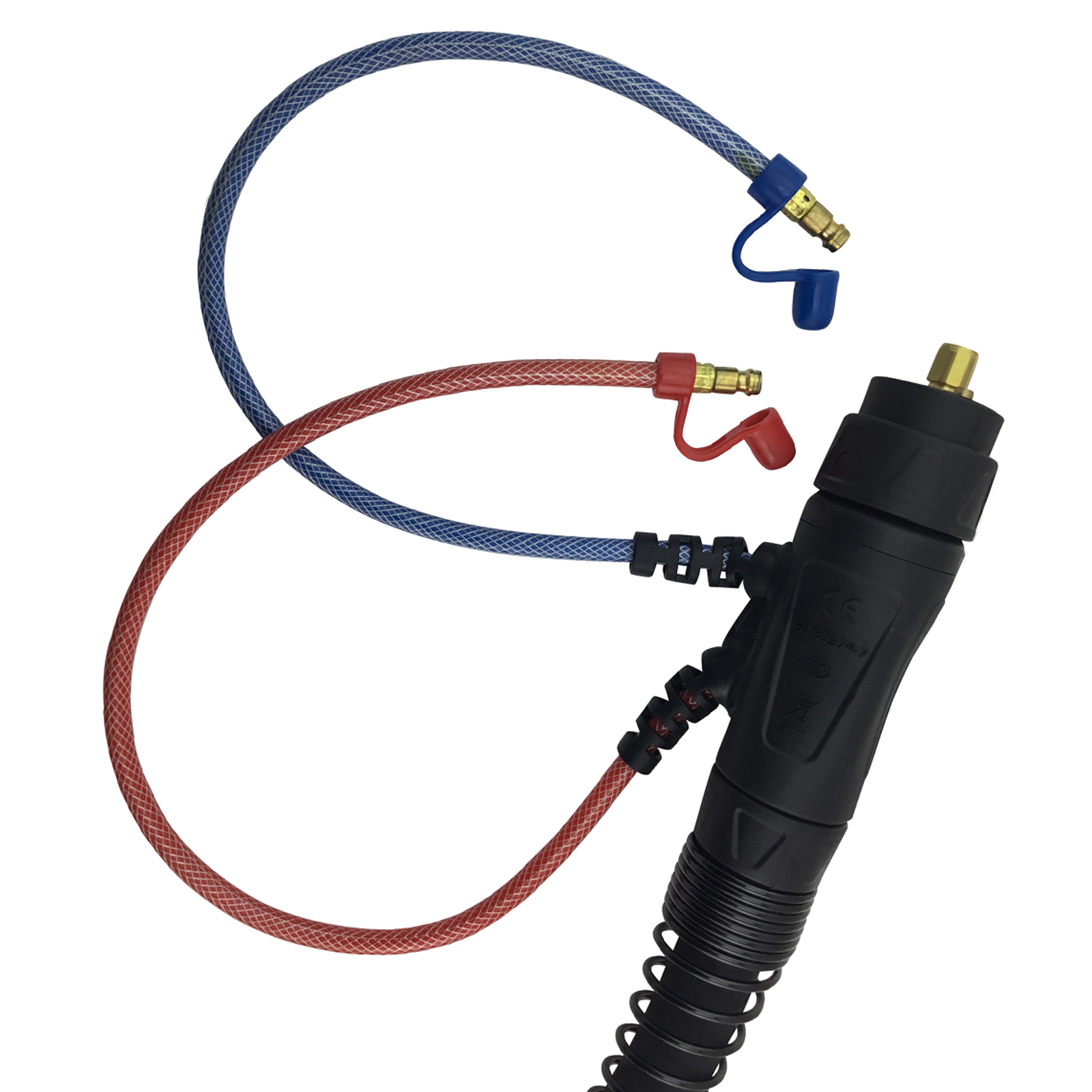

Euro connection
Suits 1.0mm-1.6mm
Inbuilt fan cooled radiator

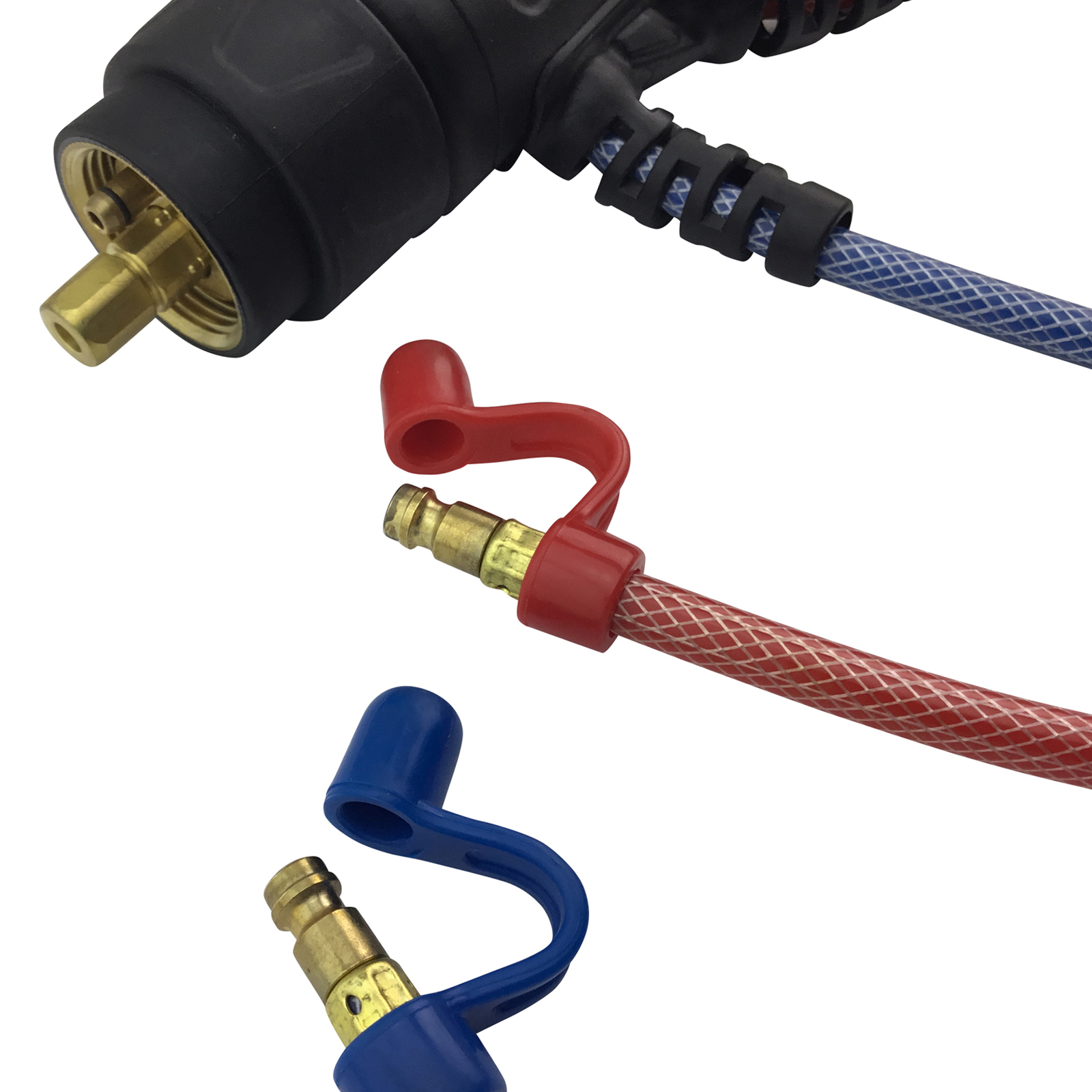

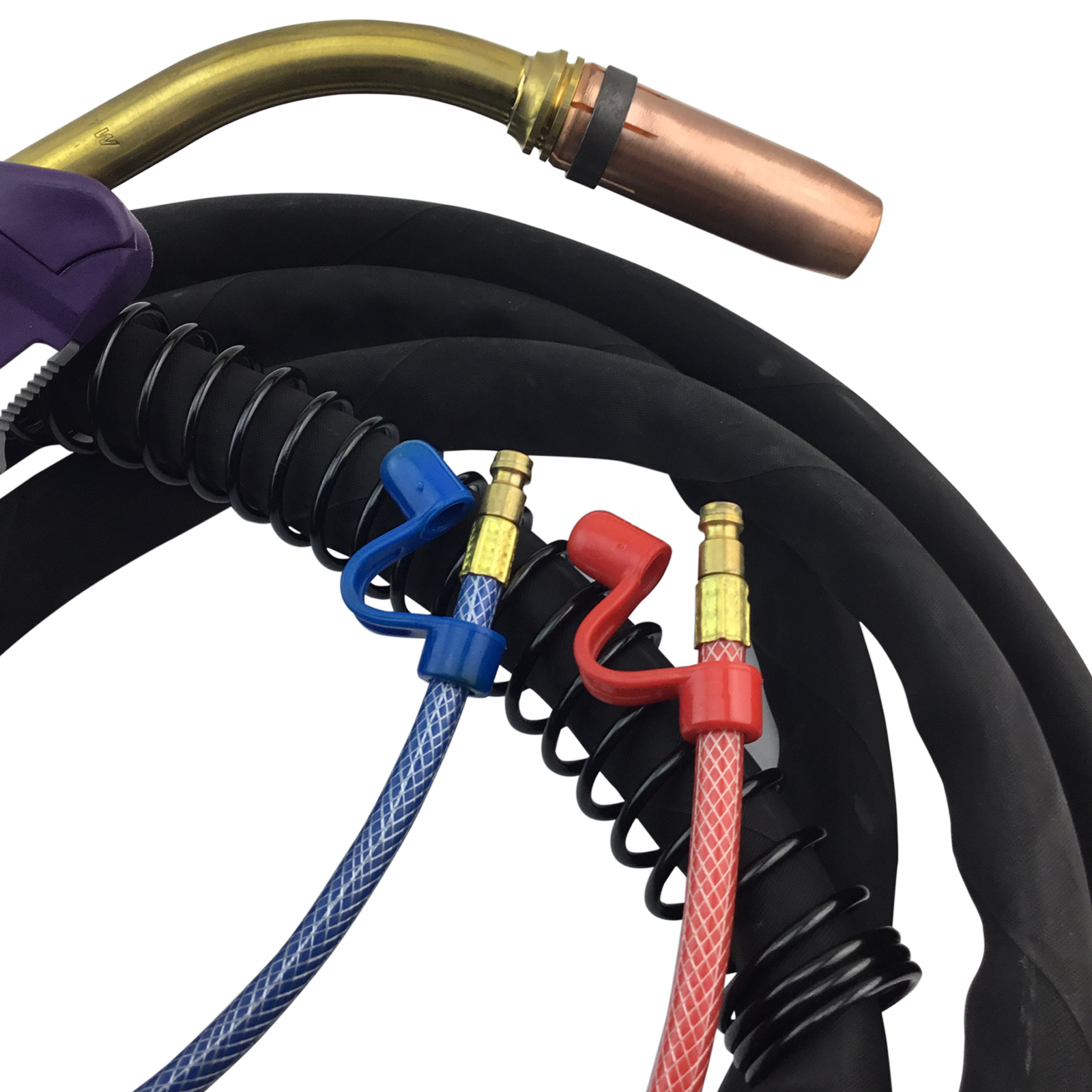

Quick connect water couplings
Male end quick connect for hose part number 10016392
Independent on/off switch
Please note: Cooler may be yellow or Grey
Larger capacity compared to most coolers on the market
Similar to Binzel CR1000 850.1001.1 and Bossweld 600210

Water Cooler Dimensions:

Weight 18kg
Dimensions 415 x 220 x 380m
310mm
330mm including feet
350mm including handle laying flat
370mm including handle, standing up

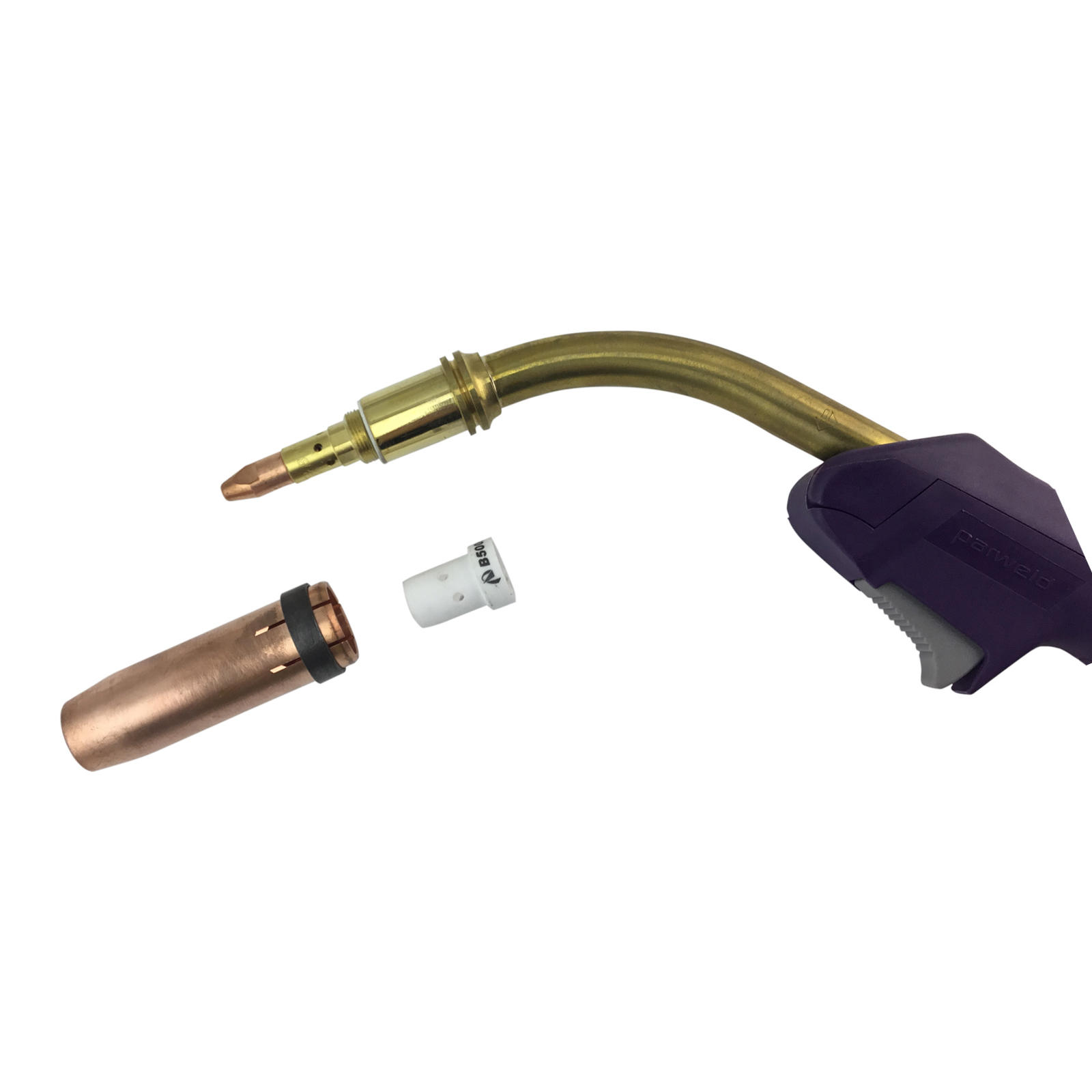

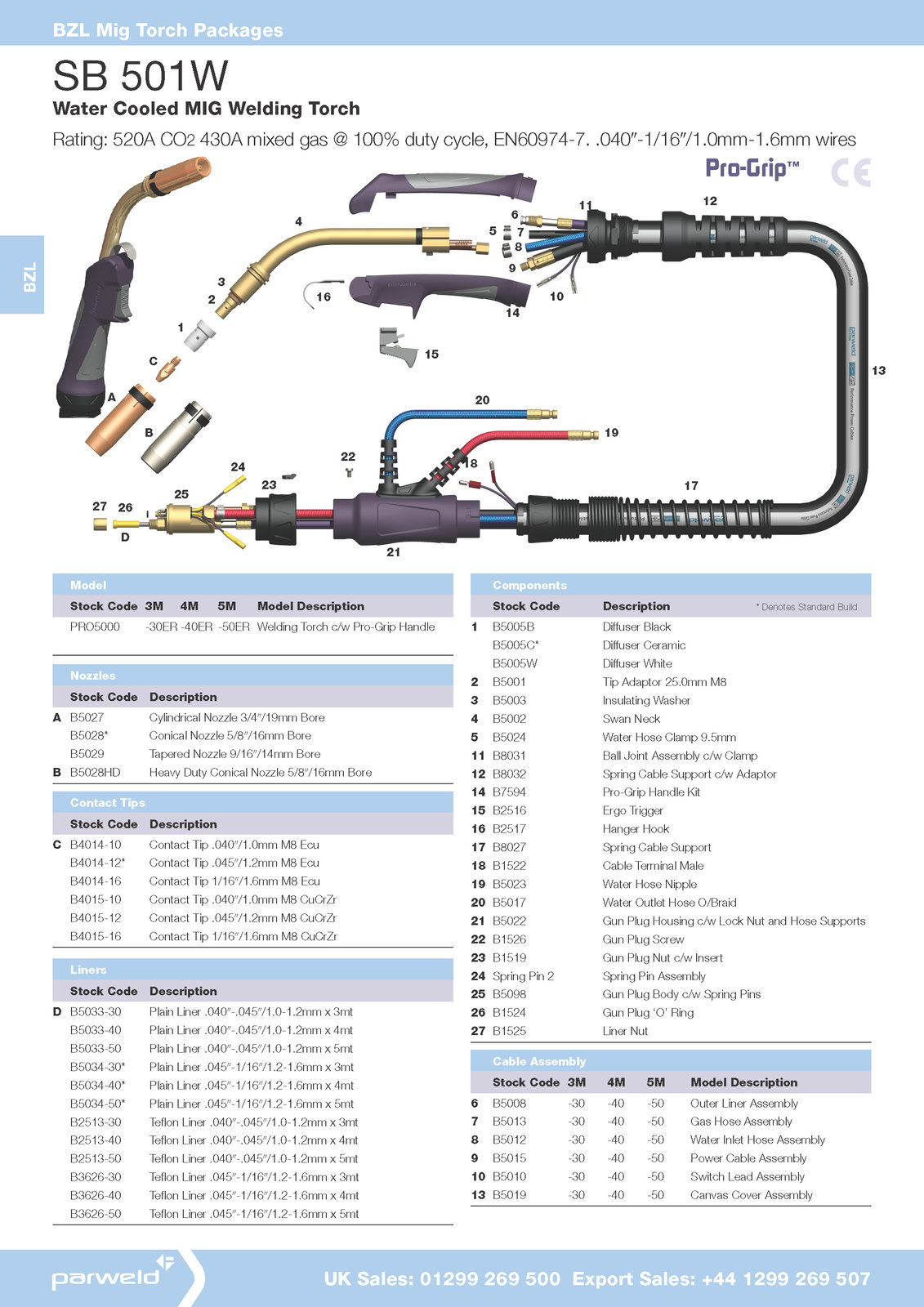

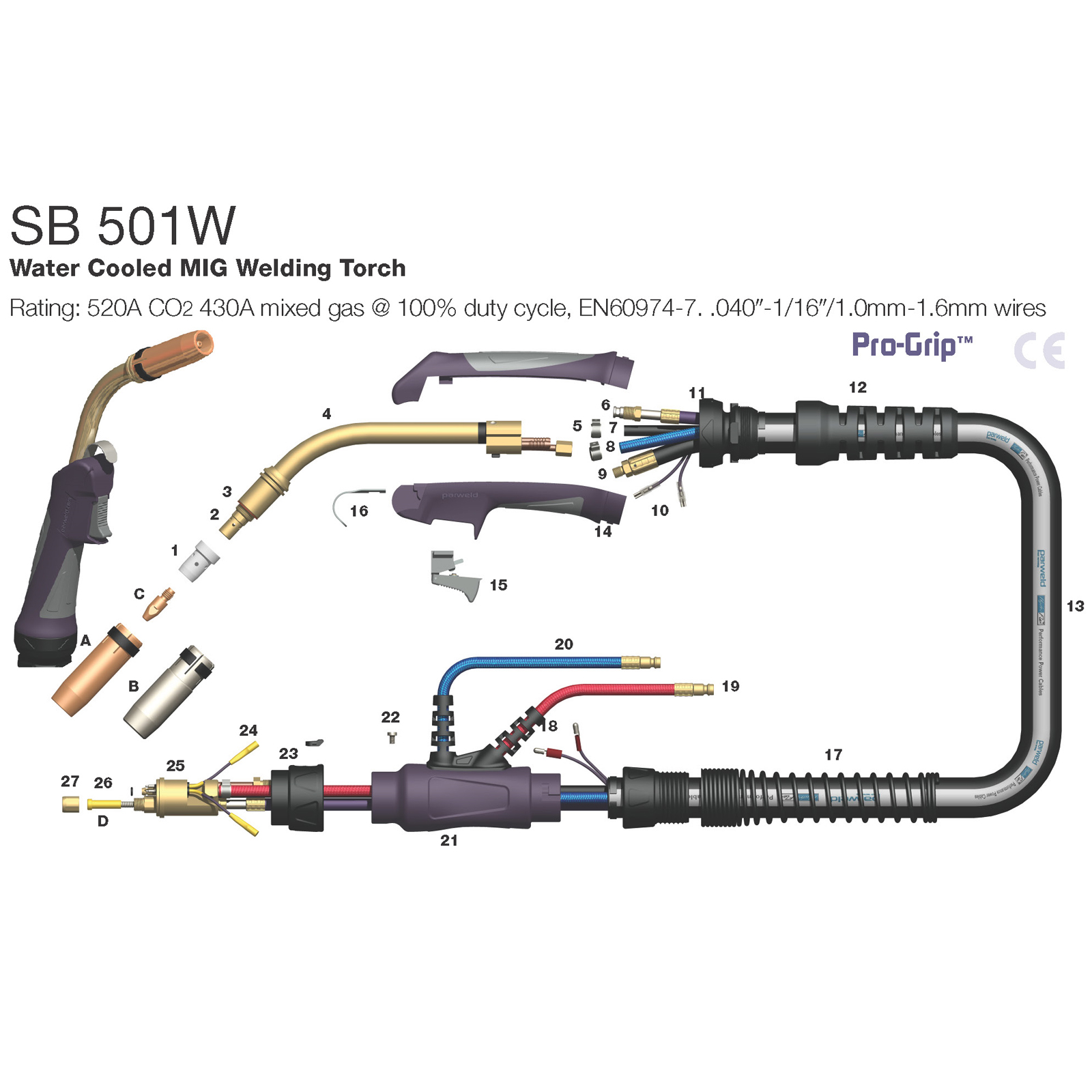

Spare part numbers

Contact tips - CTXX810 (Replace the XX with your wire size. ie: CT09810 is for 0.9mm wire)
Tip Holders - TA501
Nozzles NZCO26 (Conical Standard)
NZCY26 (Cylindrical)
Diffuser DIF38
Swan Neck SN501
