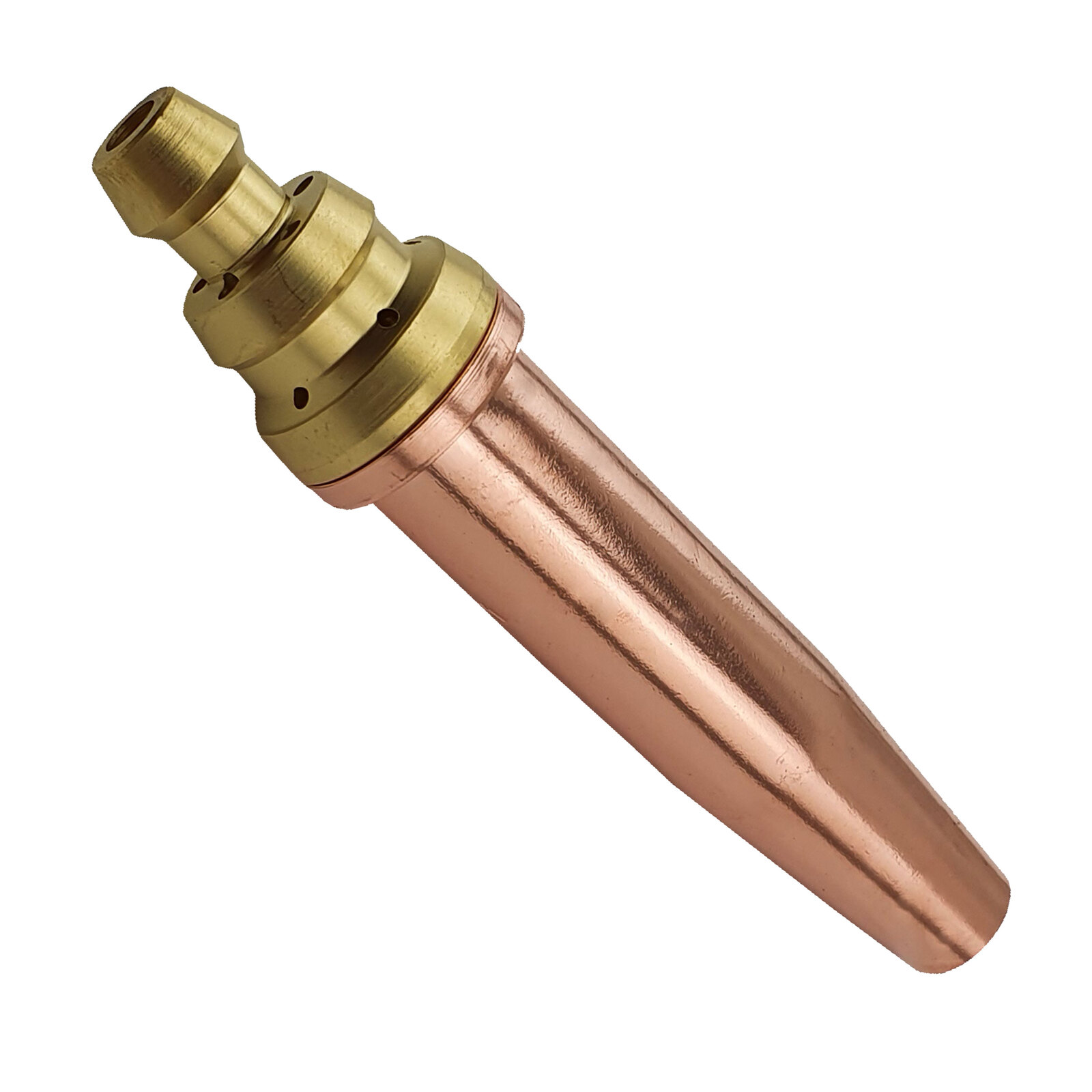

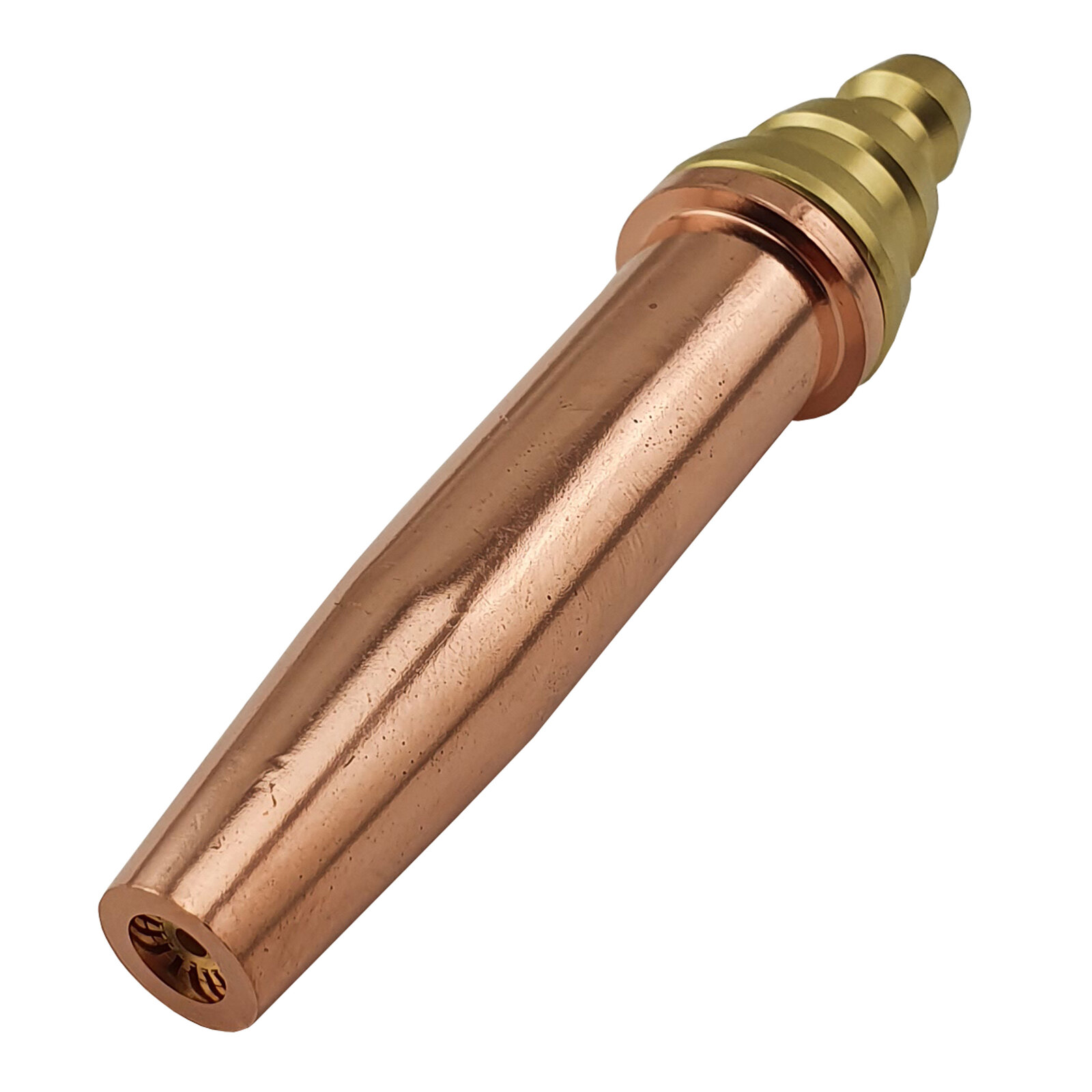

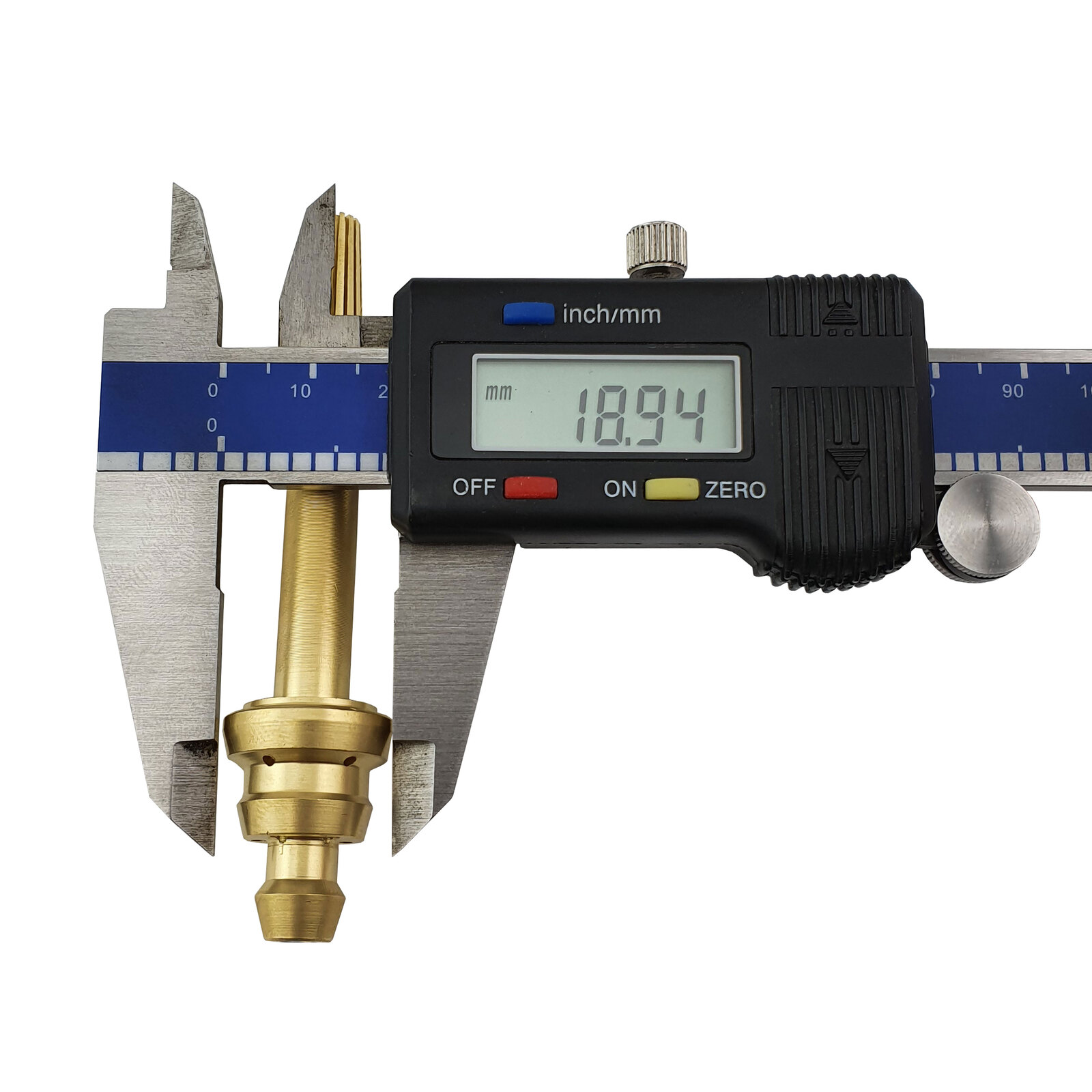

3 Seat LPG Cutting Nozzle Tip Size 7 - Type 54 Cuts 150mm to 250mm

Three seated cutting tip suitable for use on Quickie Gas cutting machines

Features

• For use with Oxygen and LPG gases
• Comply with AS 4603-1999
• Manufactured from High Quality raw materials
• Cutting Thickness 150-250mm Cut
• Gas Consumption (Fuel): <> 18 L/min
• Gas Consumption (Oxy): <> 66 L/min
• Recommended Operating Pressure (Fuel): 50 kPa
• Recommended Operating Pressure (Oxy): 560Pa

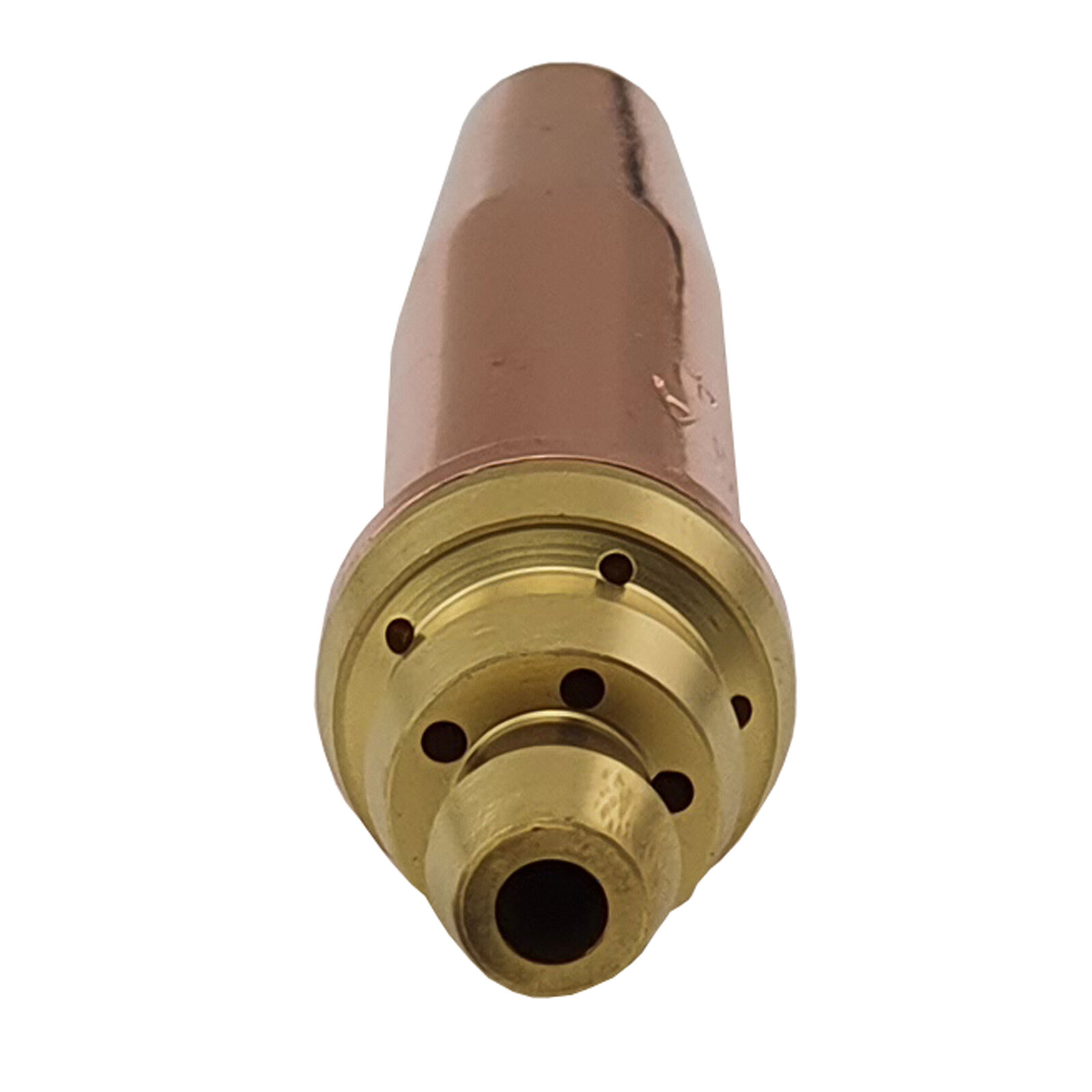

• 3 Seat Design
• Made for industrial/daily use
• CIG Equivalent part # 306104
• BOC Equivelent part # PNM 32

LPG 3 seat Cutting Tip Sizes & part Number (SKU)
00 - 0-5mm = 400099
0   - 6-12mm = 400100
1 -  10-15mm = 400101
2 -  15-30mm = 400102
3 -  30 - 40mm = 400103
4 -  40 - 50mm = 400104
5 -  50 - 100mm = 400105
6 - 100 - 150mm = 400106

7 - 150 - 250mm = 400107
8 - 250 - 300mm = 400108
