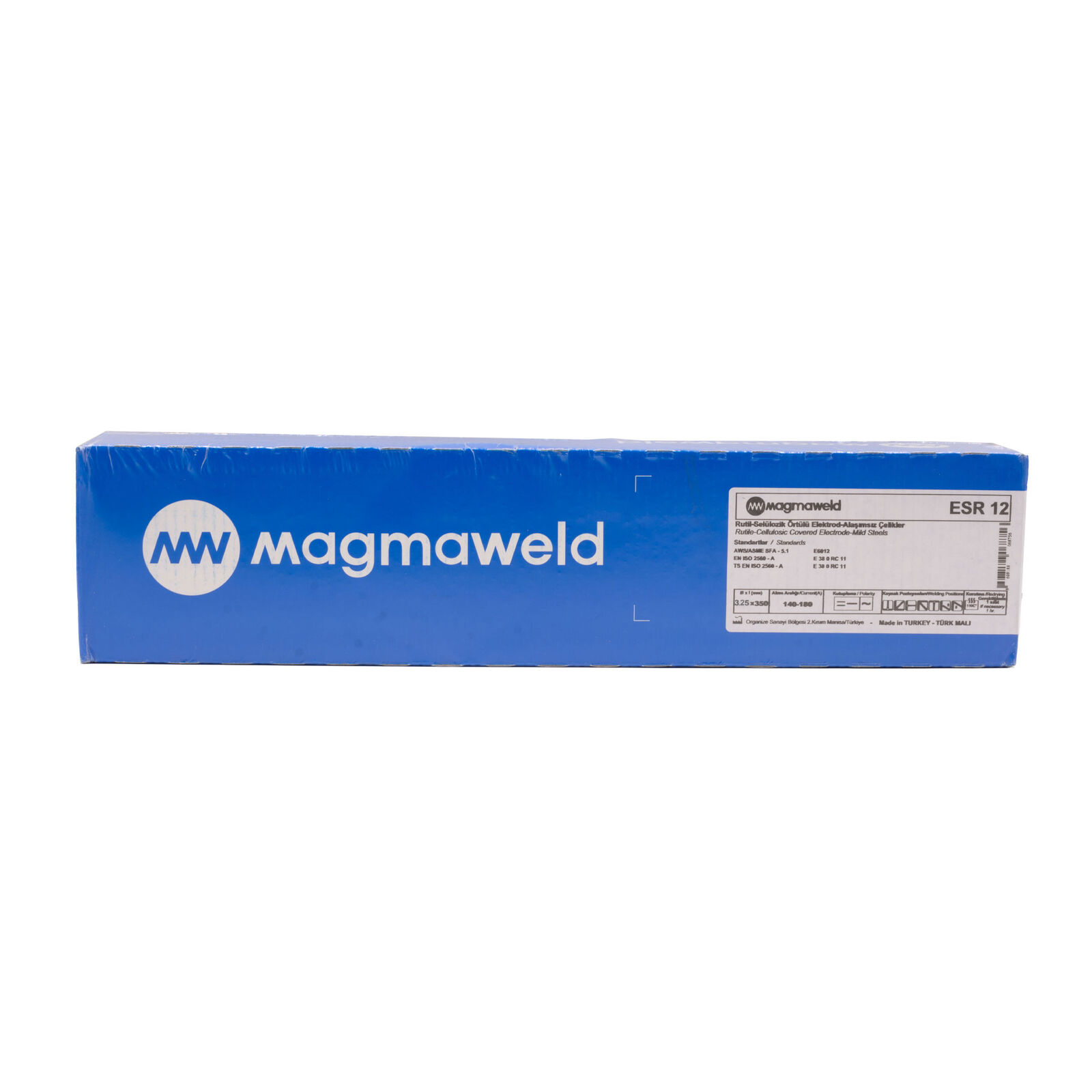

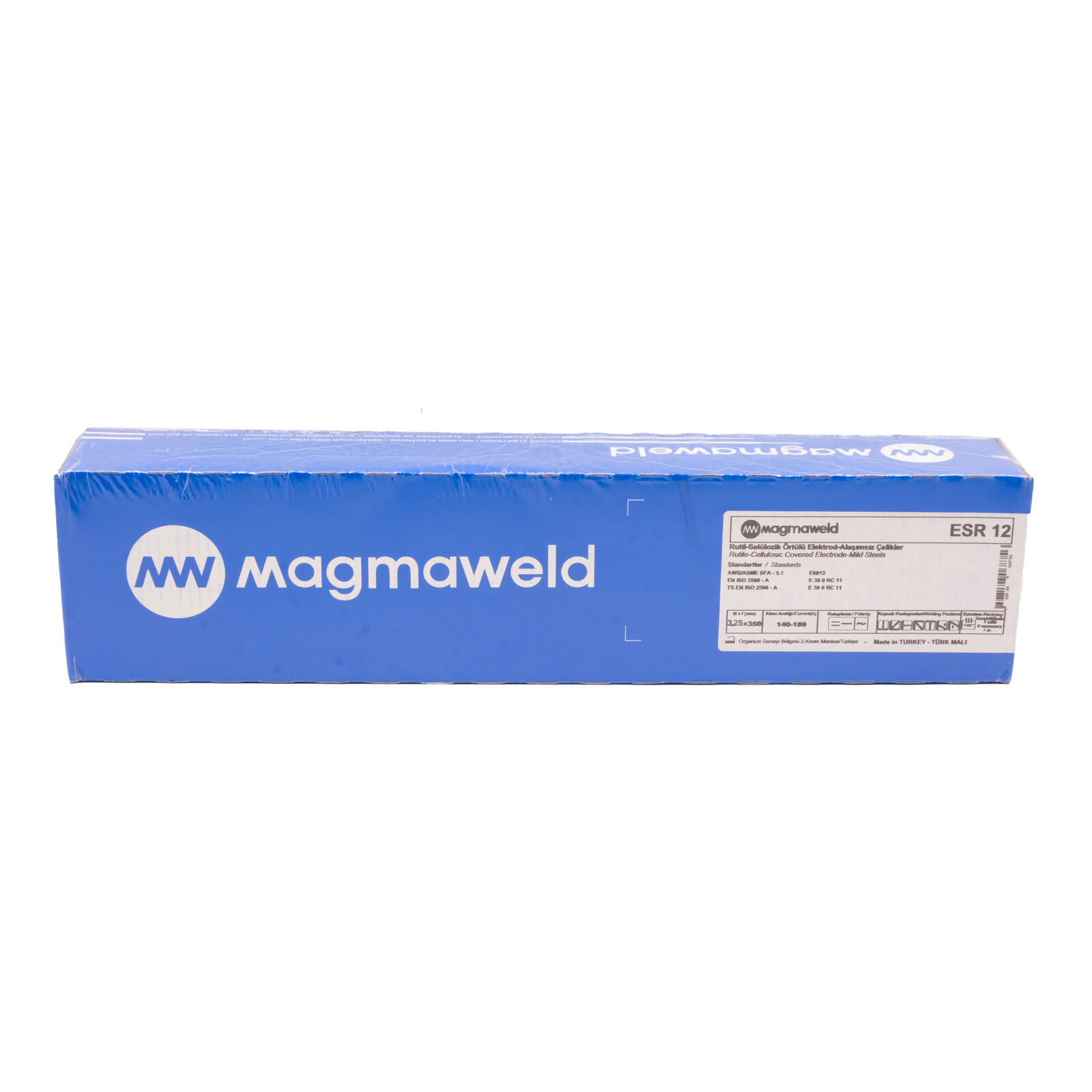

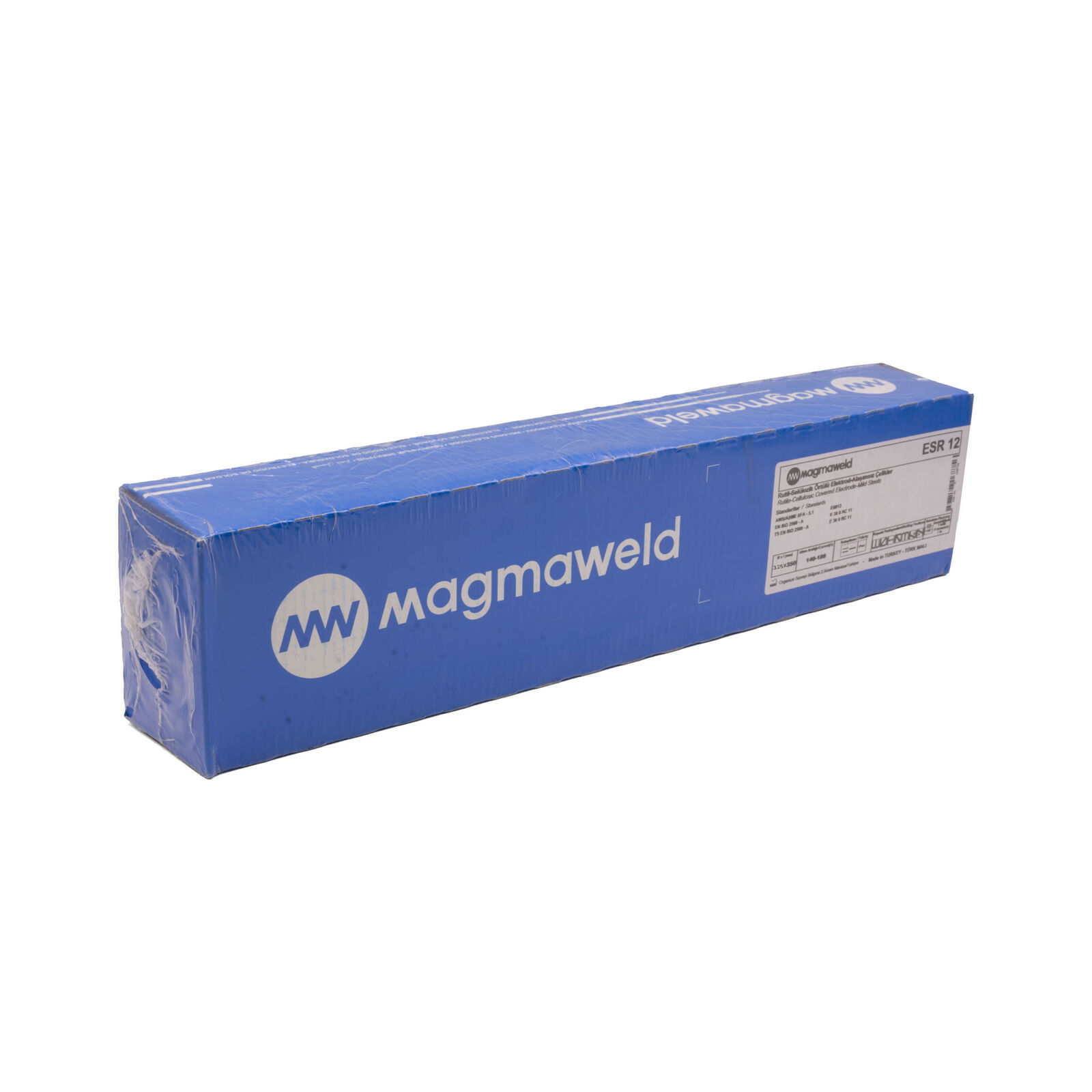

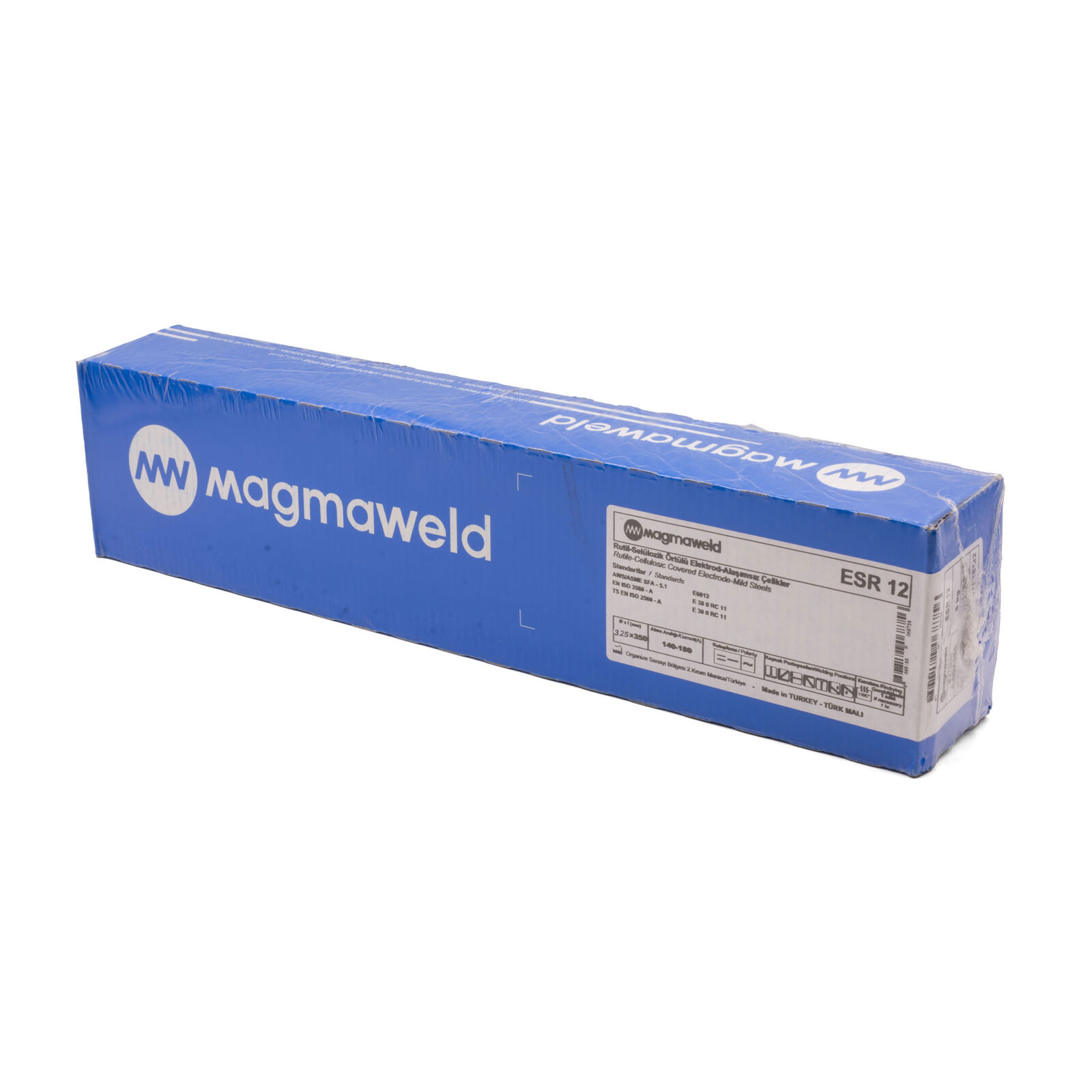

MAGMAWELD 6012 - General Electrode GP 3.2mm Stick Electrodes - 20KG Pack

Hampdon Industrial stocks the premium range of Magmaweld Rutile & Basic Electrodes. E6012 is a general purpose electrode that offers outstanding joining characteristics, particularly for applications with wide gaps due to poor fit up. These Electrodes maintain a stable arc and operates at high currents with low spatter. Extremely versatile, E6012 is a great multipurpose electrode which can be used with both AC and DC power. Typical applications include Farming, General repairs, metal furniture construction, tanks, ornamental iron and sheet metal.

Features:

• Made in Turkey
• 3.2mm thickness diameter
• 350mm length
• 20kg weight

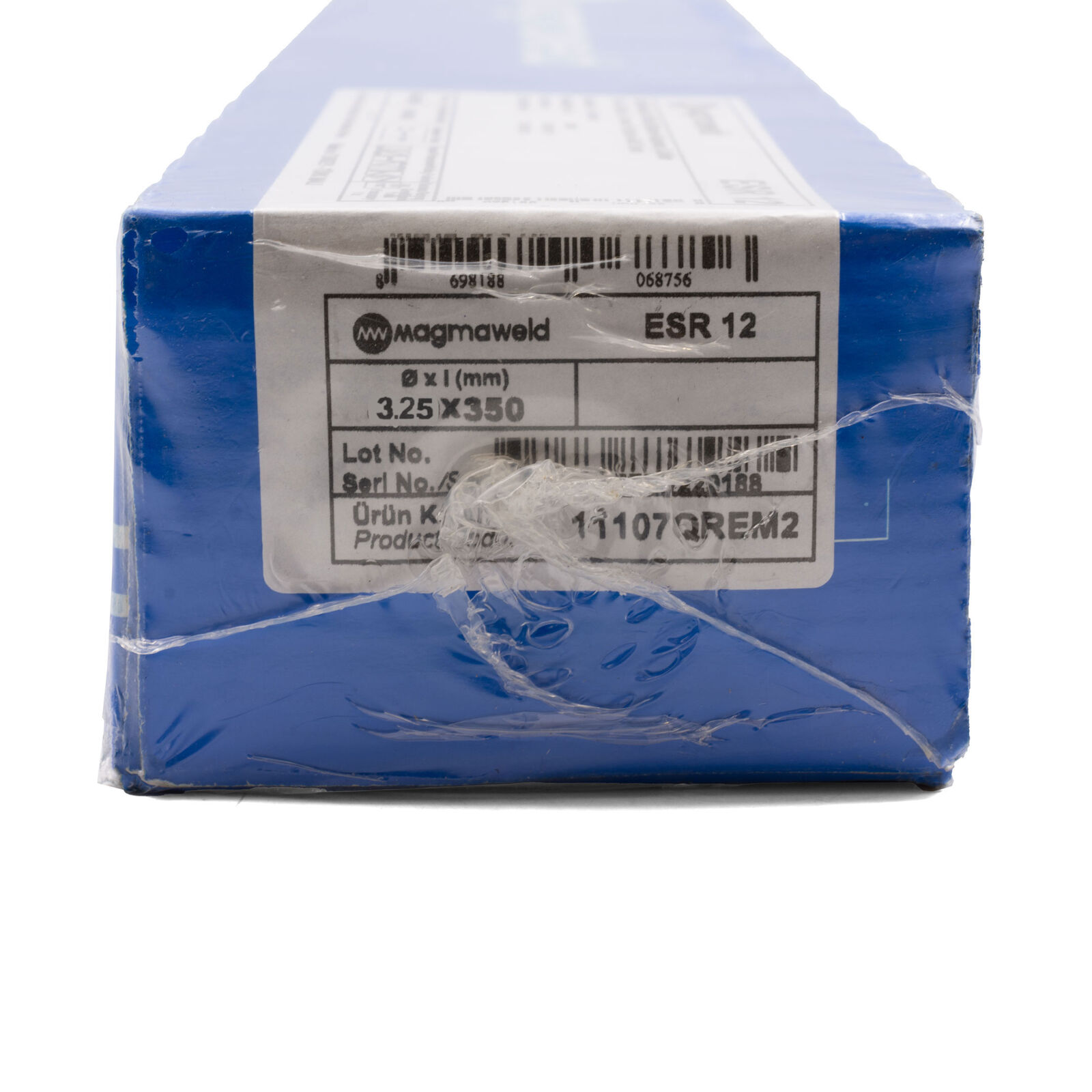

• Product code – 11107NREM2
• Stick code – ESR 12
• 700 Sticks Approximate
• Market-leading Magmaweld brand
• Industrial Quality
• For Storage & Re-Drying Information: Generally not required. If required, redry for 1 hour at 110°C. It should be stored in a dry room (relative humidity < 50%, room temperature > 20°C) on wooden pallets.
• Equivalent to Gemini Part # 100013
• Equivalent to Cigweld Part # 611143
• Hampdon Part # 6012-3.2-20KG

Properties and Applications:

Especially suitable for welding in sheets thinner then 5 mm, galvanized sheets and tubes, primer painted, painted and slightly rusty steels and in production of tanks and boilers, tube installations. Very easily operated in positional welding, including vertically-down. Good gap-bridging even at wide root openings. Smooth arc, well suited for tack-welding due to its easy arc striking and re-striking properties. Possible to use equally well both with AC and DC. Welds are smooth and blending into base metal without undercutting.

Manufactured to international standards:

• AWS/ASME SFA - 5.1
• EN ISO 2560 - A
• E6012
• E38 0 RC 11

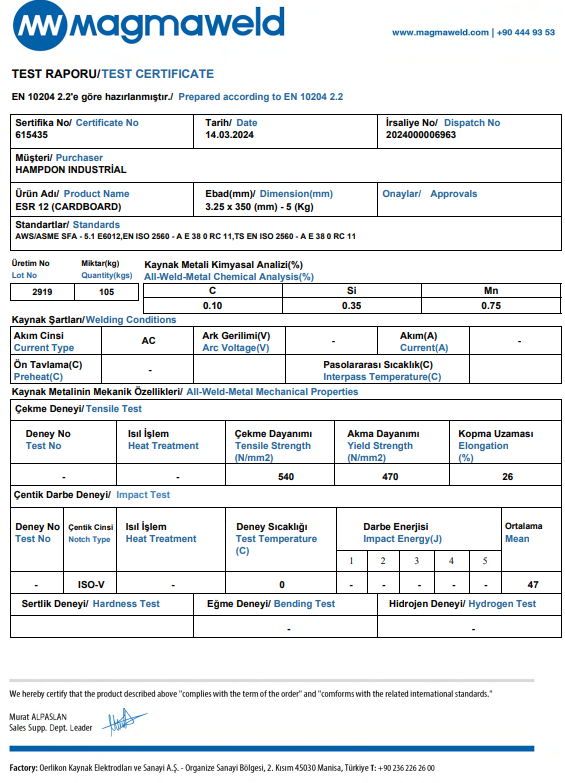

Typical Chemical Values of Weld Metal

Typical Mechanical Values of Weld Metal(%)

Welding Position Applications:

• PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
• PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
• PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
• PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
• PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
• PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
• PG - 3G Position: This refers to a groove weld performed on the vertical surface of a plate in the vertical position
