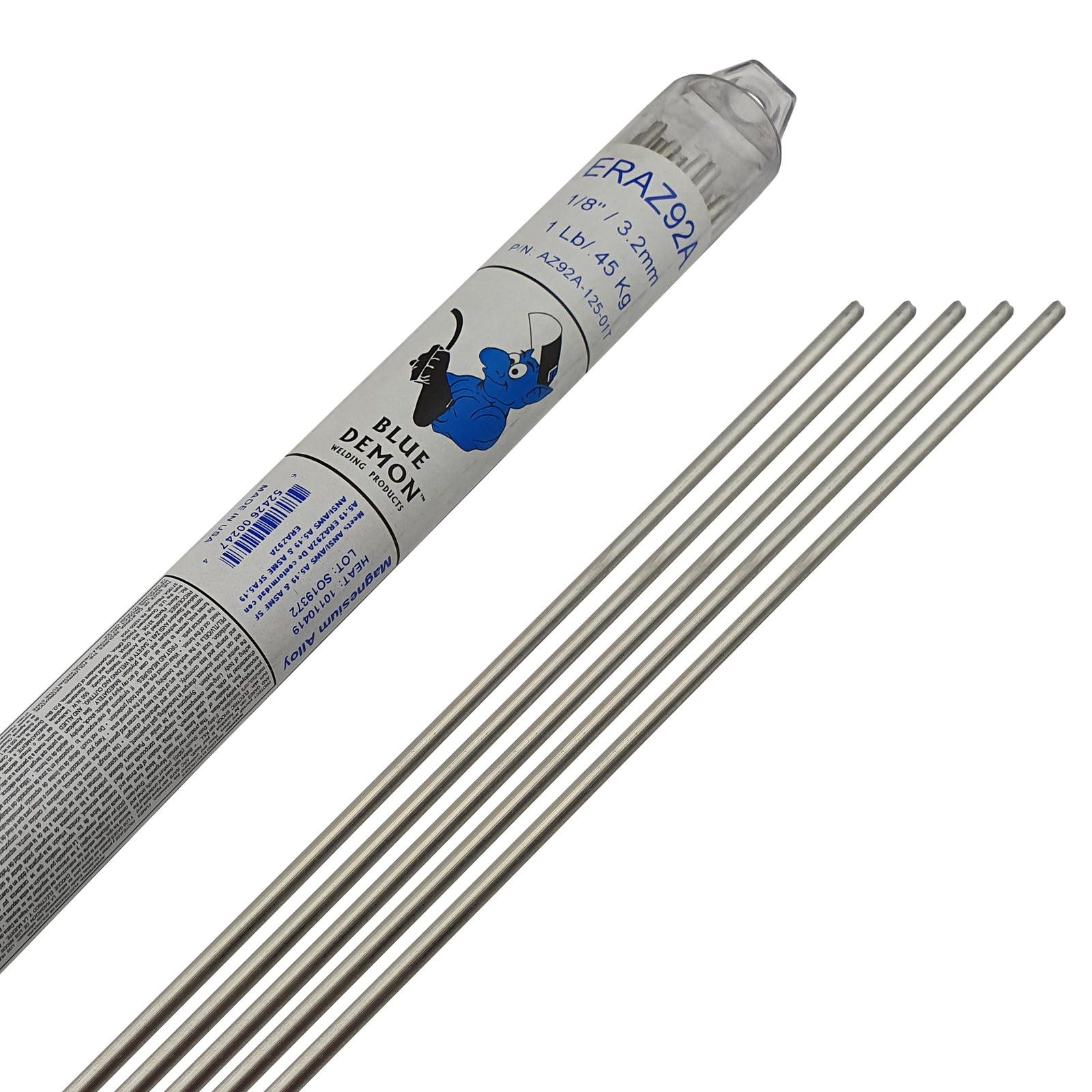

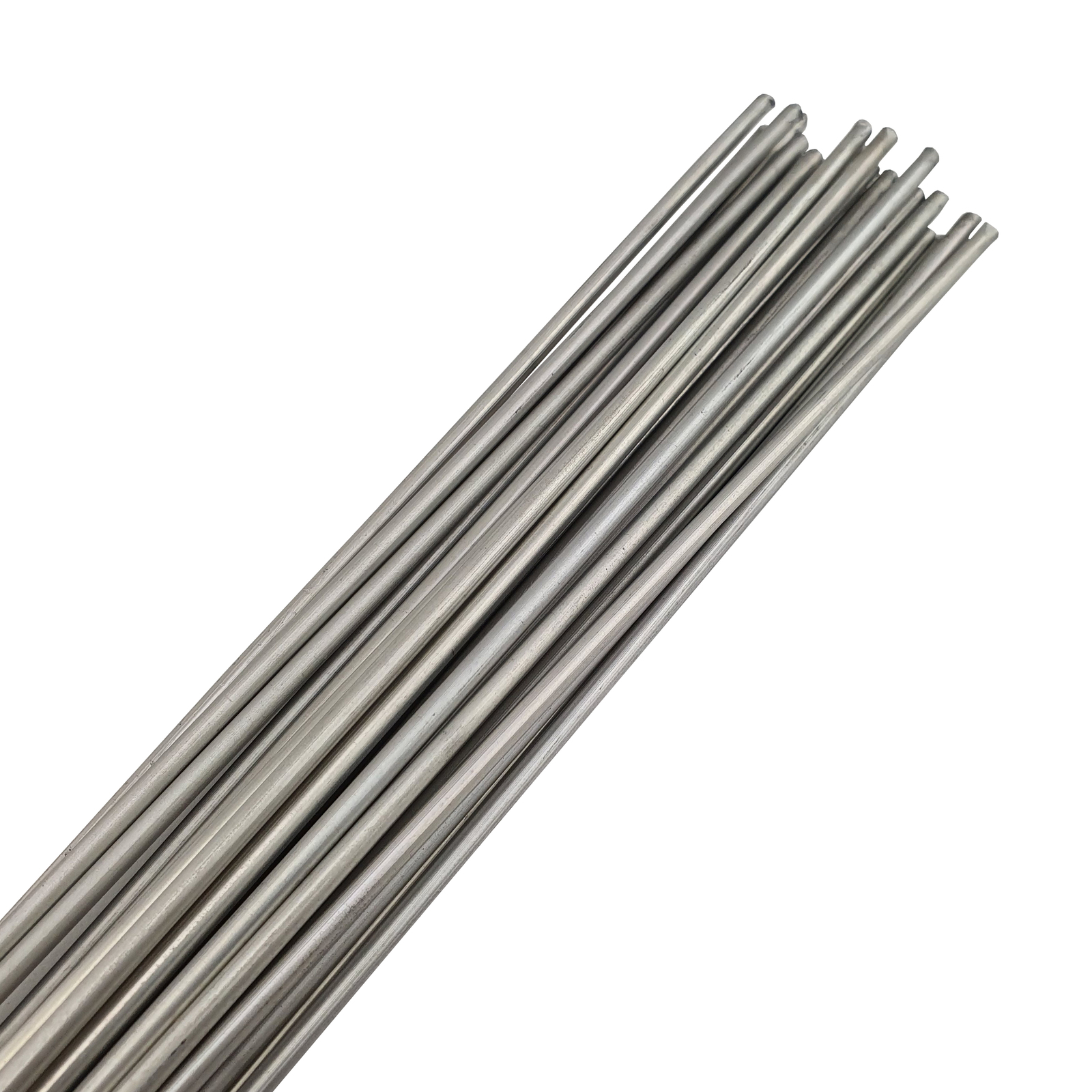

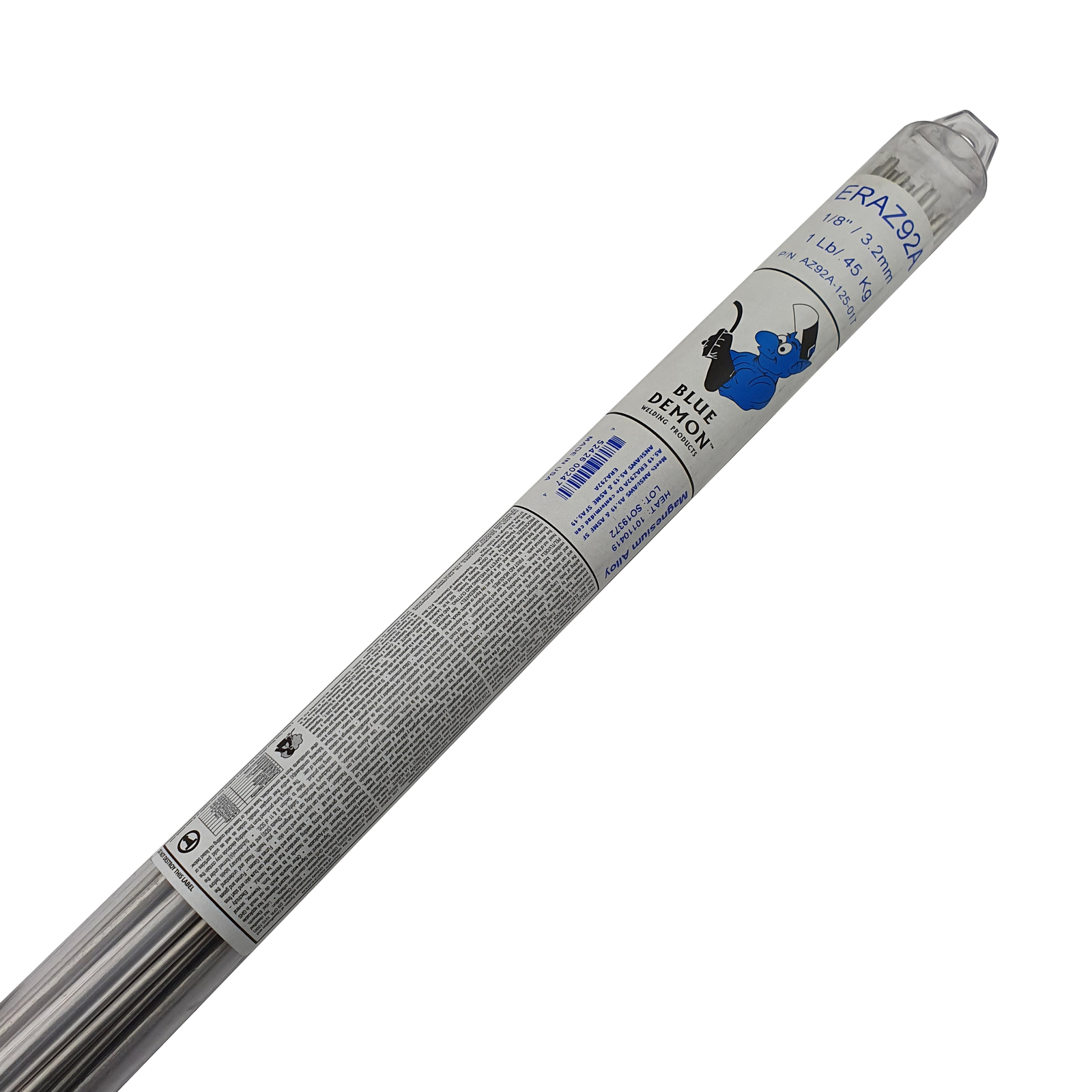

3.2mm Magnesium TIG Rod - Blue Demon - 5 Stick Pack

OUT OF STOCK

3.2mm Magnesium TIG Rod - Blue Demon - 5 Stick Pack

ERAZ92A magnesium welding alloy is a good choice when welding magnesium base metals of similar chemical composition. It produces superior joints with the maximum tensile strengths offered by these alloys. Cleanliness of both the filler metal and base metal is extremely important when welding with magnesium. Flux is NOT required for TIG or MIG welding processes of ERAZ92A magnesium alloy. Although Oxy-acetylene welding of this alloy is uncommon it can be done and should be limited to single-pass welding on thin gauge magnesium materials.

Features:

• 5 Stick Pack - (search ERAZ92A-3.2 for other quantities)
• Sticks roughly 920mm Long each
• Each Rod Contains 88% Magnesium ± 1%
• It produces superior joints with the maximum tensile strengths offered by these alloys
• Cleanliness of both the filler metal and base metal is extremely important when welding with magnesium
• Flux is not required for TIG or MIG welding processes

Typical Mechanical Properties (As Welded):

• Yield Strength, ksi 14
• Tensile Strength, ksi 25
• Elongation%, min 2
• Brinell Hardness 65
• Melting Point °F 1110

Welding Current:

• GTAW - AC/DCEP
• GMAW - DCEP
