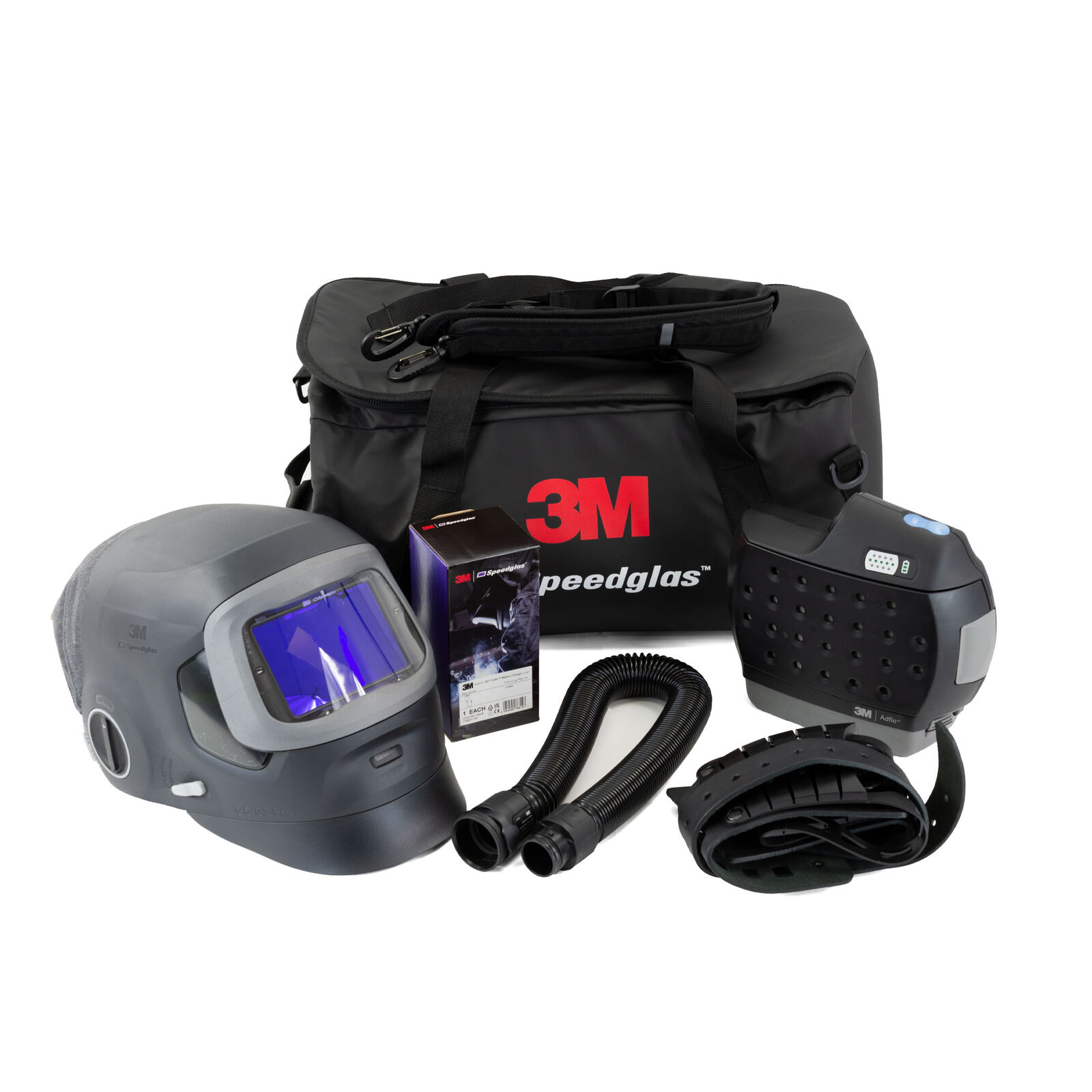

3M™ Speedglas™ G5-03TW Pro Air with Heavy-Duty Adflo PAPR
Part # 637720
More info3M™ Speedglas™ G5-03TW Pro Air with Heavy-Duty Adflo PAPR

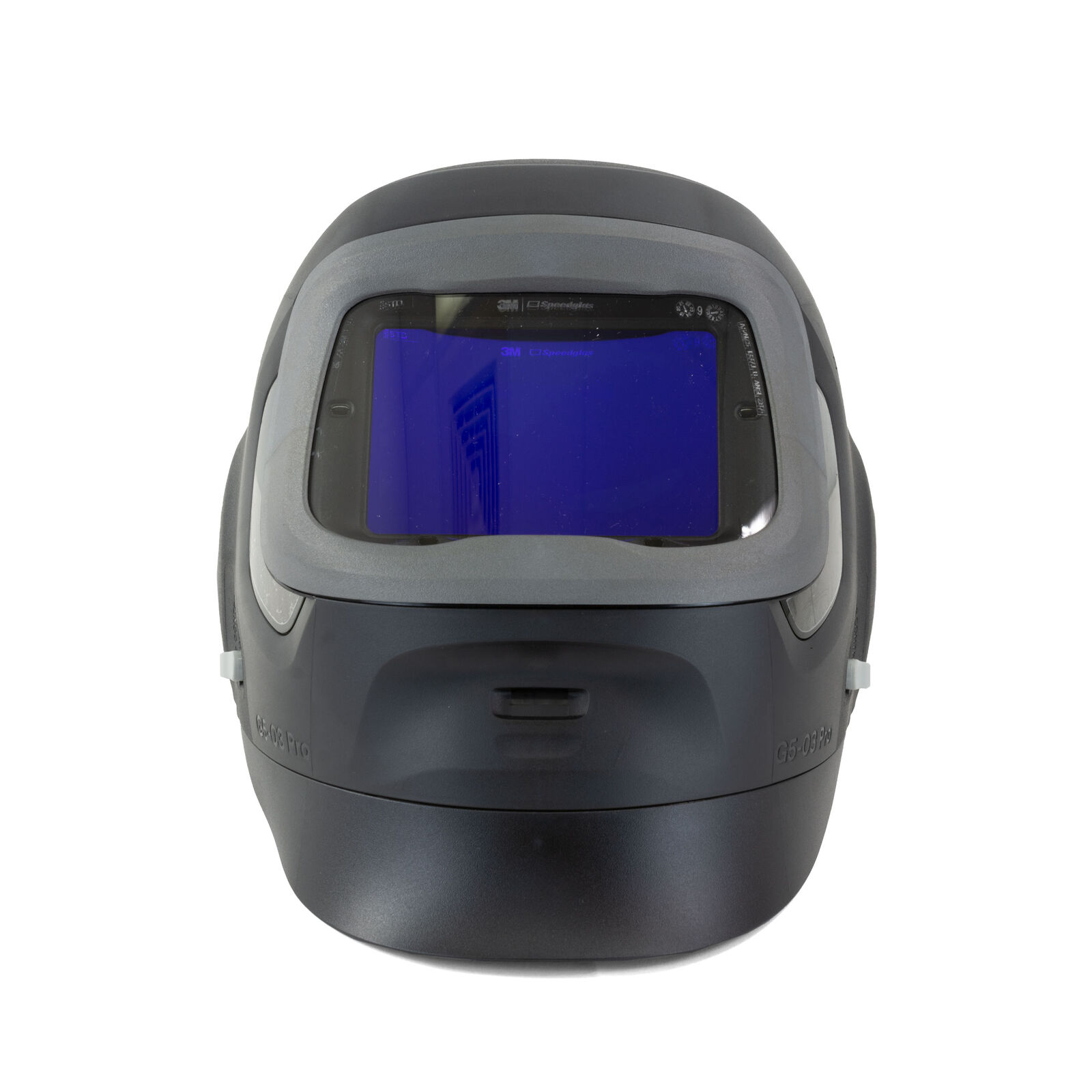

The 3M™ Speedglas™ G5-03 TW Pro Air Welding Helmet with the Heavy Duty Adflo respirator offers welders powerful protection against welding fume. The G5-03 TW Pro Air features precision True-View optics enhanced by an extra-bright shade 2.5 light state, new-to-world TAP technology for easy switching between settings and an extra large 73x109mm viewing area with SideWindows. An intuitive helmet duct system provides fresh, filtered air for all day welding, while an optional task light, head and neck covers are available to maximise your comfort.
Features:
- Made in Sweden, with each lens inspected upon completion
- Speedglas TAP Technology that allows welders to switch between mode settings while keeping their helmet on
- Advanced True-View Optics 73 x 109mm Extra-Large Viewing Area with SideWindows
- Bluetooth® lens technology where welding lens settings can be controlled from your smartphone via the 3M connected equipment app
- Suitable for a variety of welding applications, and optimised for heavy-duty welding, the G5-03TW lens features shades 2.5, 5, 8-13

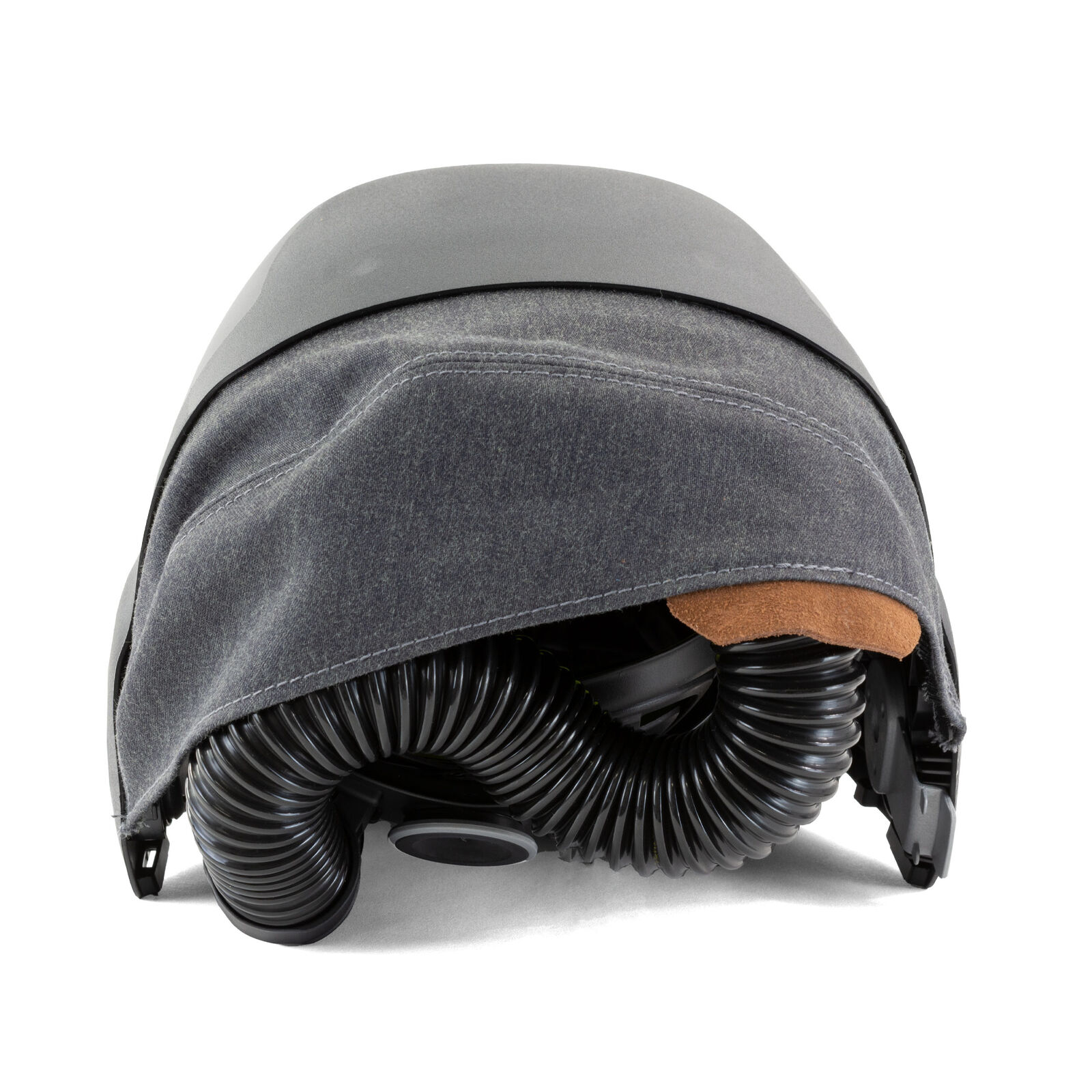

- Offers an airduct system allows you to easily adjust the direction and volume of airflow for maximum comfort
- The G5-03 Pro head harness is fully adjustable, for a custom fit
- Industry-leading arc detection and switching
- Configurable head and neck protection where you can choose between fabric or leather, to protect against sparks and splatter
- Ultra-bright, crisp vision with a 2.5 extra light shade
- Speedglas task light for welders working in low-light environment
- Compliant with Australian and New Zealand standards for high-impact face protection (AS/NZS1337.1), eye protection (AS/NZS1338.1) and respiratory protection (AS/NZS1716)
The Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)
Features:
- Adflo battery battery provides a run time of approximately 12-14 hours and charges 0-80% of its full capacity in just one hour
- Provides a required minimum protection factor of 50 for thermally and mechanically generated particles
- Lightweight respirator
- Simple breathing hose connection featuring a quick release swivel that welders can single handedly connect and disconnect
- Offering advanced respiratory protection specifically designed for welding
- Filtered air is evenly distributed throughout the welding helmet, via an innovative airflow pattern
- Protects the user from harmful welding fumes and gases
- Includes an indicator that alerts the welder when it's time to
- Adjustable airflow rate where you can choose between 170 litres or 200 litres per minute
- Provides a constant flow rate regardless of the particle filter loading or the battery charge level
Specifications:
- Welding Helmet Model: Speedglas G5-03 Pro Air
- Relevant Welding Helmet Standards
- Eye Protection - AS/NZS1338.1,
- Face Protection - AS/NZS1337.1
- Respiratory Protection - AS/NZS1716
- Speedglas TrueView Welding Lens: 73 x 109mm viewing area + SideWindows
- Welding Applications:
- Stick
- MIG
- TIG (industry leading detection down to 1 Amp)
- Hidden Arc Mode
- TAP Technology (Shade 2.5)
- Memory Mode
- Hidden Arc Mode
- Variable Shades
- Dark: Shade 5, 8-13
- Light: TrueView Shade 2.5
- UV Protection: Shade 13 (permanent)
- Switching time, light-dark: 0.1 ms (+23 C)
- Delay (switching time, dark-light): 50-1300 ms
- Blue-Tooth Enabled
- Optional Task Light
- New G5-03 Pro Head Harness
- Required minimum protection factor: 50
- Airflow level: 170 & 200 l/min
- Adjustable Air Control
- Adflo Battery Run Time: 12-hours
- Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
(637720)
| SKU | 637720 |
| Brand | Speedglas |
| Shipping Weight | 5.4000kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.300m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.043680000m3 |
3M and Apex Welding Safety Pty Ltd warrants that the Auto-Darkening Welding Lens (ADL) will be free of defects in workmanship and materials for a period of three (3) years from date of purchase. The warranty excludes failure resulting from improper use or modification of the ADL and factors beyond the control of AWS. Except where prohibited by law, AWS and 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted. In the case of a warranty claim, a copy of the receipt with date of purchase, along with a description of the fault must be enclosed. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be acceptable quality and the failure does not amount to a major failure.
