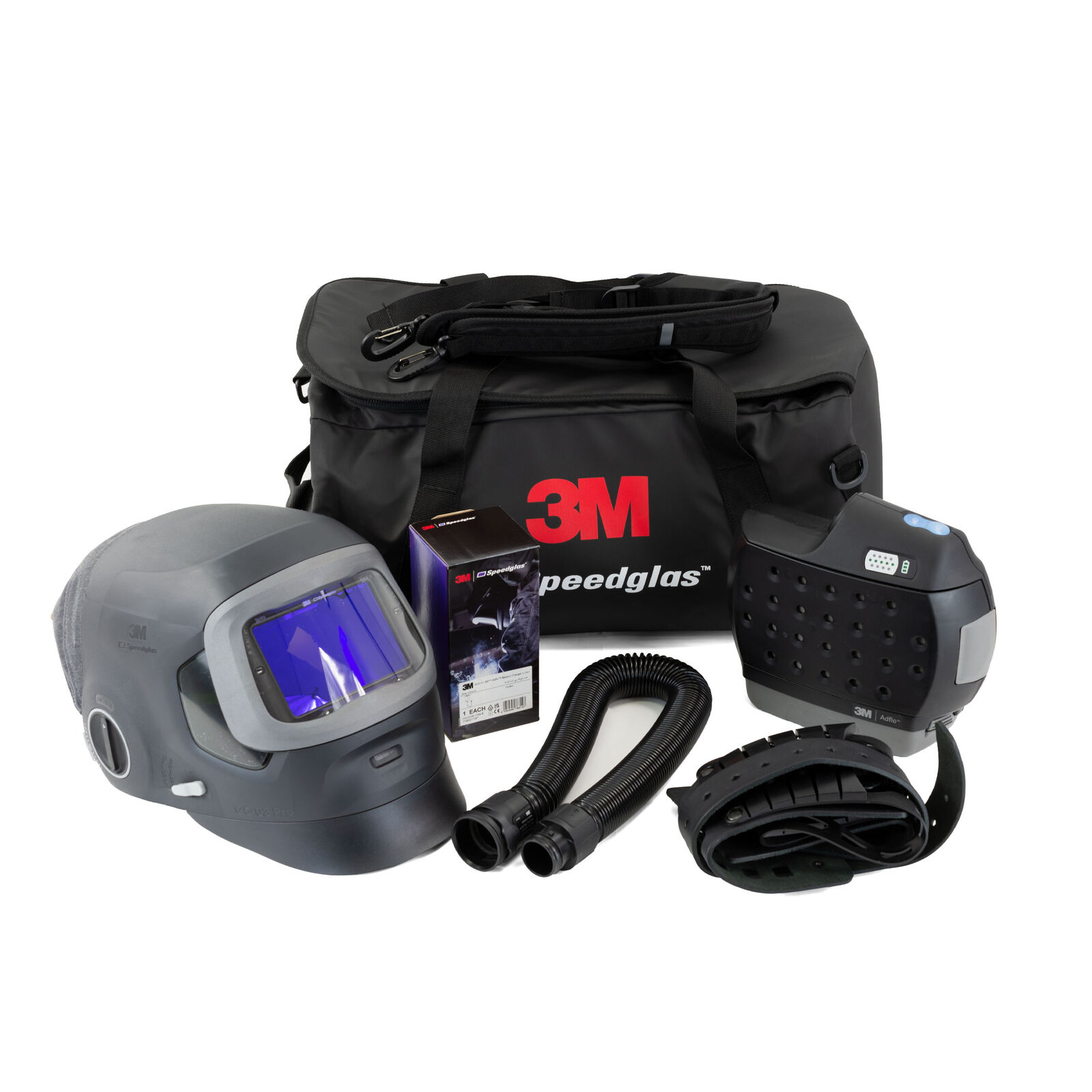

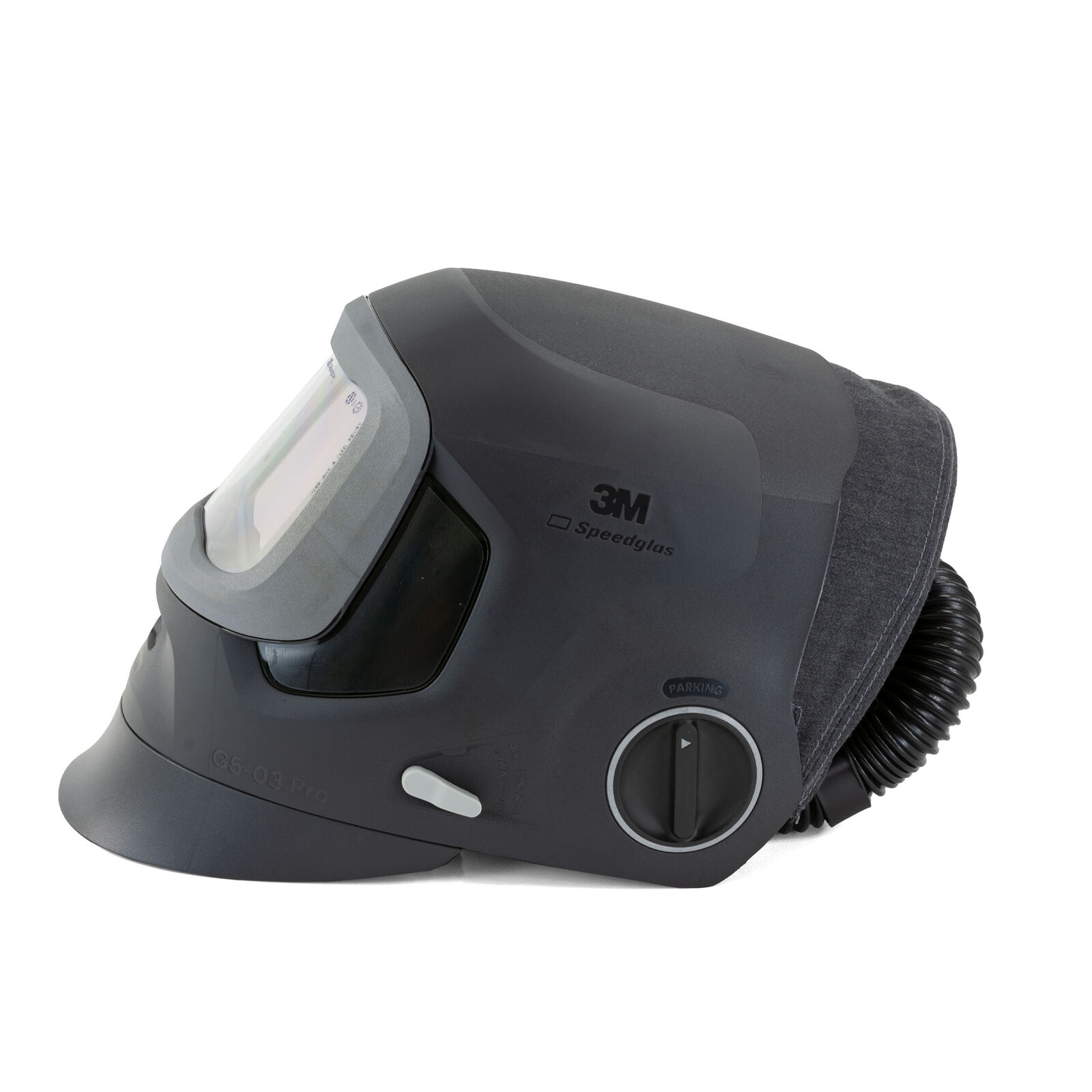

3M™ Speedglas™ G5-03NC Pro Air with Heavy-Duty Adflo PAPR
Part # 637710
More info3M™ Speedglas™ G5-03NC Pro Air with Heavy-Duty Adflo PAPR
The new 3M™ Speedglas™ G5-03 NC Pro Air Welding Helmet with Adflo PAPR is geared towards cooler, cleaner, and more comfortable welding via the industry-leading Adflo respirator and innovative Climate Control. A large viewing area with peripheral SideWindows and True-View optics offers welders a clear, expansive view of their workspace, which can be further enhanced by the addition of an optional task light specifically designed for welding.
Features:
- Made in Sweden, Speedglas welding helmets offer market-leading features, quality and performance
- TrueView vision of 55x107mm viewing area with SideWindows

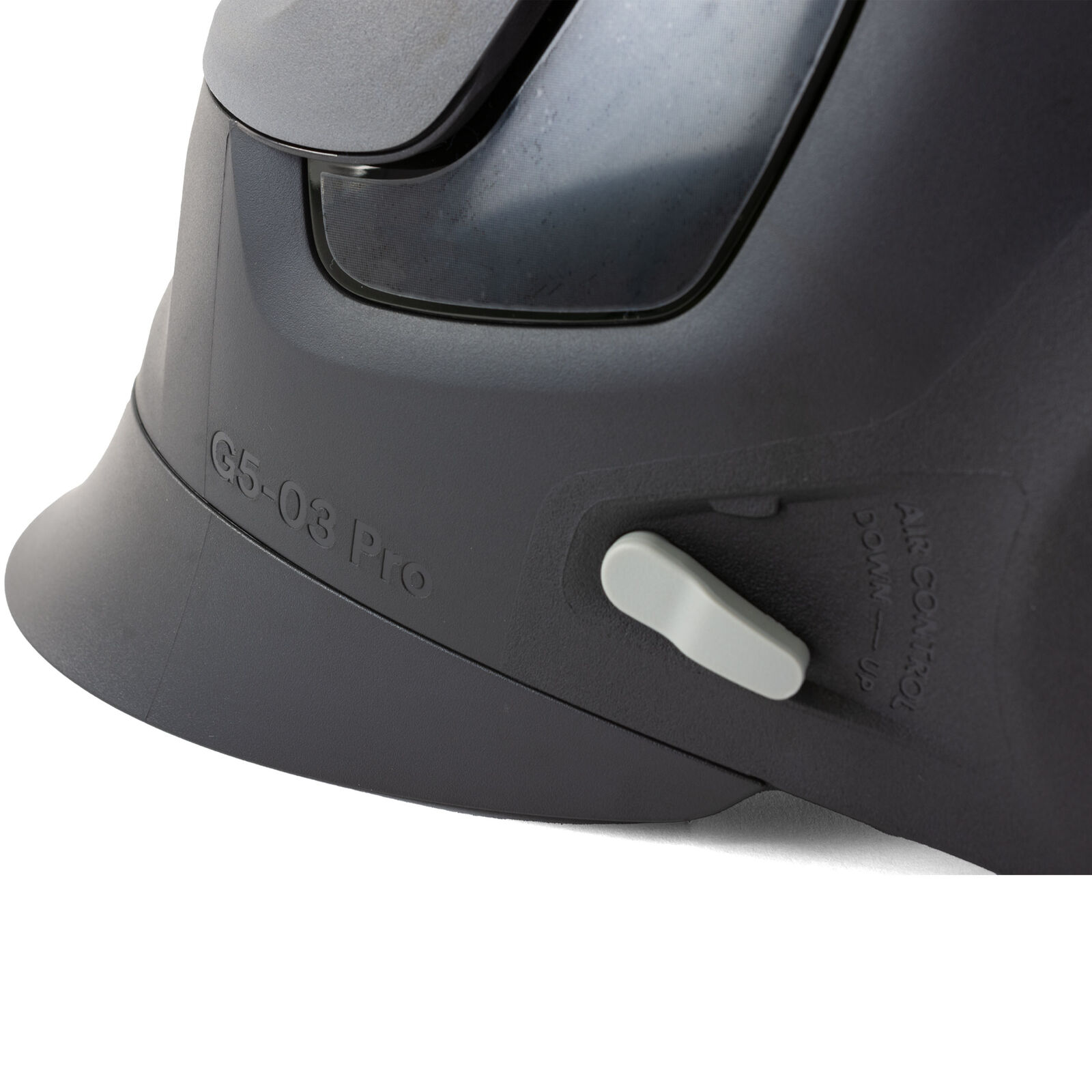

- Offers an airduct system allows you to easily adjust the direction and volume of airflow for maximum comfort
- Offering two dedicated modes: light state (shade 3) for grinding applications or shade 5 for cutting applications
- The G5-03 Pro headband establishes a new standard for comfort and ergonomics
- Industry-leading arc detection and switching
- Speedglas task light for welders working in low-light environment
- Provides a positive pressure respiratory protection
- All welding applications with multiple mode settings like weld, grind, cut and tack, indoors and outdoors even with a completely hidden arc
- Configurable head and neck protection where you can choose between fabric or leather, to protect against sparks and splatter
- Compliant with Australian and New Zealand standards for high-impact face protection (AS/NZS1337.1), eye protection (AS/NZS1338.1) and respiratory protection (AS/NZS1716)
The Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)
Features:
- Adflo battery battery provides a run time of approximately 12-14 hours and charges 0-80% of its full capacity in just one hour
- Provides a required minimum protection factor of 50 for thermally and mechanically generated particles
- Lightweight respirator
- Simple breathing hose connection featuring a quick release swivel that welders can single handedly connect and disconnect
- Offering advanced respiratory protection specifically designed for welding
- Filtered air is evenly distributed throughout the welding helmet, via an innovative airflow pattern
- Protects the user from harmful welding fumes and gases
- Includes an indicator that alerts the welder when it's time to
- Adjustable airflow rate where you can choose between 170 litres or 200 litres per minute
- Provides a constant flow rate regardless of the particle filter loading or the battery charge level
Specifications:
- Welding Helmet Model: Speedglas G5-03 Pro Ai
- Relevant Welding Helmet Standards
- Eye Protection - AS/NZS1338.1,
- Face Protection - AS/NZS1337.1
- Respiratory Protection - AS/NZS1716
- Speedglas TrueView Welding Lens: 55 x 107mm viewing area + SideWindows
- Welding Applications:
- Stick
- MIG
- TIG (industry leading detection down to 1 Amp)
- Hidden Arc Mode
- Grind Mode
- Hidden Arc Mode
- Variable Shades
- Dark: Shade 5, 8-12
- Light: TrueView Shade 3
- UV Protection: Shade 12 (permanent)
- Switching time, light-dark: 0.1 ms (+23 C)
- Delay (switching time, dark-light): 40-470 ms
- Optional Task Light
- New G5-03 Pro Head Harness
- Required minimum protection factor: 50
- Airflow level: 170 & 200 l/min
- Adjustable Air Control
- Adflo Battery Run Time: 12-hours
- Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
(637710)
| SKU | 637710 |
| Brand | Speedglas |
| Shipping Weight | 1.3000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.300m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.027000000m3 |
