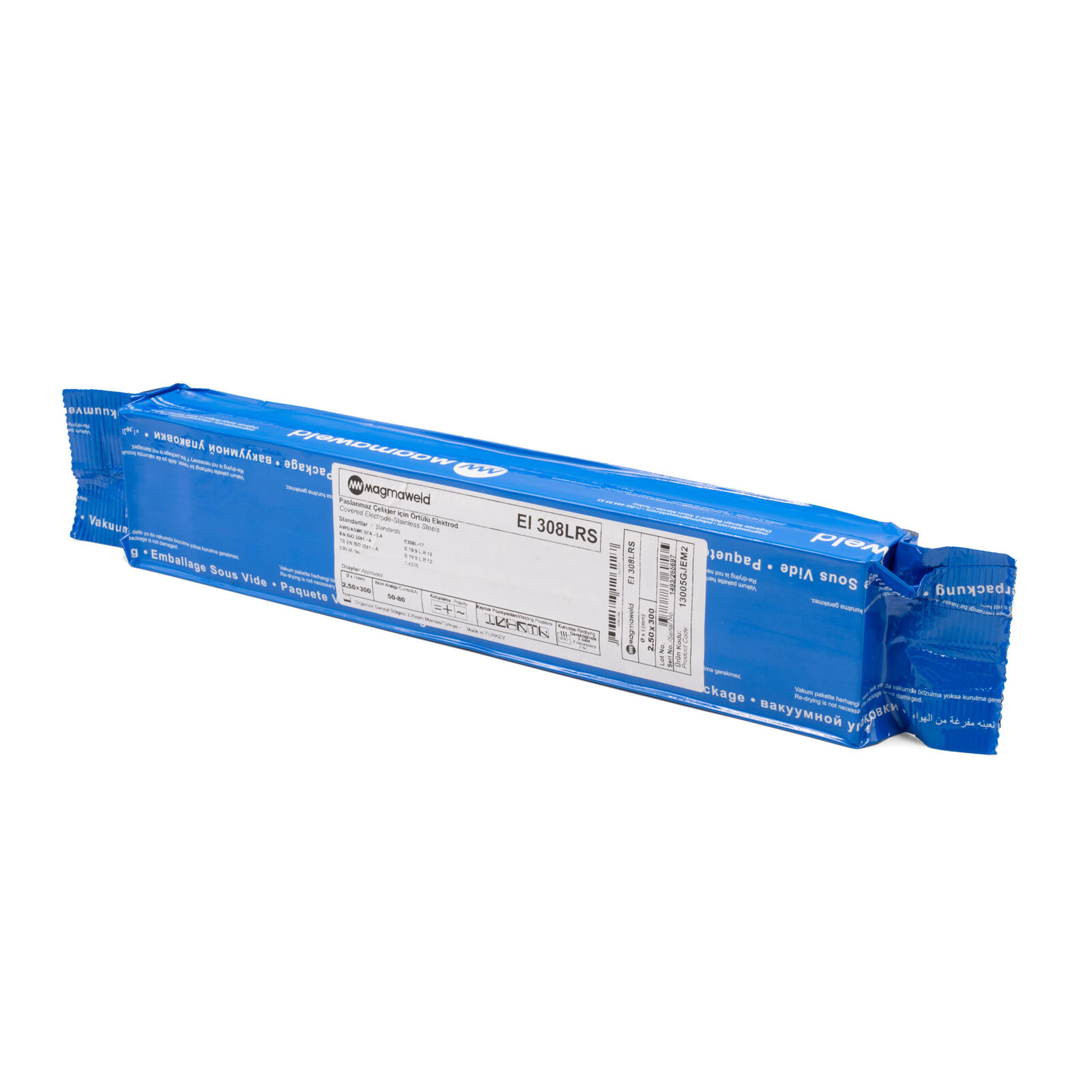

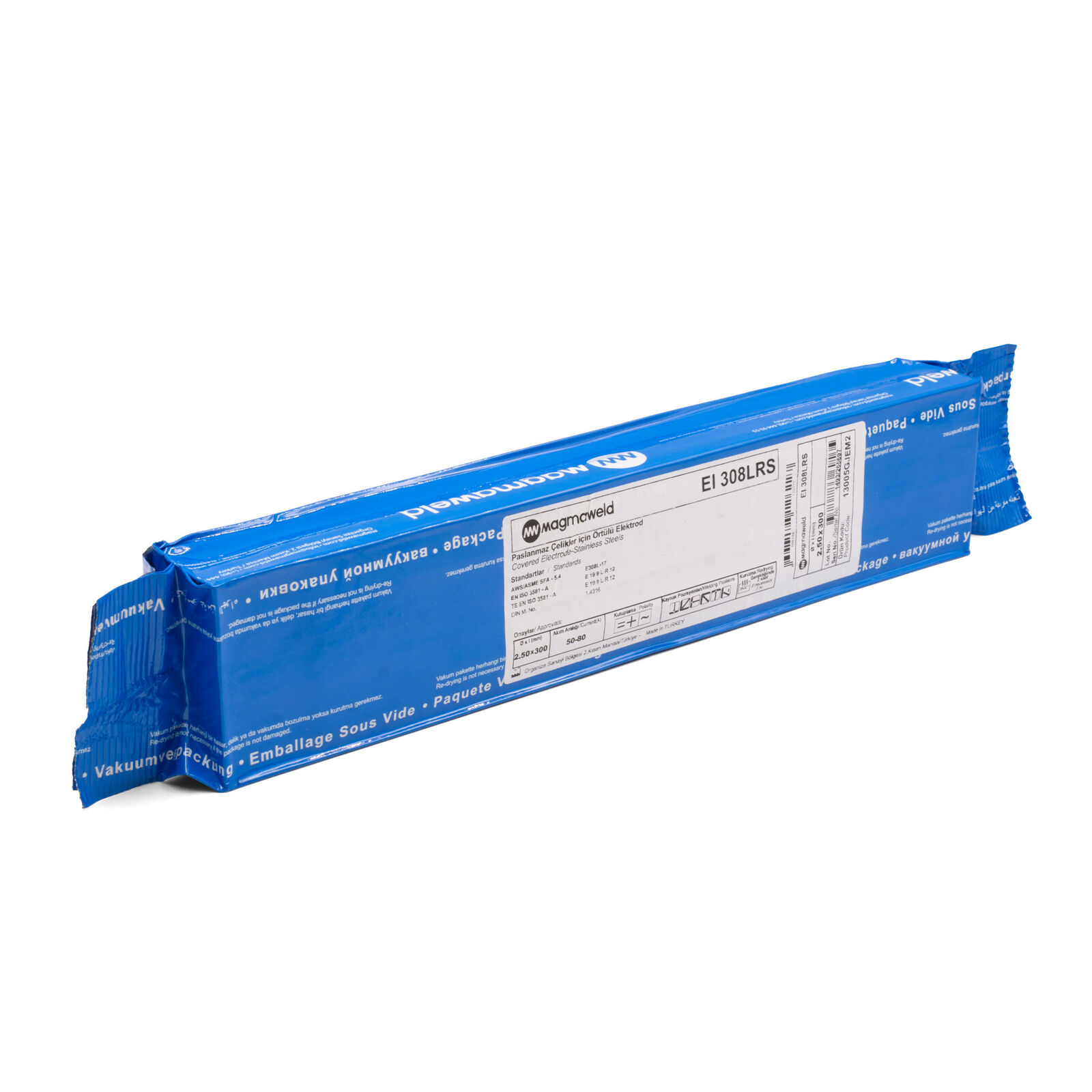

MAGMAWELD 308L - Stainless Steel 2.5mm Stick Electrodes

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping

DG Freight - $0.00
Charge for Dangerous Goods Freight

Free Shipping - $0.00

Express Shipping - $5.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Hampdon Industrial stocks the premium range of Magmaweld Welding Electrodes. E308L is an excellent alloy for general purpose welding of stainless steels where corrosion conditions are moderate. Its low carbon content ensures freedom from inter granular cracking and corrosion and produced a bright finish welds. 308L is good for joining 301, 302, 304, 308 321, and 347 alloys. Typical applications include exhaust headers, chemical tanks, restaurant and distillery equipments.

Features:

Made in Turkey
2.5mm thickness diameter
300mm length
400g weight
21 sticks approximate
Product code – 13005GJEM2
Stick code – EI 308LRS
Market-leading Magmaweld brand
Industrial Quality
For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
Equivalent to Gemini Part # 100006
Equivalent to Cigweld Satincrome Part # 611602
Hamdpon Part # 308-2.5
Check photos for sample certificate

Properties and Applications:

Rutile type electrode for joining dissimilar steels (austenitic steels to ferritic steels) and for austenitic claddings on ferritic steels. Weld metal consists of austenite with approx. 15% delta-ferrite. Claddings on unalloyed and low alloy steels are already corrosion resistant in the first layer. Higher operating temperature for joints between dissimilar steels is 300°C. Fine metal droplet transfer, good fusion of joint faces, finely ripped flat and smooth bead surface, especially in fillet welds. Easy slag removal of slag.

Manufactured to international standards:

AWS/ASME SFA 5.4
EN ISO 3581 A
TS EN ISO 3581 A
E308L17

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Ni	Mo	Cu	V	Ti	Nb
Weld Deposit	0.02	0.70	0.90	19.50	10.00	0.04	0.04	0.05	0.01	0.01

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	440	570	42	20°C → 70

Welding Position Applications:

PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical.

(308-2.5)
