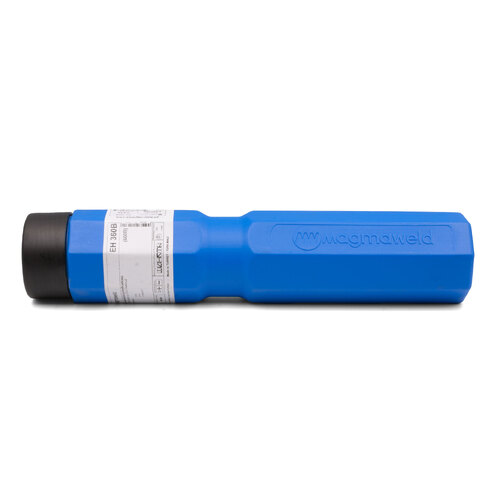

MAGMAWELD 600B - 3.2mm Stick Electrodes - 400G Pack Hardfacing

Hampdon Industrial stocks the premium range of Magmaweld Hardfacing Electrodes. The Magmaweld EH600B is a metal enriched electrode recommended for the multi-layer build-up and surfacing of steel components subjected to metal wear and compressive loading. This smooth running electrode deposits a tough wear resistant recommended for the manual arc build-up and surfacing of agricultural points, shares and tynes, grader and dozer blades, conveyor screws and post hole augers.

Features:

• Made in Turkey
• 3.2mm thickness diameter
• 350mm length
• 400g weight
• 11 Sticks Approximate
• Product code – 18006NDEM2
• Stick code – EH 360B
• Market-leading Magmaweld brand
• Industrial Quality
• For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
• Hampdon Part # 600-3.2
• UNIMIG PART #: U63025

Properties and Applications:

Thick basic-covered electrode for depositing tough and wear resisting overlays on structural members, subjected to severe wear. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to 600°C. It can be machined only by grinding. Multi-layers deposits will be free of cracks, even without depositing intermediate buffer layers. Only in case of very crack sensitive base metals, a tough buffer layer, made with ESB 42 or EI 307B electrodes, is required. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC. Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws

Manufactured to international standards:

• EN 14700
• TS EN 14700
• DIN 8555
• E Fe8
• E 6-UM-60-GPT

Typical Chemical Values of Weld Metal

Typical Mechanical Values of Weld Metal(%)

Welding Position Applications:

• PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
• PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
• PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
• PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
• PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
• PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
