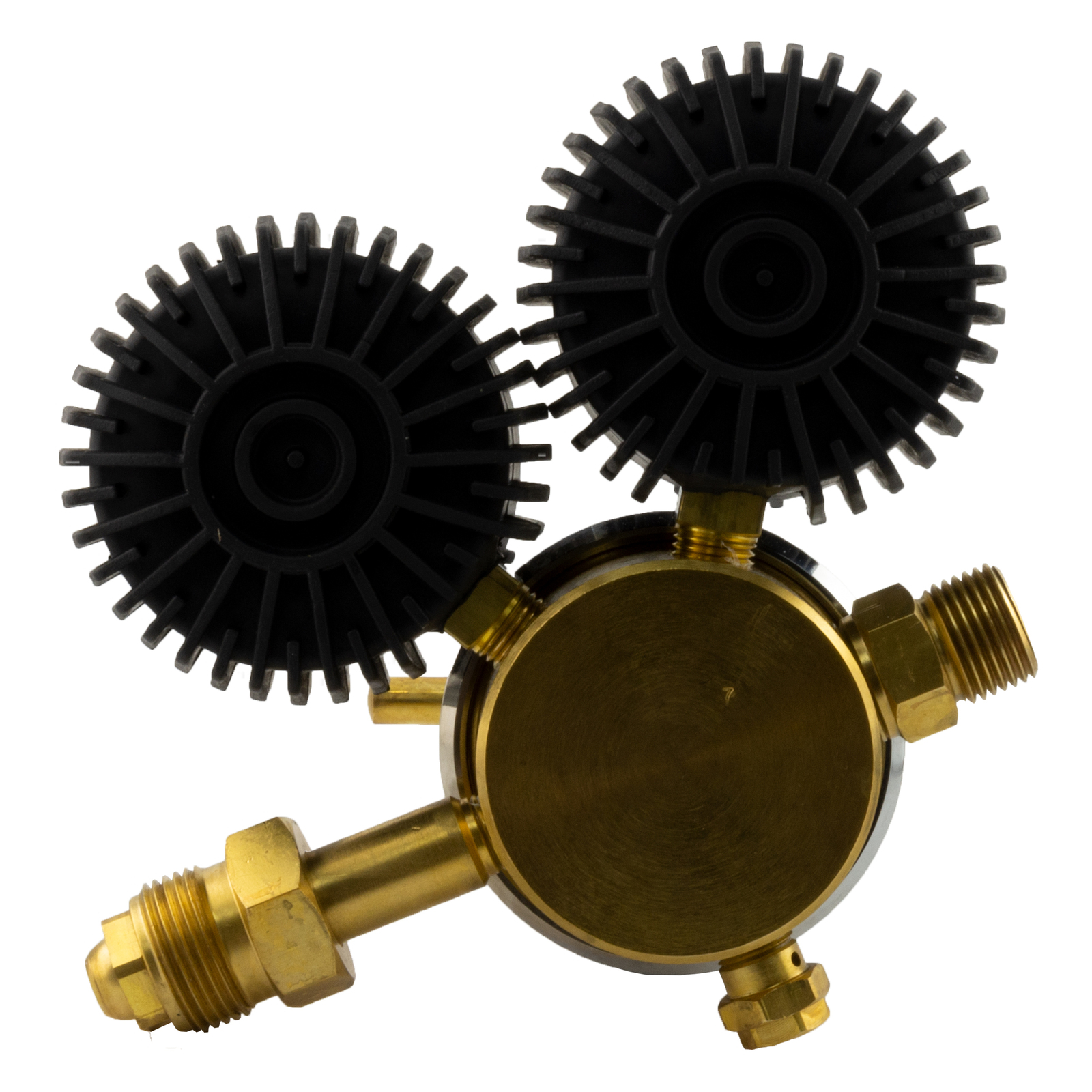

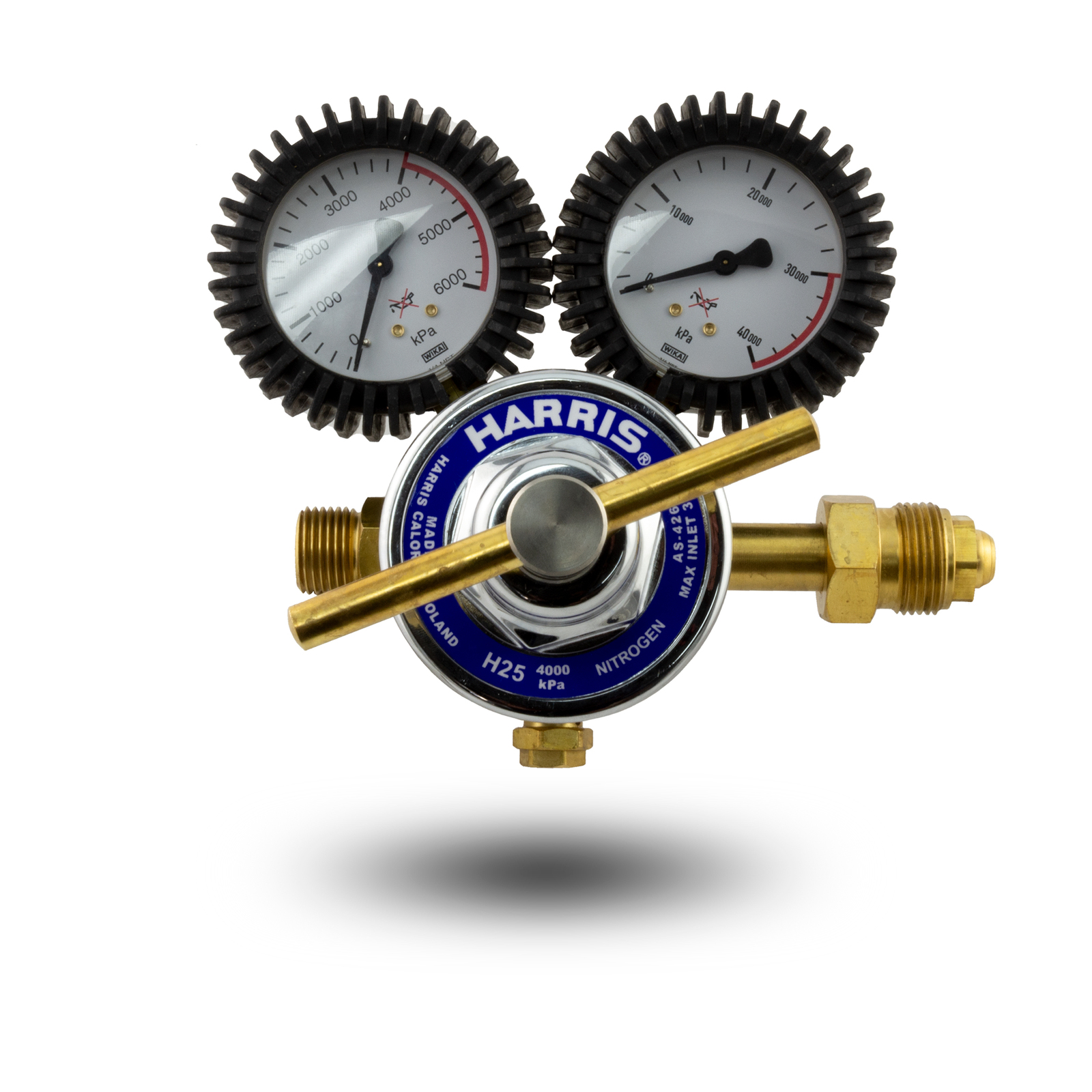

Harris H25 Nitrogen High Flow Regulator 0-4000kpa Side Outlet
Plasma and Laser Cutting Systems
Rated 5/5 based on 1 reviews.
More infoIn some applications, there is a requirement for high flow, high pressure, and high purity. Model H25 suits applications which are specifically designed for high flow requirements for feeding industrial gas pipelines for Plasma and Laser cutting systems. The regulator comes with both type 51 and 51 stems which can either be used on a gas cylinder or a pressure pack.
Features
- Conforms to EN ISO 2503
- Capsule valve, Stainless Steel filter
- Stainless Steel diaphragm
- Maximum inlet 300 bar
- Outlet pressure 40 bar
- Heavy-duty body machined from bar stock
- Large G. 1/2” or G. 3/8” outlet connection
- The regulator comes with Type 50 and Type 51 stems
- Side and vertical inlet connection
- External safety relief valve
- Maximum flow 720 m3/h
- Made in Europe
(H2540B-NIT)
| SKU | H2540B-NIT |
| Brand | Harris |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
