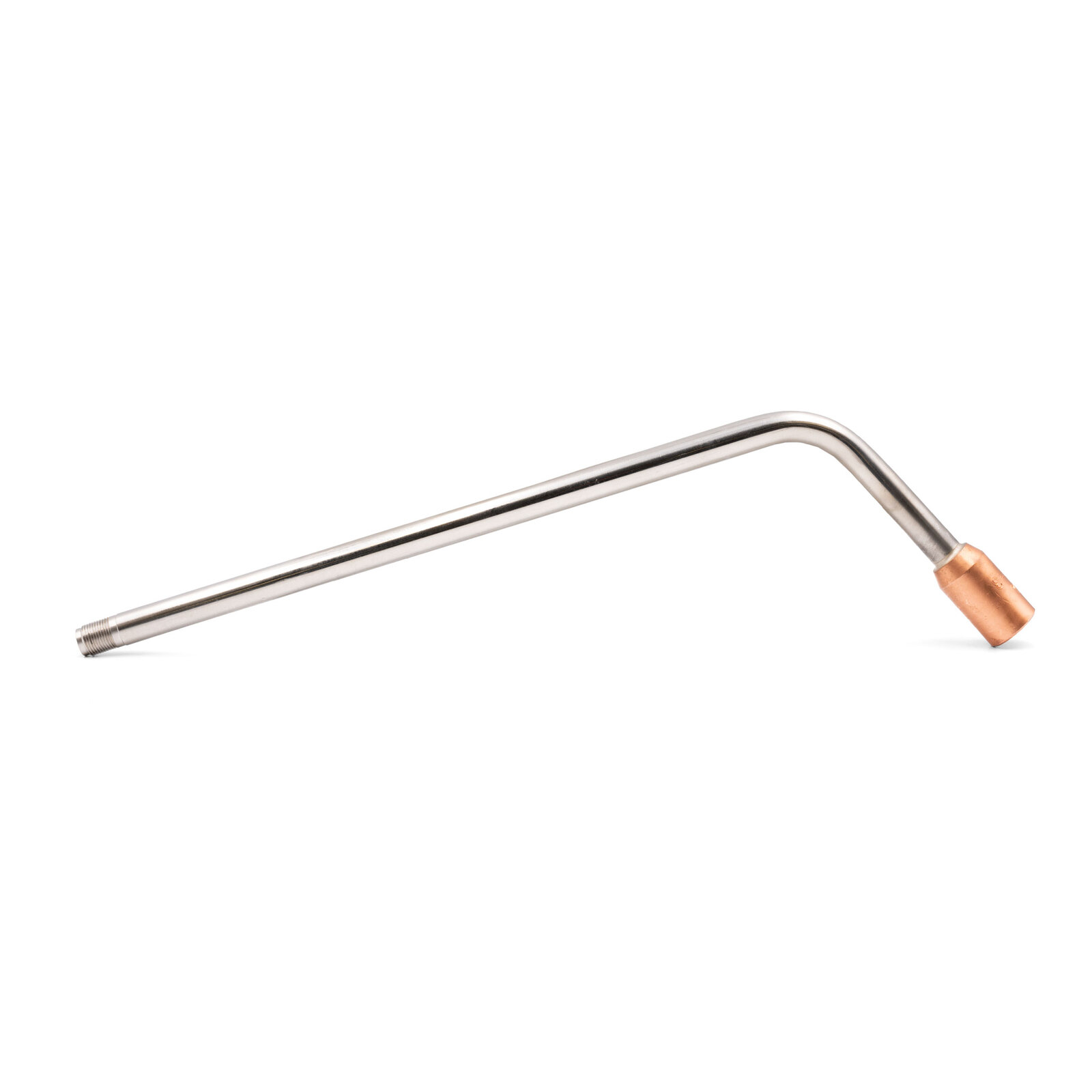

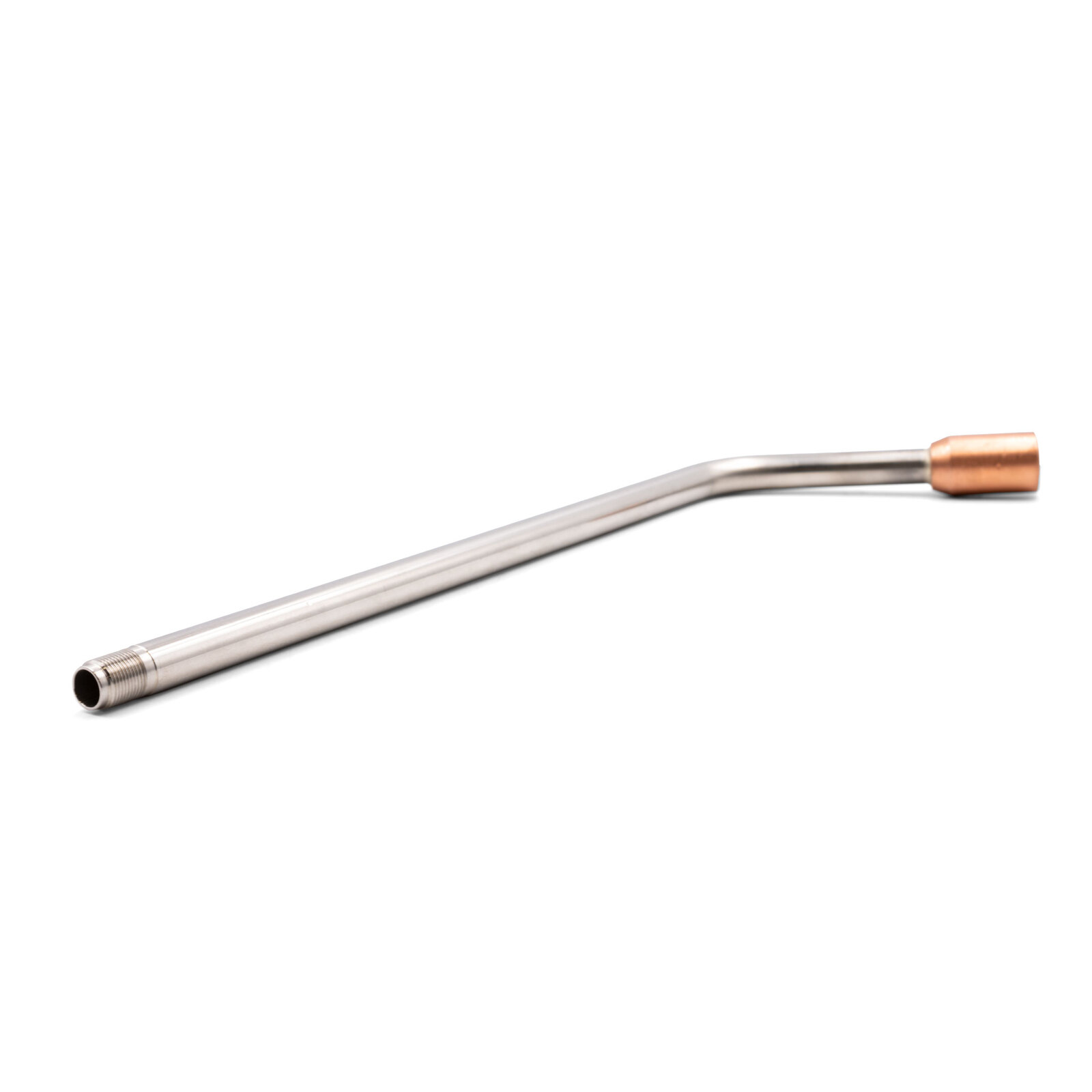

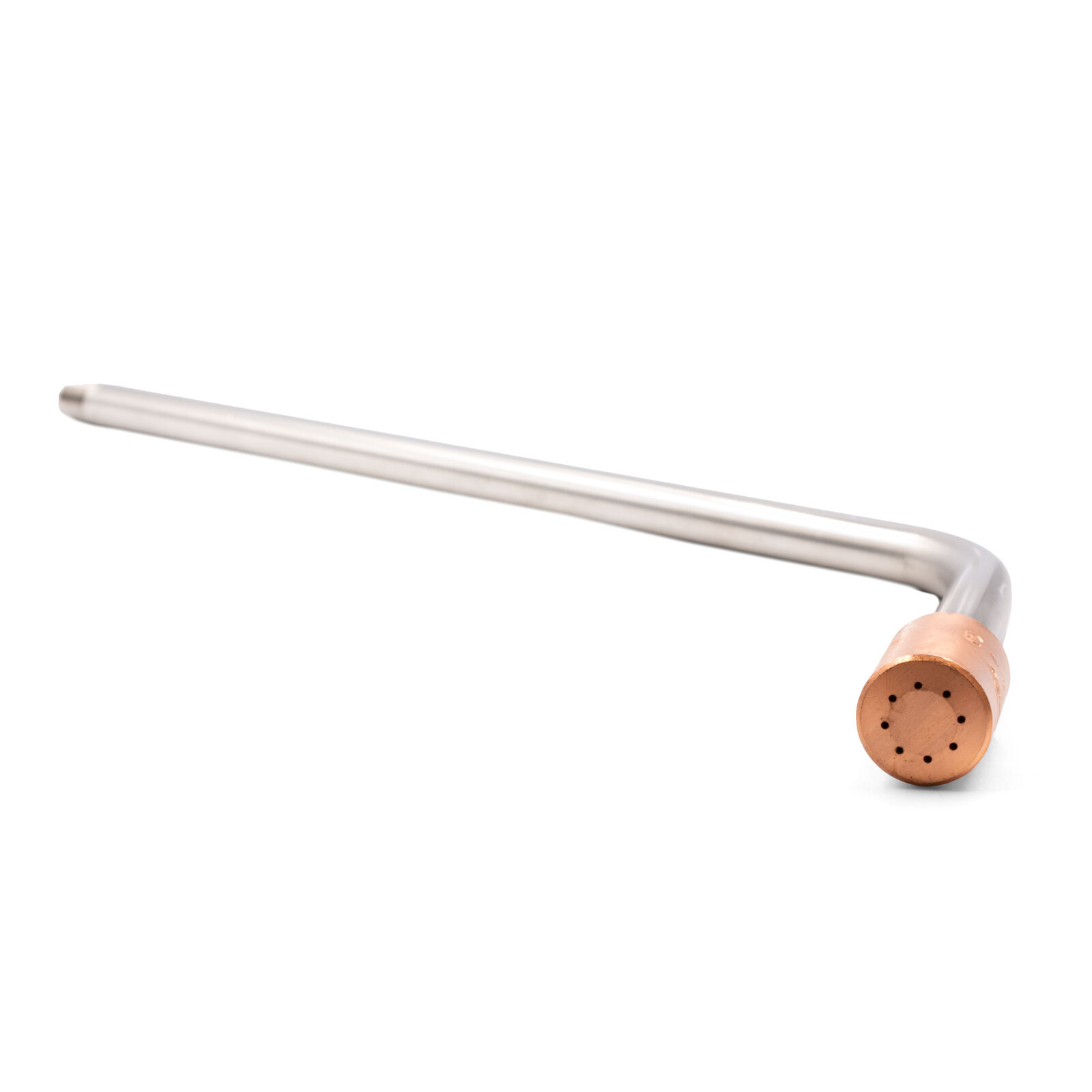

Harris J633 Acetylene Heating Tip and Tip Tube Combination Suits F43 MIxer

Features:

360mm Length
For use with Acetylene
Single-piece construction
Tip-tube and tip combination (no mixer included)
Constructed from all copper materials
Uses an (E) equal or positive pressure mixer type
Thread sealants are not required when used with genuine Harris mixers
23/64 in. - 26 UNS (RH) mixer to tip tube thread size
Specifically used for oxy-acetylene and hydrogen heating applications
Tip has metal-to-metal contact seats

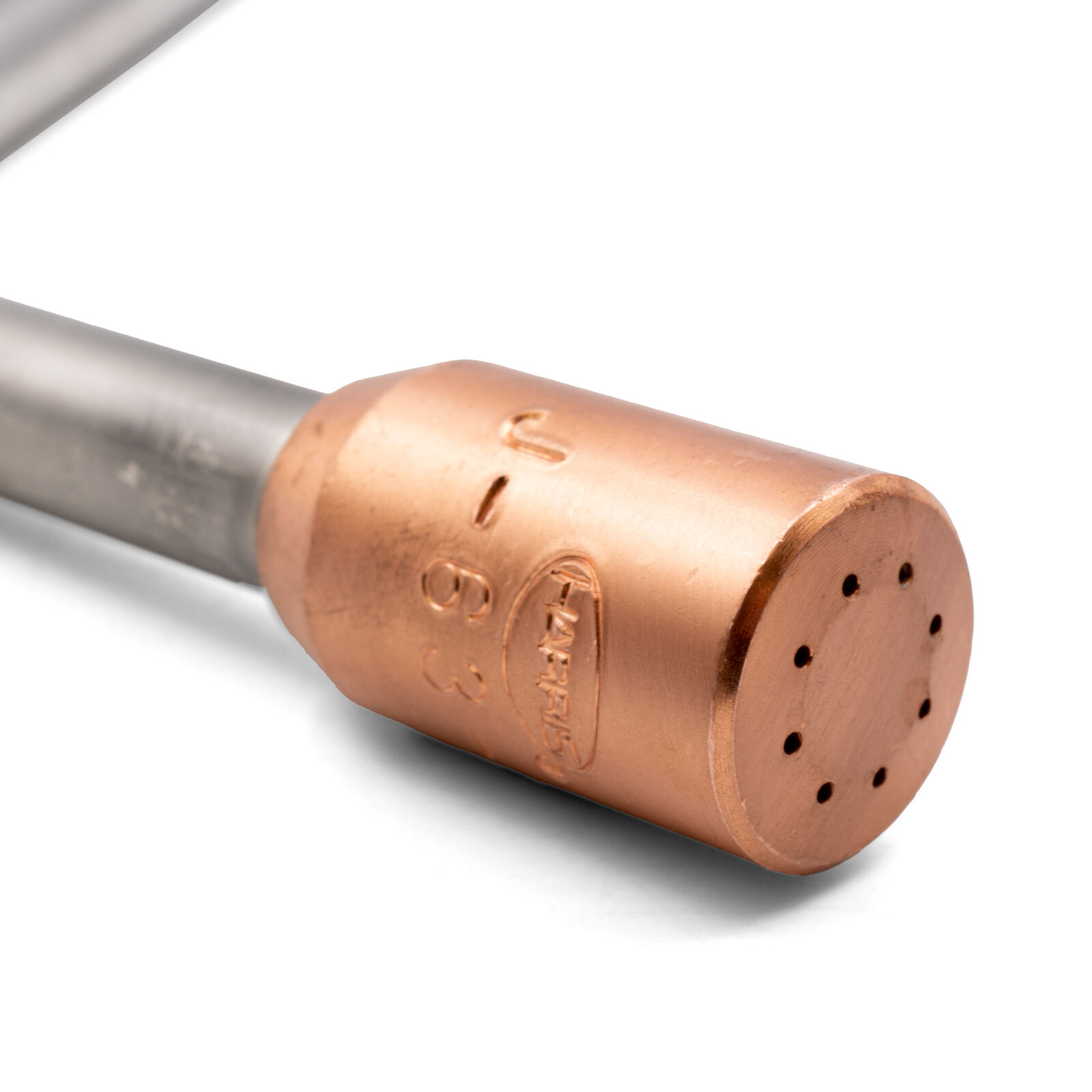

Engraved with model number and tip size for easy identification

Requires F43 Mixer to use

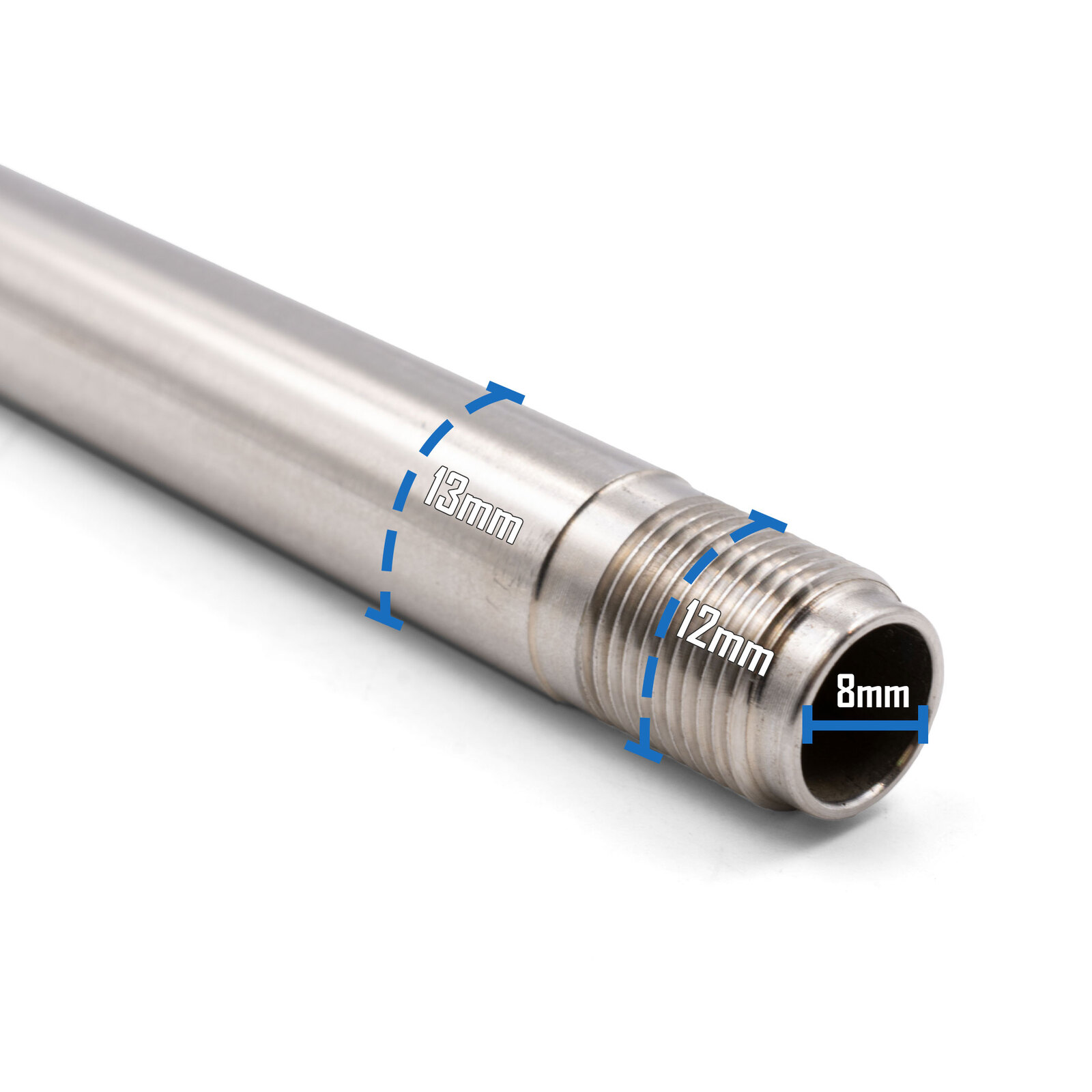

Dimenisions:

13mm tube
12mm thread
8mm inner diameter
21.5mm tip width

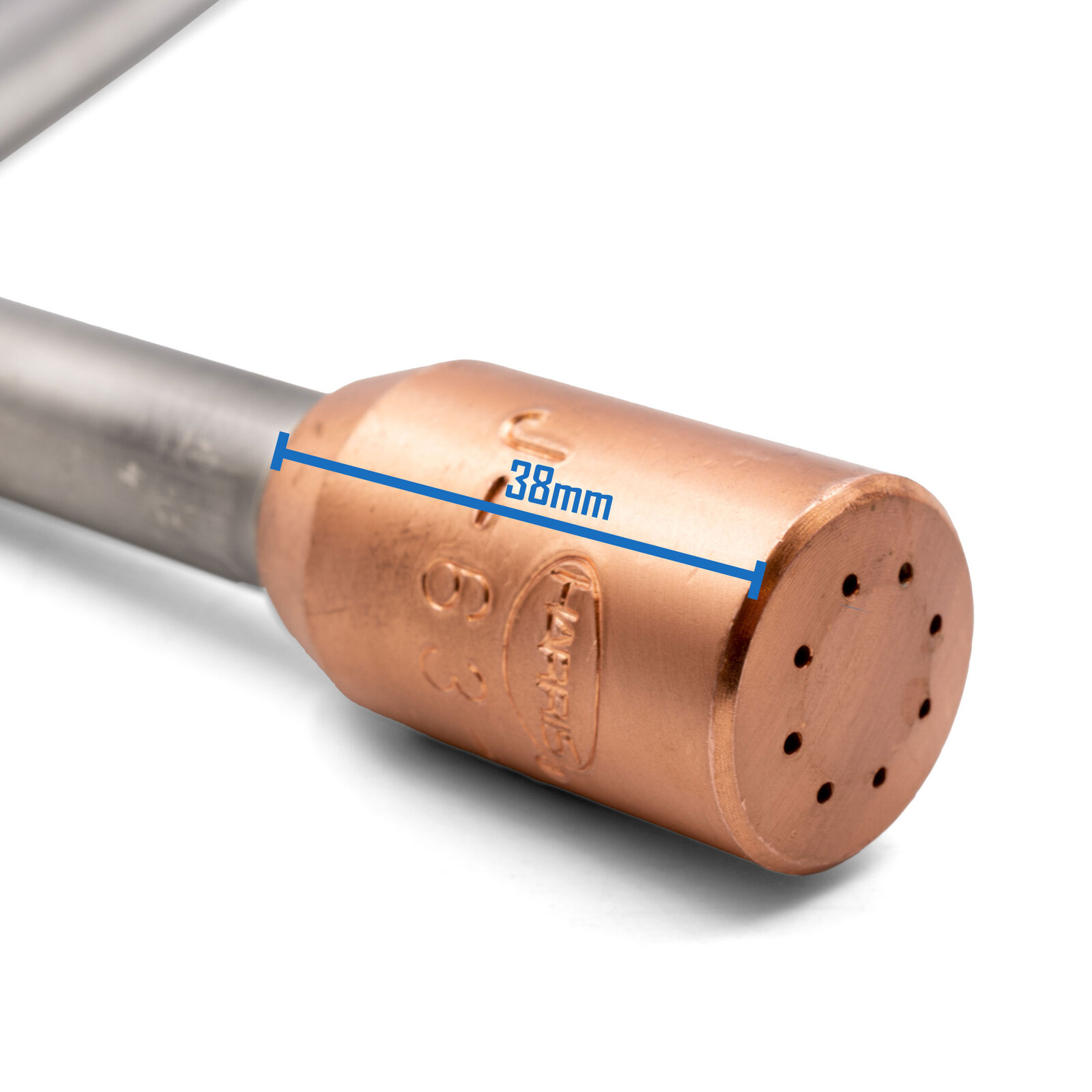

38mm tip length

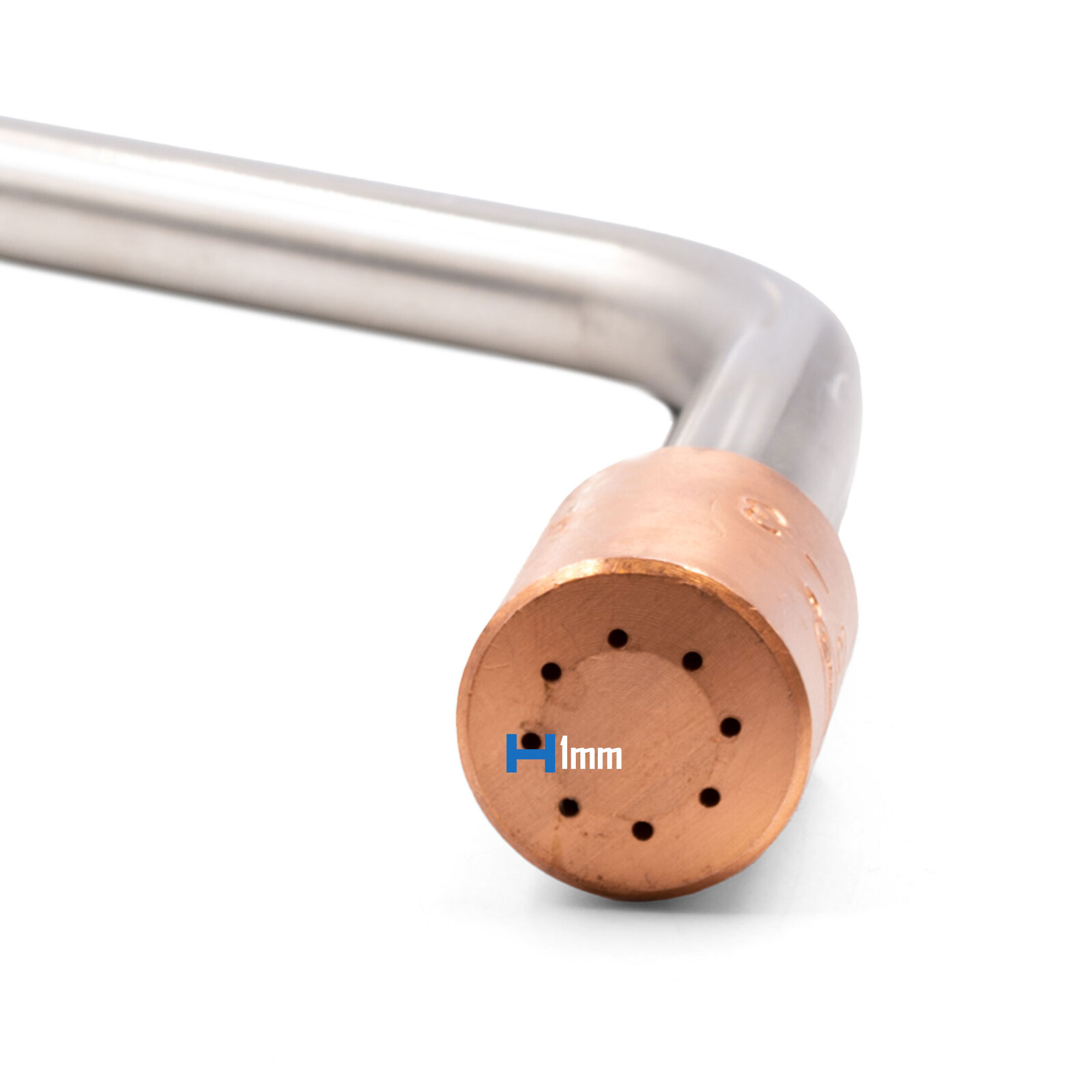

1mm tip hole diameter

(J633)

SKU	J633
Brand	Harris
Shipping Weight	0.1000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
