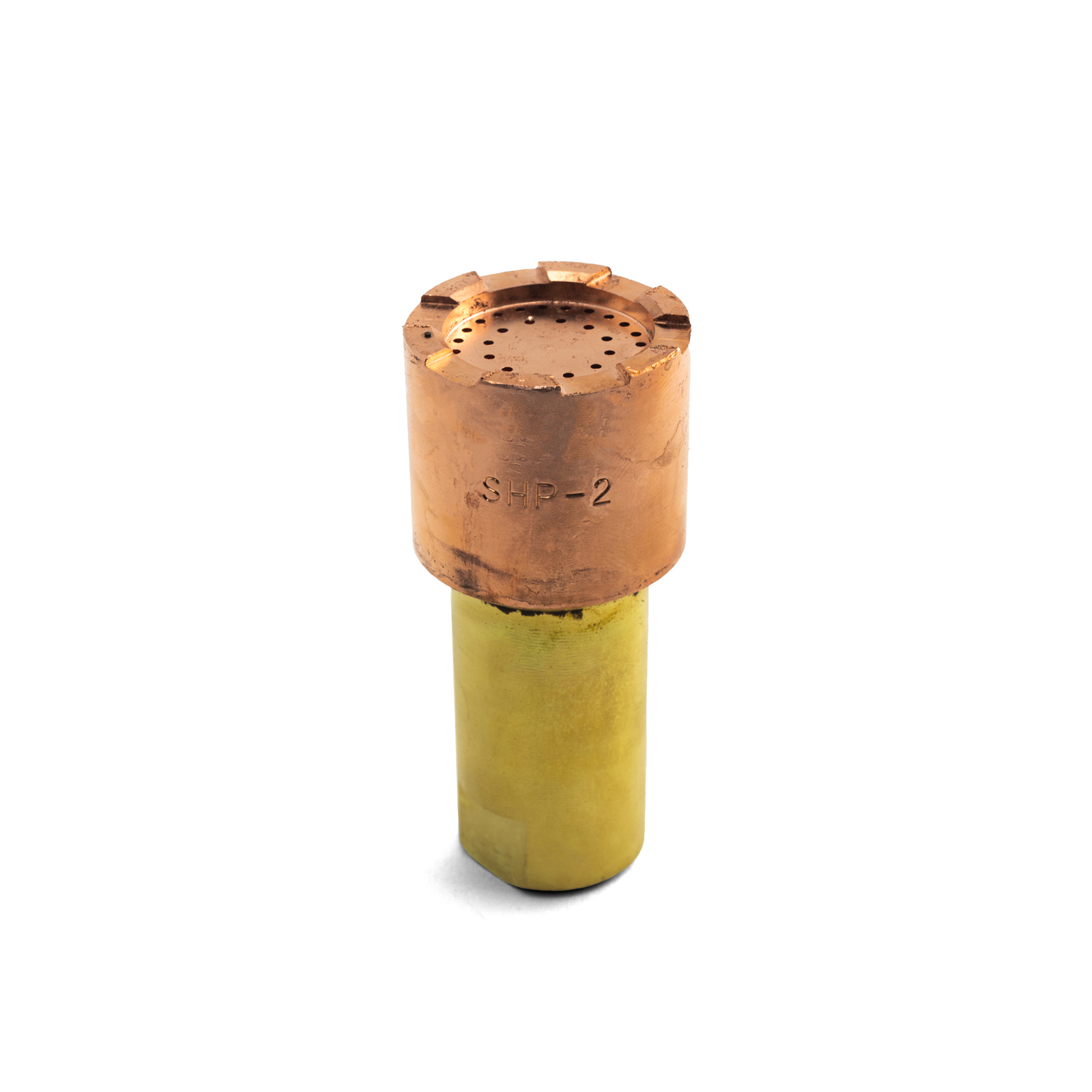

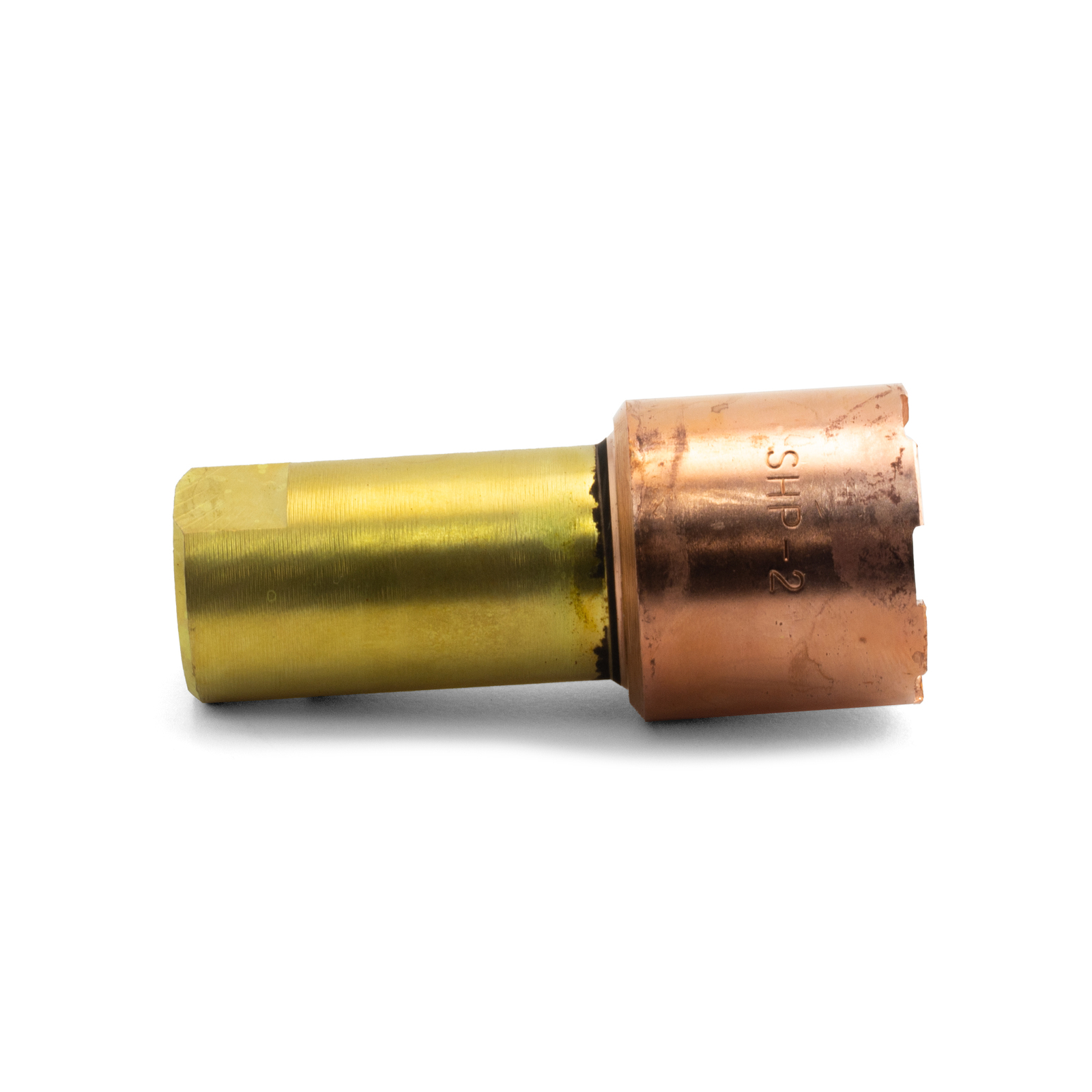

LPG Super Heating Tip - 36 x 12

LPG Super Heating Tip - 36 x 12

Hampdon Industrial LPG Super Heating Tip 36x12 (SHP2) Delivers efficient, economical high-intensity heat, and outstanding flame constancy. The heavy-duty copper head has been developed for high heat and strong wear resistance. Its simple design allows for easy cleaning and a simple screw-on fitting for quick and easy connection. This tip will suit a standard 13mm super heating barrel and 13mm mixer which can be found in our store.

Features:

• 1 x screw on tip
• Tip Size 36x12 (SHP2)
• To suit standard 13mm super heating barrel found in our store
• To suit LPG
• Oxy Pressure - 480KPA
• LPG Pressure - 175 KPA
• OXY Consumption - 300 l/min
• LPG Consumption - 75 l/min
• Heat output - 420 MJ/HR
• BOSSWELD Equivalent Part # 400228

Dimensions:

• 77mm length
• 25mm barrel connection

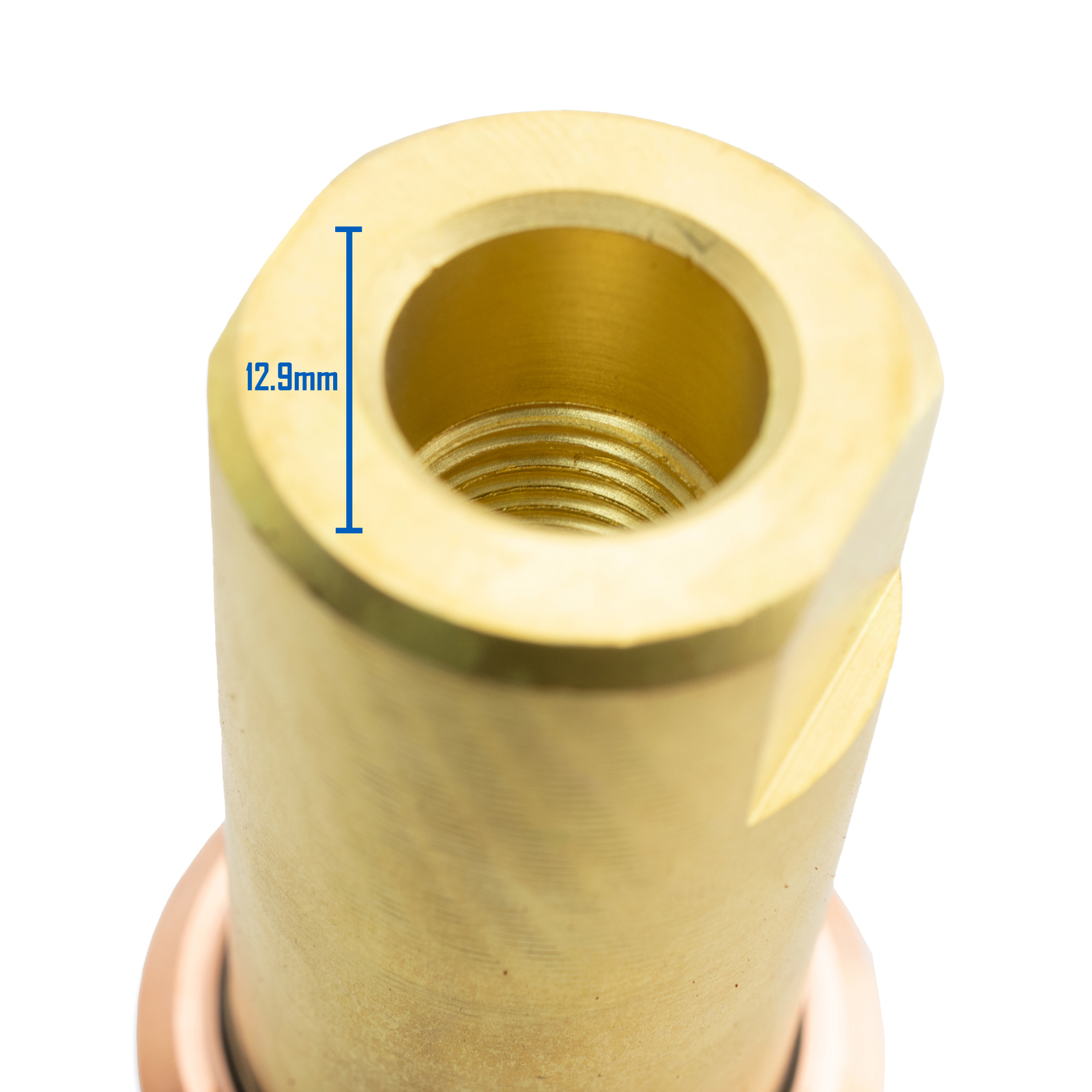

• 13mm connection bore
• 34mm tip

Optional Extras:

Super Heating Barrel:

• 450mm: HB450S
• 700mm: HB700S

Gas Mixer:

• 13mm: 800244
