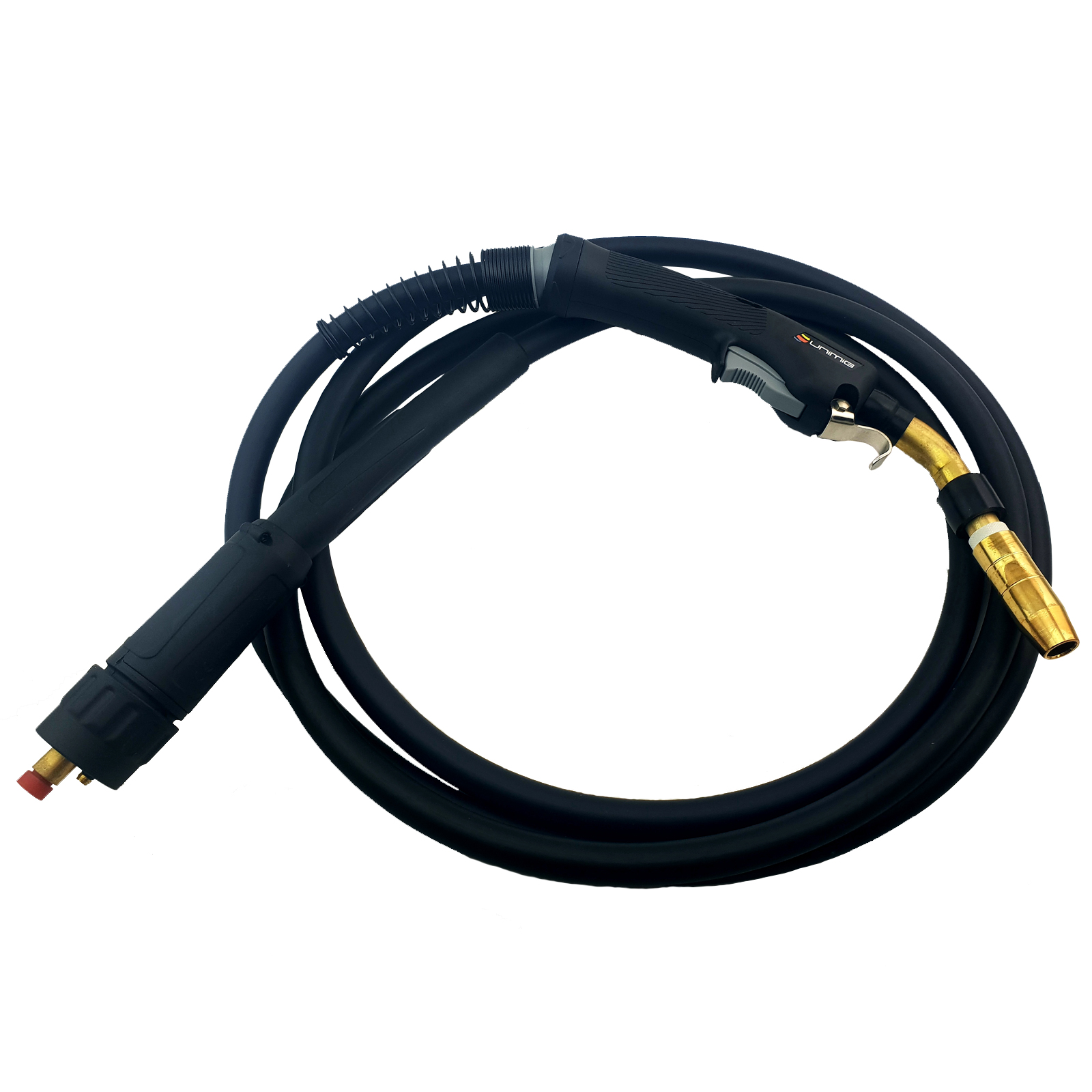

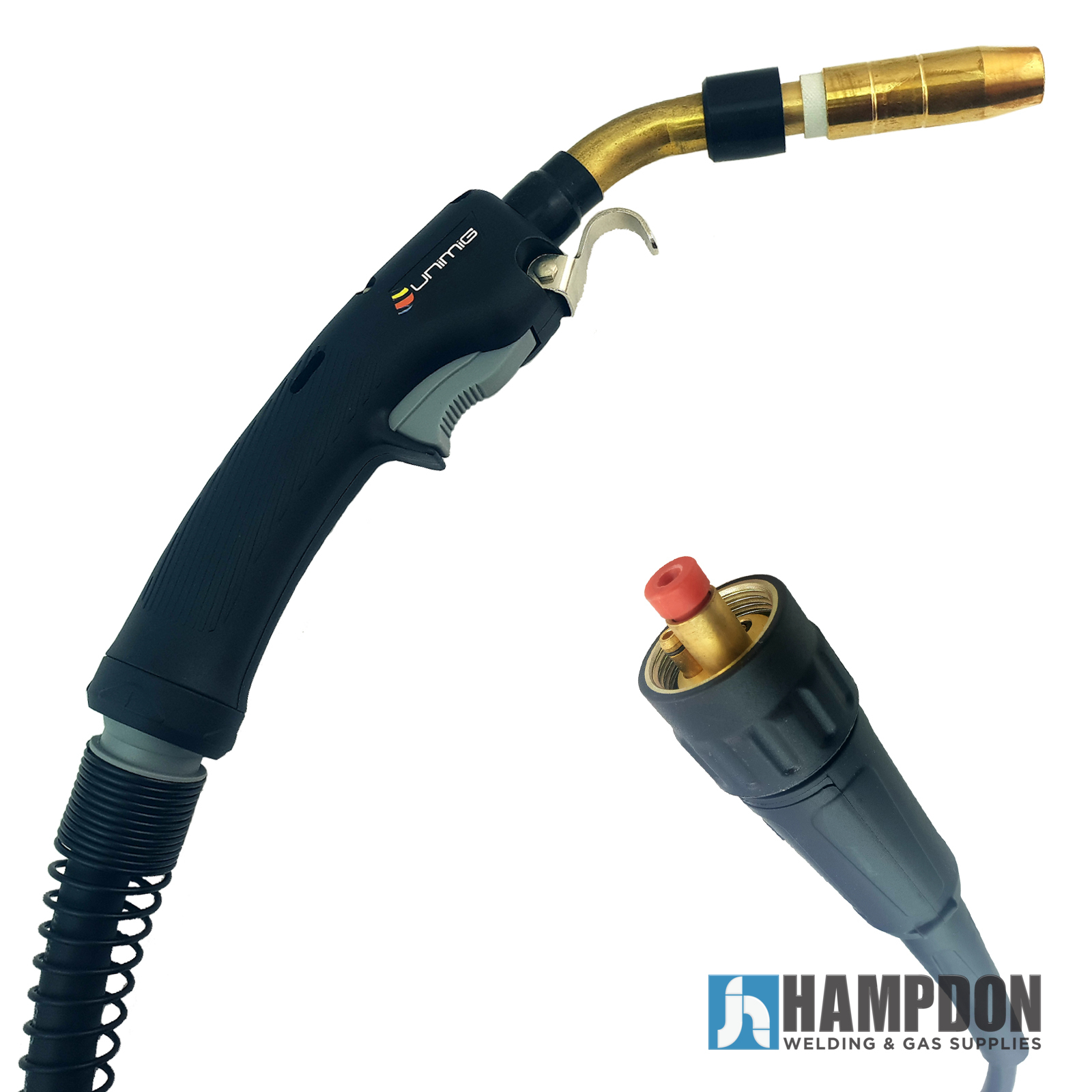

5.2m - 300 Amp Bernard MIG Torch / Gun - Euro Connection

UNIMIG Bernard style MIG torches are built for operator comfort and provides excellent performance and ergonomics when welding with the greater heat levels generated by higher amperage applications.

Features:

• 300A
• Euro connection
• Swan necks - Manufactured to the same specifications as the OEM
• Handles and cable supports
• Hanger hook
• Spare Trigger Part number 5662

Specifications:

• 5.2m long
• Suitable for use on any euro connection machine
• Air cooled cooling method
• Duty cycle rating with CO2: 200amps @ 60%
• Duty cycle rating with mixed gas: 200amps @ 60%
• Wire size: 0.8mm - 1.2mm

Spare Parts:

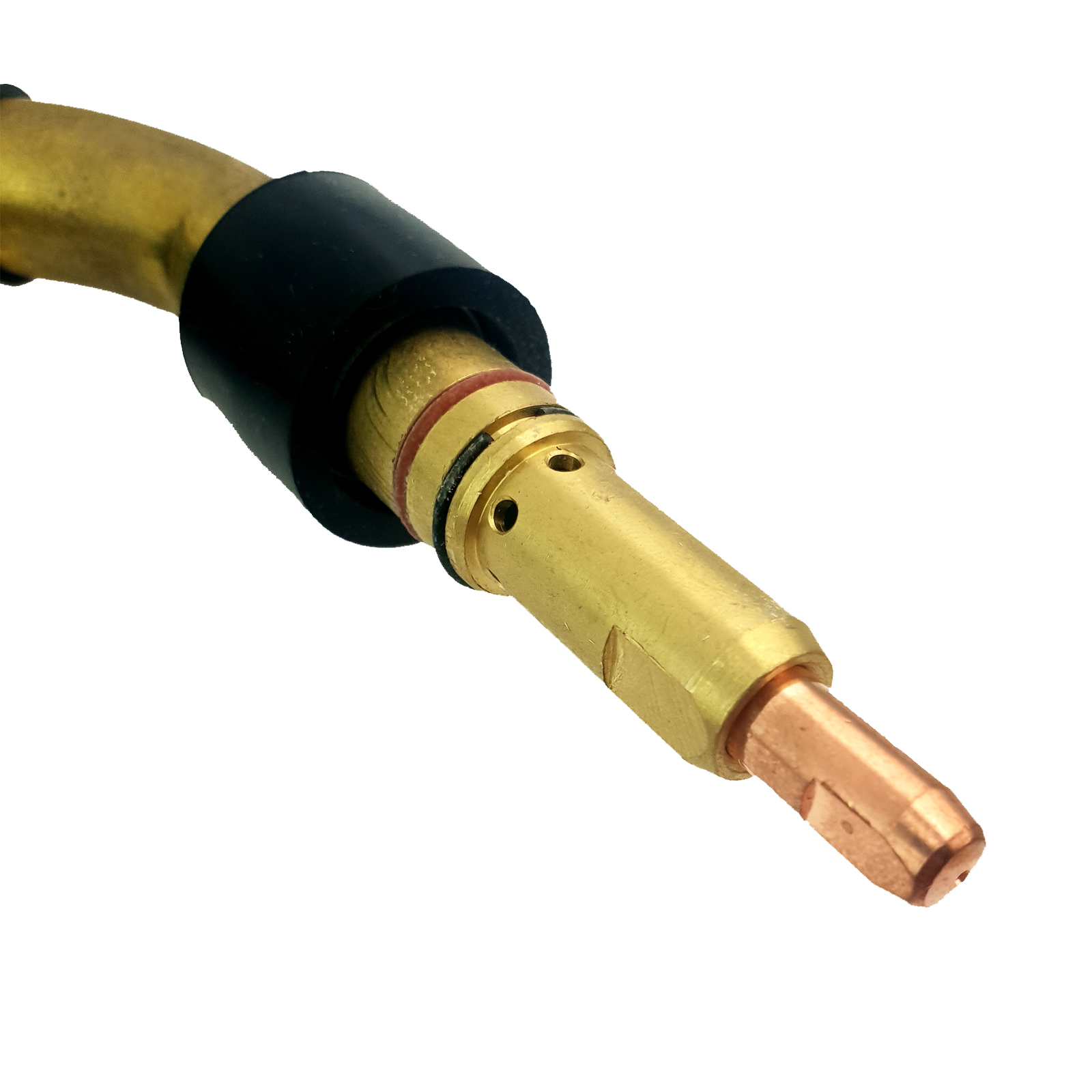

Contact Tips:

• 0.8mm 7488
• 0.9mm 7489
• 1.0mm 7496
• 1.2mm 7490
• 1.4mm 7498 (For 1.2mm Aluminium)
• Head Assembly: 4335

Nozzle:

• Cylindrical 4391
• Conical 4392

Liner:

• Steel: WGA43117 0.9mm - 1.2mm
• Aluminium: WGA43117X 1.2mm
