UNIMIG Viper 165 Gas MIG Welding Combo - U11006K

The Value Pack comes with a Bonus:

• UWELD Auto-Darkening Welding Helmet

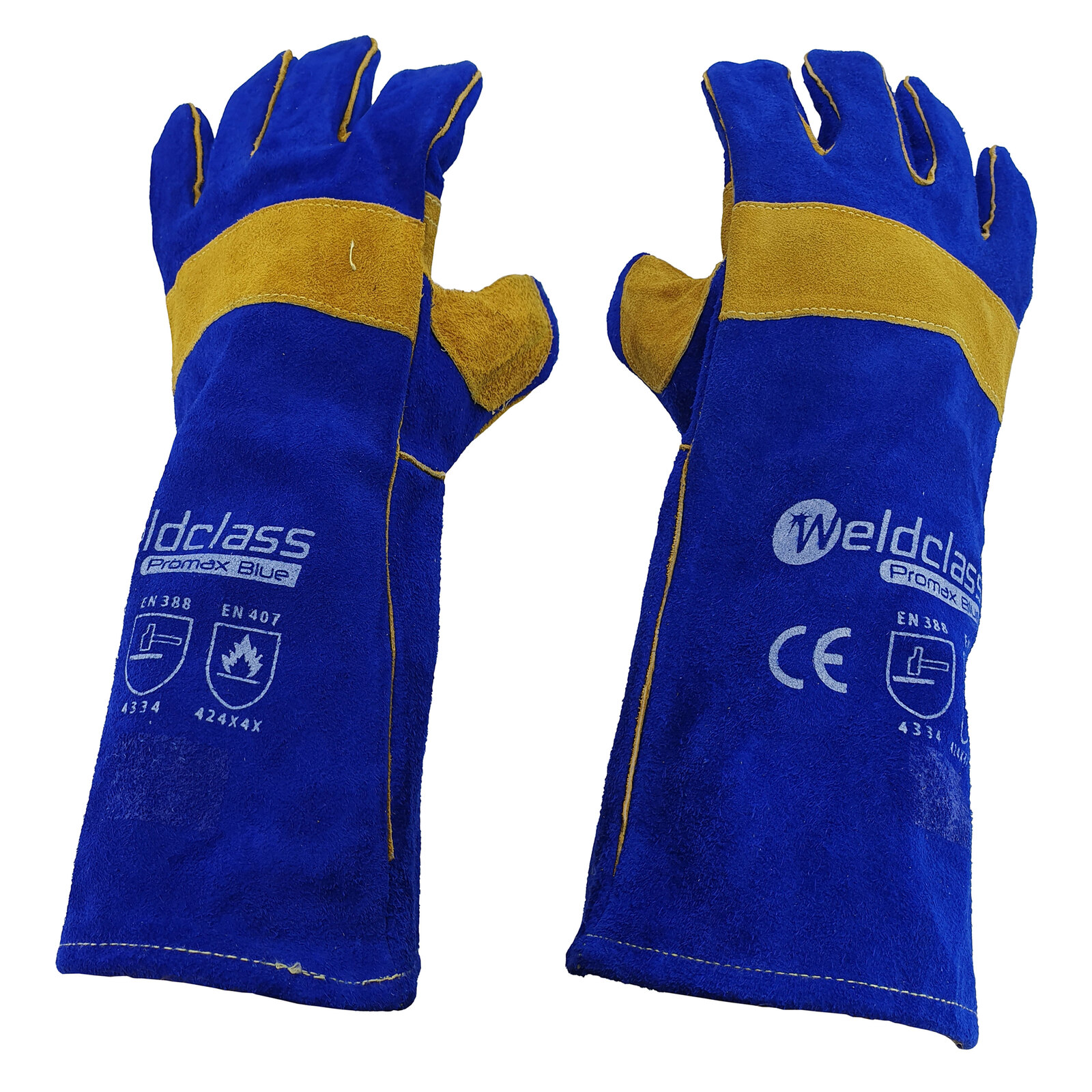

• Heavy-Duty MIG Welding Gloves
• Welder / Bottle Trolley
• 5kg of 0.9mm S6 Gas Wire
• 10 Contact Tips
• 2 Nozzles
• Mig Torch Stand
• Plus the VIPER 165

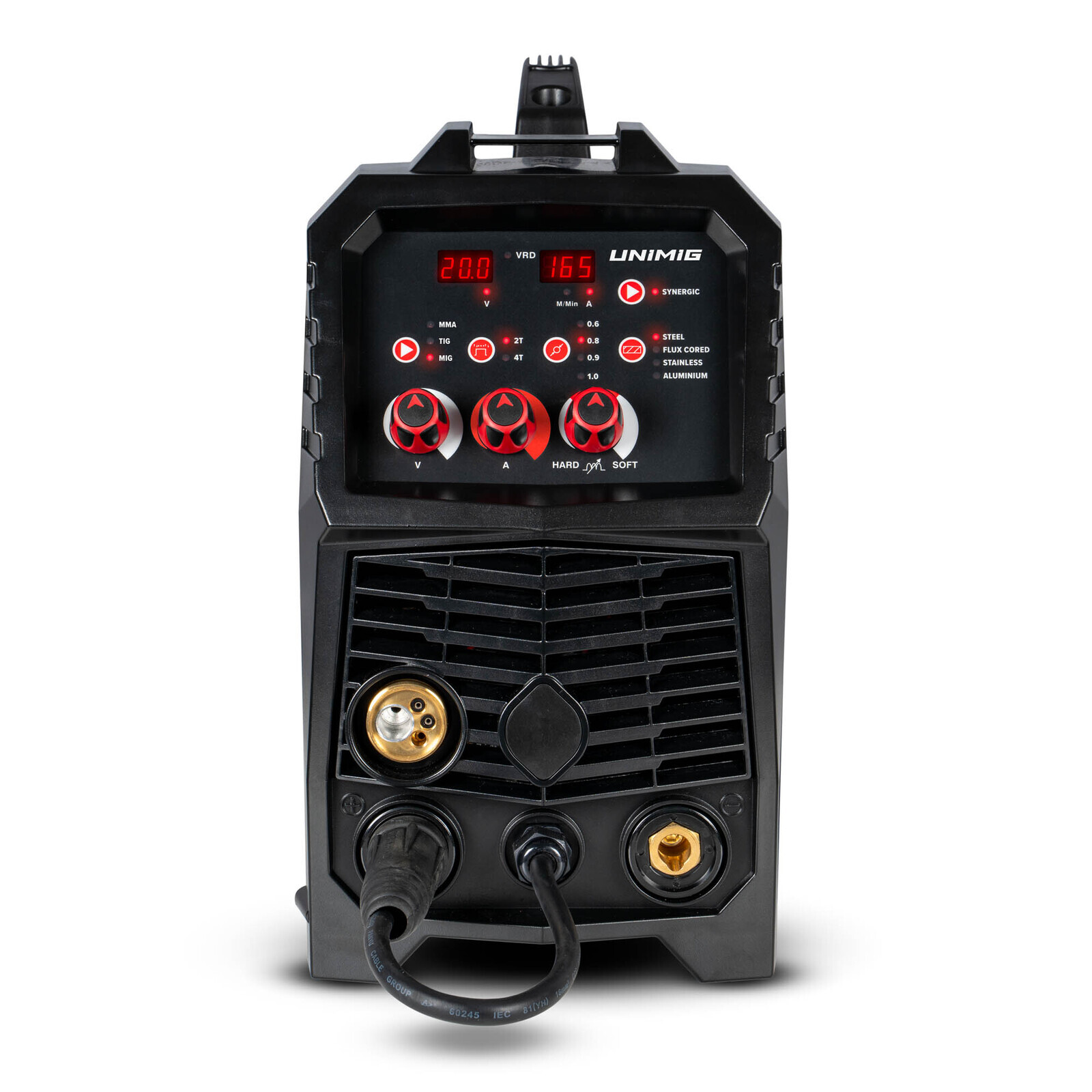

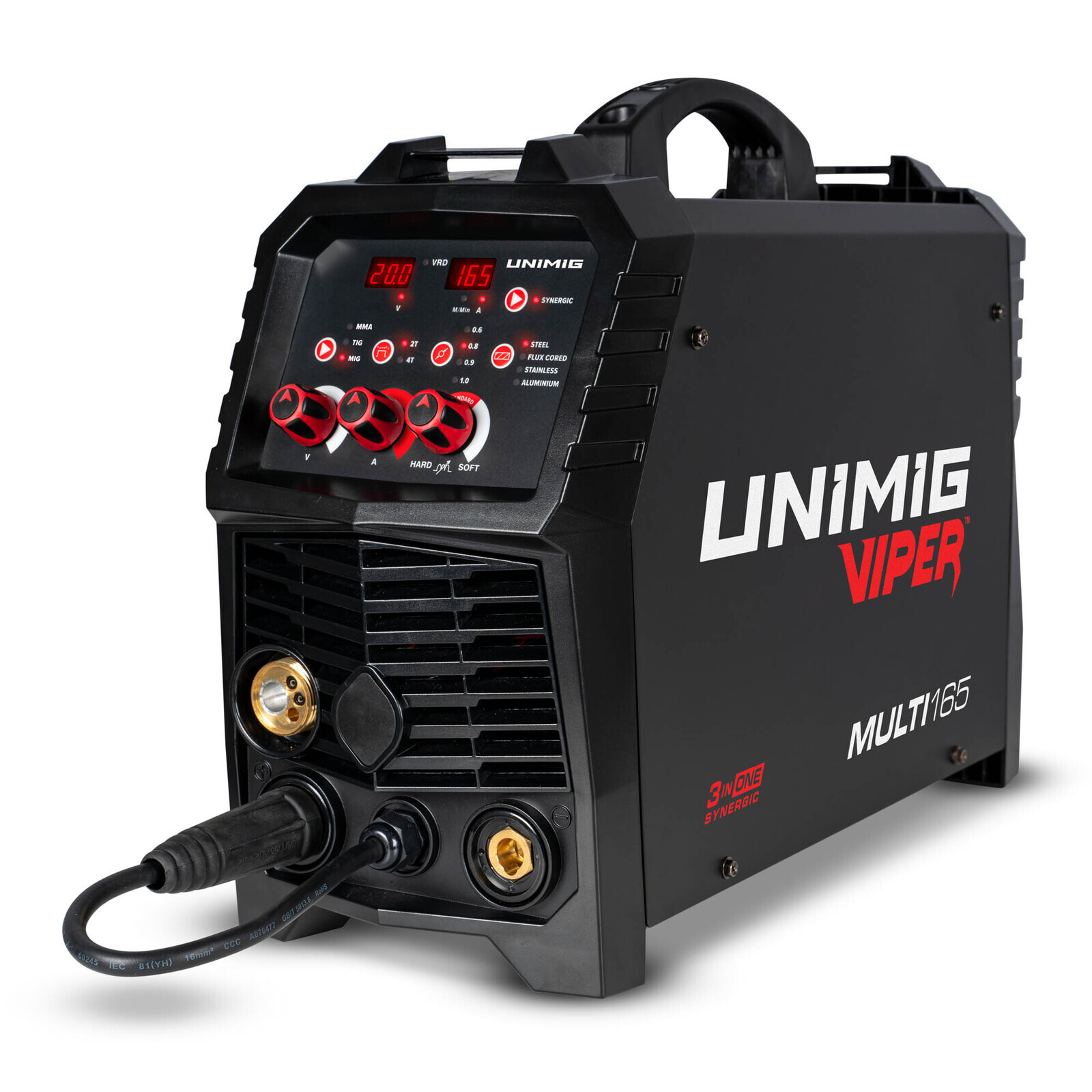

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

Machine Specifications:

• Product Number: U11006K
• Wire Drive: Standard
• VRD: Yes
• Wire Inch: Yes
• Inductance Control: Yes
• Thermal Overload Protection: Yes
• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 AMP
• Ieff (A): 10.0
• Rated Output: 30A/15.5V - 165A/22.3V
• No Load Voltage (V): 64
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator (kVA): 9.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

MIG Specifications:

• MIG Welding Current Range: 30-165A
• MIG Duty Cycle @ 40°C: 10% @ 165A / 60% @ 68A / 100% @ 52A
• MIG Wire Size Range: 0.6-0.9mm
• MIG Wire Spool Size: 1kg / 5kg
• MIG Welding Thickness Range: 1-8mm
• Drive Roller Size: 30/10

TIG Specifications:

• TIG Function Type: DC Lift Arc
• TIG Welding Current Range: 20-160A
• TIG Duty Cycle @ 40°C: 10% @ 160A / 60% @ 65A / 100% @ 50A
• TIG Welding Thickness Range: 1-6mm

STICK Specifications:

• Stick Welding Current Range: 20-140A
• Stick Duty Cycle @ 40°C: 10% @ 140A / 60% @ 58A / 100% @ 45A
• Stick Electrode Range: 2.5-3.2mm
• Stick Welding Thickness Range: 2-8mm

Size and Weight:

• Dimensions (mm): 513x206x391mm
• Weight (kg): 9.8kg

The UNIMIG Viper Multi 165 Welder is packaged ready to weld and includes:
