Bernard MIG Gas Diffuser / Head 4335 for Short Tips Suits 200-300 Amp Torches

Bernard MIG Gas Diffuser / Head 4335 for Short Tips Suits 200-300 Amp Torches

Bernard Style Gas Diffuser Head Assembly is a heavy-duty gas diffuser/head for grater heat dissipation, allowing smooth gas flow and long life. It is matched with Bernard MIG guns ranging from 200-300A. This gas diffuser also holds the contact tip and secures the nozzle.

Features:

• Bernard Style
• Part number 4335
• 1 Each
• Wide variety of standard slip-on nozzles to fit any application
• Suits Short series of contact tips
• Much stronger and more durable than OEM
• Heavy-duty gas diffuser/heads for greater heat dissipation, allowing smooth gas flow and long life
• 200-300A Amperage Rating
• UNIMIG Part #: PWGA4335

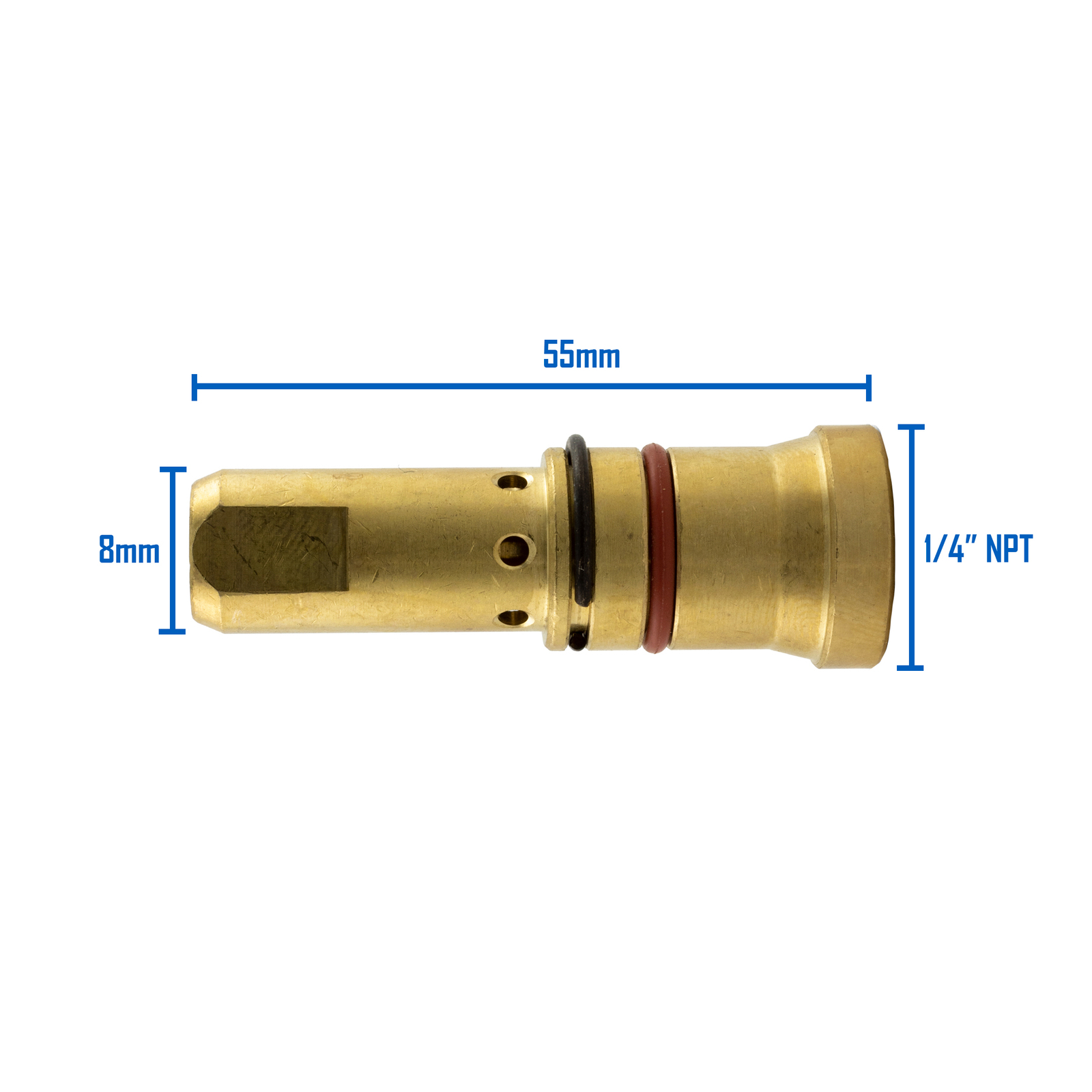

Dimensions:

• 55mm length
• 8mm tampered bore
• 1/4 NPT base

Compatible with:

Contact Tips:

•  0.8mm 7488
•  0.9mm 7489
•  1.0mm 7496
•   1.2mm 7490

Nozzle :

• - 4391, 4392, 4393

Swan Neck:

• - 4786

Rubber Cap:

• - 4323R

O Rings:

•   - 7126R
