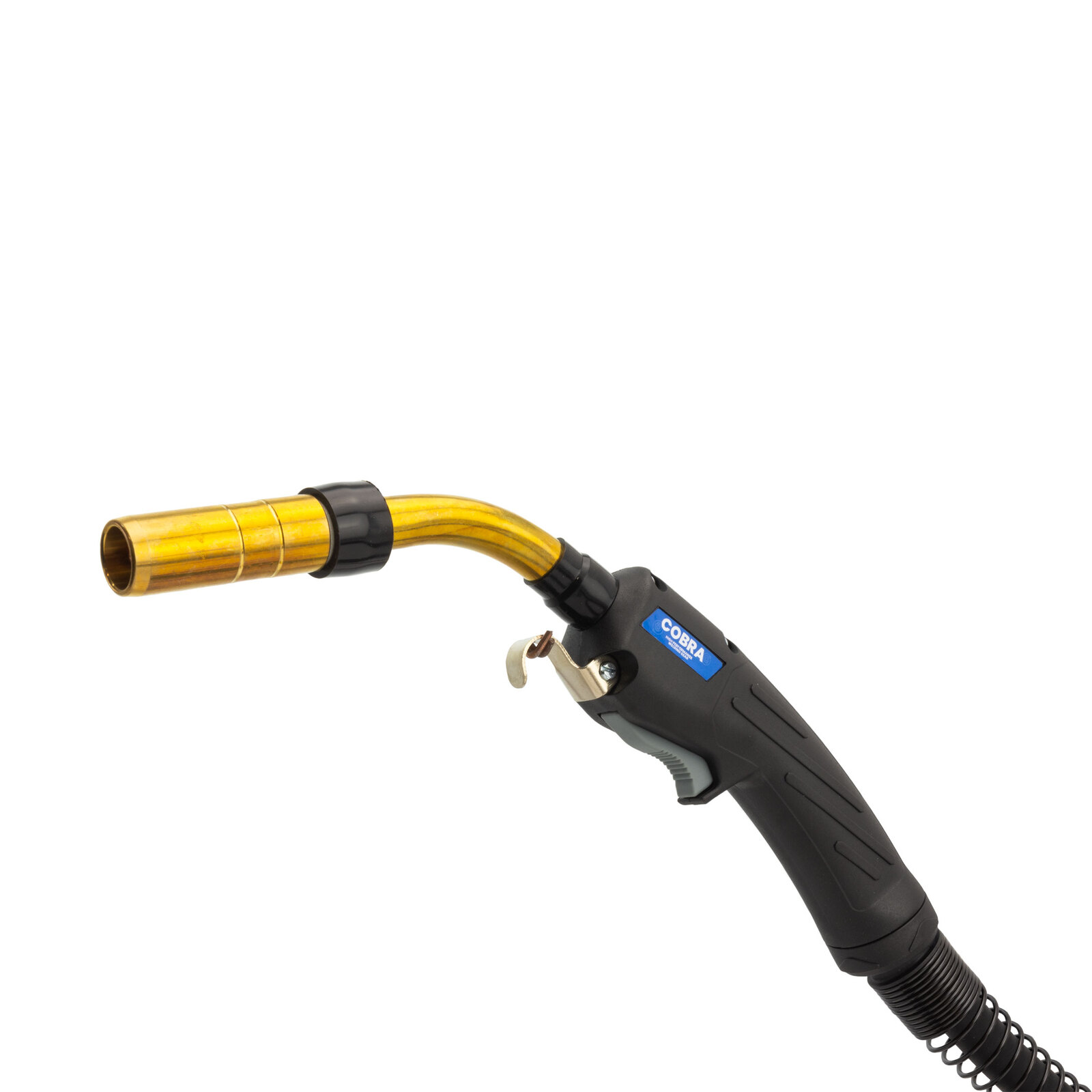

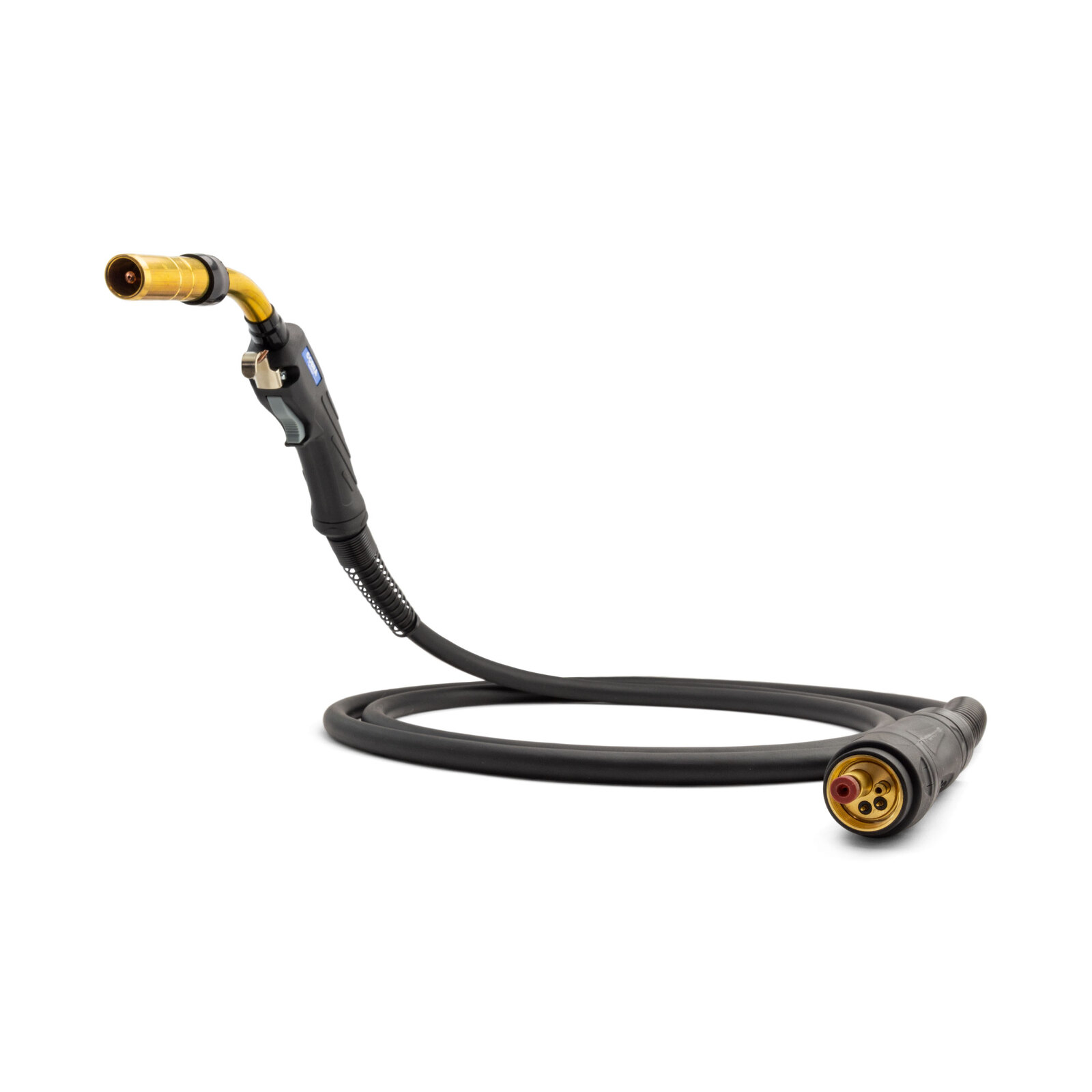

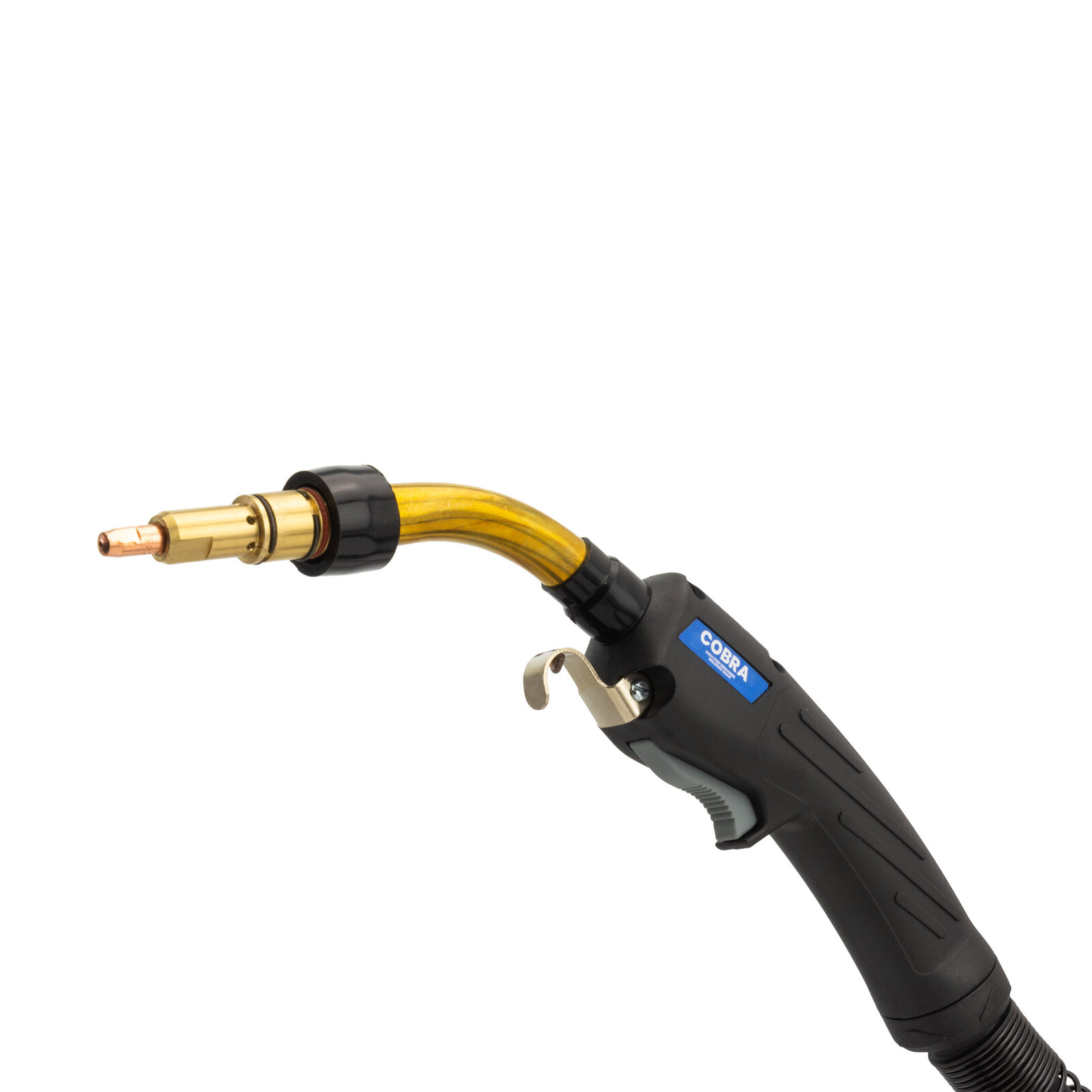

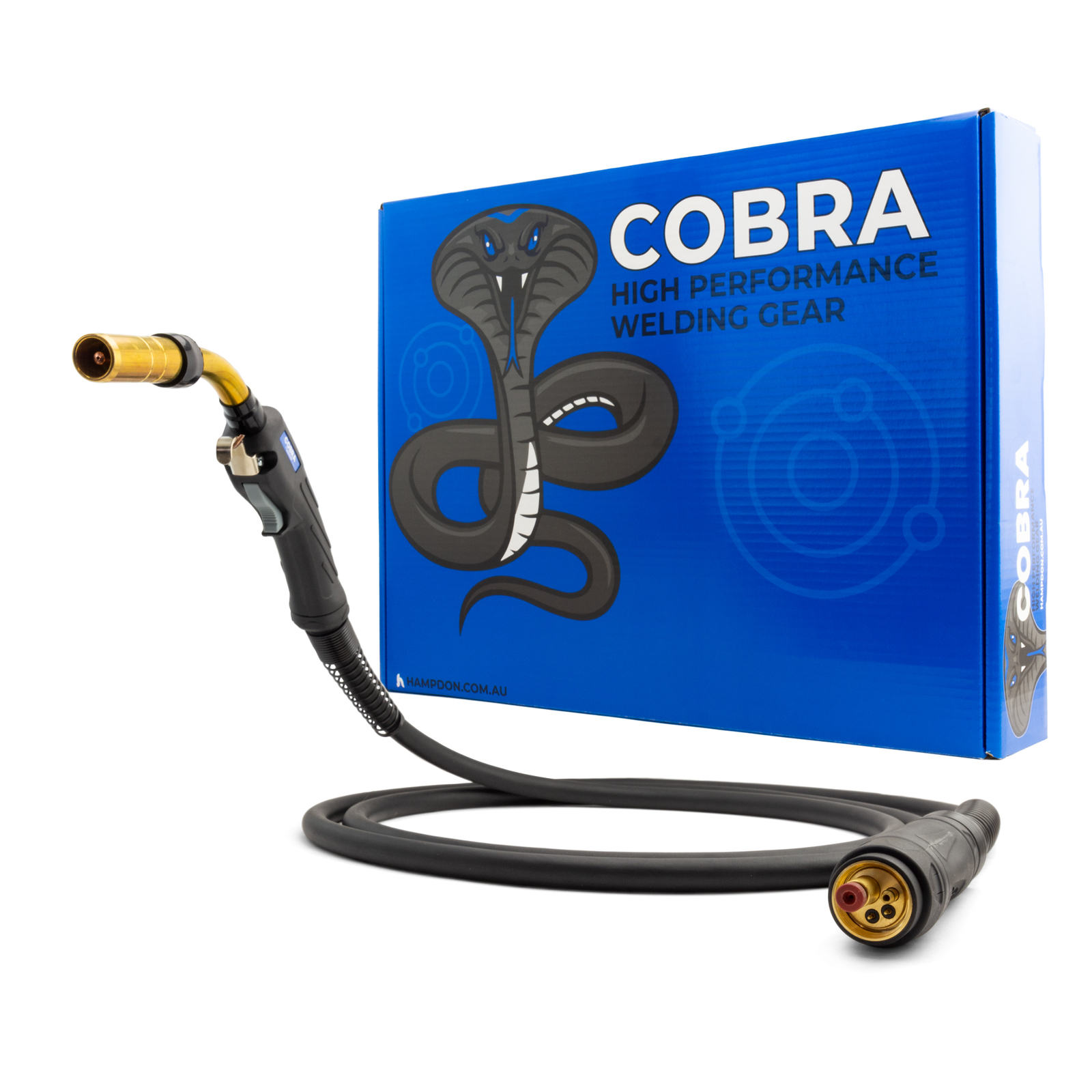

3.6m - 400 Amp Bernard MIG Torch / Gun - Euro Connection

Bernard style MIG torches are built for operator comfort and provides excellent performance and ergonomics when welding with the greater heat levels generated by higher amperage applications.

Features:

• 400A
• Euro connection
• Swan necks - Manufactured to the same specifications as the OEM

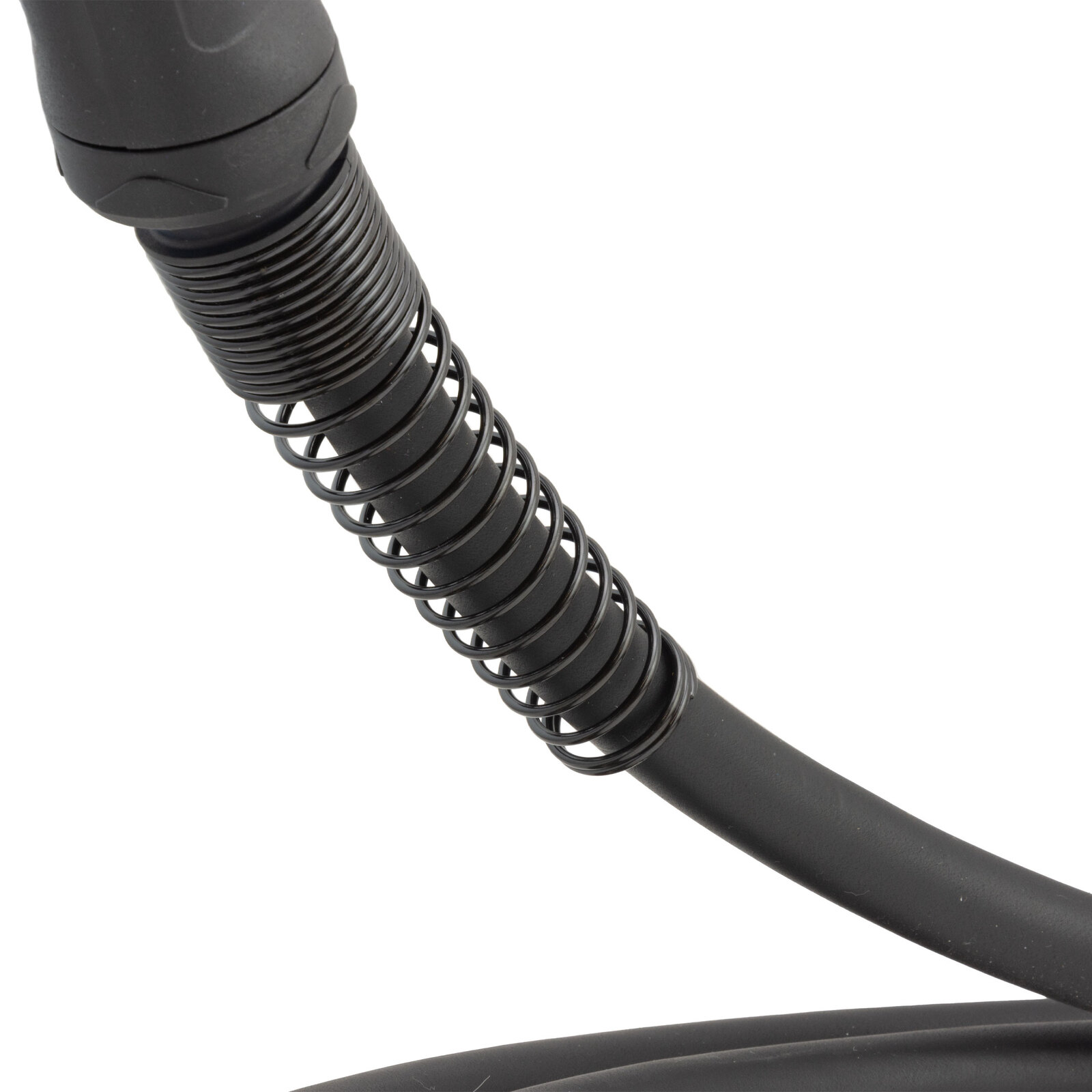

• Handles and cable supports
• Hanger hook
• Spare Trigger Part number 5662

Specifications:

• 3.5m long

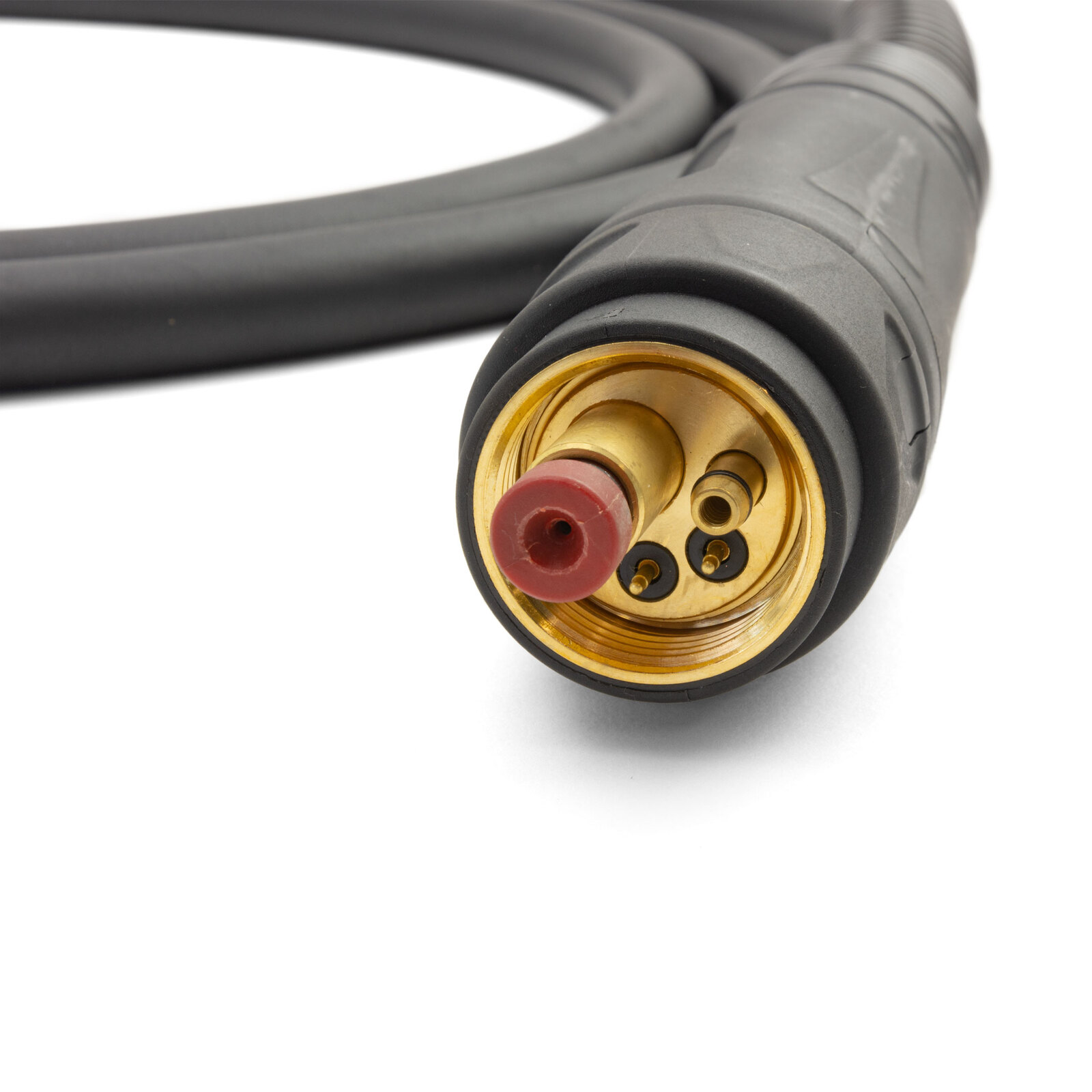

• Suitable for use on any euro connection machine
• Air cooled cooling method
• Duty cycle rating with CO2: 400amps @ 60%
• Duty cycle rating with mixed gas: 320amps @ 60%
• Wire size: 0.8mm - 1.6mm

Spare Parts:

Contact Tips

• 0.8mm 7488
• 0.9mm 7489
• 1.0mm 7496
• 1.2mm 7490
• 1.4mm 7498 For 1.2mm Aluminium

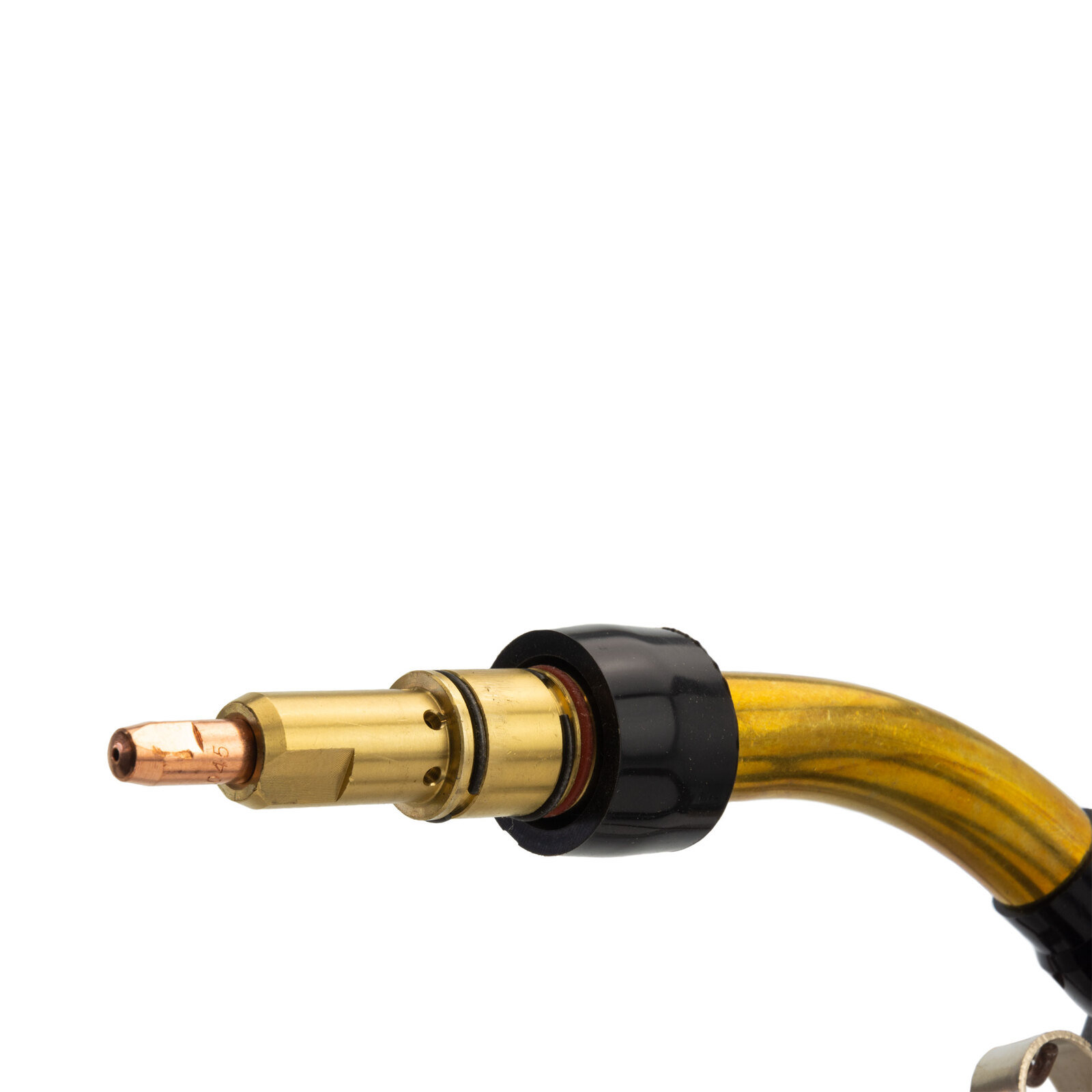

Head Assembly

• 4435

Nozzle

• 4491, 4492
• 4591, 4592

Liners

• 44115 0.9mm - 1.2mm
• 44215 1.6mm
• 44215X 1.2mm - 1.6mm​
• 44315 2.0mm​
