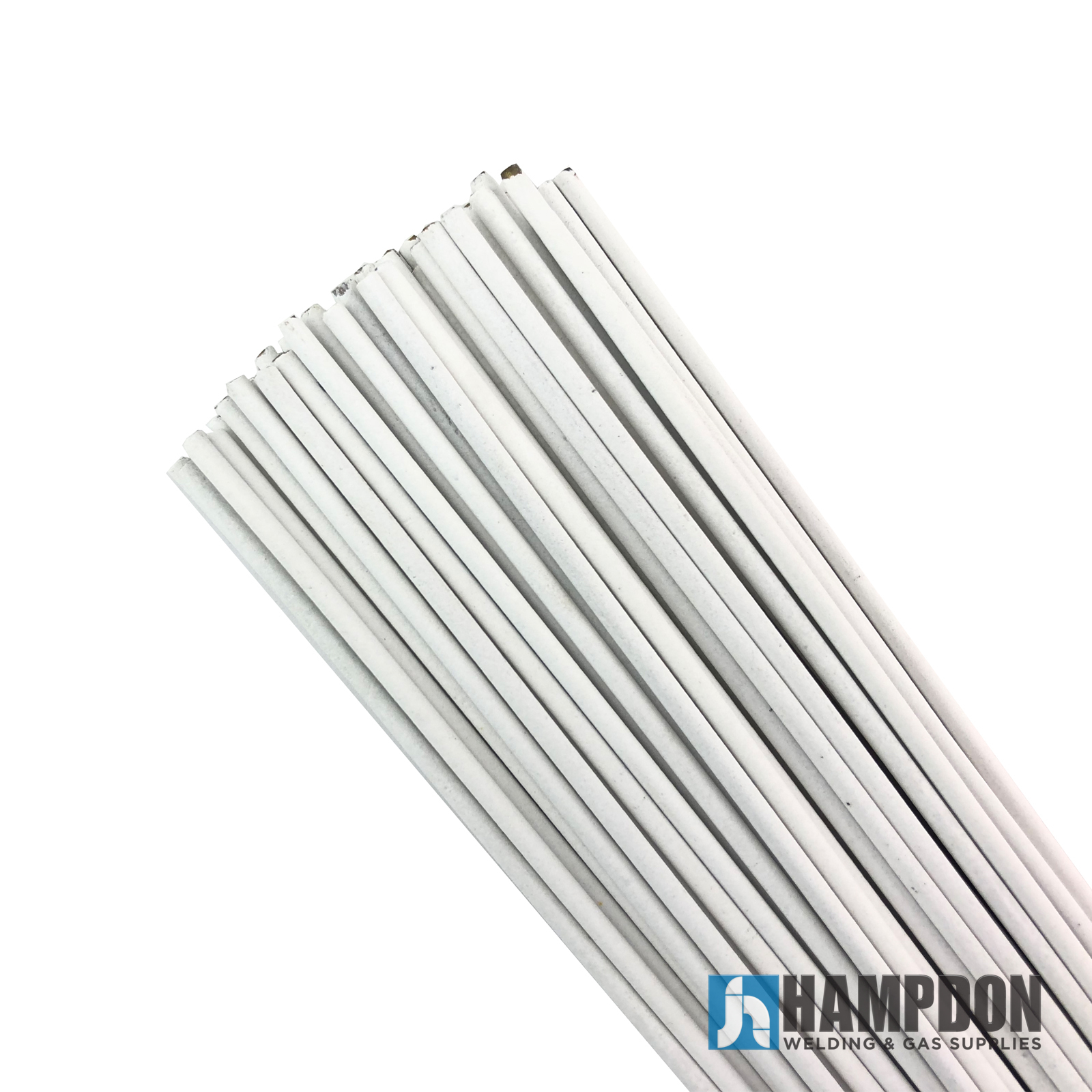

2.4mm x 1kg Manganese Bronze Flux coated TIG / OXY Brazing Rods

Manganese Bronze is known for its versatility and good mechanical properties. Its high bond strength makes it suitable for use in a wide range of self-fluxing applications.

Excellent choice for rush jobs or temporary applications involving dissimilar metals or where rust is present. Galvanized parts can be brazed without causing damage to the zinc coating. Best for colour matches on yellow brass and bronze castings.

The weld deposits are non-porous for leak proof joints for water, oil and gas lines. The weld deposit freezes rapidly from fluid to a plastic state. Preheat is required for some applications and a brazing flux is recommended. Clean joint area as thoroughly as possible.

Product specification:

• 2.4mm diameter
• 1kg pack
• Approximately 24 rods per pack
• 1000mm length rods
• Flux coated so do not need additional flux.
• Premium Bossweld brand rods
• Batch certificate of conformance can be supplied
• See our other listings for 200g and 1kg packs.

AWS  and Industry Specification:

• A5.8 RBCuZn-C

Key Features:

• Low fuming
• Ductile weld metal
• Good mechanical properties
• Suitable for steel, stainless steel, copper and nickel alloy
• Braze welding of bronze, cast iron steel and malleable iron
• Great for gas brazing steel, copper alloys, and stainless steel
• CIGWELD Part # 321191 – 2.4mm – (2.5kg}
• CIGWELD Part # 322206 – 2.4mm – (5 rod pack}
• CIGWELD Part # 322020 – 2.4mm – (20 rod HP)

Good mechanical properties. Its high bond strength makes it suitable for use in a wide range of self-fluxing applications.

• Dissimilar metals
• Where rust is present.
• Galvanized parts can be brazed without causing damage to the zinc coating.
• Best for colour matches on yellow brass + bronze castings.
• Steel
• Stainless steel
• Copper
• Nickel alloy
• Bronze
• Cast iron

Melting point
890 Deg C

Tensile Strength ( KPSI)
65

Brinell Hardness
80-100
