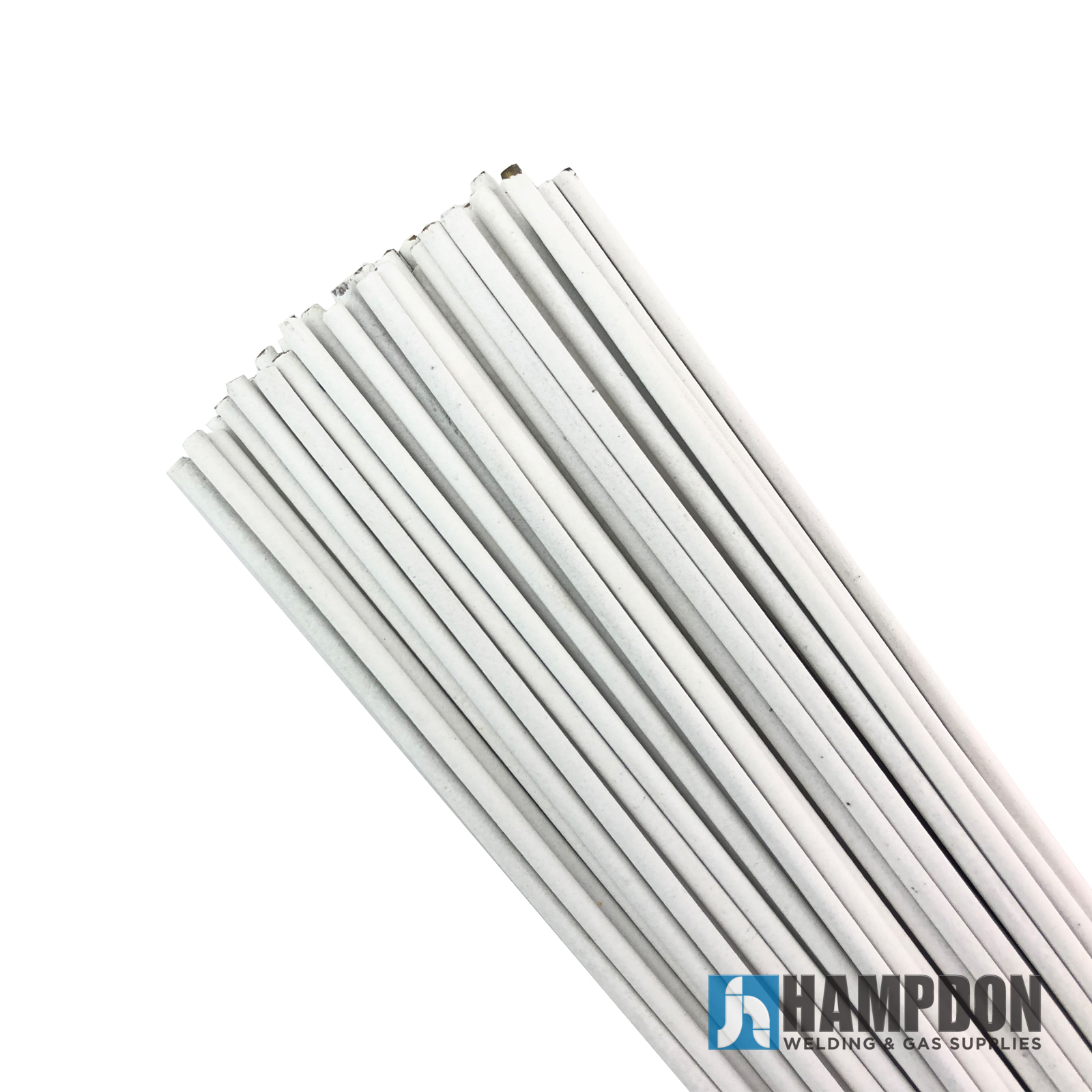

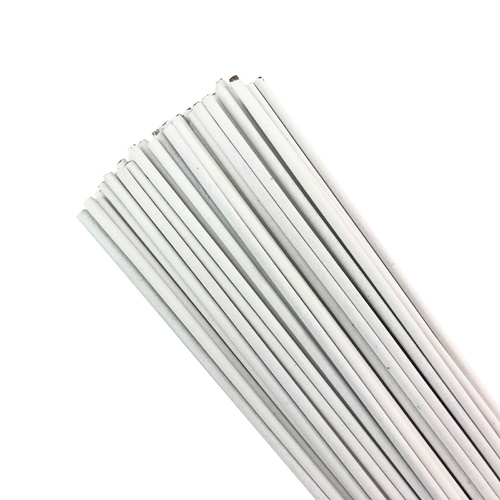

3.2mm x 1kg Manganese Bronze Flux coated TIG / OXY Brazing Rods

RBCuZn-C

WAS $89.00
RRP $99.00
NOW $80.10
SAVE 19%!
Sale Ends in
23:59 pm, 31 December 2024

AfterPay More info.

Make 4 payments of $20.02 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $12.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Manganese Bronze is known for its versatility and good mechanical properties. Its high bond strength makes it suitable for use in a wide range of self-fluxing applications.

Excellent choice for rush jobs or temporary applications involving dissimilar metals or where rust is present. Galvanized parts can be brazed without causing damage to the zinc coating. Best for colour matches on yellow brass and bronze castings.

The weld deposits are non-porous for leak proof joints for water, oil and gas lines. The weld deposit freezes rapidly from fluid to a plastic state. Preheat is required for some applications and a brazing flux is recommended. Clean joint area as thoroughly as possible.

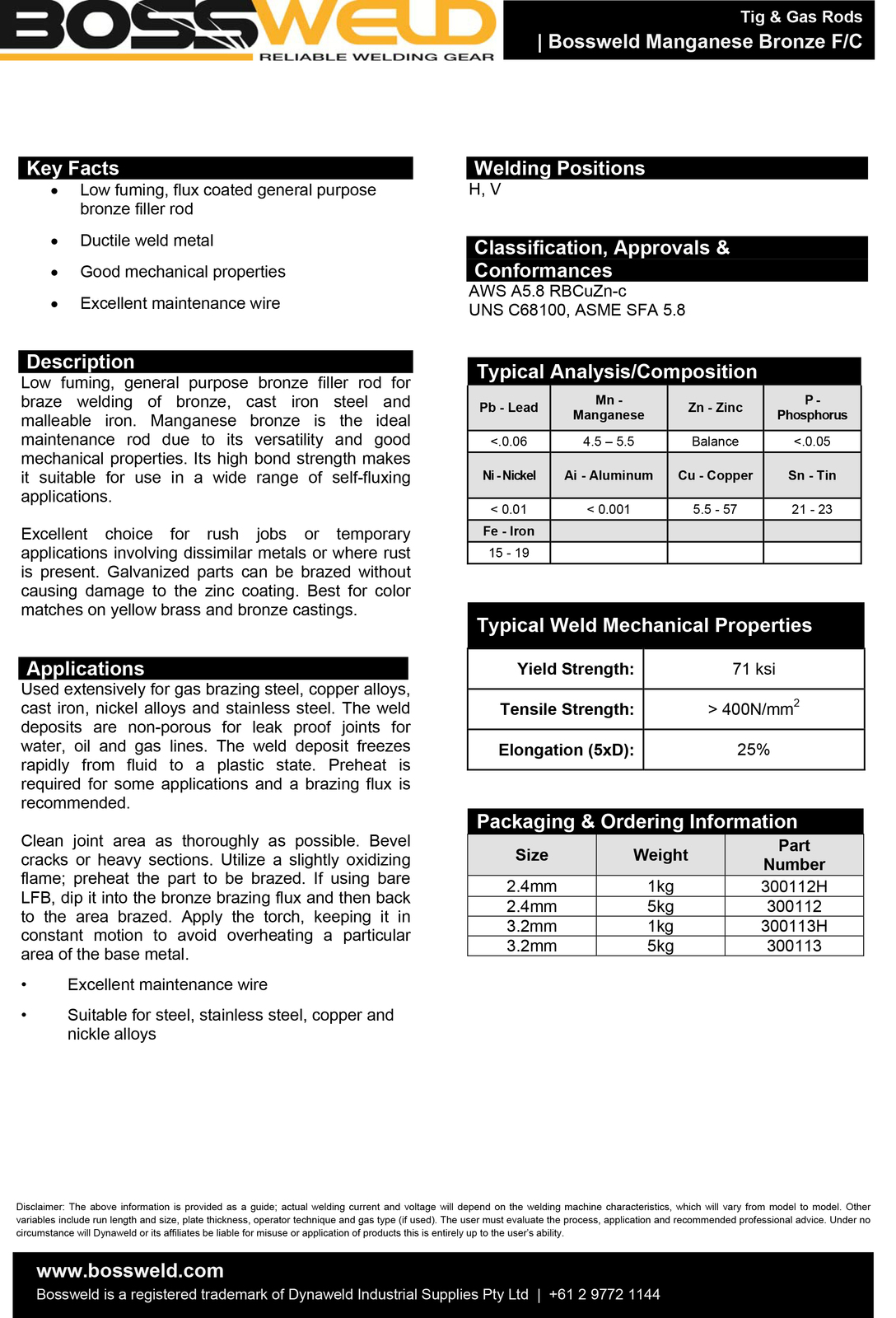

Product specification:

  • 3.2mm diameter
  • 1kg pack
  • Approximately 14 rods per pack
  • 1000mm length rods
  • Flux coated so do not need additional flux.
  • Premium Bossweld brand rods
  • Batch certificate of conformance can be supplied
  • See our other listings for 200g and 1kg packs.



AWS  and Industry Specification:

  • A5.8 RBCuZn-C



Key Features:

  • Low fuming
  • Ductile weld metal
  • Good mechanical properties
  • Suitable for steel, stainless steel, copper and nickel alloy
  • Braze welding of bronze, cast iron steel and malleable iron
  • Great for gas brazing steel, copper alloys, and stainless steel
  • CIGWELD Part # 321186 – 3.2mm – (5kg)
  • CIGWELD Part # 322021 – 3.2mm – (15 rod Hp)





Good mechanical properties. Its high bond strength makes it suitable for use in a wide range of self-fluxing applications.

  • Dissimilar metals
  • Where rust is present.
  • Galvanized parts can be brazed without causing damage to the zinc coating.
  • Best for colour matches on yellow brass + bronze castings.
  • Steel
  • Stainless steel
  • Copper
  • Nickel alloy
  • Bronze
  • Cast iron

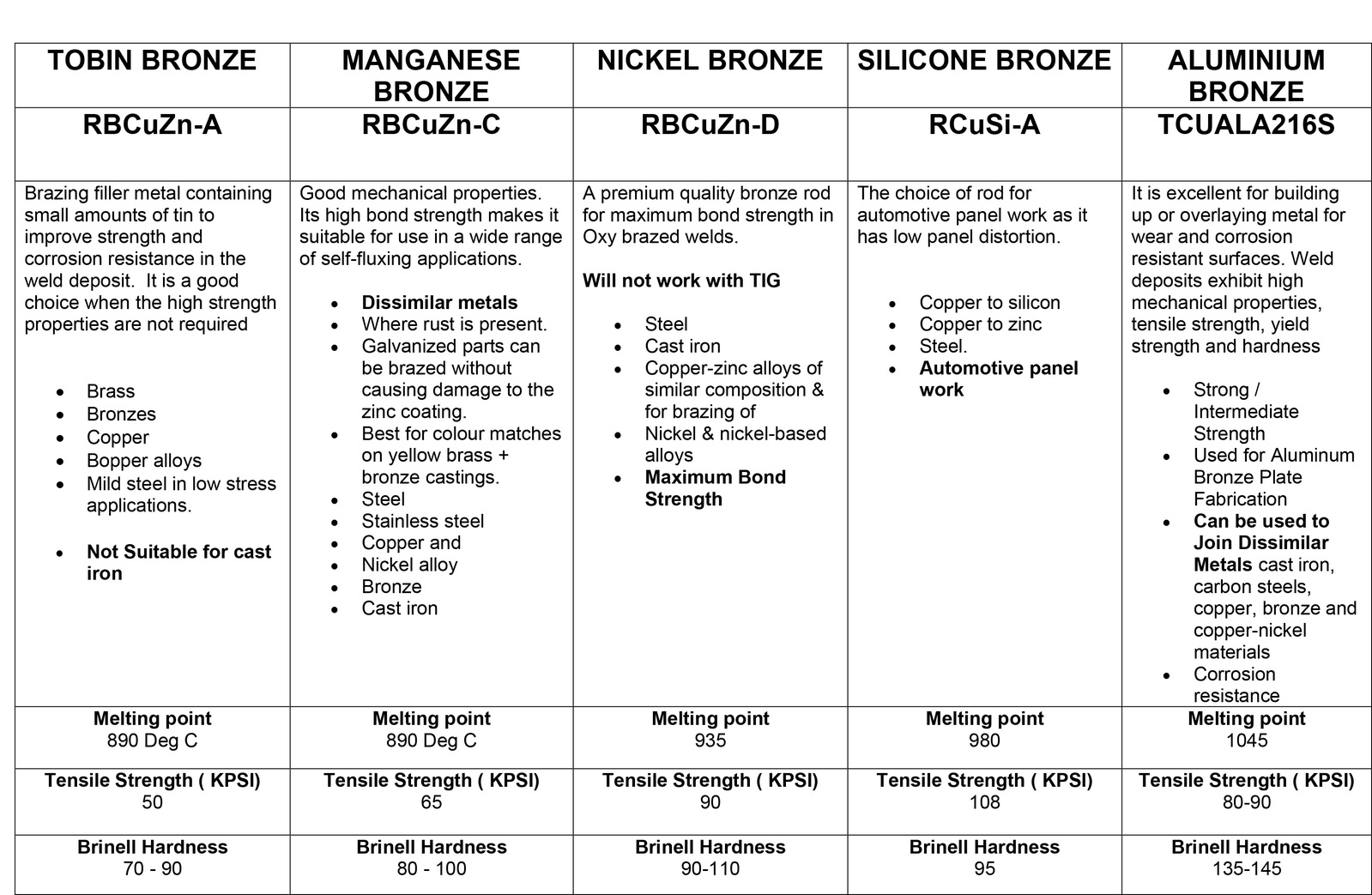

Melting point
890 Deg C

Tensile Strength ( KPSI)
65

Brinell Hardness
80-100



(300113H)

SKU 300113H
Brand Bossweld
Shipping Weight 1.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.800m
Shipping Cubic 0.002000000m3
