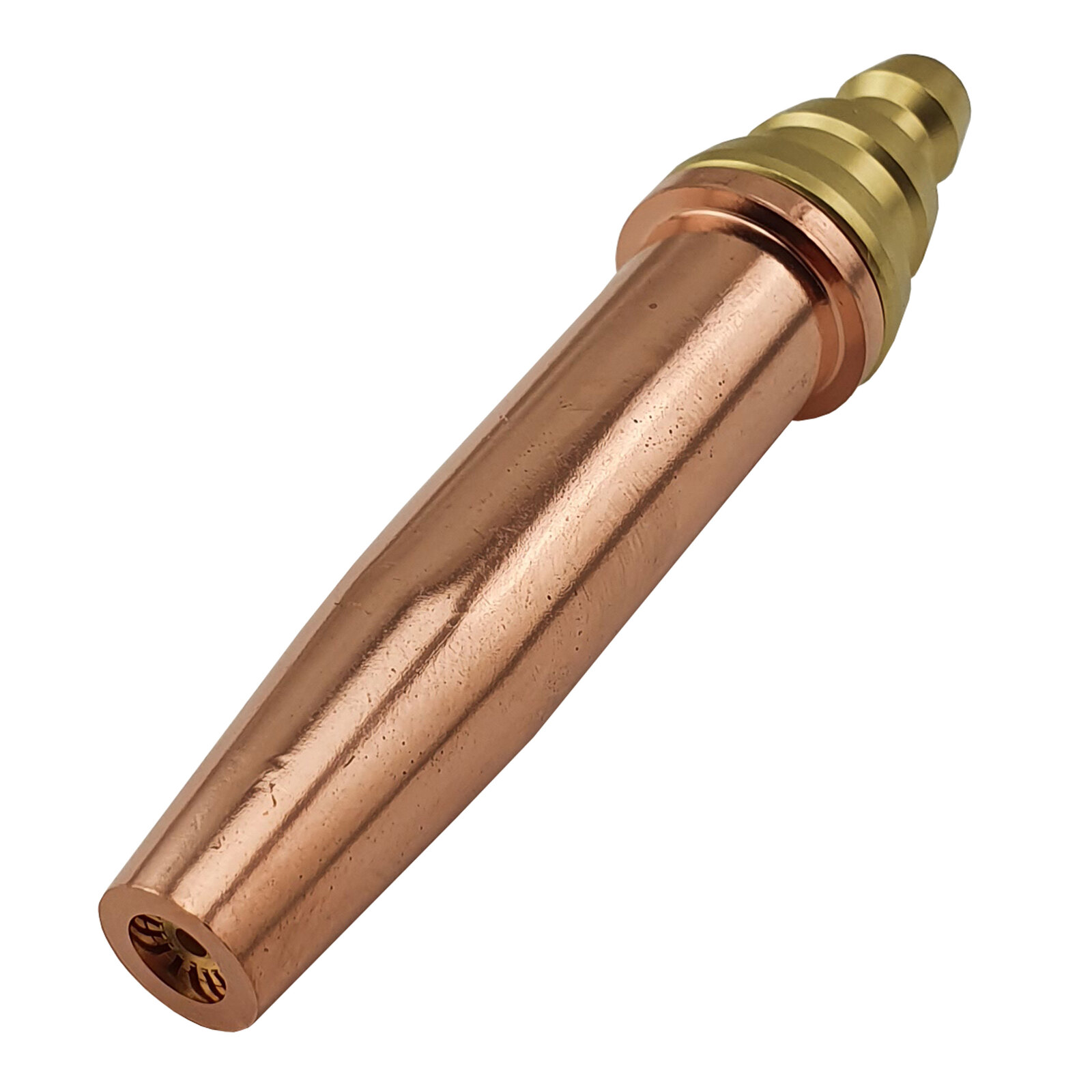

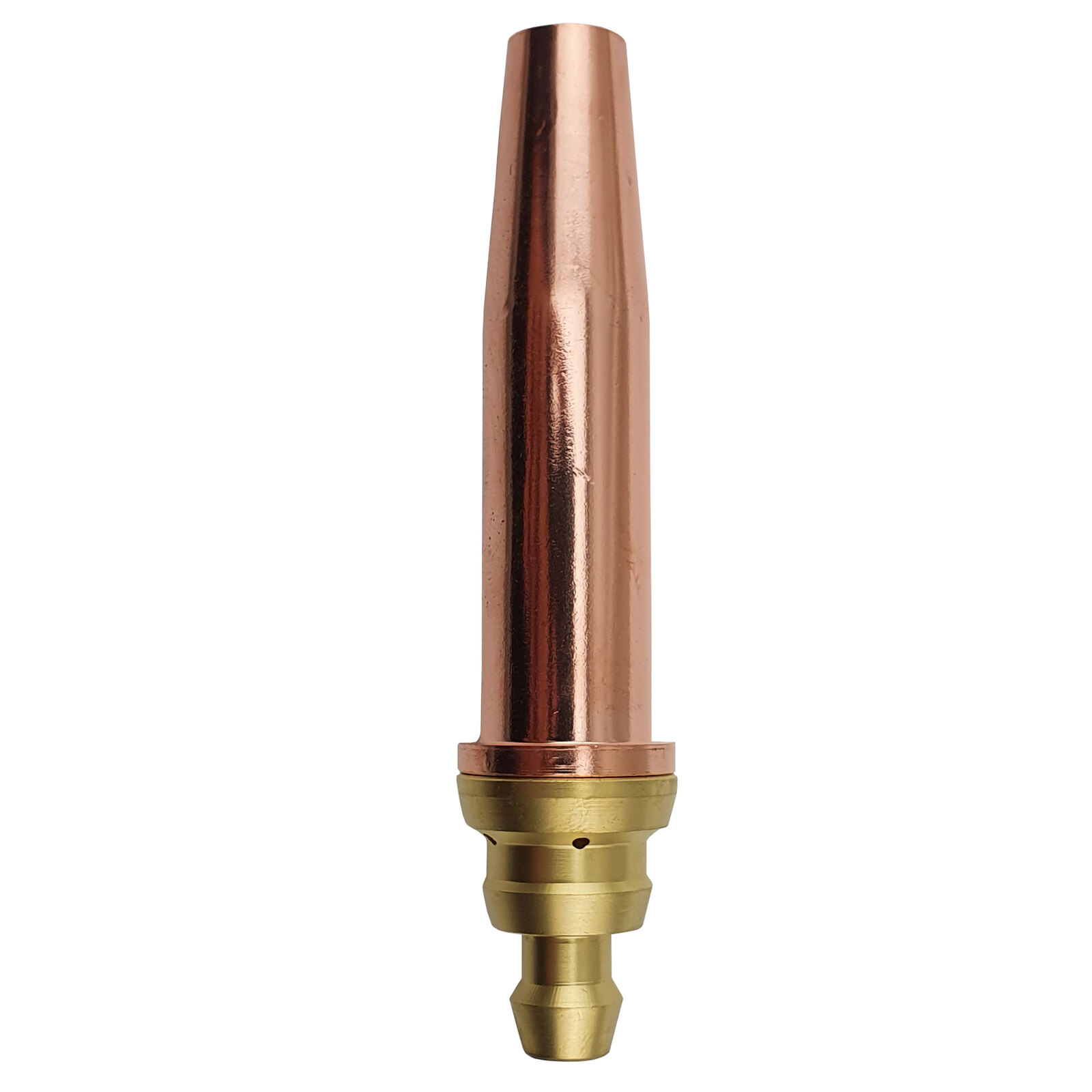

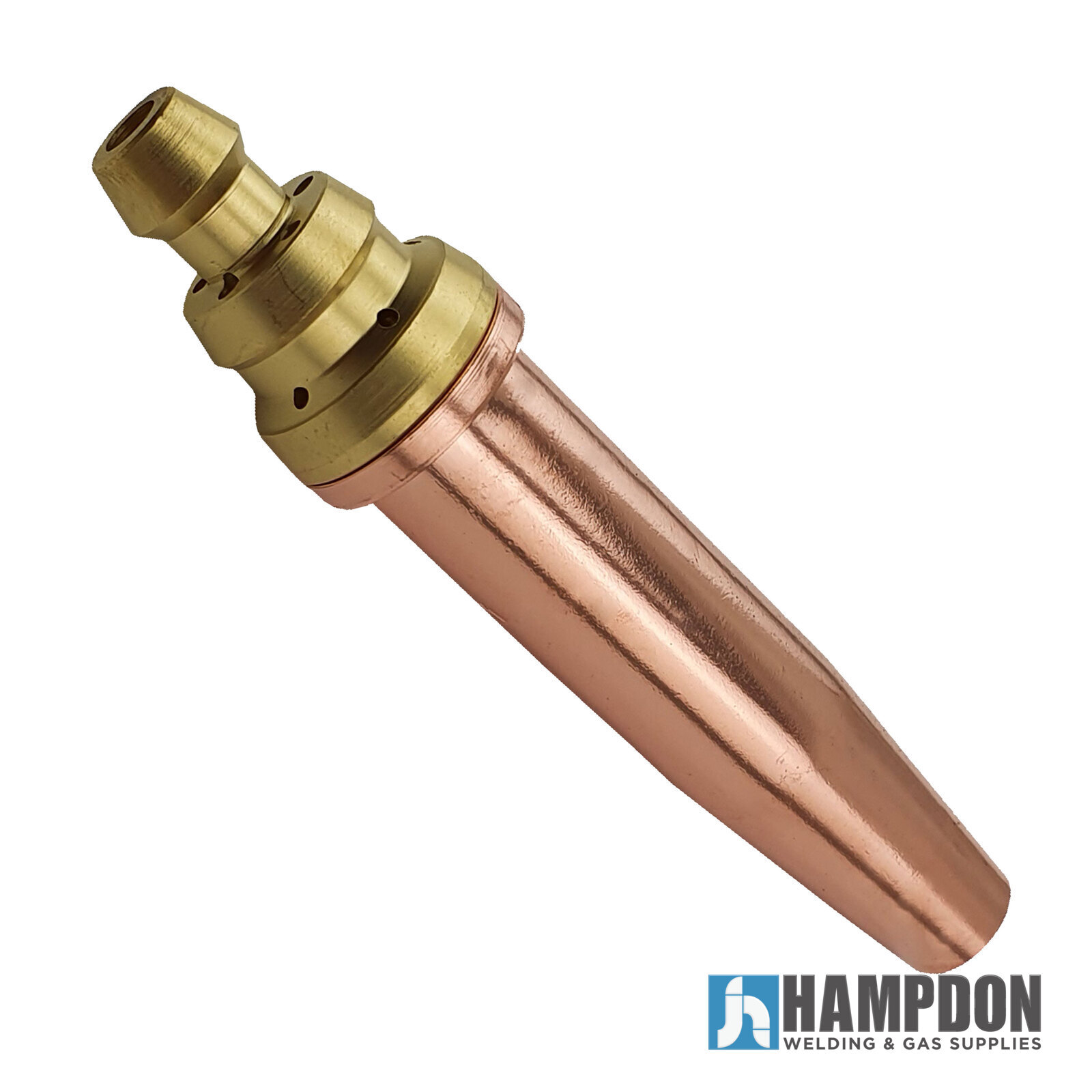

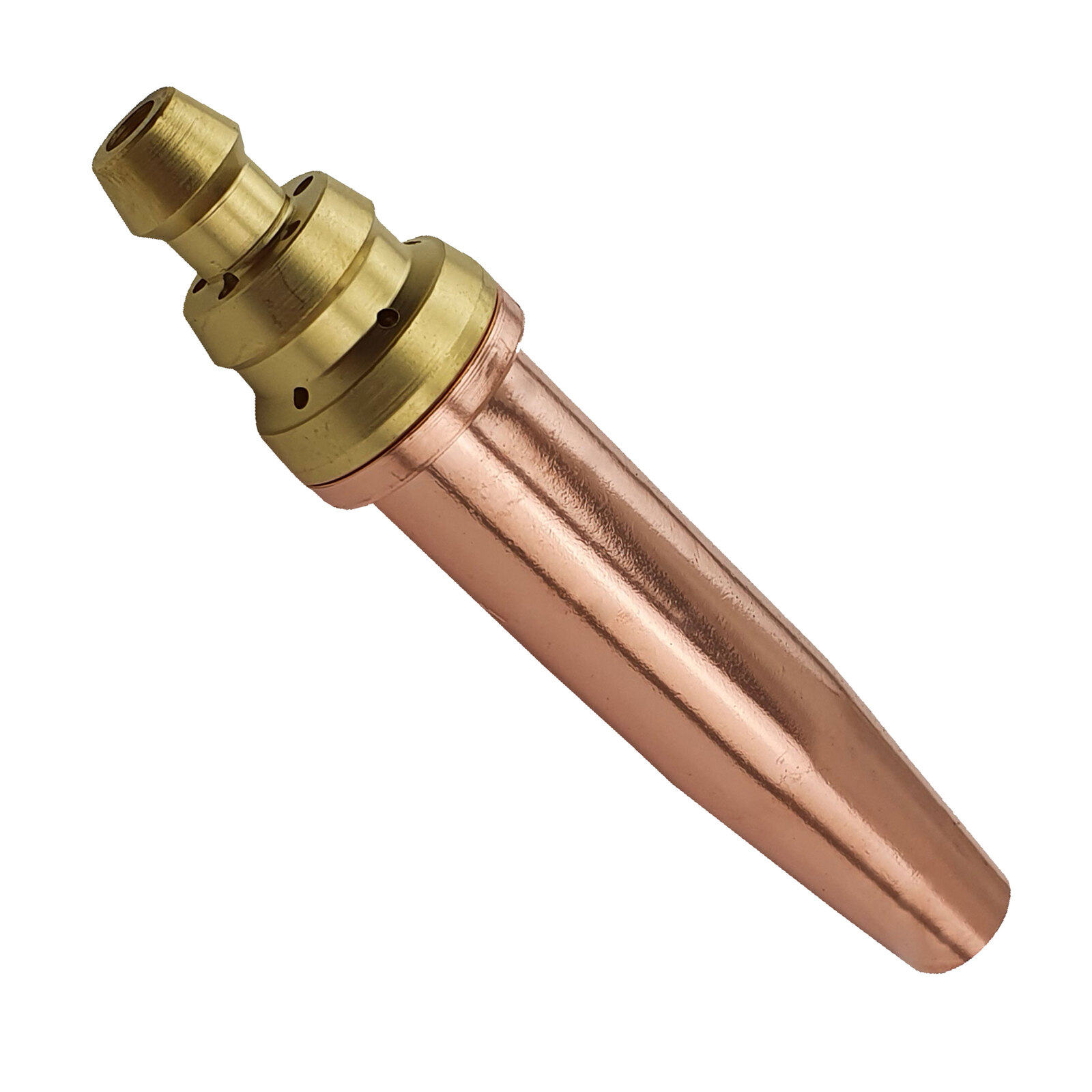

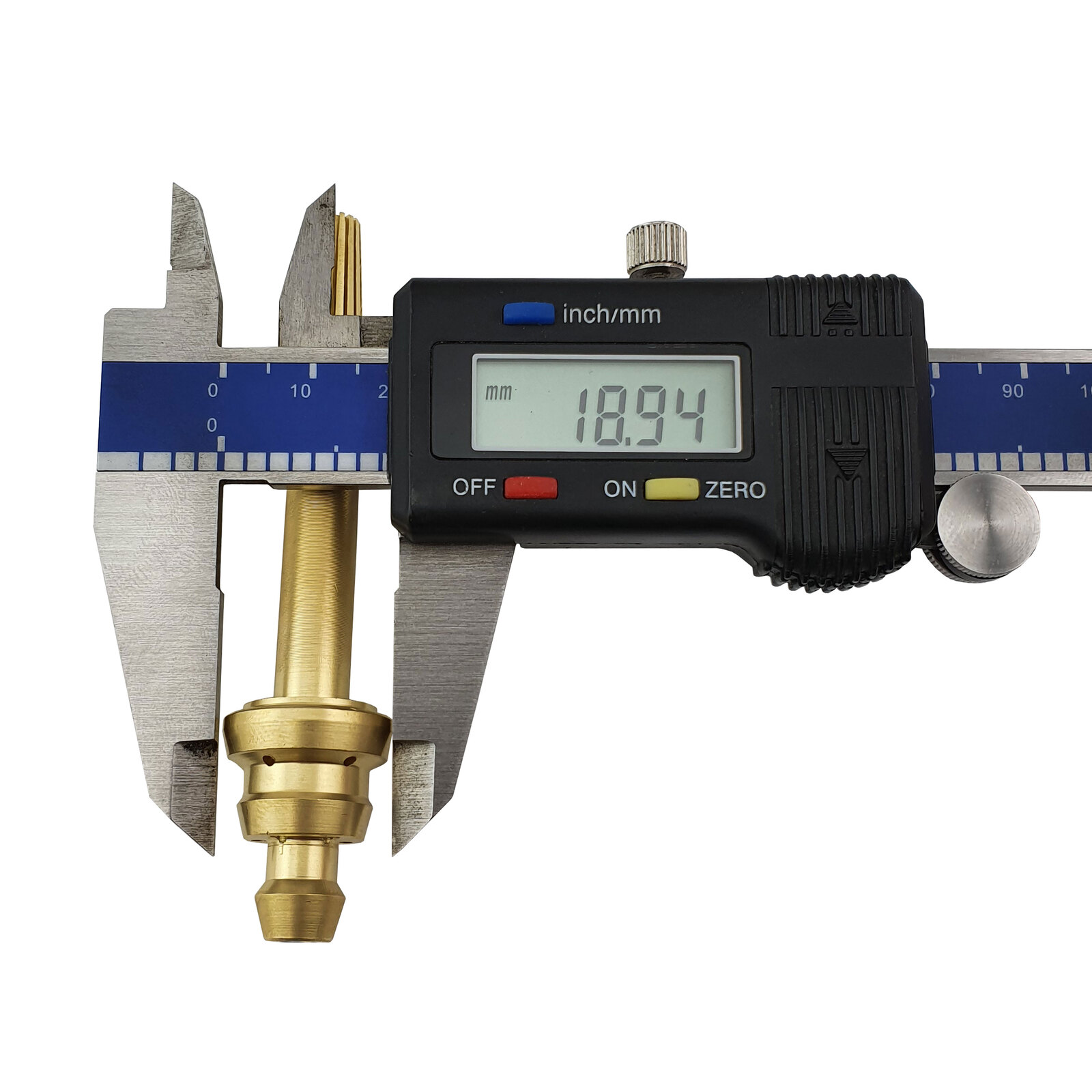

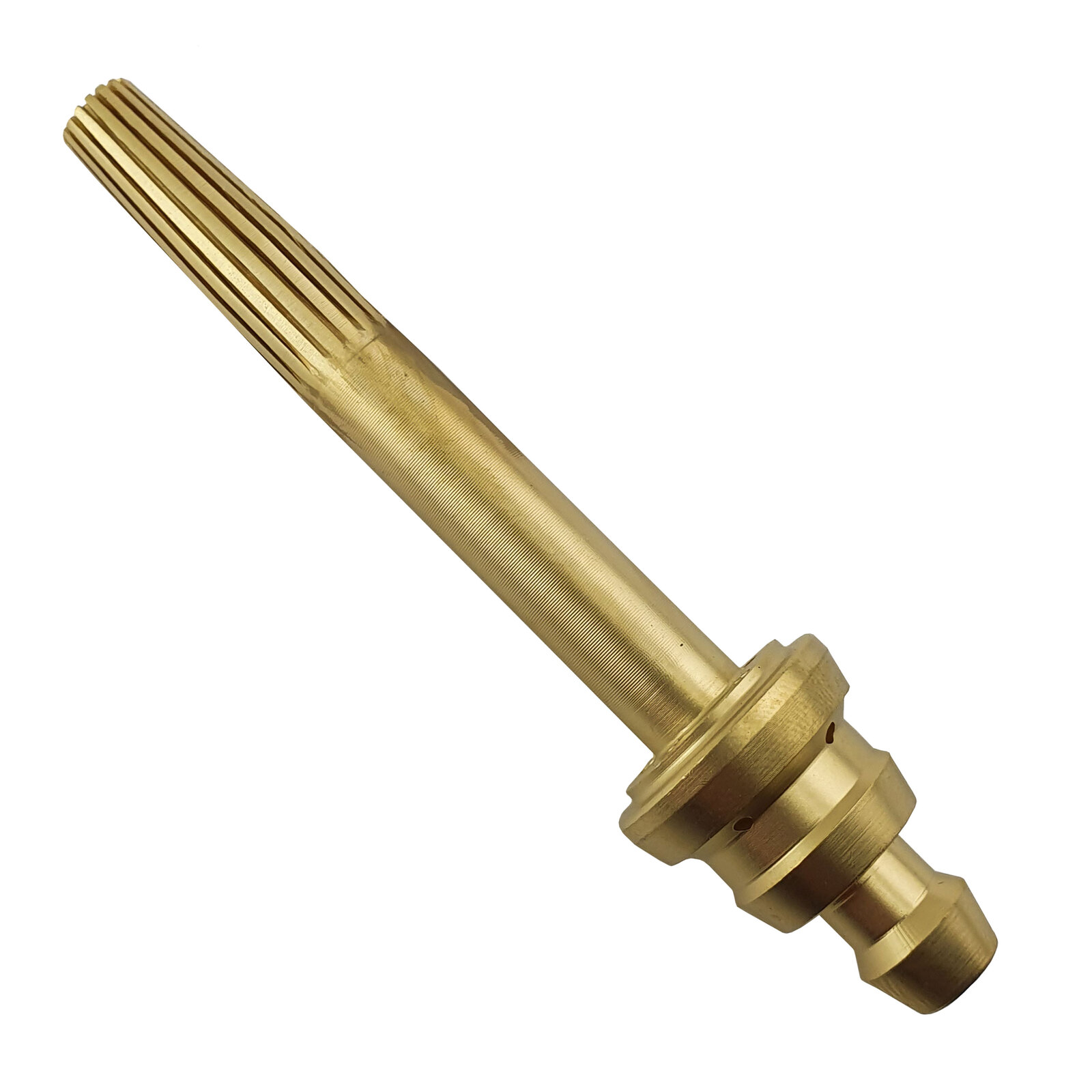

3 Seat LPG Cutting Nozzle Tip Size 6 - Type 54 Cuts 100mm to 150mm

Three seated cutting tip suitable for use on Quickie Gas cutting machines

Features

• For use with Oxygen and LPG gases
• Comply with AS 4603-1999
• Manufactured from High Quality raw materials
• Cutting Thickness 100-150mm Cut
• Gas Consumption (Fuel): <> 17 L/min
• Gas Consumption (Oxy): <> 59 L/min
• Recommended Operating Pressure (Fuel): 40 kPa
• Recommended Operating Pressure (Oxy): 400Pa

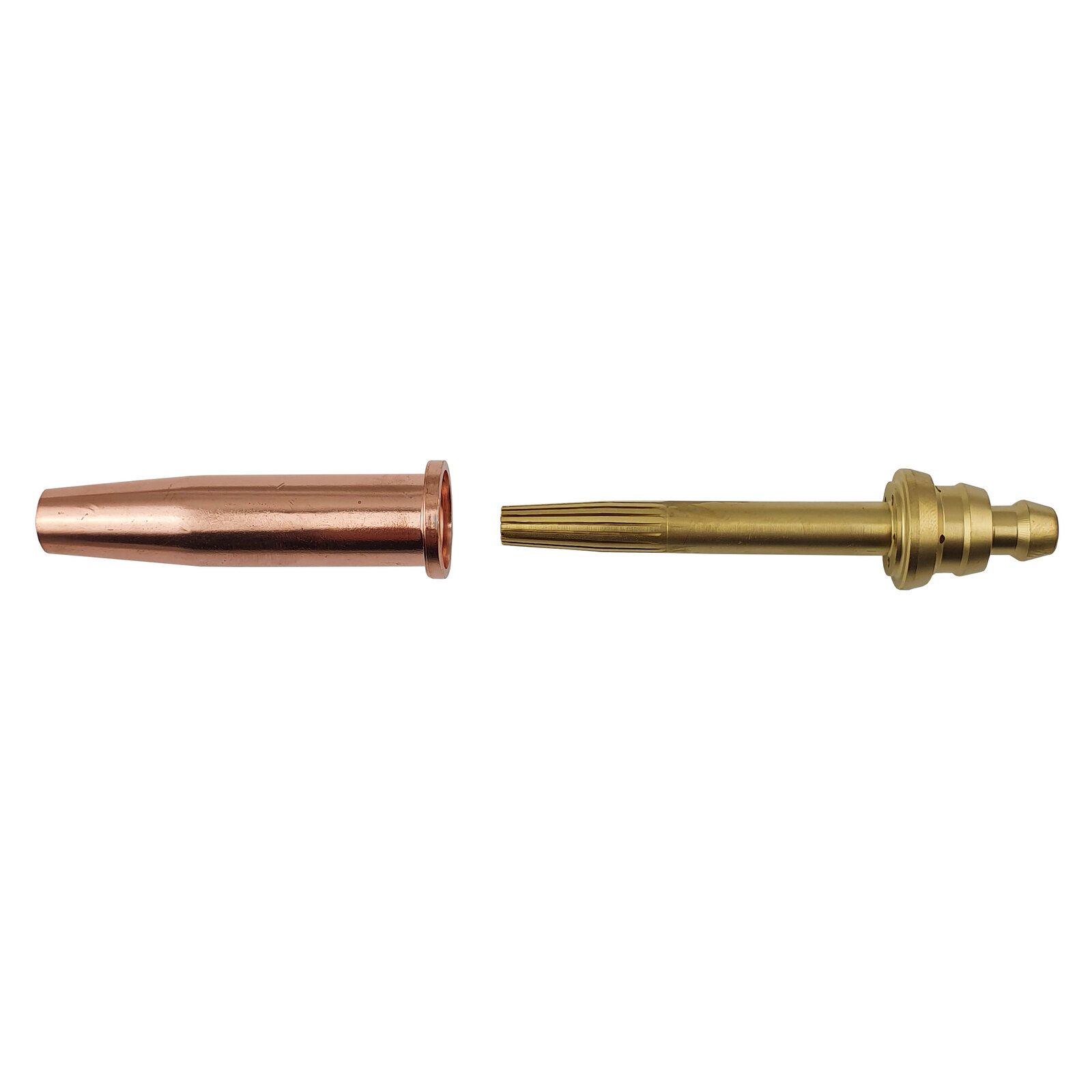

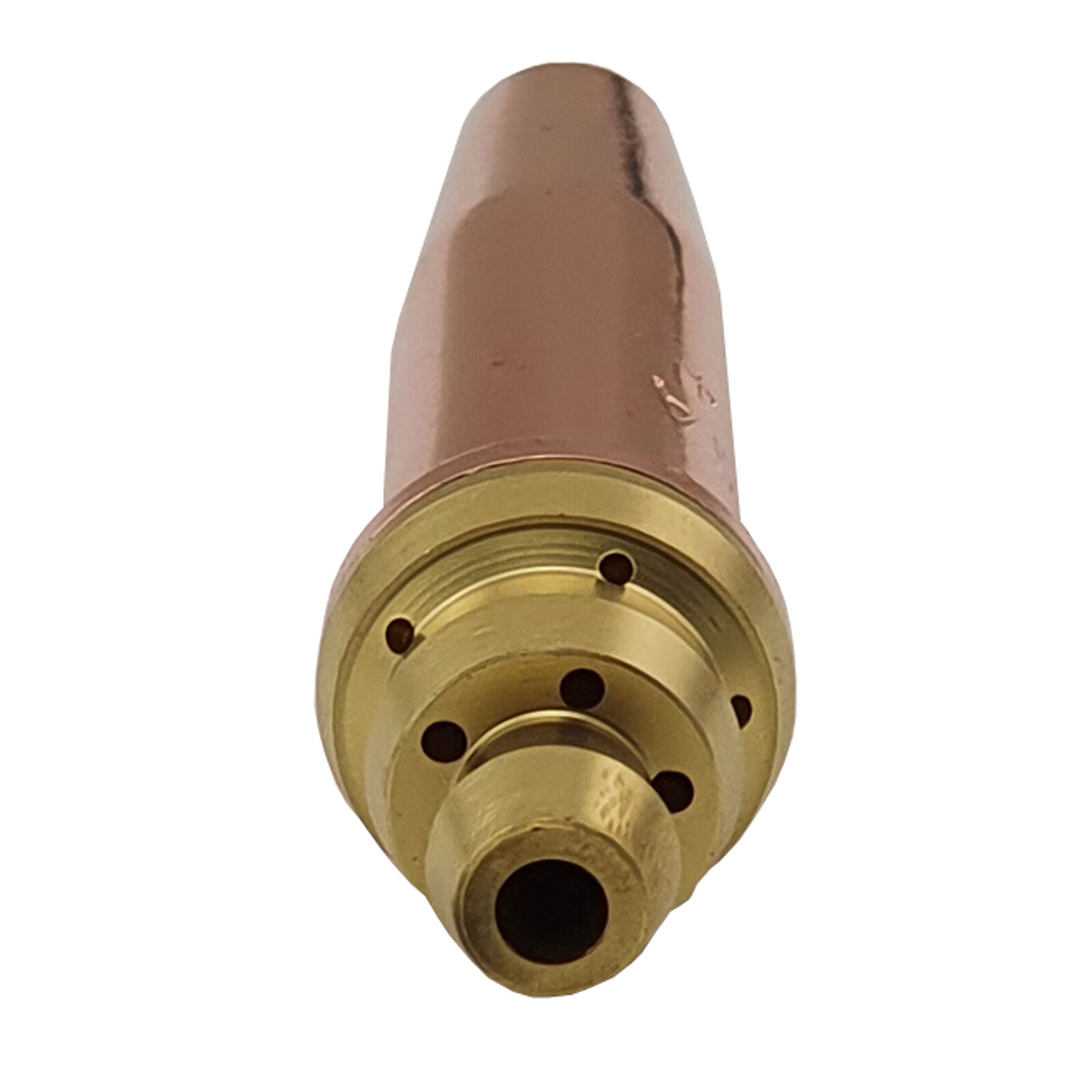

• 3 Seat Design
• Made for industrial/daily use
• CIG Equivalent part # 306103
• BOC Equivelent part # PNM 24
• UNIMIG Part #: PNME-06

LPG 3 Seat Cutting Tip Sizes & part Number (SKU)

00 - 0-5mm = 400099
0 - 5-10mm = 400100
1 - 10-15mm = 400101
2 - 15-30mm = 400102
3 - 30 - 40mm = 400103
4 - 40 - 50mm = 400104
5 - 50 - 100mm = 400105
6 - 100 - 150mm = 400106
7 - 150 - 250mm = 400107
8 - 250 - 300mm = 400108
