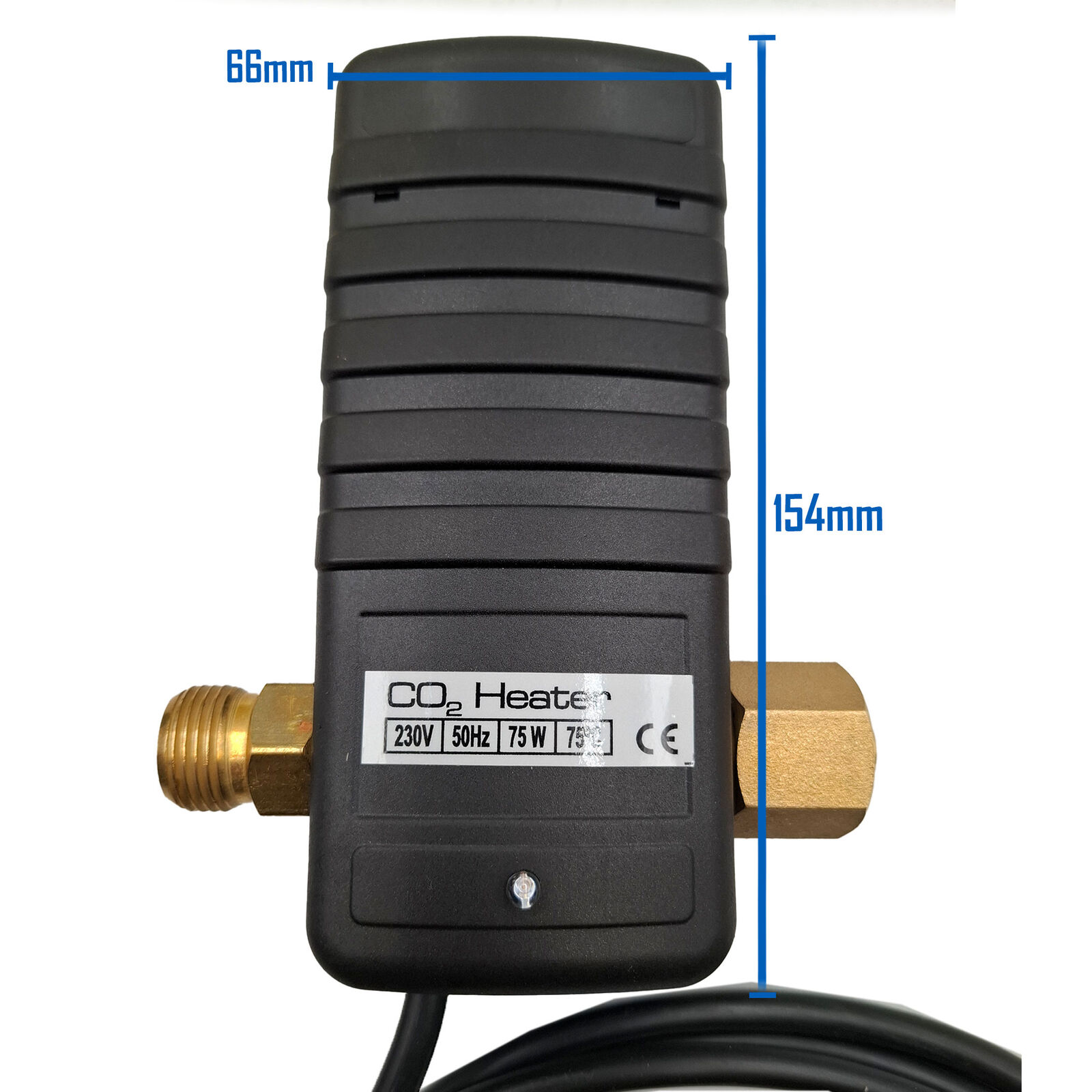

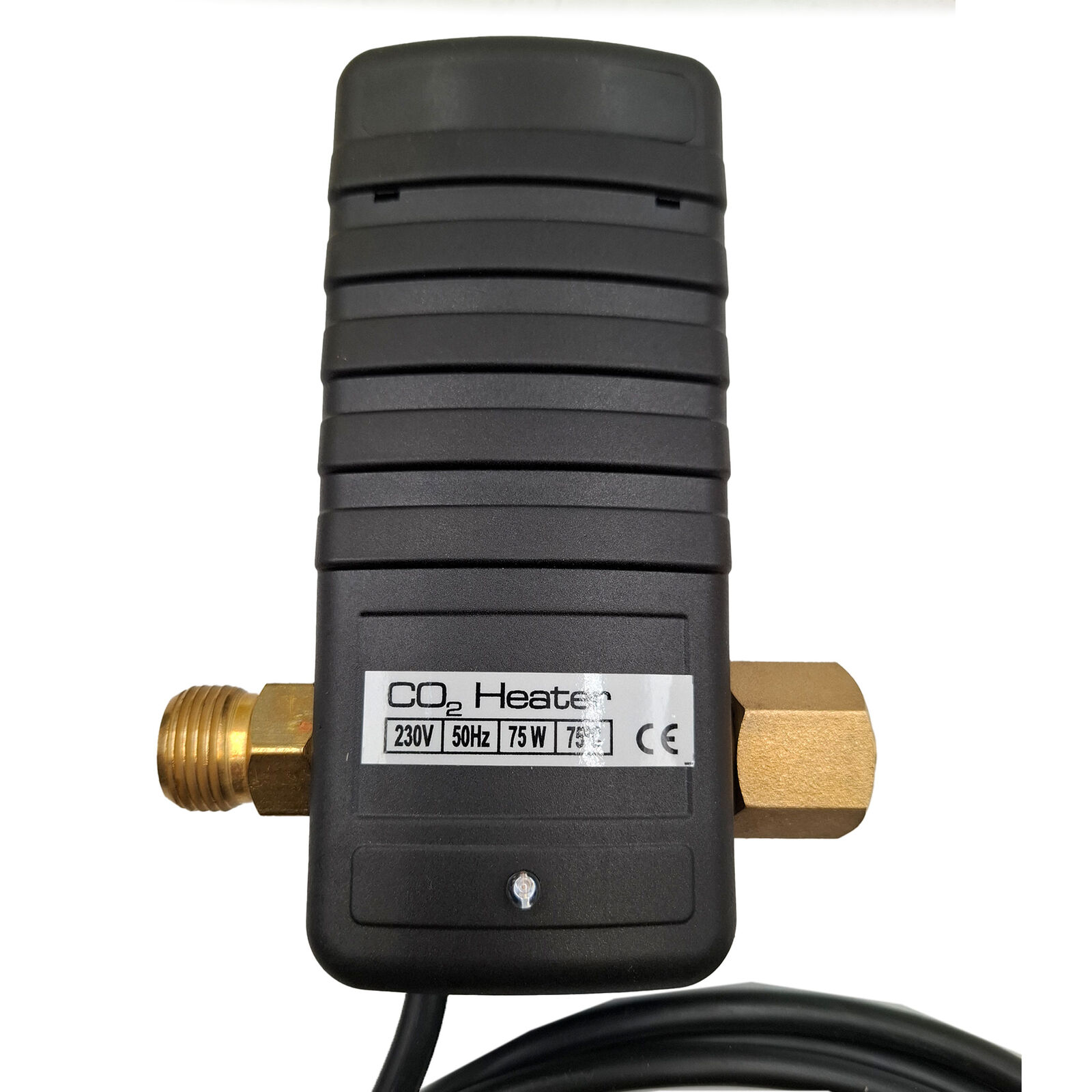

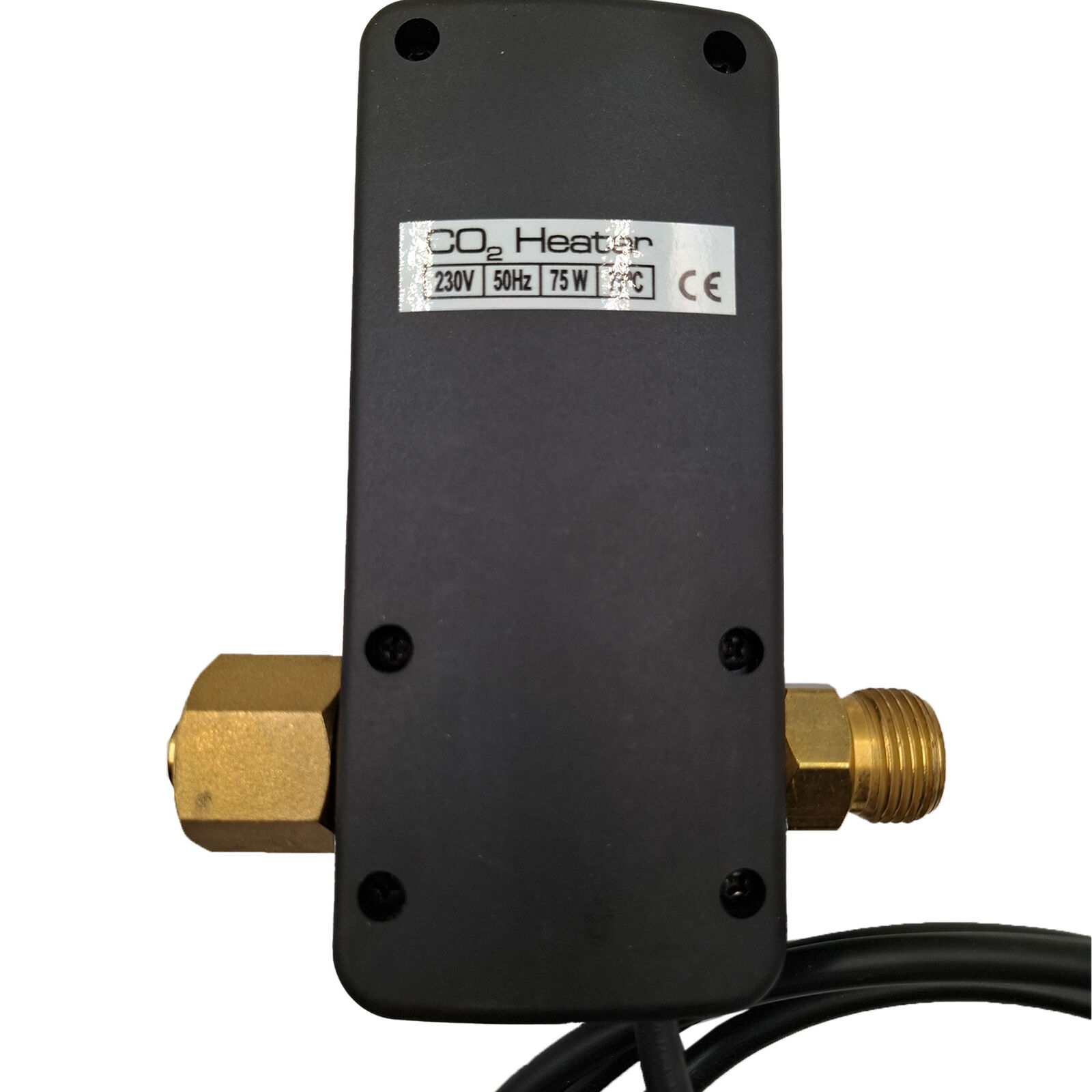

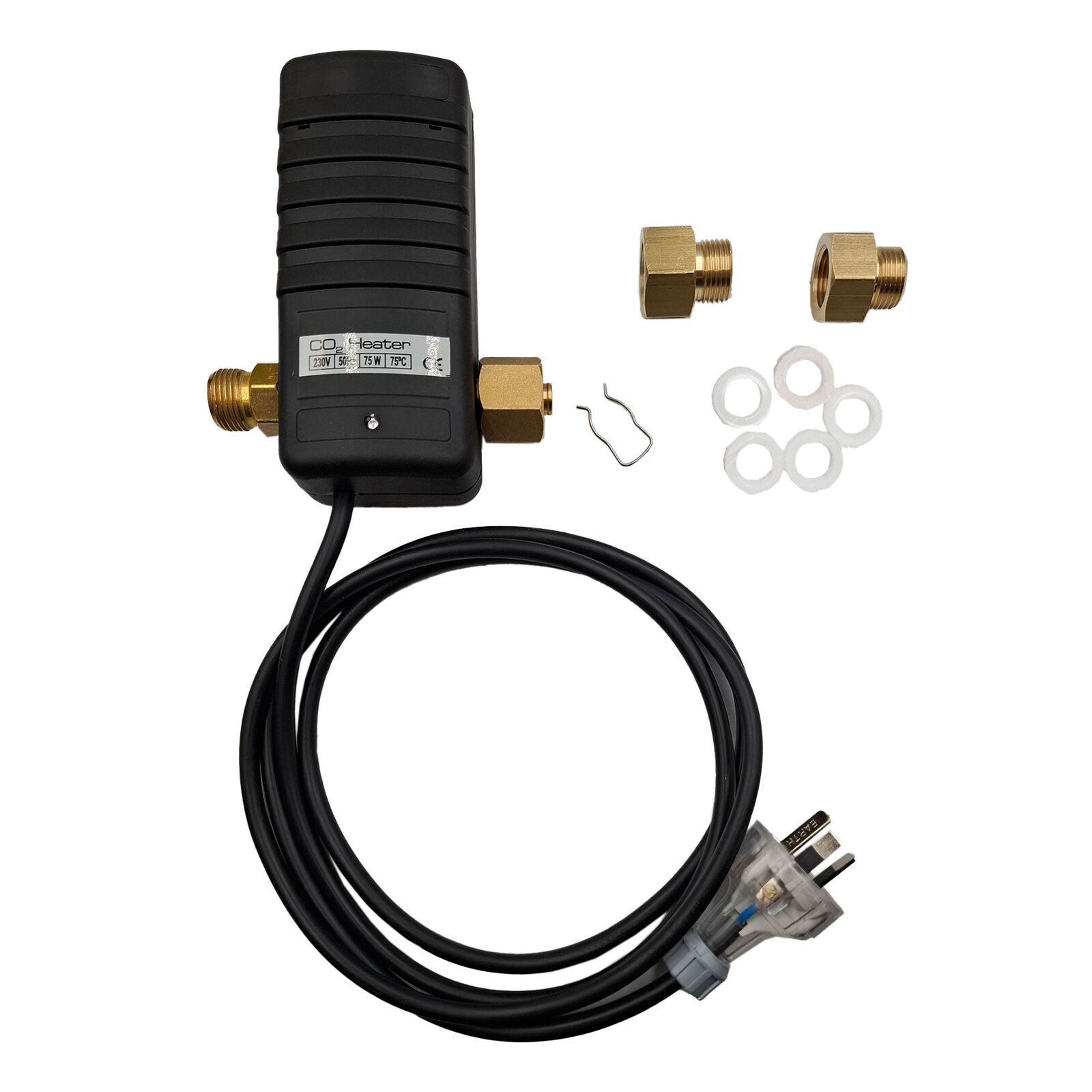

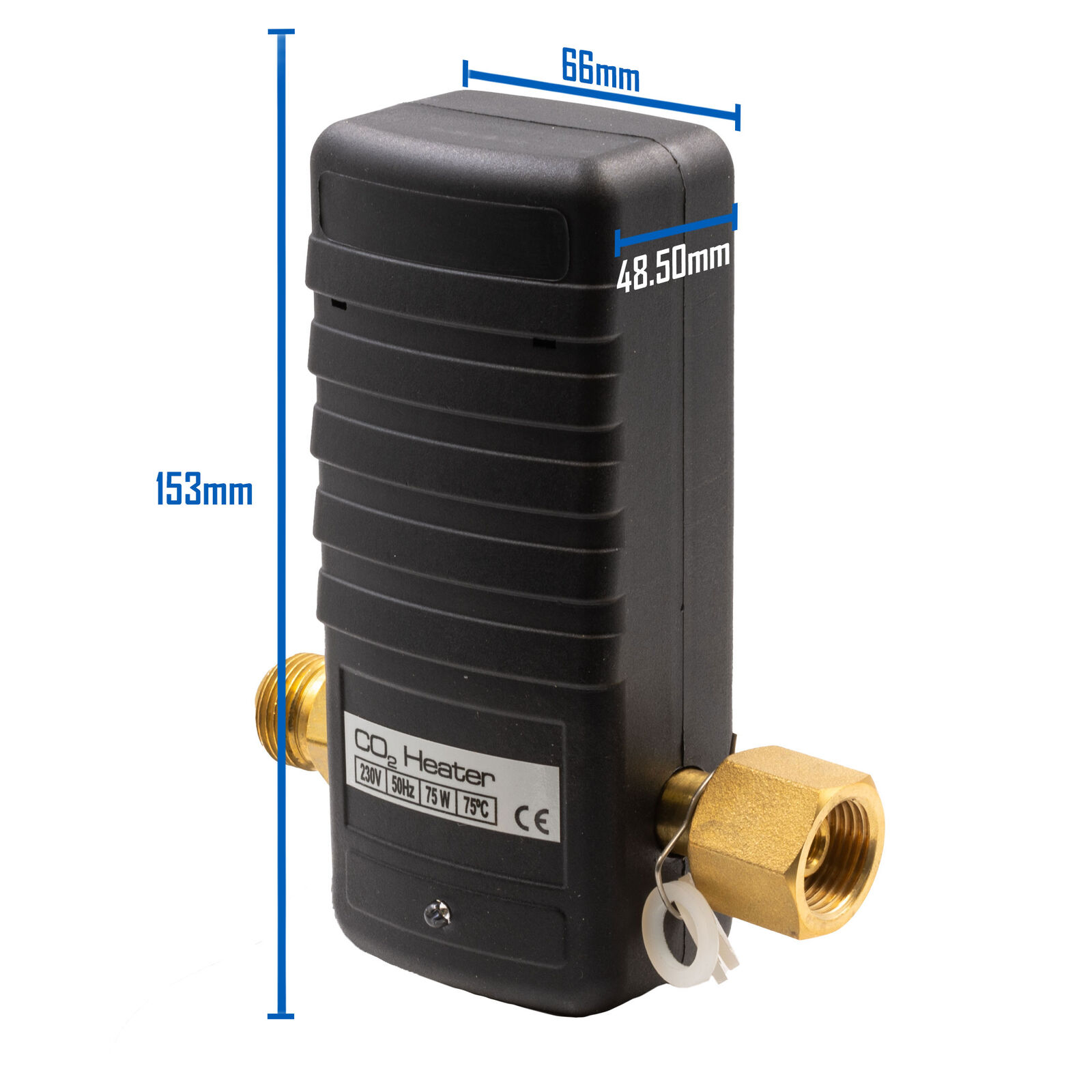

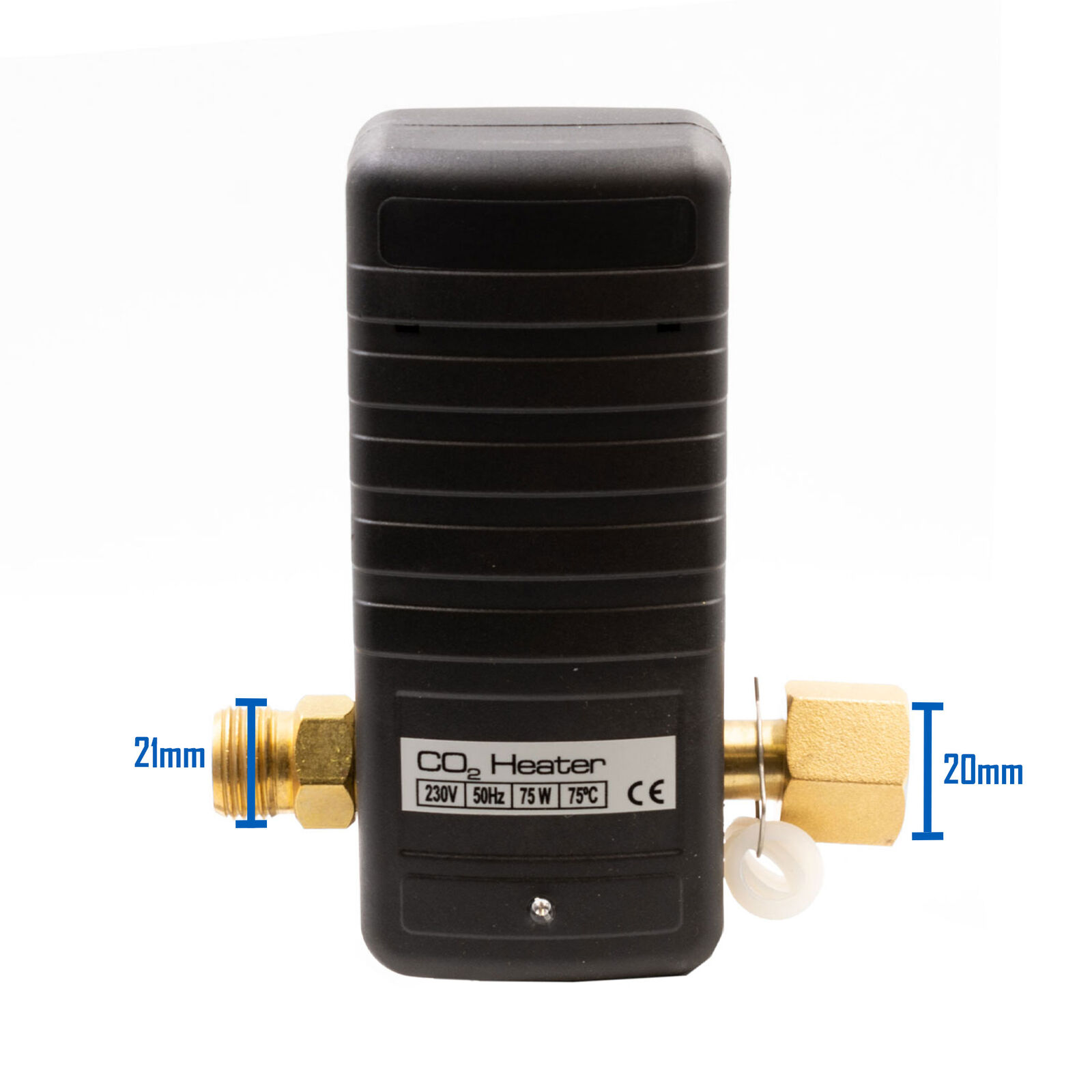

COBRA Inline CO2 Gas Heater

CO2 Heater-230V

Features:

• Carbon dioxide (CO₂) heaters are designed to prevent freeze-up and malfunctioning of cylinder regulators used for carbon dioxide gas
• CO₂ heater is saved with plastic guard
• The heating element is encapsulated
• All heat operations at the CO₂ heater to prevent interruption to the flow of gas.
• The carbon dioxide heater thermostatically controls the thermal value and prevents the heater O from going above 85 C.
• Gas Type: CO2

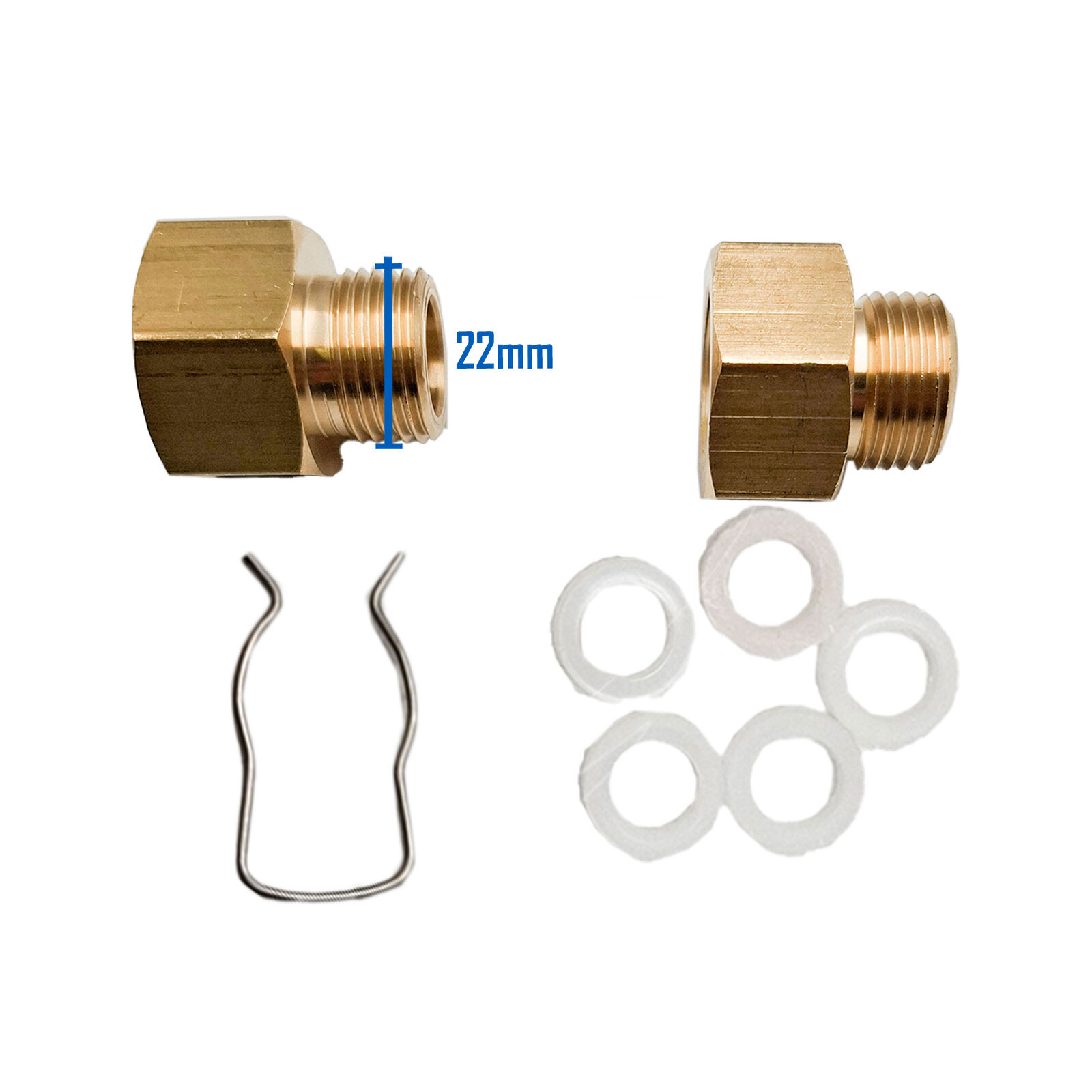

• Gas Inlet Connection: W 21,80 x 1/14"
• Gas Outlet Connection: W 21,80 x 1/14"
• Working Pressure: 230 bar
• Voltage/Power /Frequency: 230 V 150 W 50Hz
• Bossweld Equivalent Part # 400230

Installation:

• Before starting to installation; system harmony must be controlled between gas type and required bottle pressure.

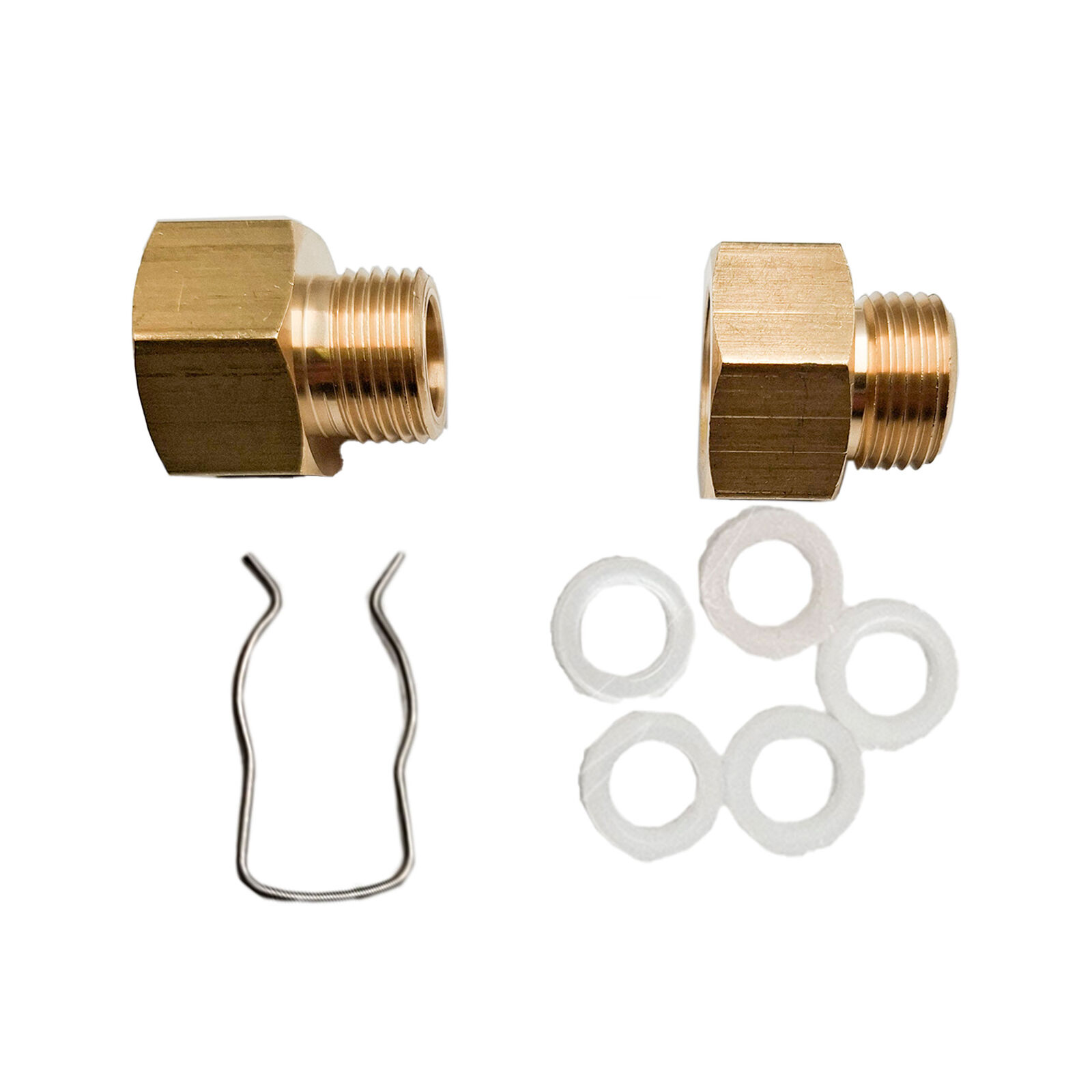

• The connection seal (2) on the heater must be changed if it is damaged or lost.
• The carbon dioxide heater must be mounted strictly to the pressure reducer. When heater is not used, don’t connect the electric outlet to socket.
• Be sure to close the bottle valve before installing the CO₂ heater to the pressure reducer
