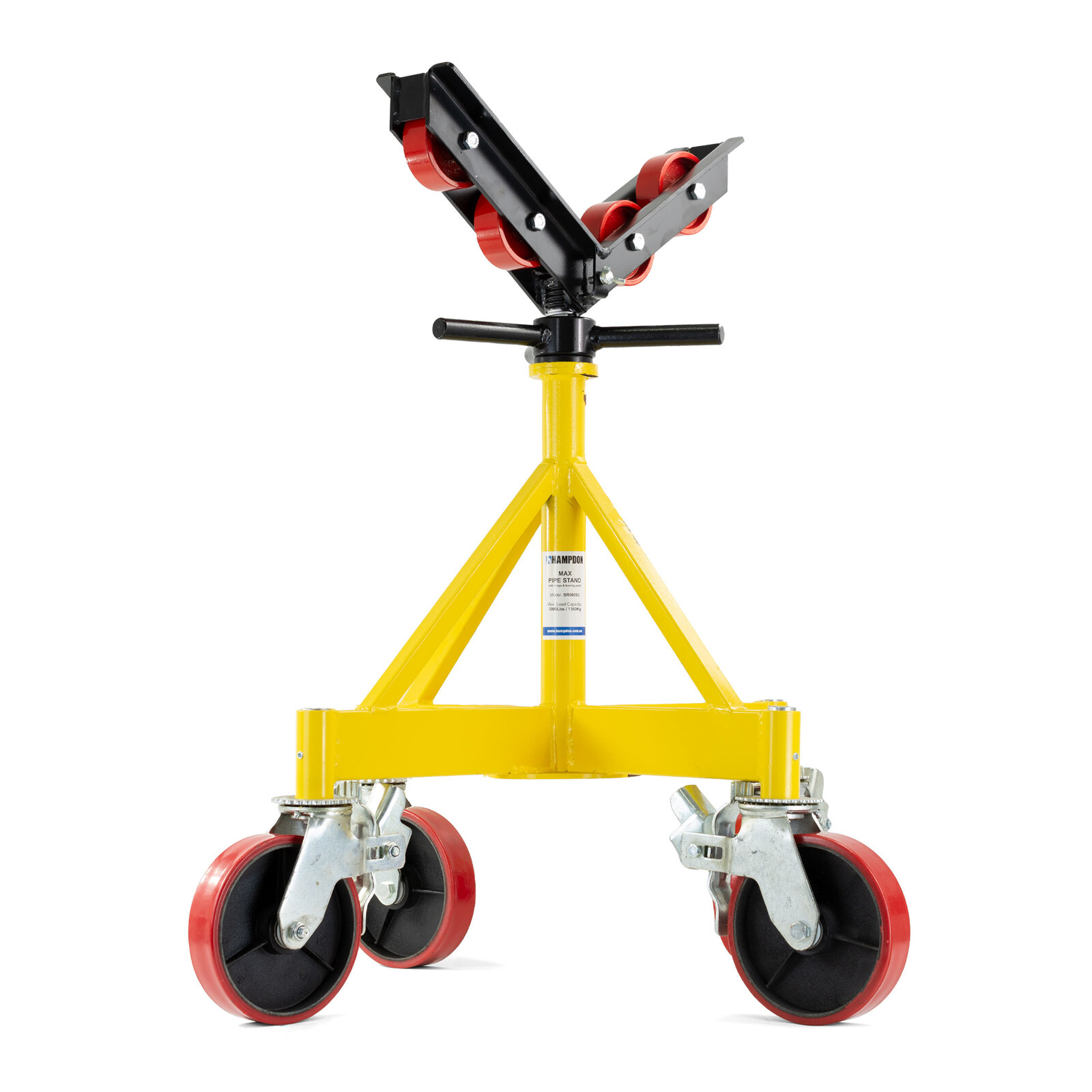

Sumner Style 2,500lb (1,135kg) Rated Welding Pipe Stand with V-Head Roller Kit and Casters - SR90092

Sumner Style 2,500lb (1,135kg) Rated Welding Pipe Stand with V-Head Roller Kit and Casters - SR90092

This complete set includes:

• 4 x PVC Coated Caster Wheels PSMXWLPVC
• 1 x Welding Pipe Stand SR90092
• 1 x V-head Steel Roller PSMXVHSTL

Features:

• 2,500lb (1,135kg) Load Rating
• Well made steel construction
• Built tough for larger pipes
• Covenient with adjustable handle
• Heavy-duty casters can easily move the welding stand around the workspace
• Load test certificate can be supplied
• This set can be supplied with the Rubber Coated Wheels - PSMXWLRBR
• Equivalent to Sumner 781403 Max Jax Kit

Dimensions:

• While the pipe stand is wound down to its lowest point
  • Distance from the ground to the top point of the V-head is 1020mm
  • Distance from the ground to the bottom point of the V-head is 850mm
• While the pipe stand is wound up to its highest point
  • Distance from the ground to the top point of the V-head is 1280mm
  • Distance from the ground to the bottom point of the V-head is 1100mm
• Large V-Head Steel Roller
  • 300mm V-head arm length
  • 120mm V-head arm width
  • 38mm wheel width
  • 43mm shaft
• PVC/Rubber Caster Wheels
  • 200mm (8") diameter
  • 48.6mm (2") width
• Welding pipe stand without the wheels
  • ​​​​​Fully extended height is 1000mm
  • Lowered height is 820mm

Other information you might want to know

Welding Pipe Stand

• 2,500lb (1,135kg) Load Rating
• V Head can be removed/replaced and is compatible with Sumner pipe stands
• Load test certificate can be supplied
• Fully extended height is 1000mm
• Total width is 830mm
• Lowered height is 820mm
• Gross Weight 11.4

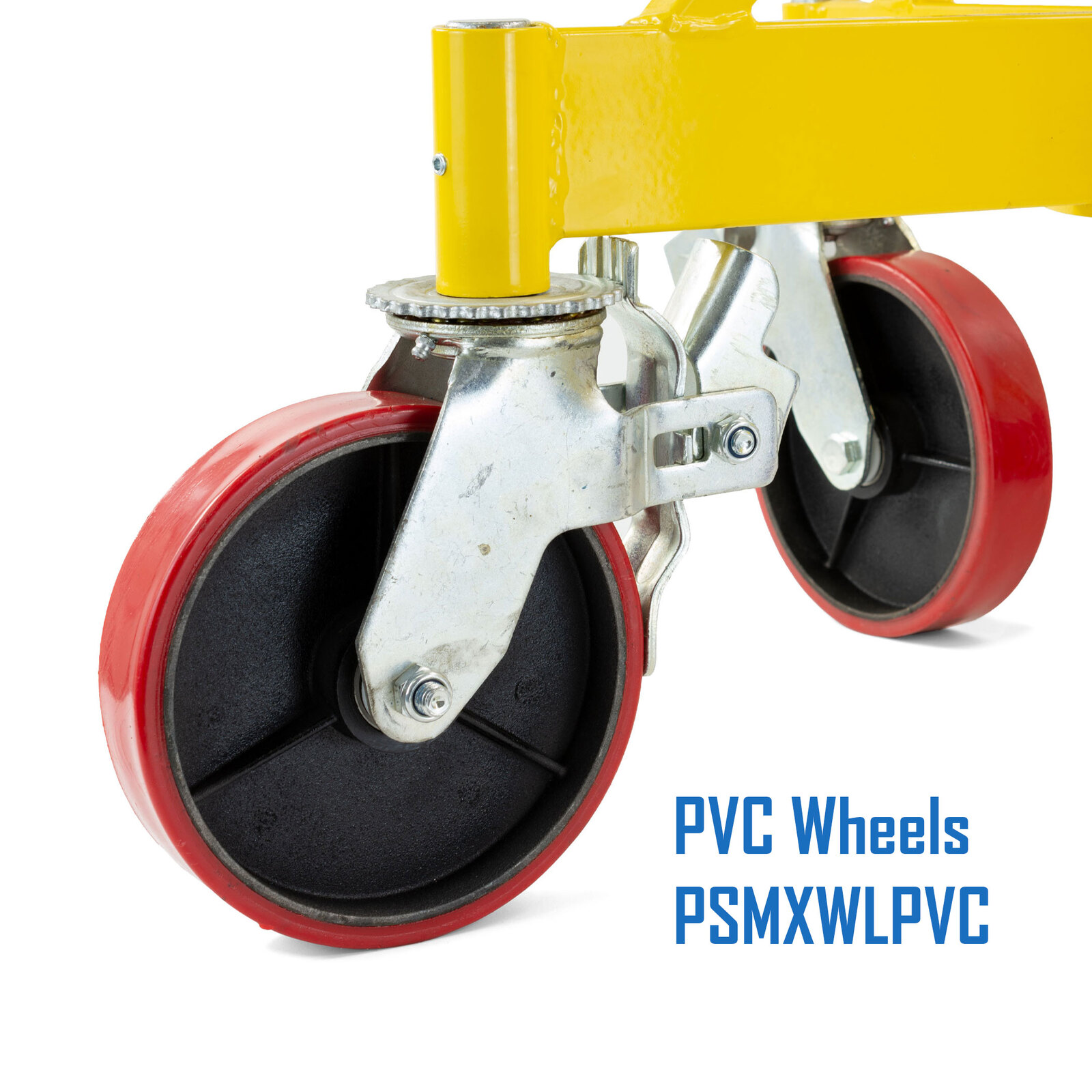

PVC/ Rubber Castor

• Safe to use
• Quick action braking system - simply step down to lock
• Capable of carrying 2,500lb (1,135kg) load

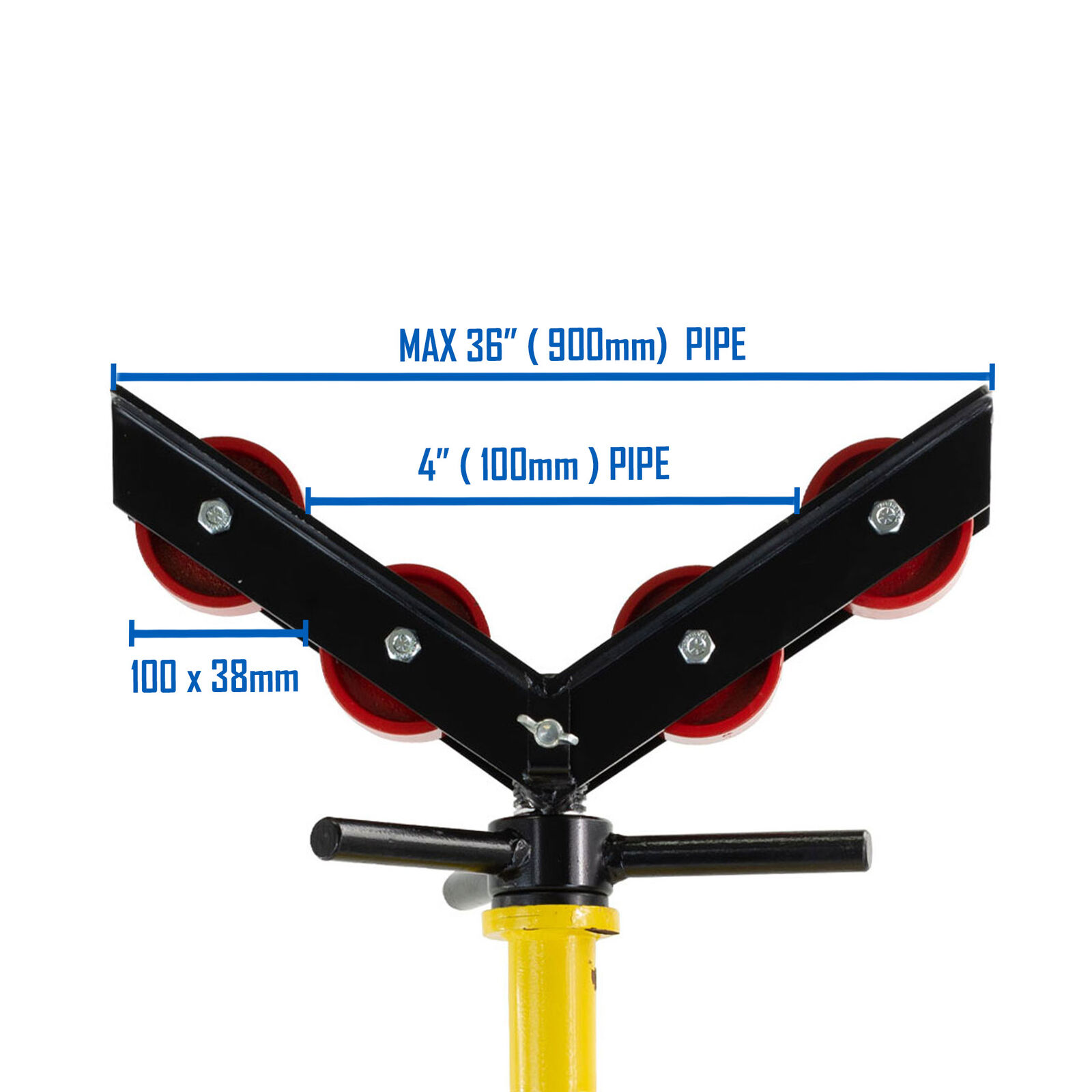

Large V-head Steel Roller

• Consists of 4 38mm (1") thick rollers
• Well made steel construction
• Heavy-duty roller head
• Easy to install
• Equivalent to Sumner 781406 Roller Head Kit and 780260 Big "V" Jack Stand
