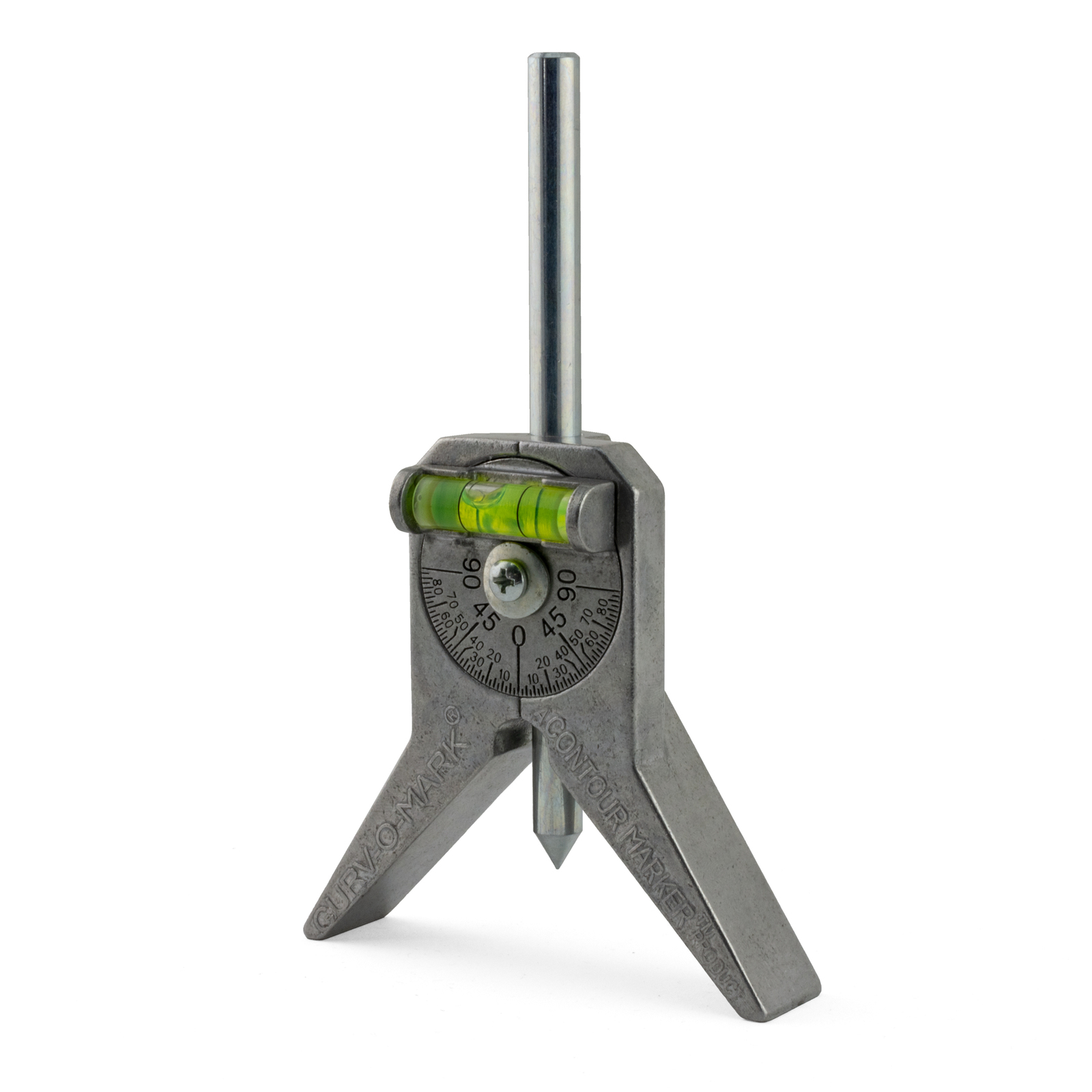

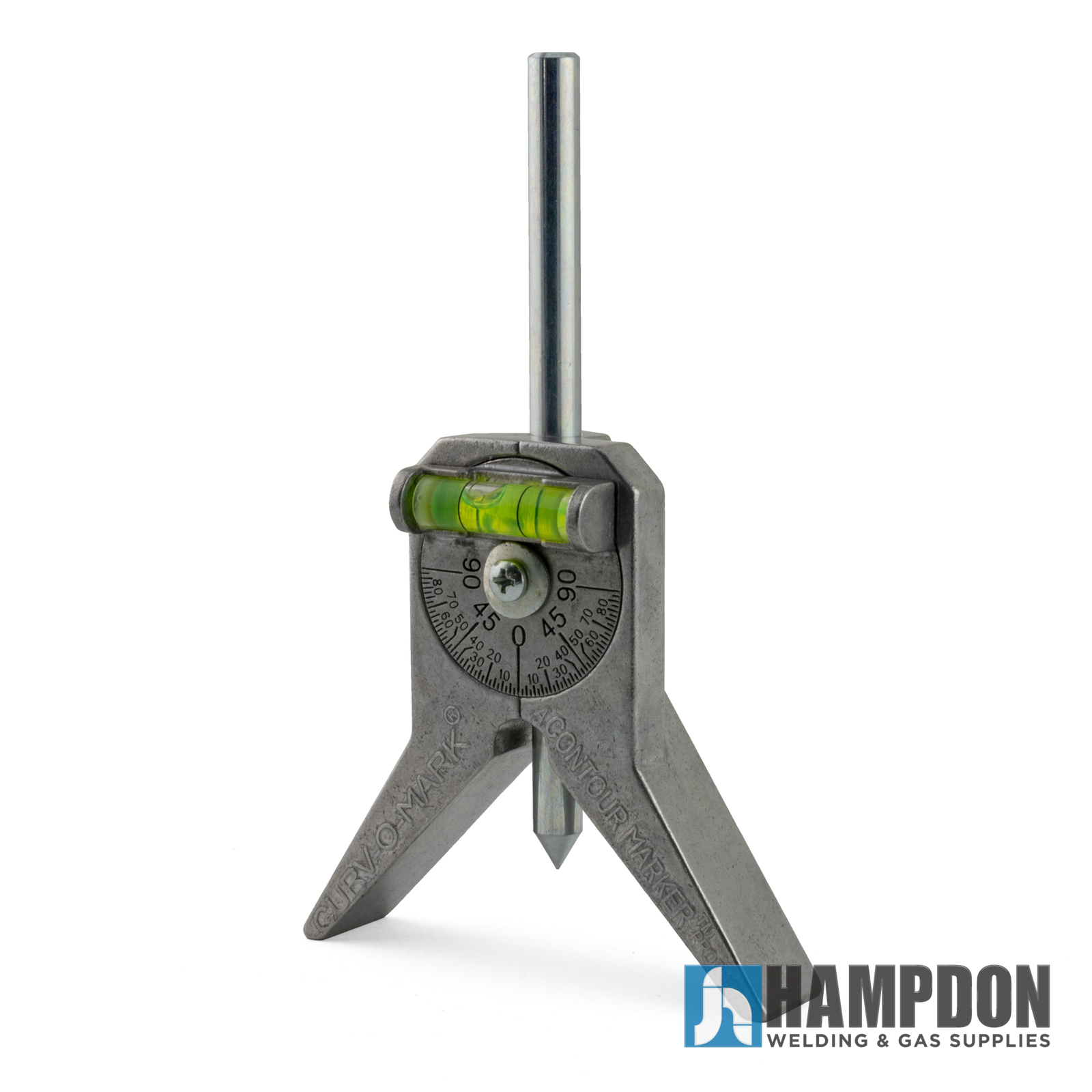

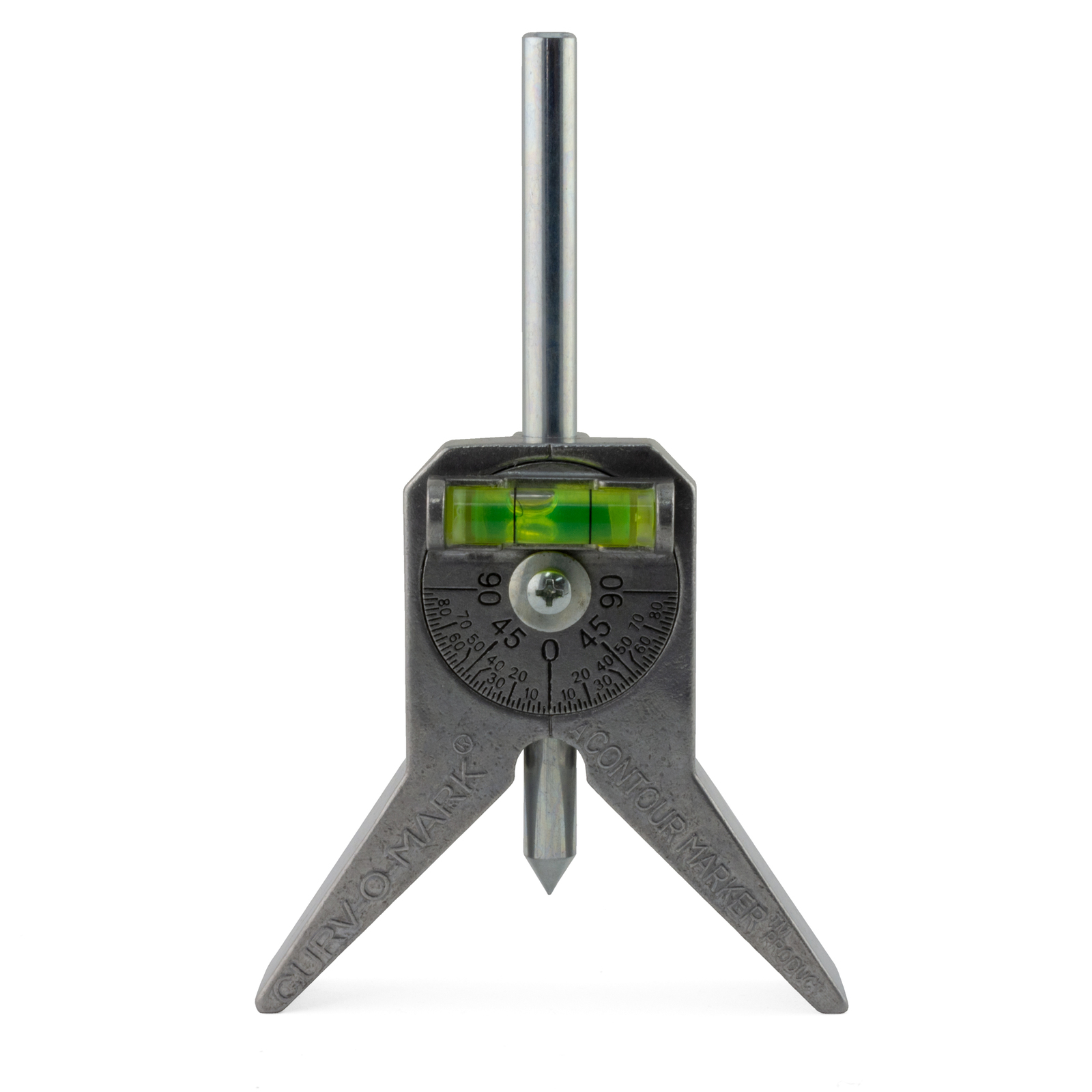

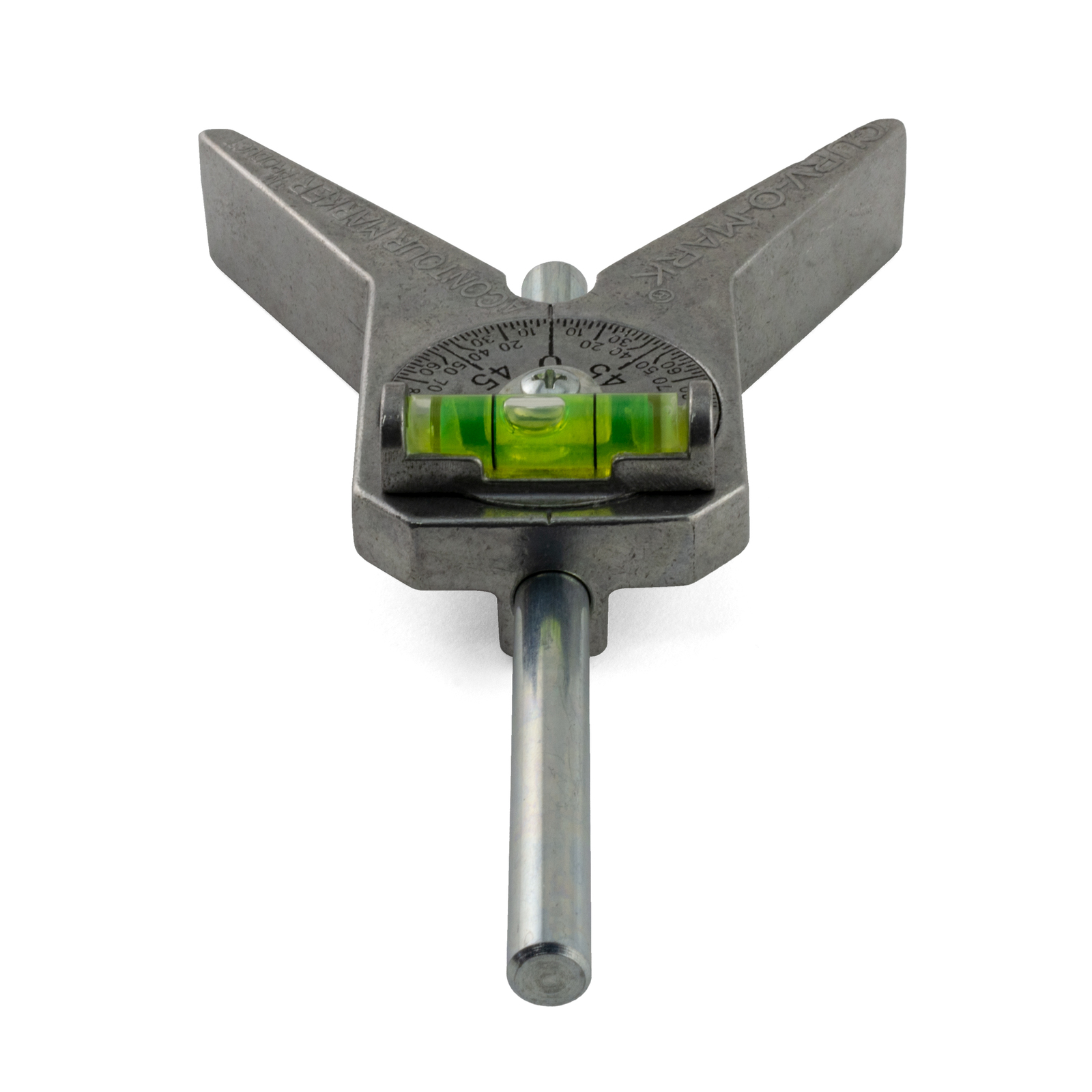

Pipe Contour Centering Head Standard No.6 - 12mm+ Pipe - KC-J1879
Part # KC-J1879
Rated 5/5 based on 1 reviews.Curv-O-Mark KC-J1879 Pipe Contour Centering Punch Standard
Features:
Time-Saving Tool To Locate & Mark Center Points On Pipe, Or Points At Specific Angles. Fitted With Adjustable Dial Bubble Protractor. Available In Standard Or Jumbo Models. Click On 'Video' To View A Demonstration.
Aids In The Settings Of Centerlines, Establishing Angles And Marks For Butt-Ins, Locating Points Inside Pipes And Tanks, Laying Out Keyways And Measuring Declivity
Used Most Often For Finding Top Dead Center Or Bottom Dead Center On Pipe
You Can Use It To Find The Location Of Other Ordinate Lines On The Sides Or At Different Angles.
Use On Pipe 12mm (1/2 In) & Larger

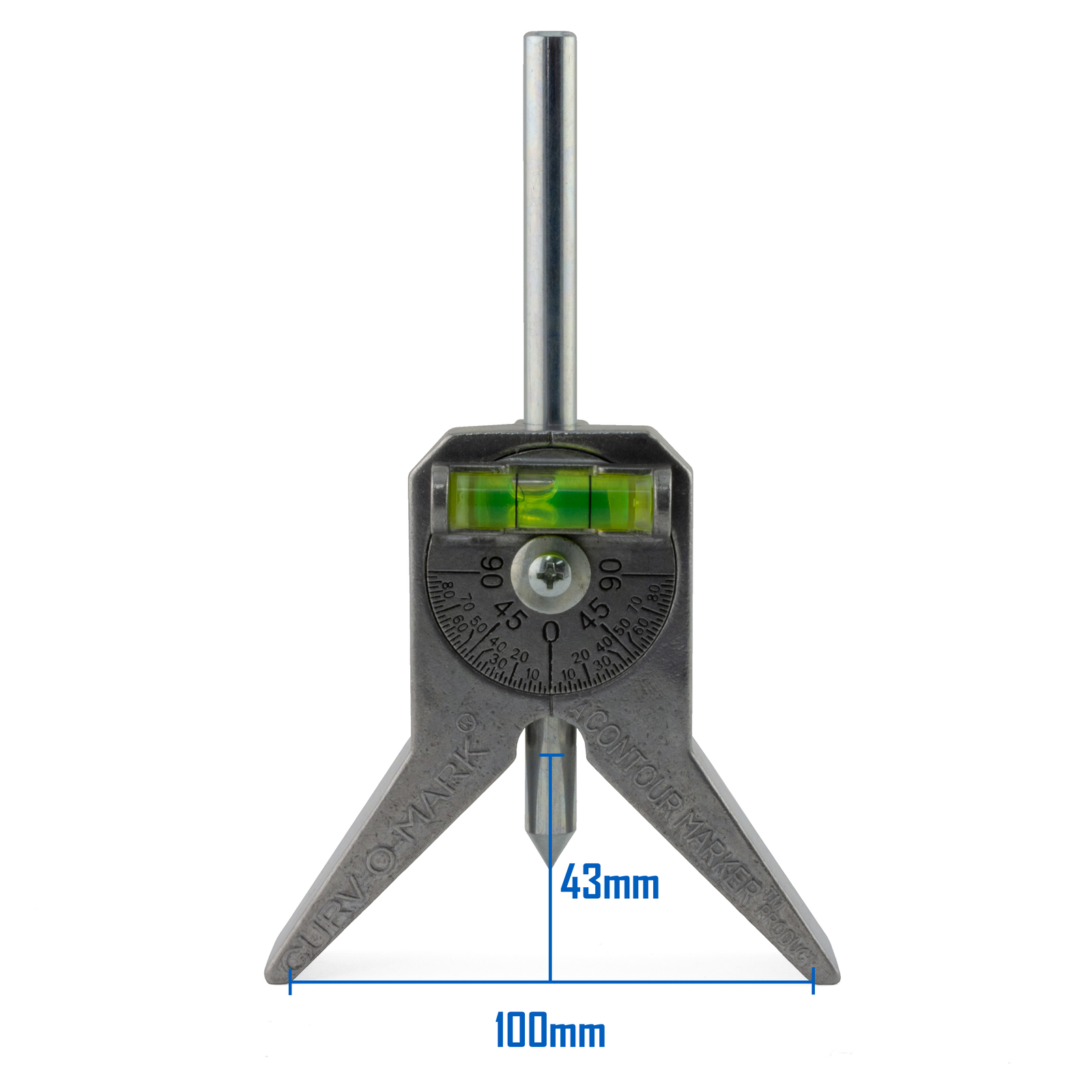

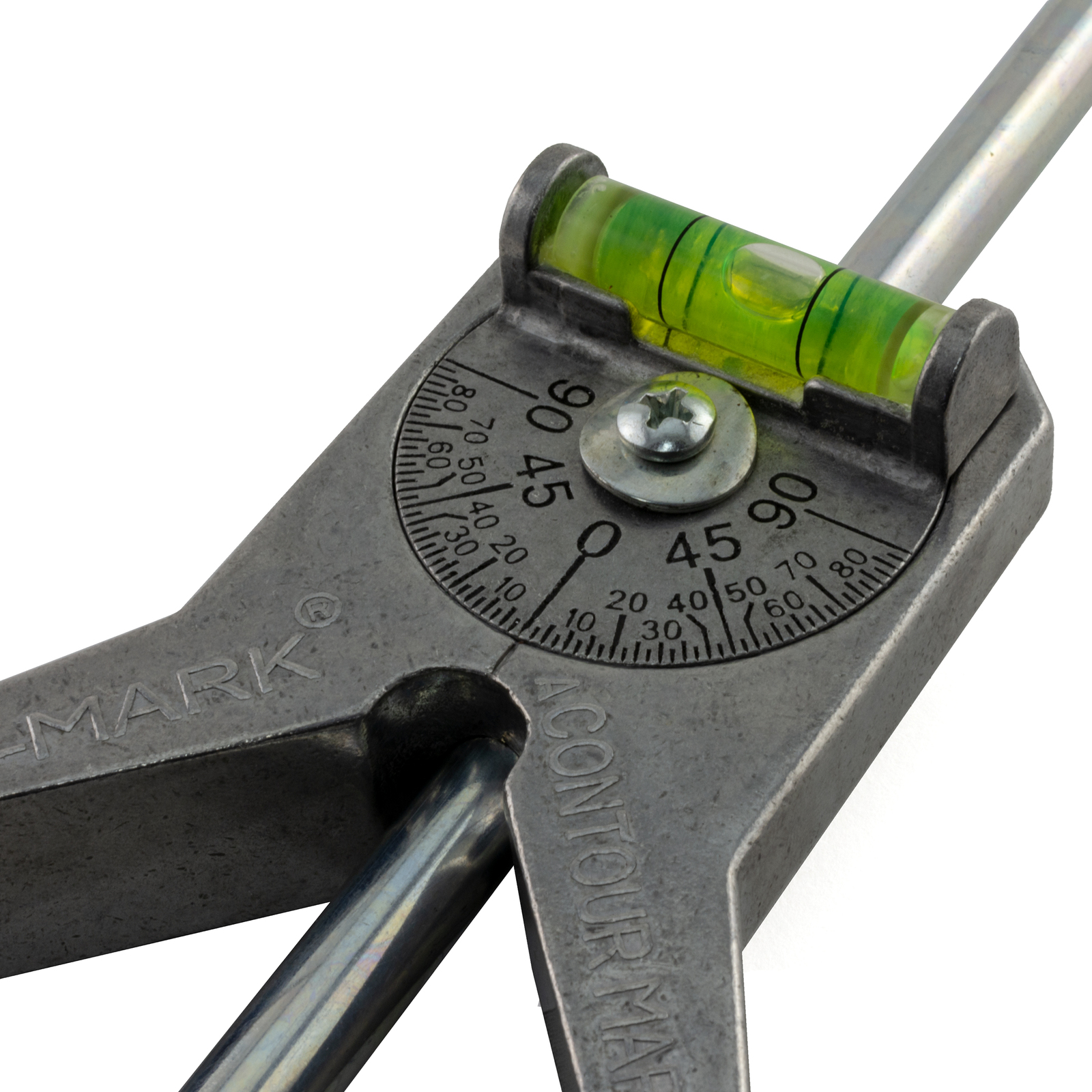

Has A 100mm (4 In) Y-Type Head And Is Fitted With Adjustable Dial Bubble Protractor (No.DSL)

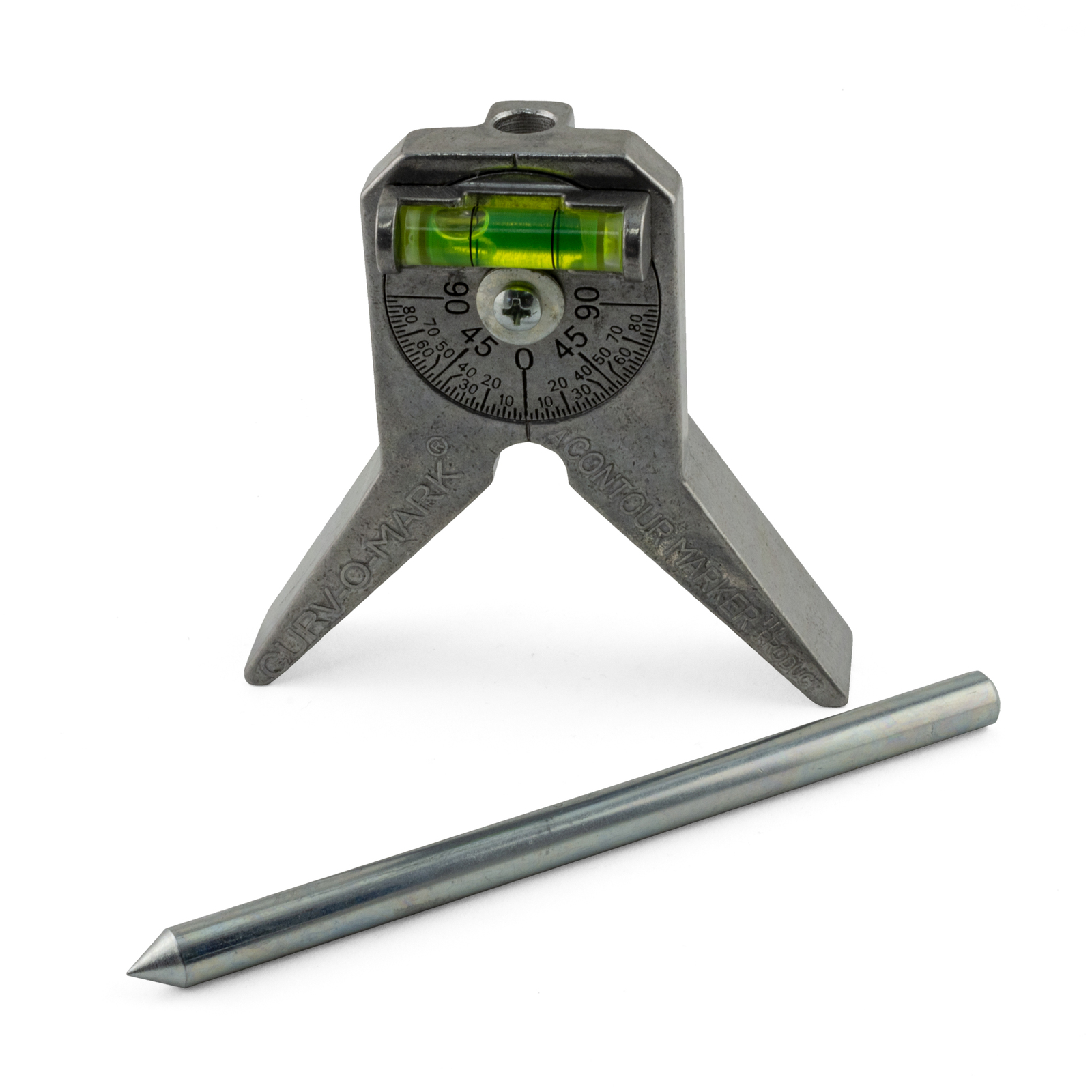

Centering Pin Is Manually Operated (Use With A Hammer)
Made From Aluminium With A Hardened Steel Pin
(KC-J1879)
SKU | KC-J1879 |
Barcode # | 626053604776 |
Brand | Curv-O-Mark |
Shipping Weight | 0.5000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
Shipping Cubic | 0.008000000m3 |
100% Accuracy
By: Roger on 8 June 2022Price is excellent with the accurate measurements 100%.
(5)
