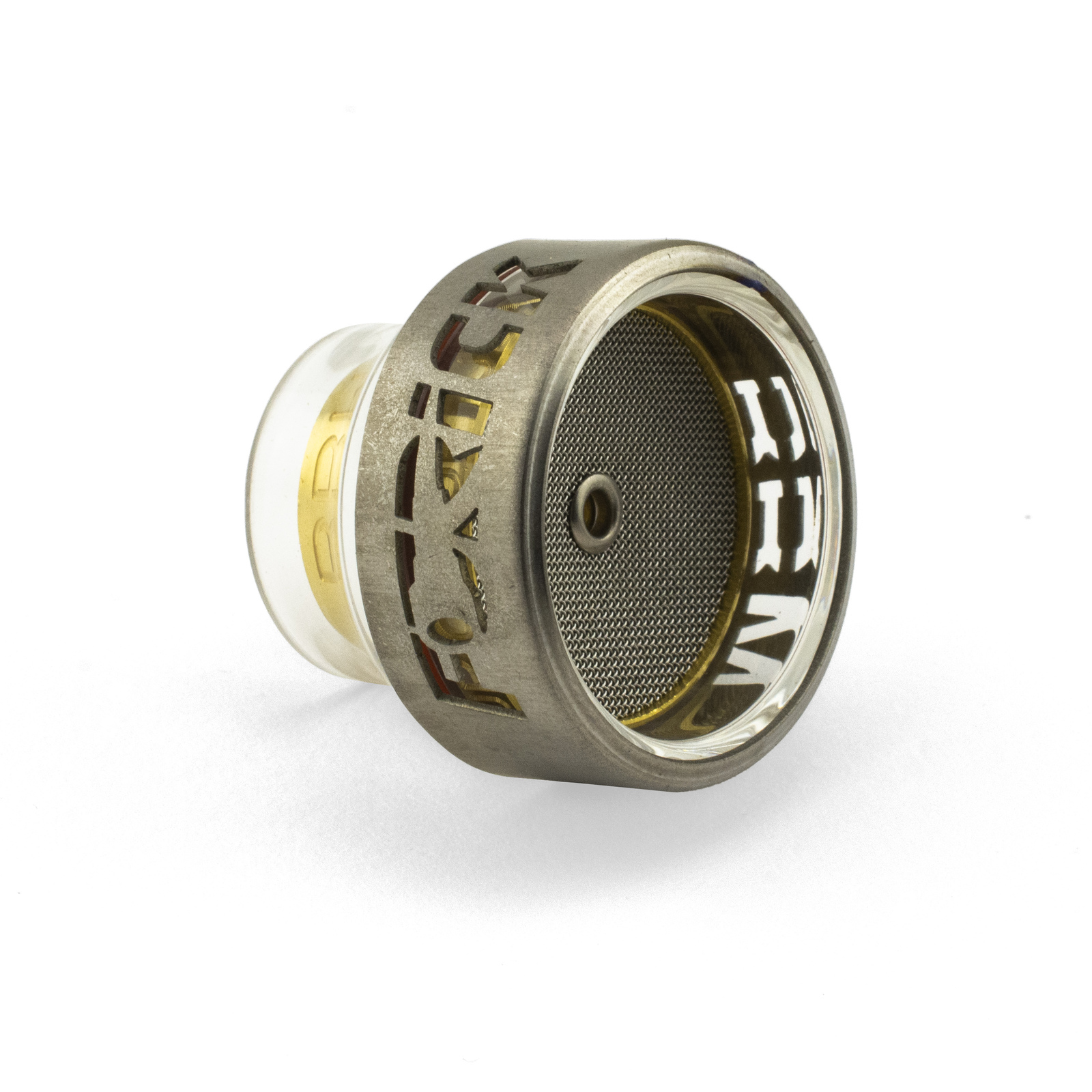

FURICK BBWSG19 Pyrex TIG Cup - Brass Gas Lens & Titanium Ring Kit

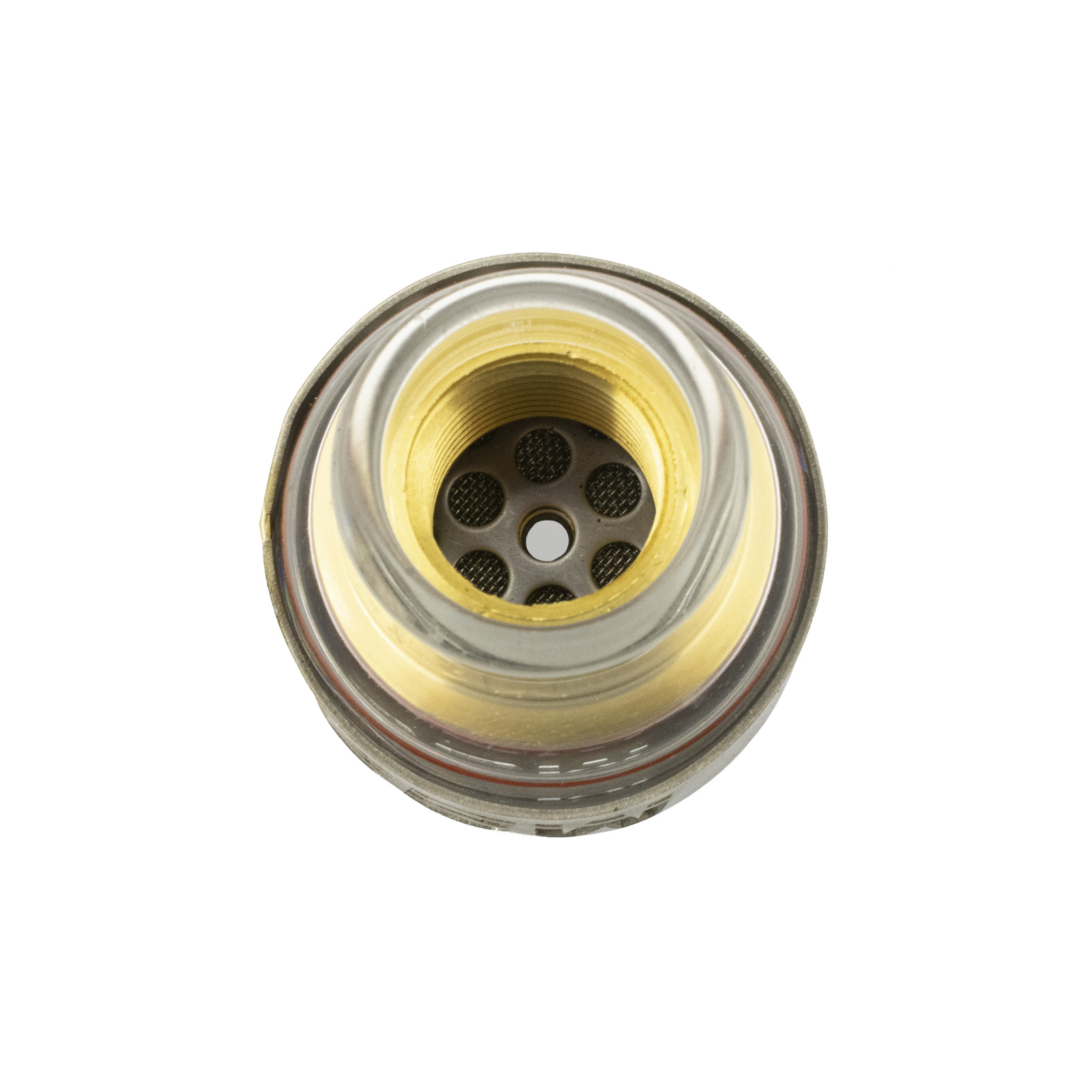

BBWSG-19 is the new improved design of the original BBW. The new features include a threaded Brass chassis and improved gas delivery.

Features:

Thick heat resistant pyrex glass rated to max 180 amps

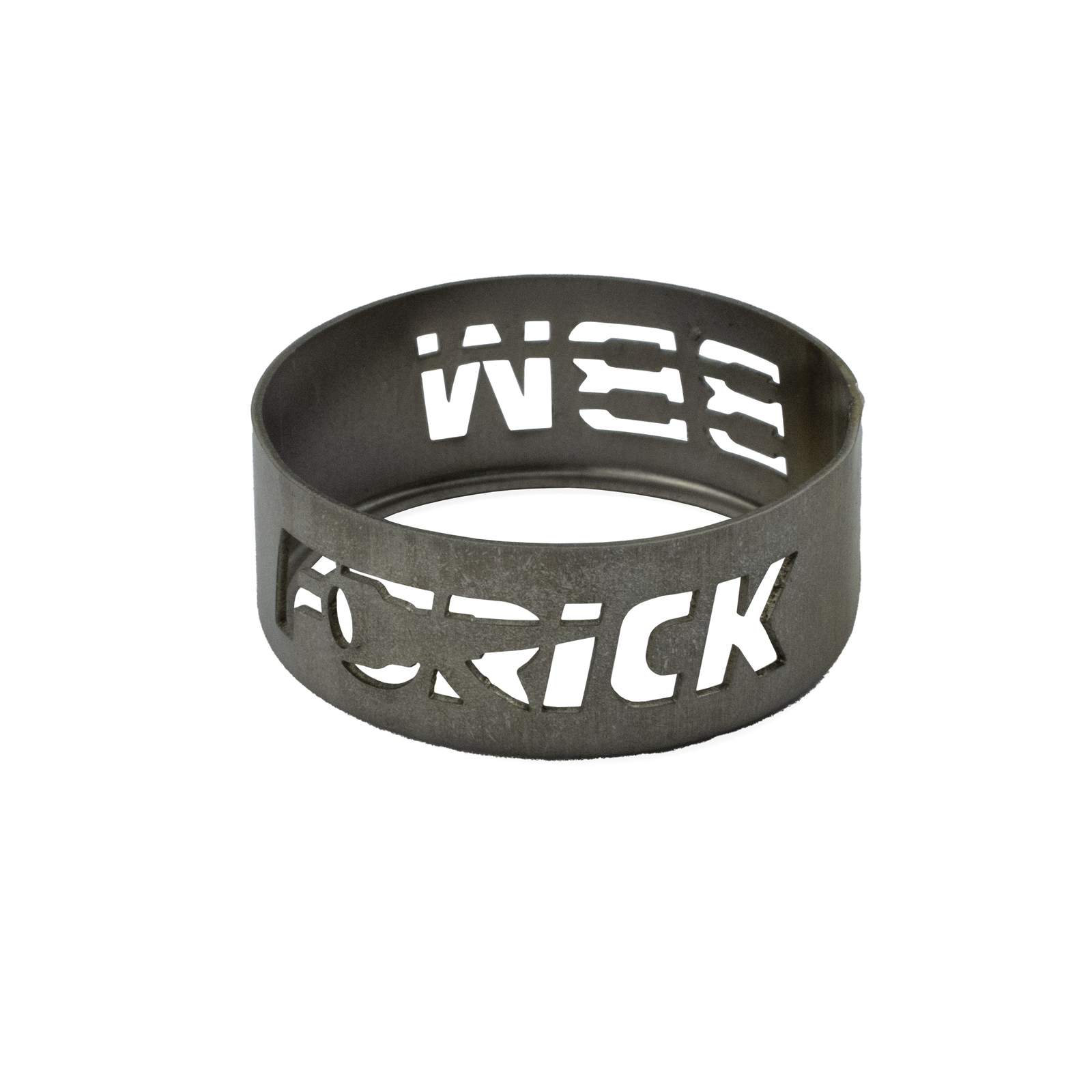

Uses a titanium Cup Cover to prevent damage to the pyrex cup
Made in USA

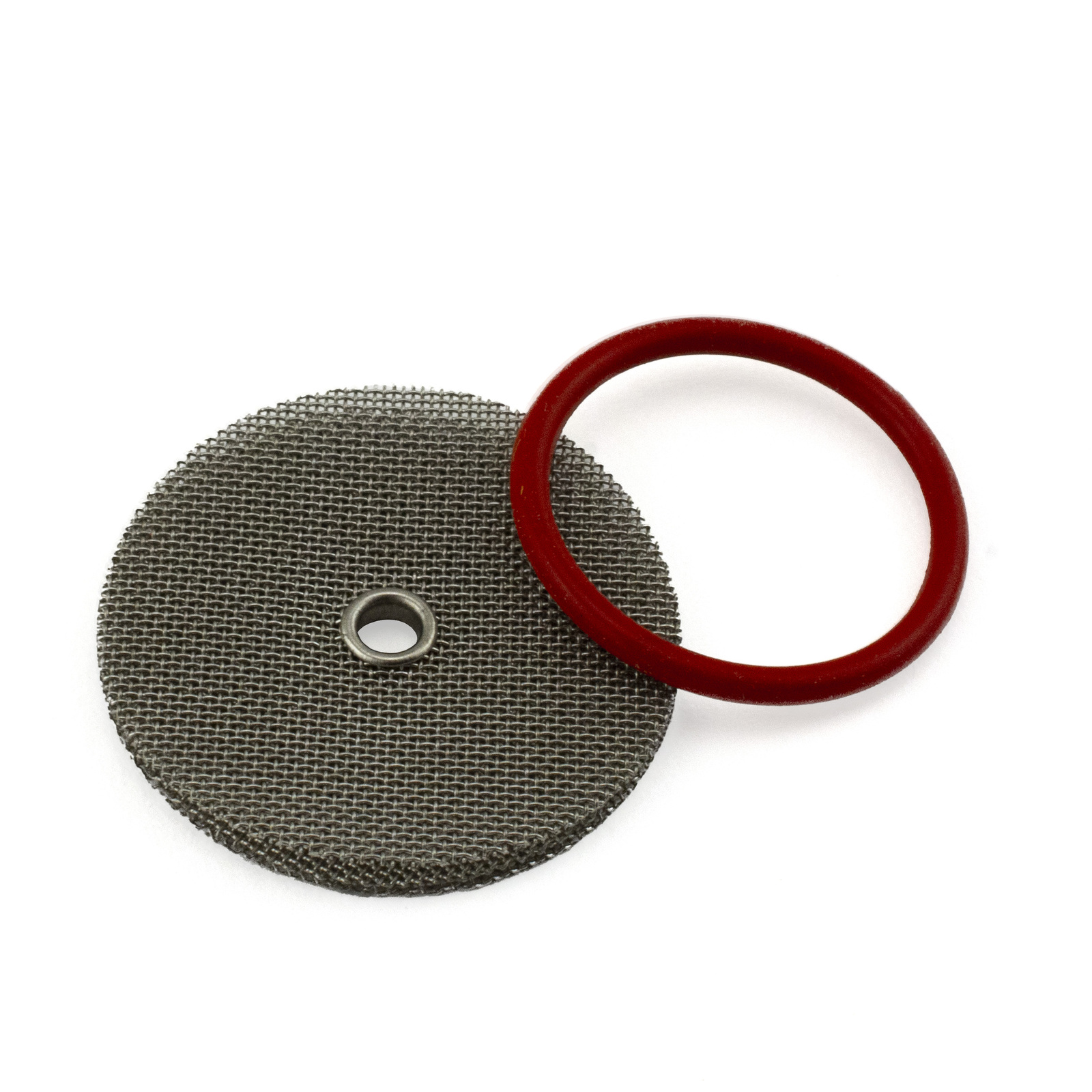

Utilizes a second mesh filter for consistent gas coverage over the welding material

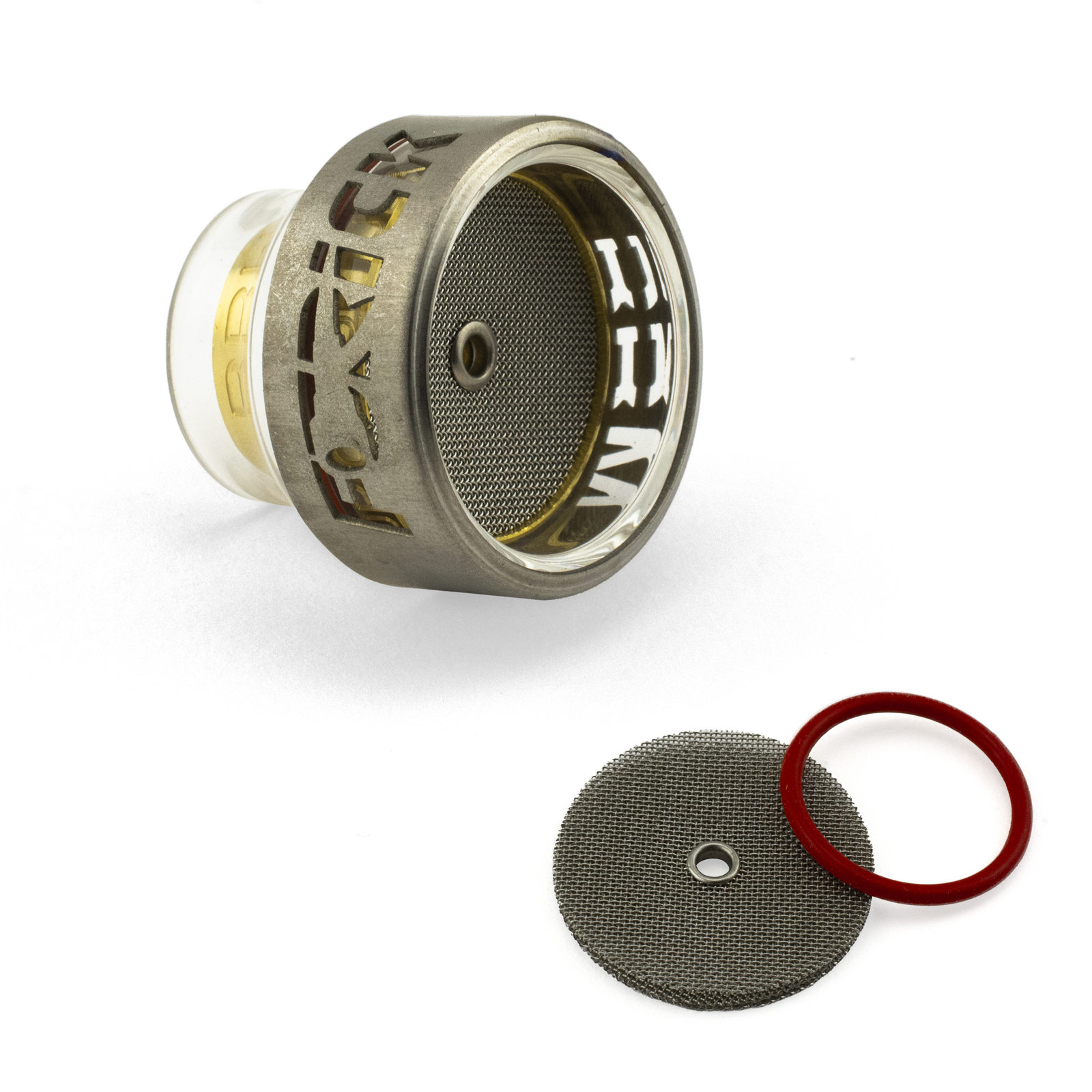

Includes 1 x Pyrex Cup, 1 x Brass Gas Diffuser, 2 x Orings & 1 x Titanium Cup Cover
For use with a standard 17 / 26 series torch the cup will require gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
For use with a standard 9 / 20 series torch the cup is compatible with standard gas lens' (pn: 45V43, 45V44, 45V45)

Dimensions:

Bore ID: 27mm
Bore OD: 32mm
Length: 27mm
Glass Thickness: 2.9mm
Gas Lens Mesh Bore: 2.6mm

(BBWSGWC)

SKU	BBWSGWC
Barcode #	810036840712
Brand	Furick
Shipping Weight	0.1000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.050m
Shipping Cubic	0.000125000m3
