FURICK FU12KC Pyrex TIG CUP - 2 x Fupa #12 & Titanium Ring Kit

FURICK Pyrex TIG CUP - 2 x Fupa #12 & Titanium Ring Kit

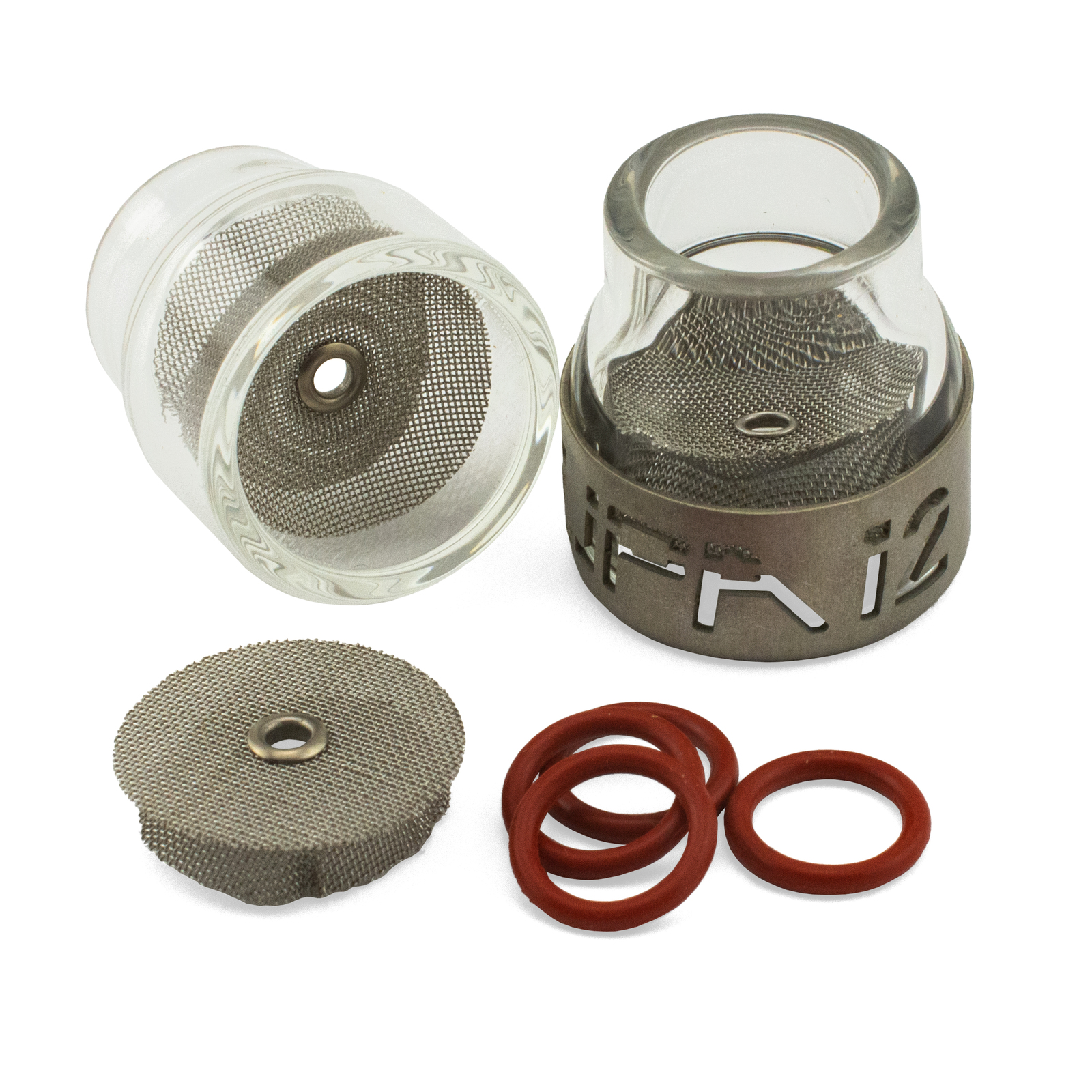

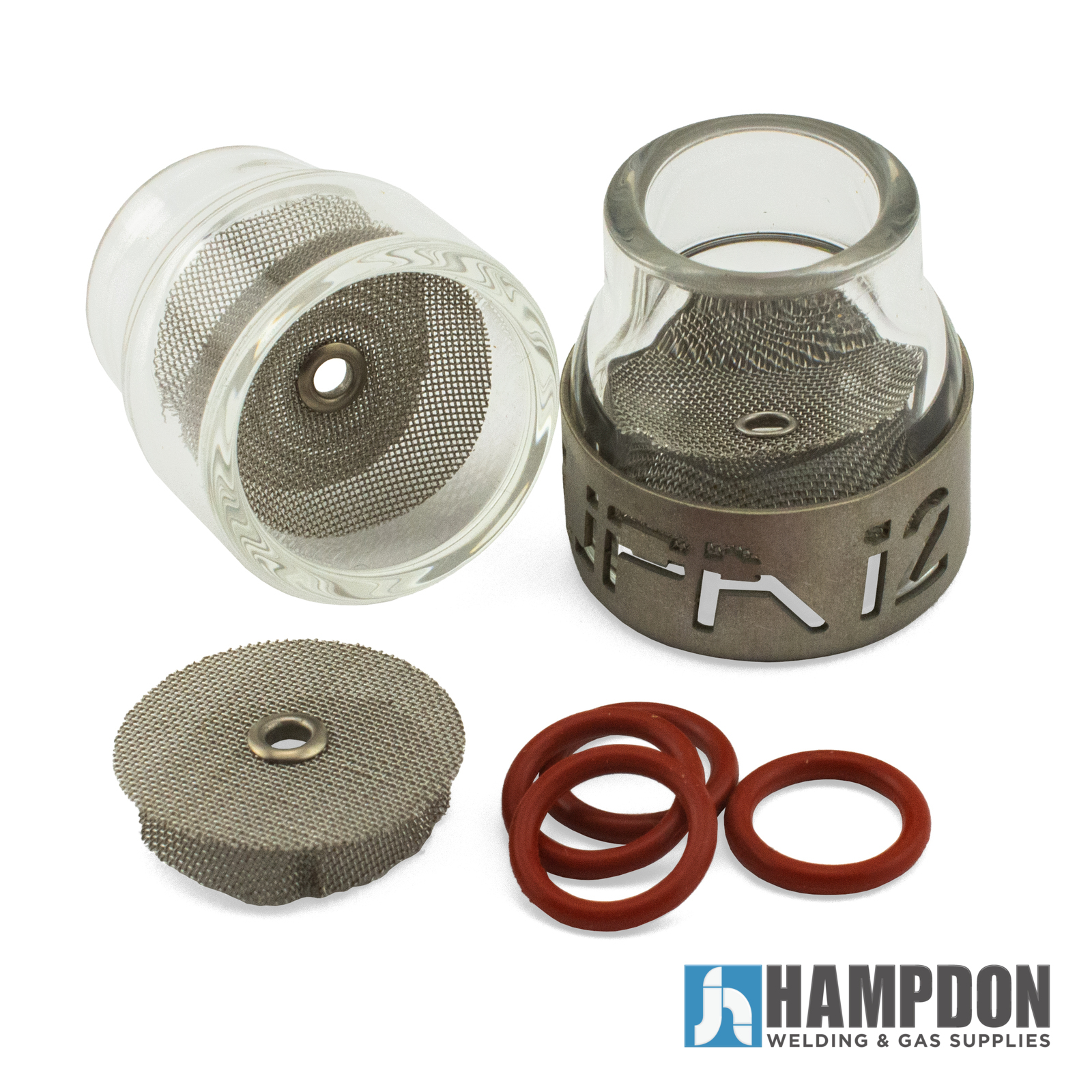

The FUPA #12 cup is recommended for Mild steel, Stainless steel, Chromoly, Titanium, inconel and other space grade alloys. It works best on thinner / smaller applications such as header tubes and chassis tubing. This kit comes with 2 full FUPA #12 cups, a spare diffuser, 4 Orings and a Titanium Cup Cover

Features:

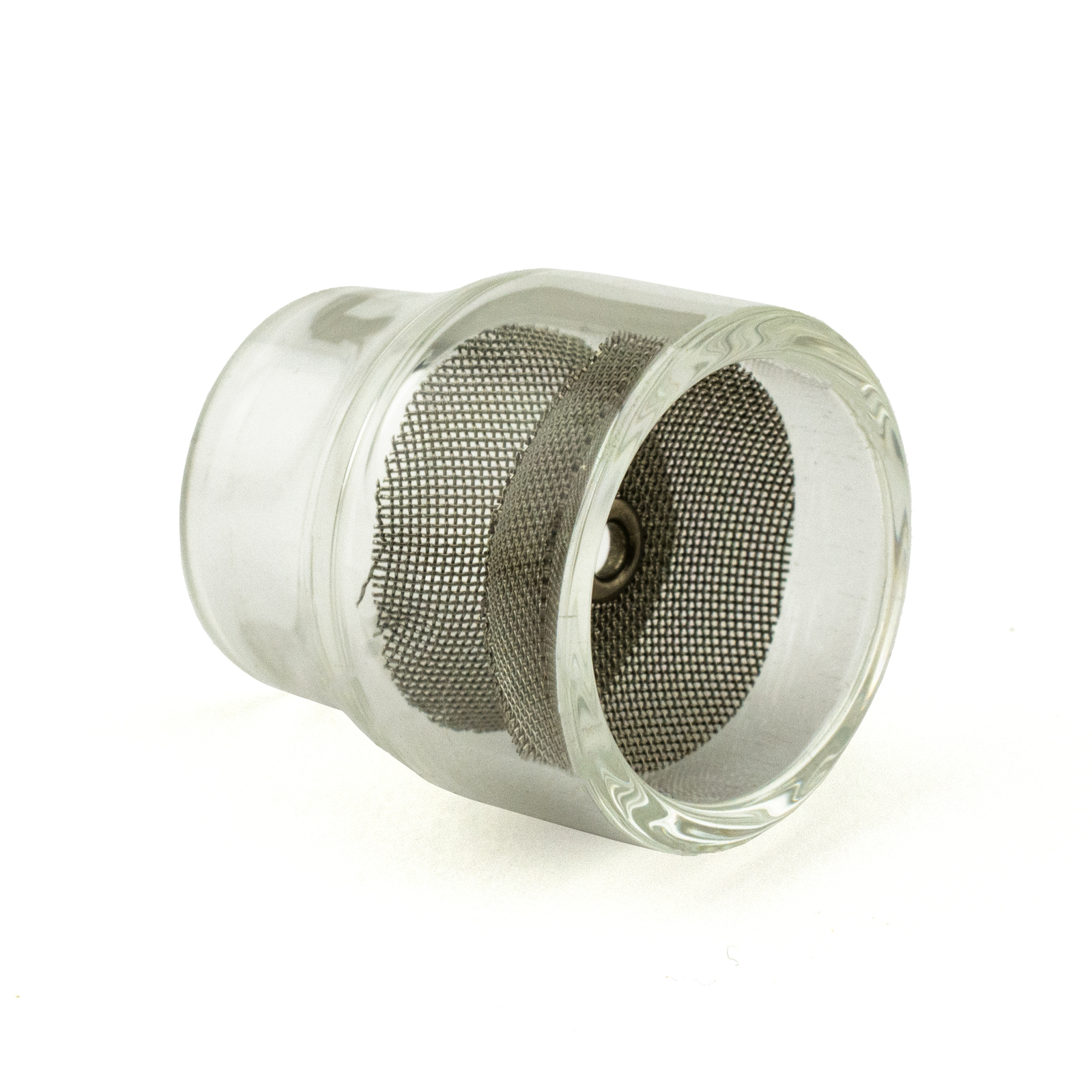

• Thick heat resistant pyrex glass rated to max 175 amps

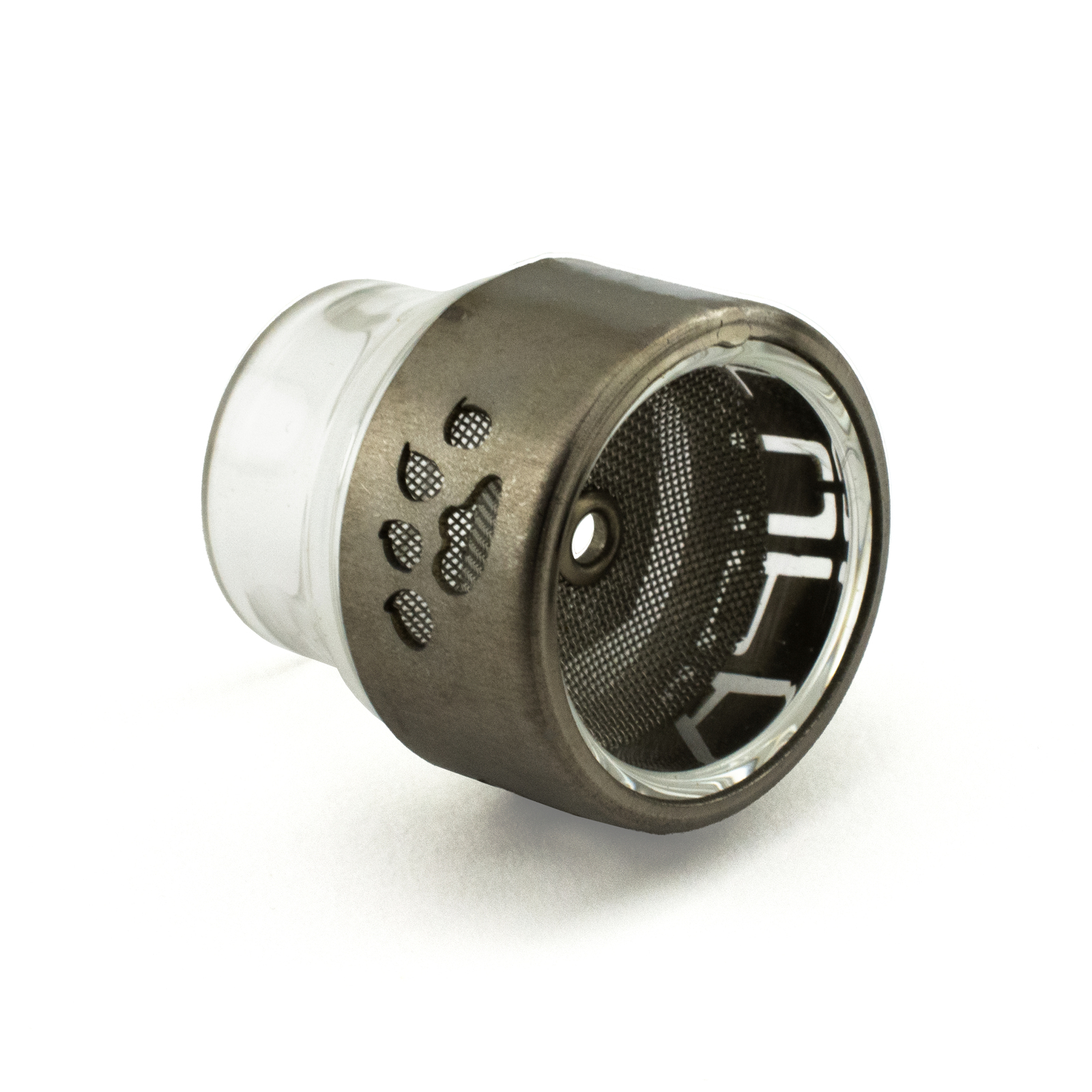

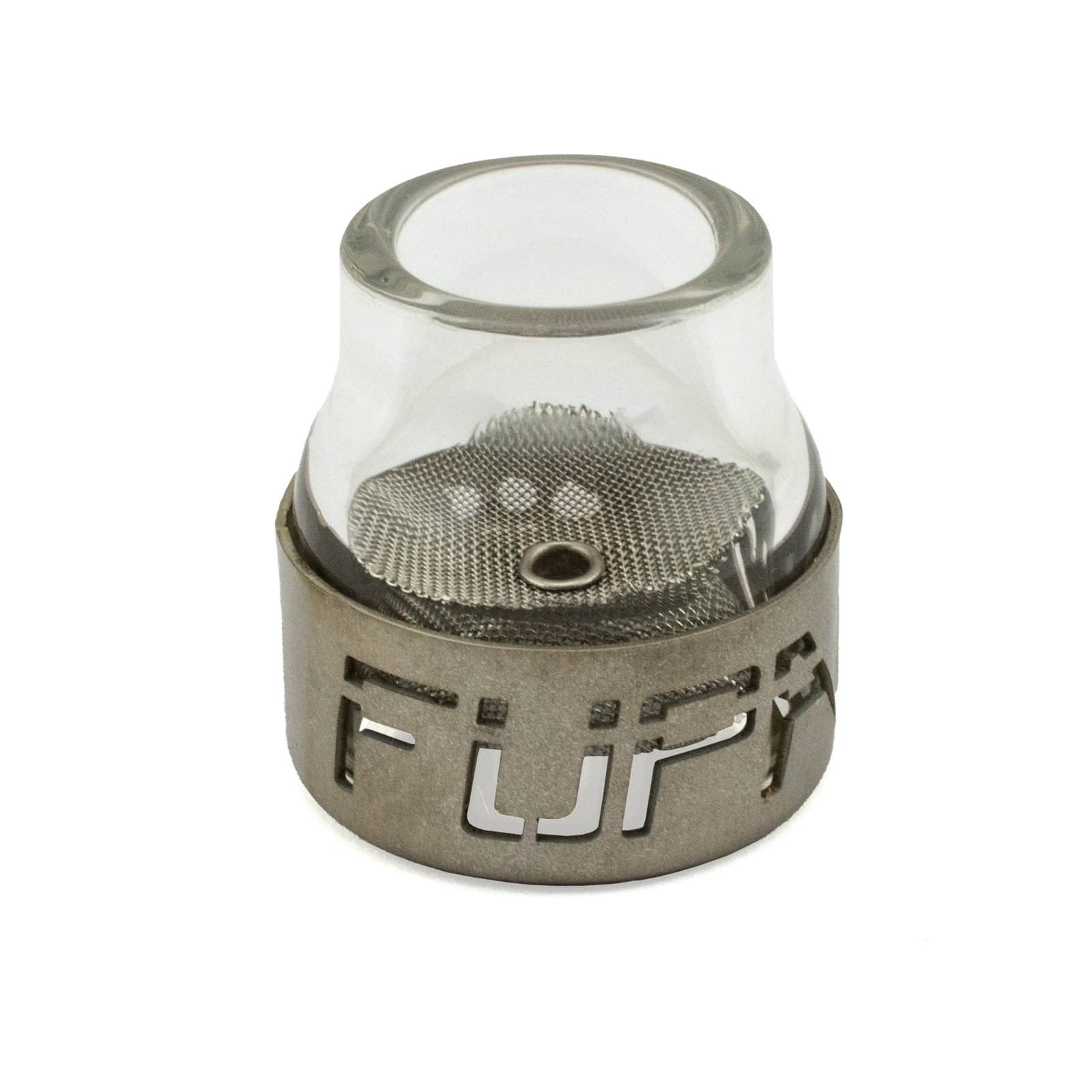

• Uses a titanium Cup Cover to prevent damage to the pyrex cup
• Made in the USA

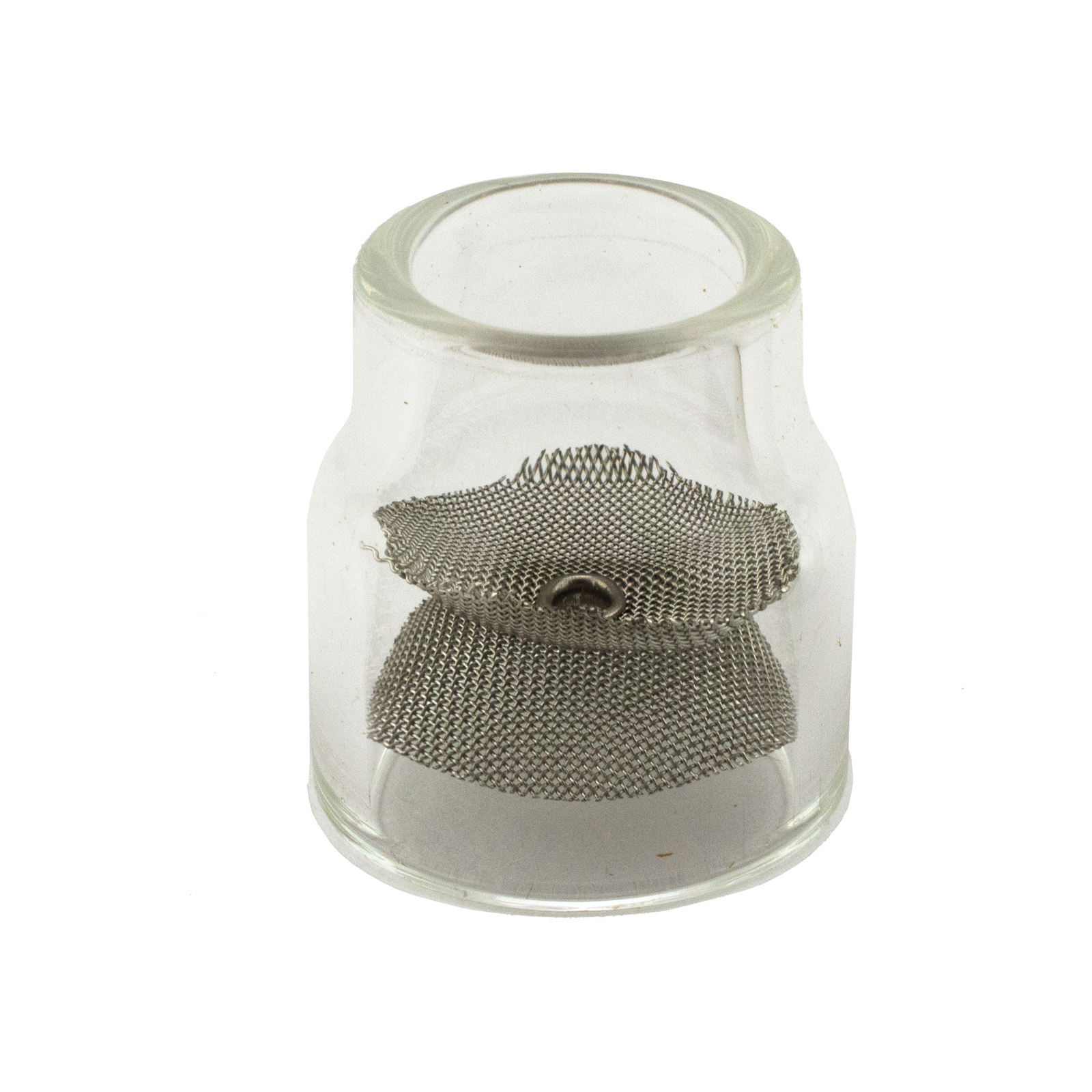

• Utilizes a second mesh filter for consistent gas coverage over the welding material

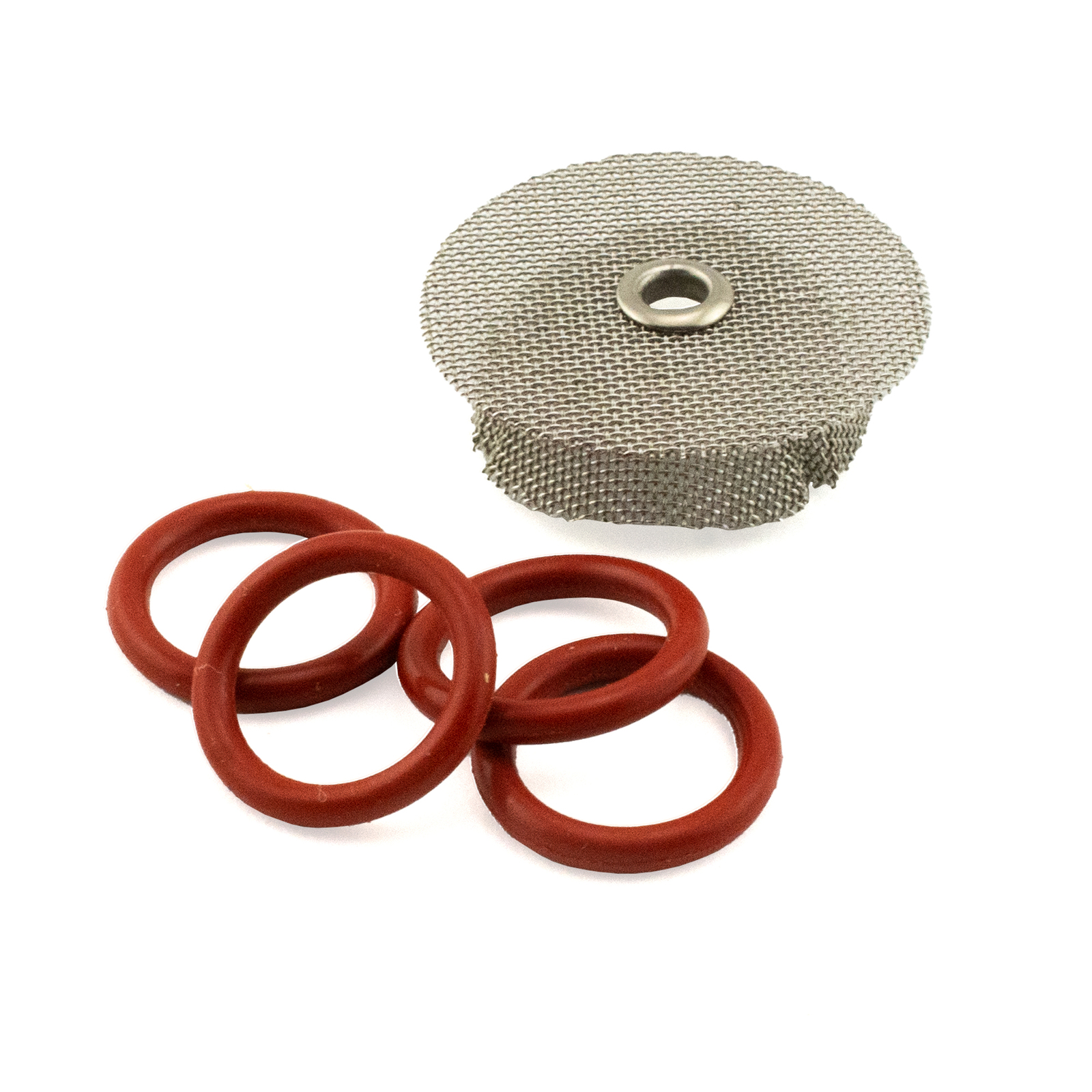

• Includes 2 x Pyrex Cups, 4 x Orings & 1 x Titanium Cup Cover
• For use with a standard 17 / 26 series torch the cup will require gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
• For use with a standard 9 / 20 series torch the cup is compatible with standard gas lens' (pn: 45V43, 45V44, 45V45)

Dimensions:

• Bore ID: 20.5mm
• Bore OD: 25.3mm
• Length: 27mm
• Glass Thickness: 2.9mm
• Gas Lens Mesh Bore: 2.6mm
