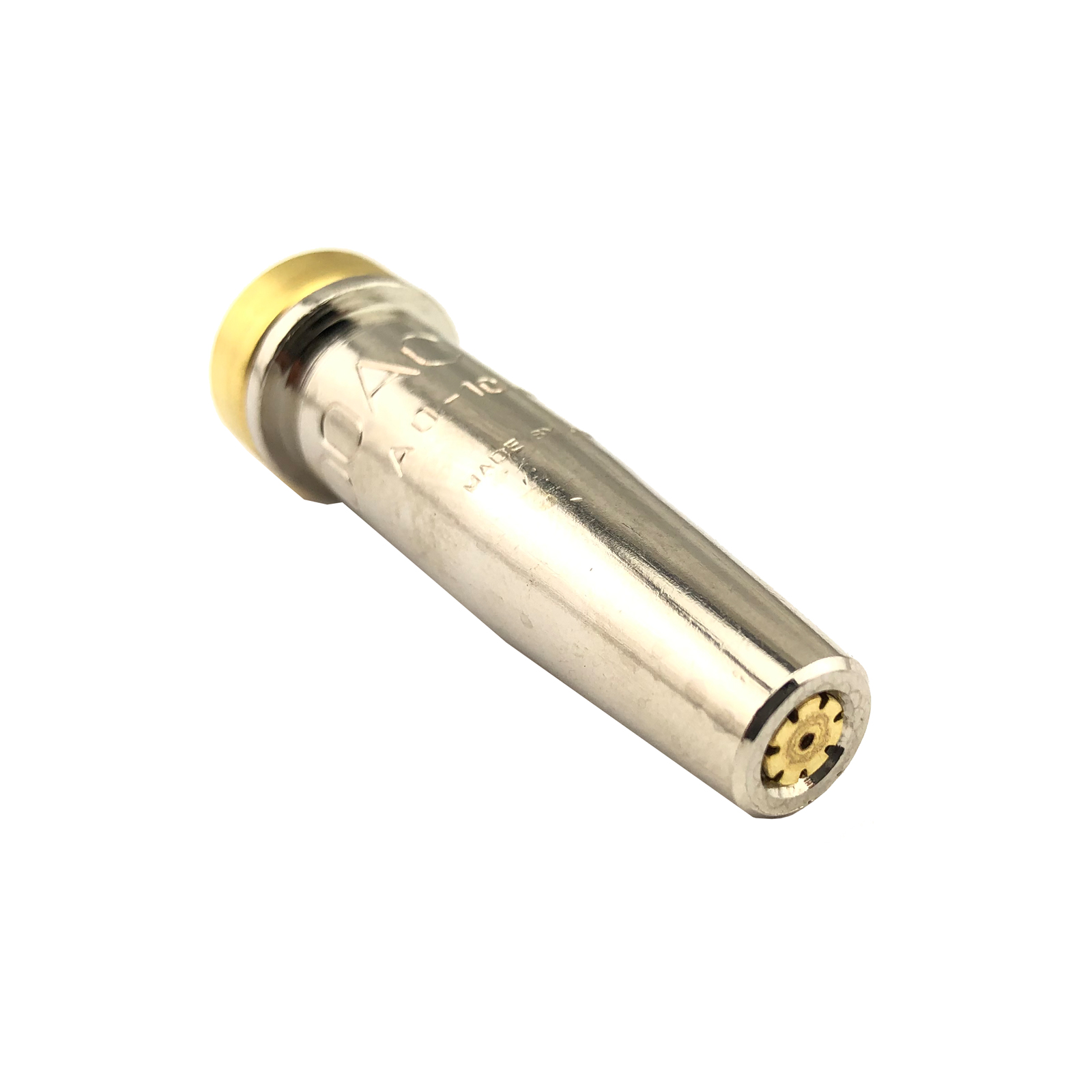

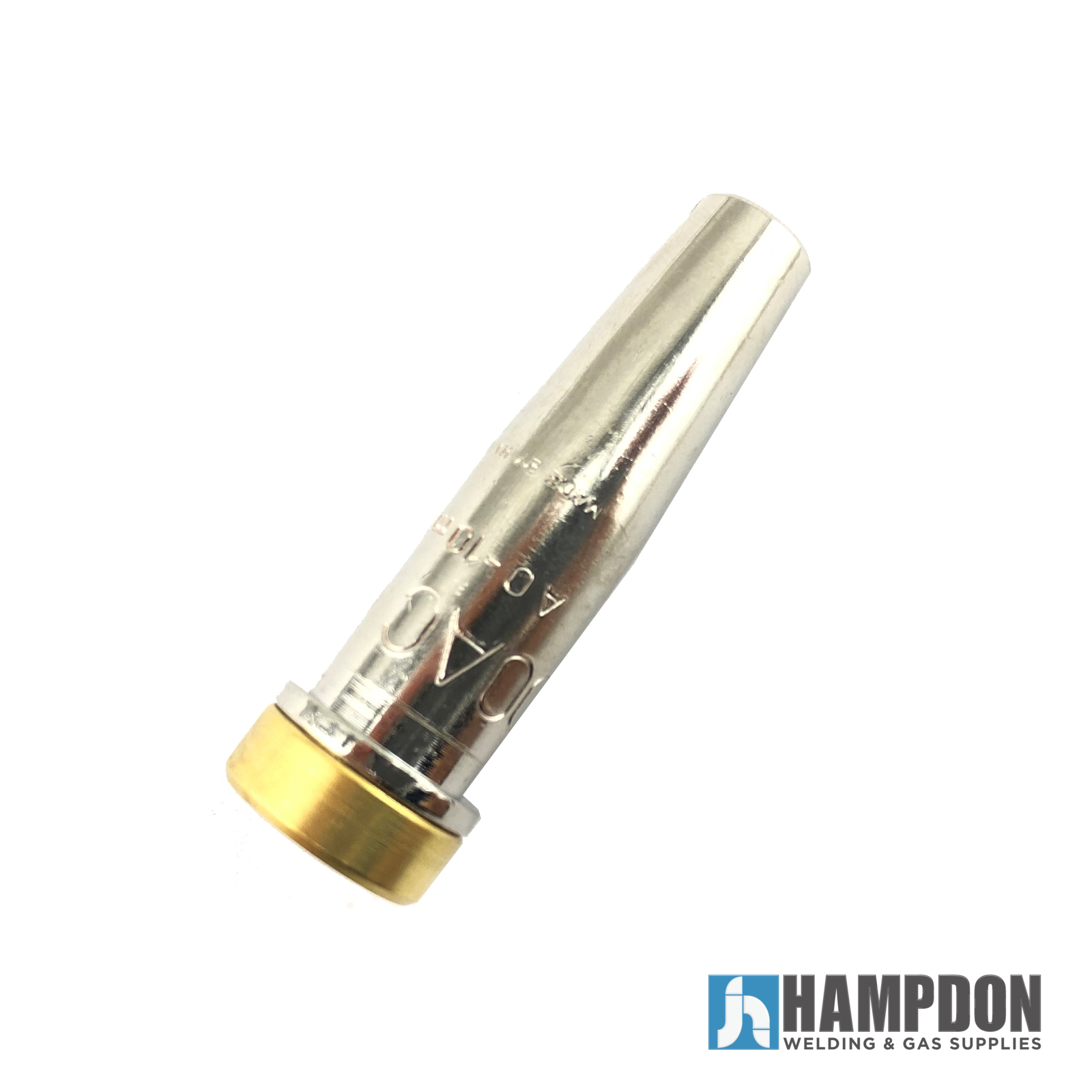

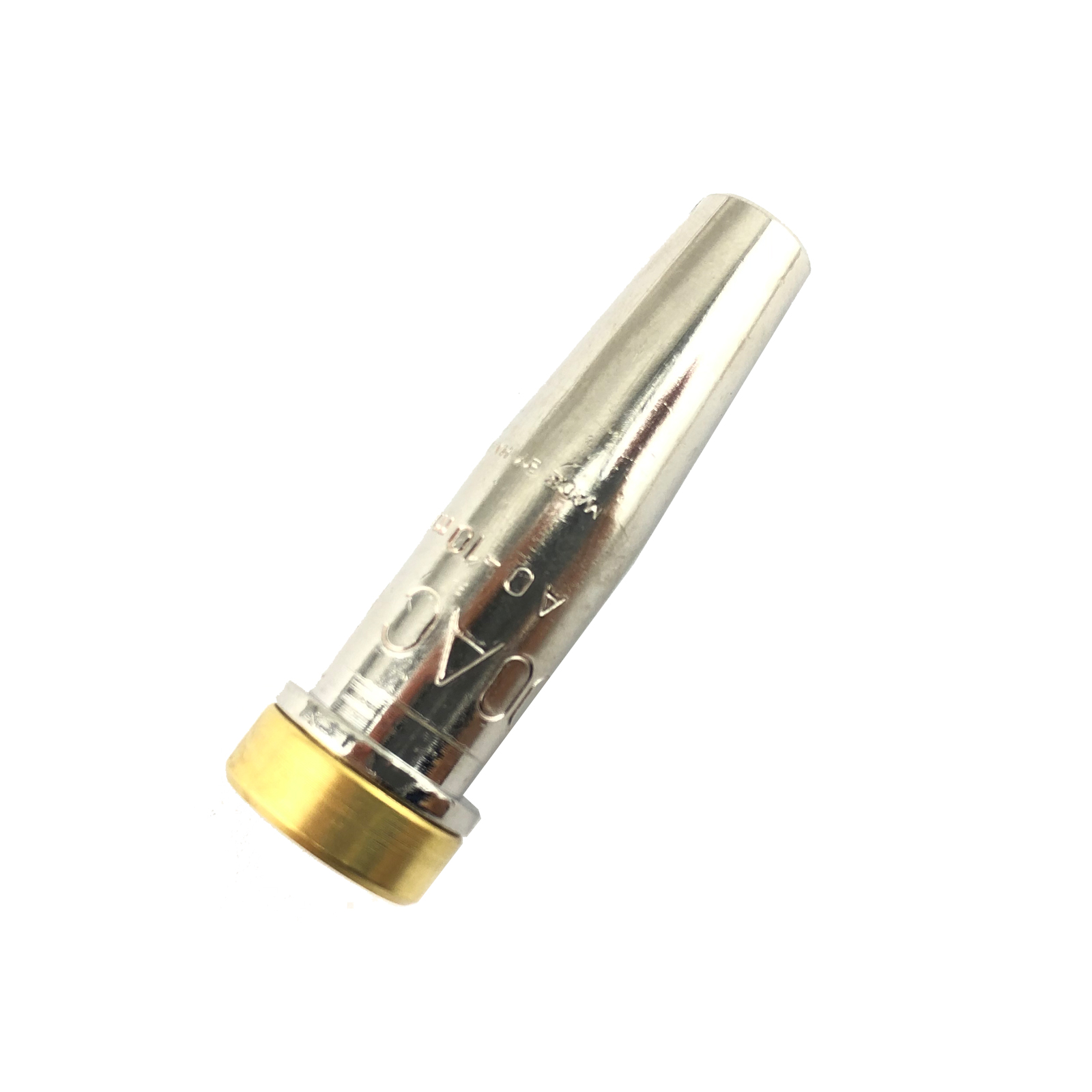

Harris 1AC Acetylene Cutting Tip 15-25mm - 1 Each

6290-AC Two-piece Heavy Pre-heat Hand Cutting Tip for Acetylene. Nozzles are a vital component of flame cutting equipment. They provide the preheating flames to raise the steel to ignition temperatures and direct the jet of oxygen onto the heated area to perform the cutting process.

Features:

• 1 Each

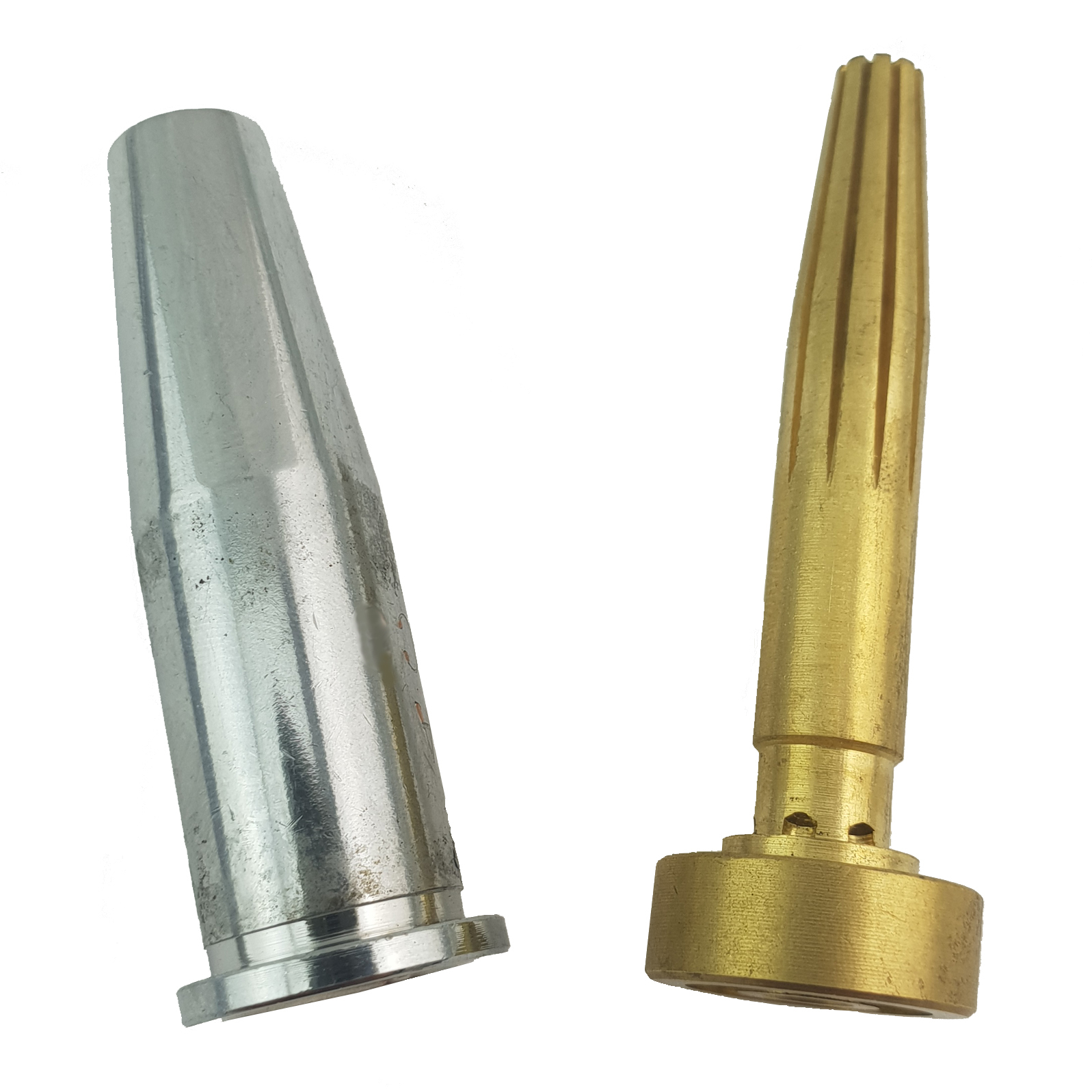

• Tip type 6290-AC
• Tip size 1AC
• Size 10
• Cutting Thickness 15 - 25mm
• For use with Acetylene
• Suits 493F, 142 and 624 Cutting Torches
• Original Harris
• High quality industrial Tip for everyday use
• Suits Harris cutting attachments
• Manufactured from High-Quality raw materials

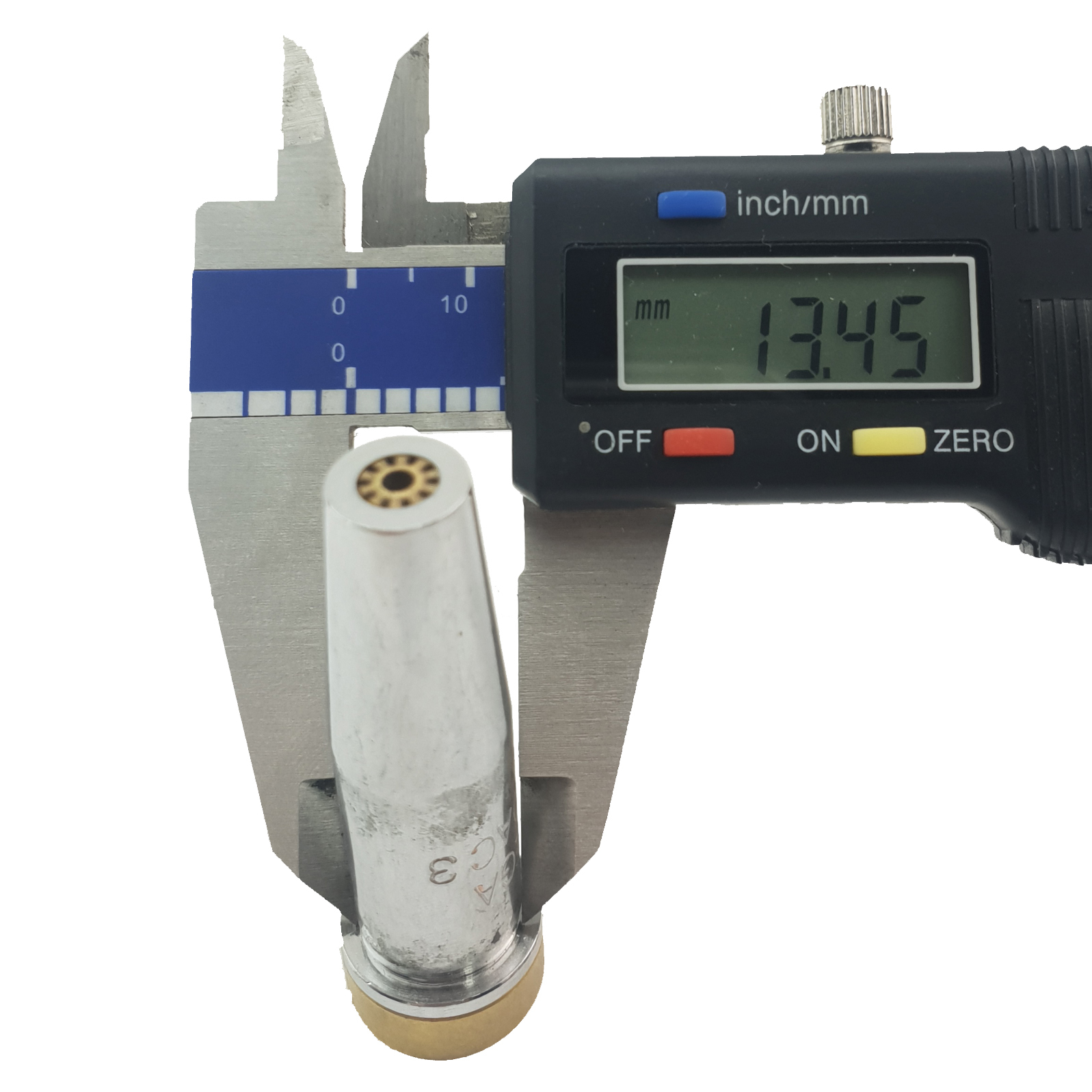

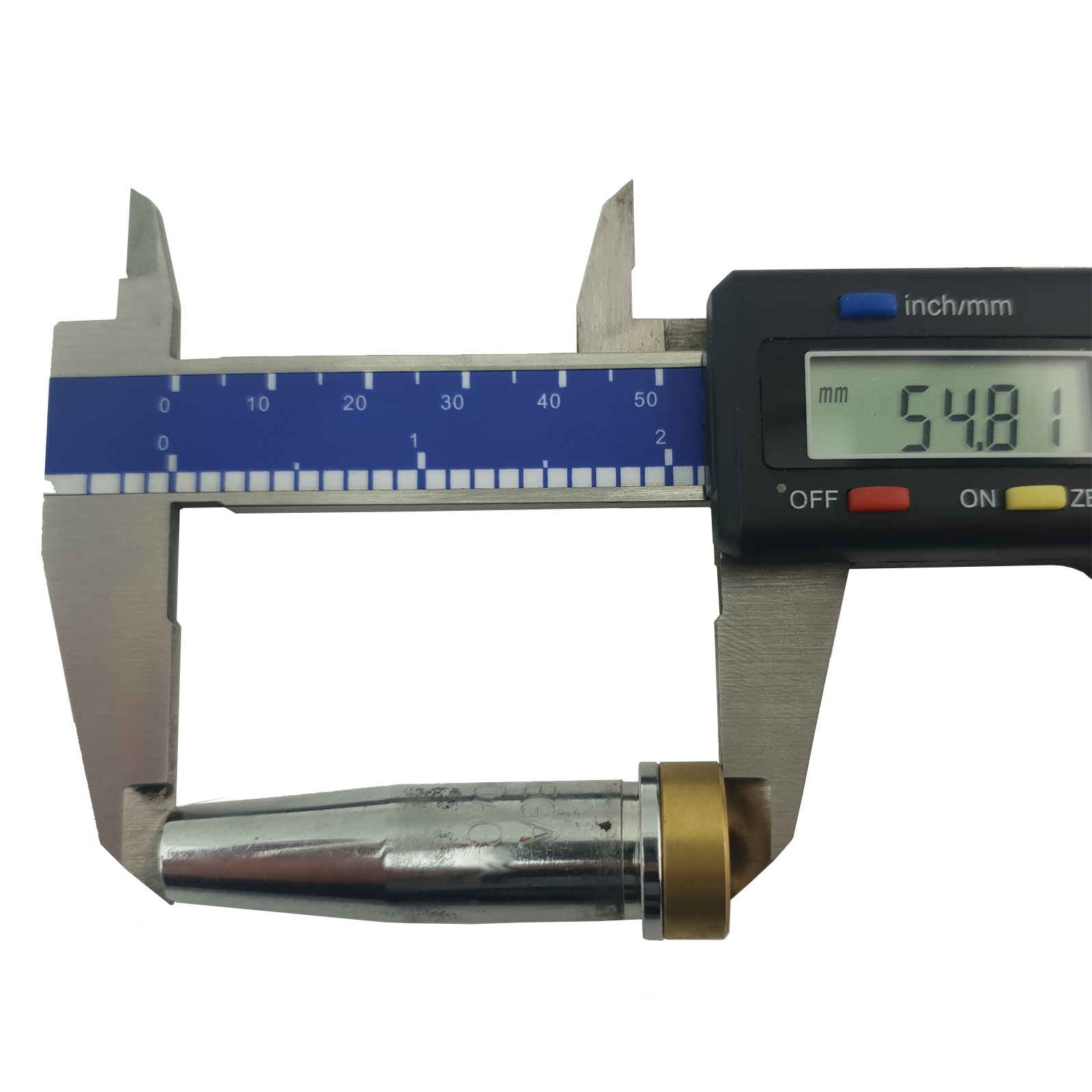

• 13mm x 55mm

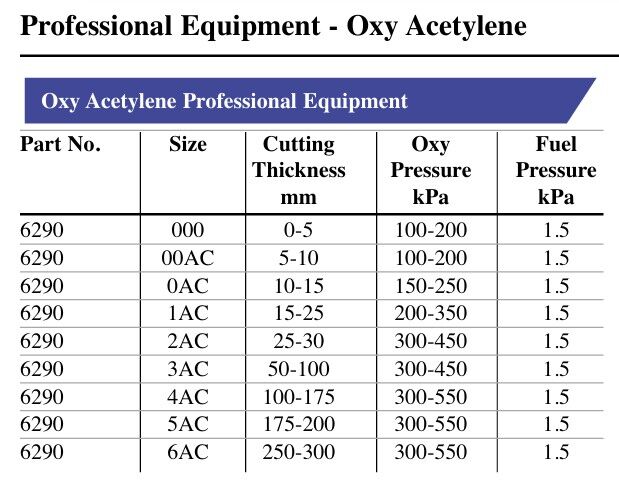

Other cutting tips available - Search our store for the part numbers below:

• 000AC: Harris 6290 000AC LPG Cutting Tip 0-5mm
• 00AC: Harris 6290 00AC LPG Cutting Tip 5-10mm
• 0AC: Harris 6290 0AC LPG Cutting Tip 10-15mm
• 1AC: Harris 6290 1AC LPG Cutting Tip 15-25mm
• 2AC: Harris 6290 2AC LPG Cutting Tip 25-30mm
• 3AC: Harris 6290 3AC LPG Cutting Tip 50-100mm
• 4AC: Harris 6290 4AC LPG Cutting Tip 100-175mm
• 5AC: Harris 6290 5AC LPG Cutting Tip 175-200mm
• 6AC: Harris 6290 6AC LPG Cutting Tip 250-300mm
