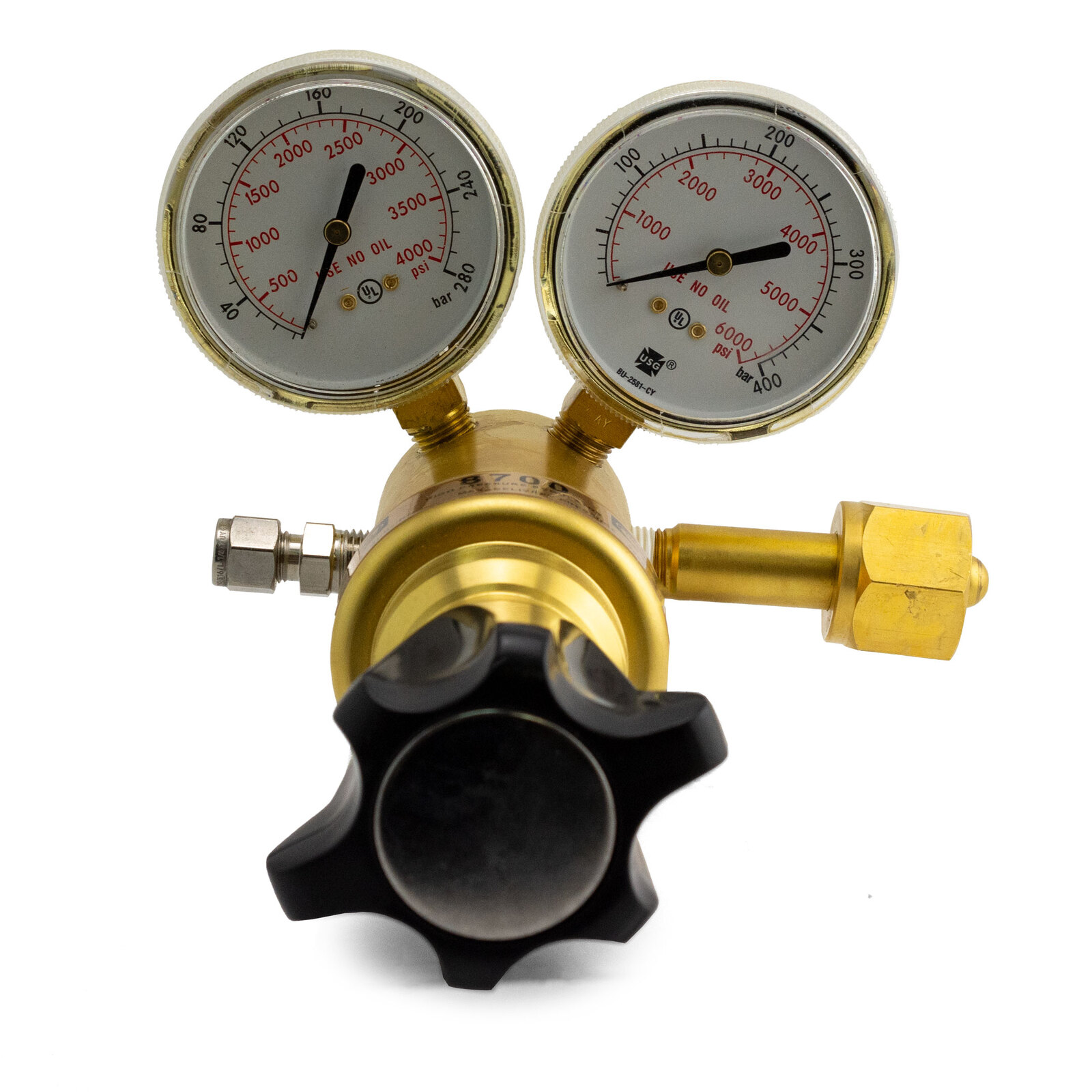

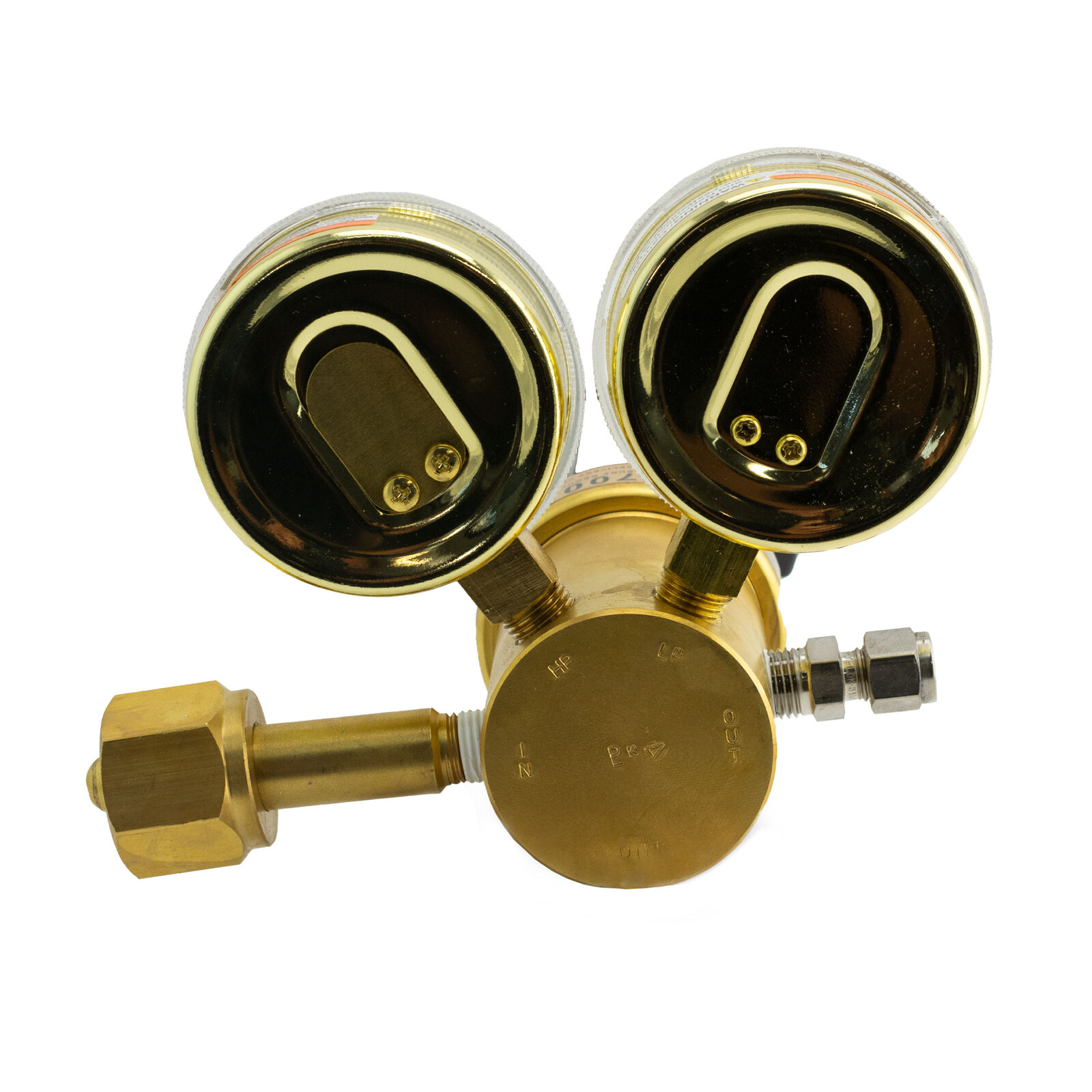

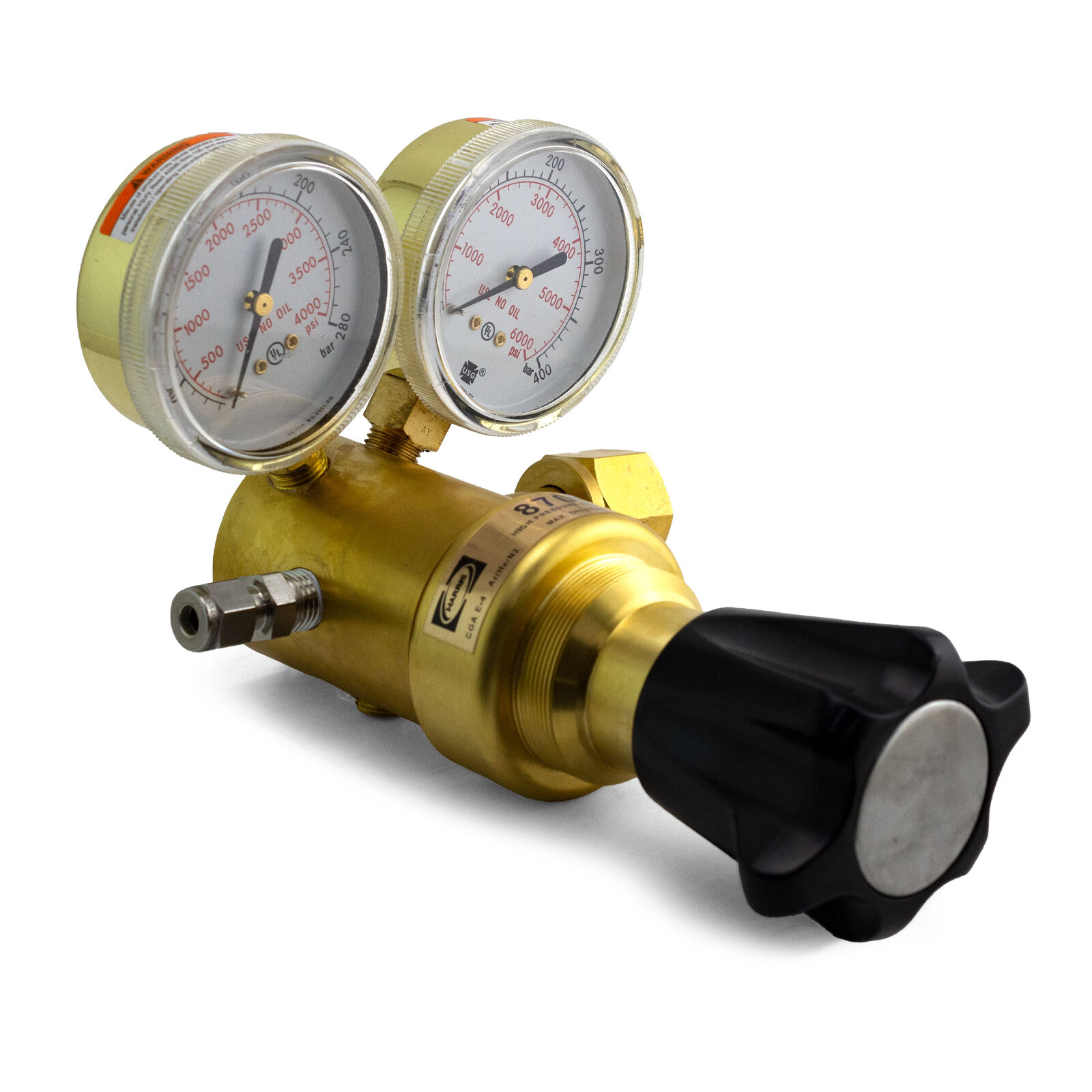

Harris 8700 Nitrogen Regulator Side Inlet 0 - 21000kpa - Self Relieving

Model HP8700 is a single-stage brass regulator that is designed to operate on ultra-high-pressure cylinders. The Model HP8700 is suitable for high-pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment. This model features a brass body bonnet and dual scale (psi/bar) gauges ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and a one-piece encapsulated seat that is designed with an internal filter and CTFE (Kel F®) seat. It has a 1/4" NPT outlet with stainless steel 1/4" tube fitting.

Features

Brass bar stock body and bonnet and brass nozzle for longer service life
Ergonomic ABS plastic knob for improved grip and precise adjustment
2.5" Brass bar stock dual scale easy-to-read gauges (psi/bar)
One-piece encapsulated seat design with 10 microns sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
Urethane diaphragm for greater flexibility
1/4" NPT outlet with stainless steel 1/4" tube fitting
Type 50 and Type 51 Stems included
Suitable for high-pressure testing, charging accumulators and pressurizing aircraft struts
Self-relieving for safety
