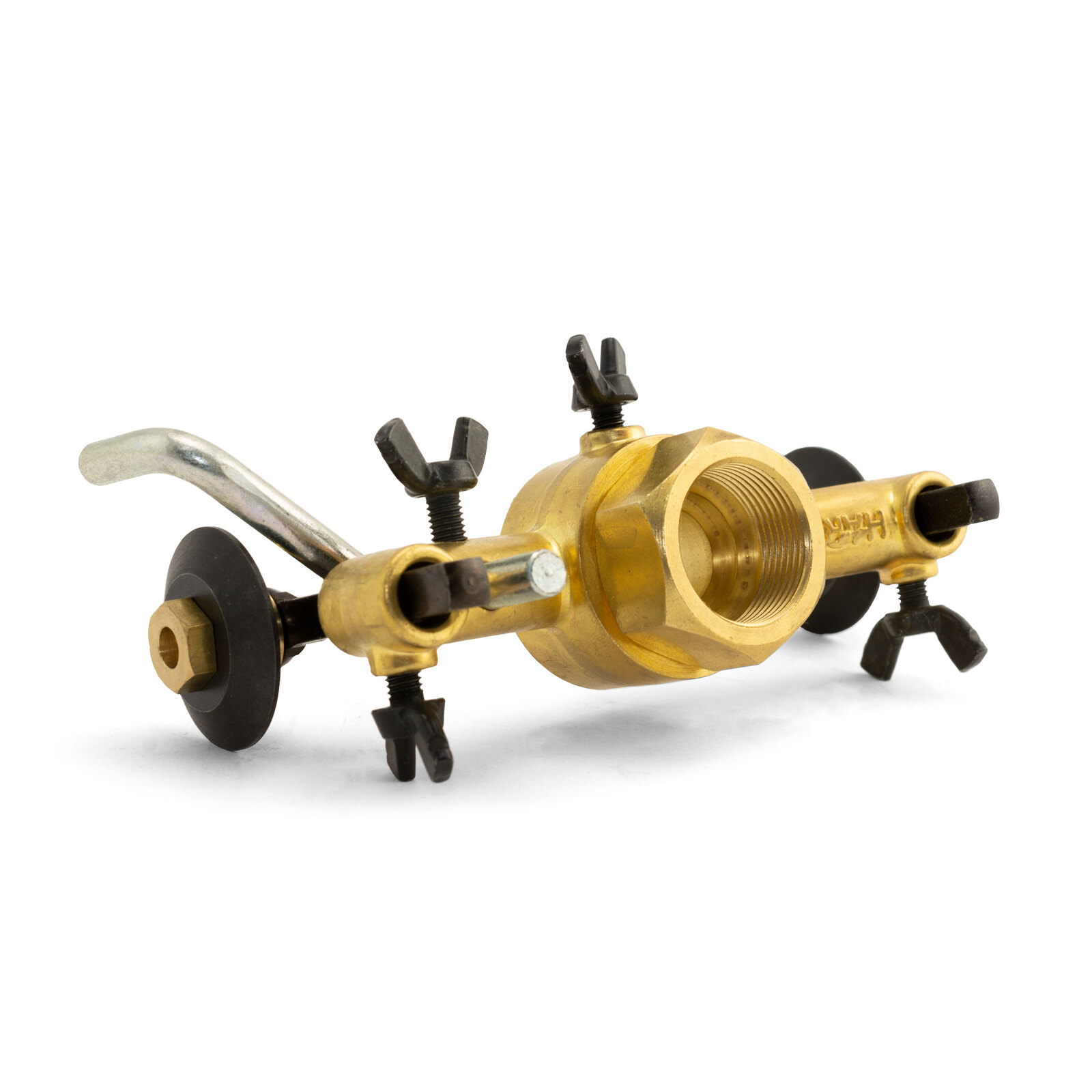

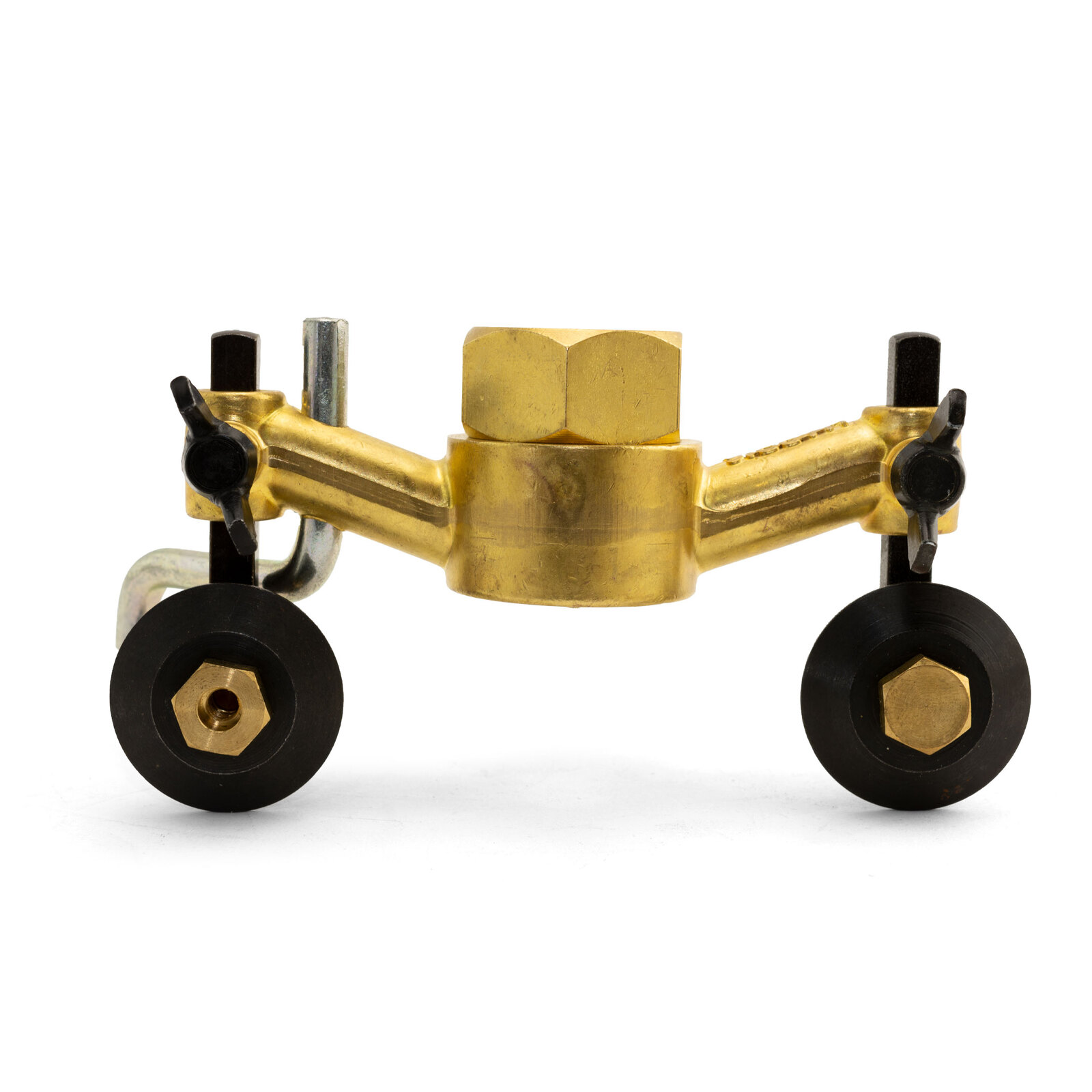

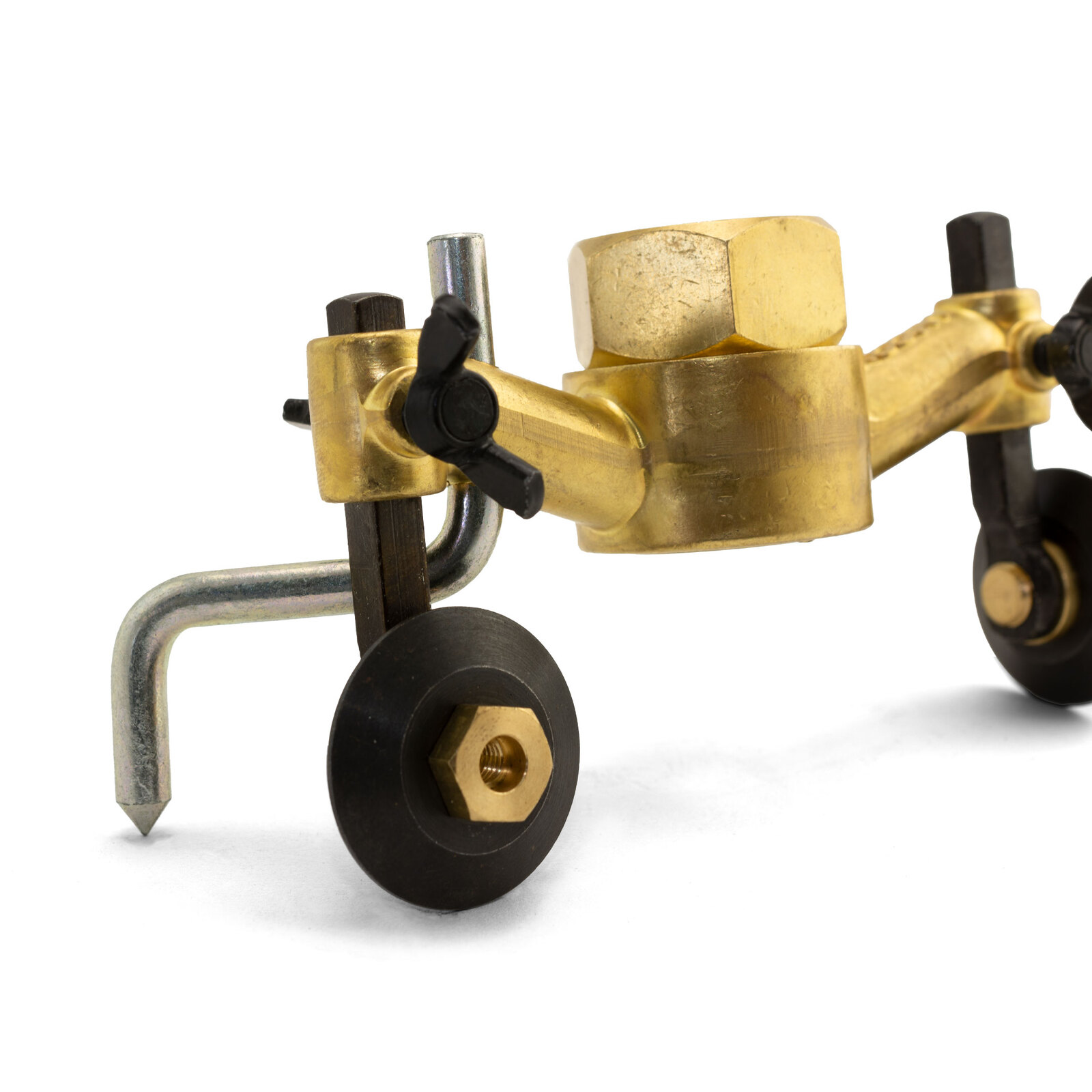

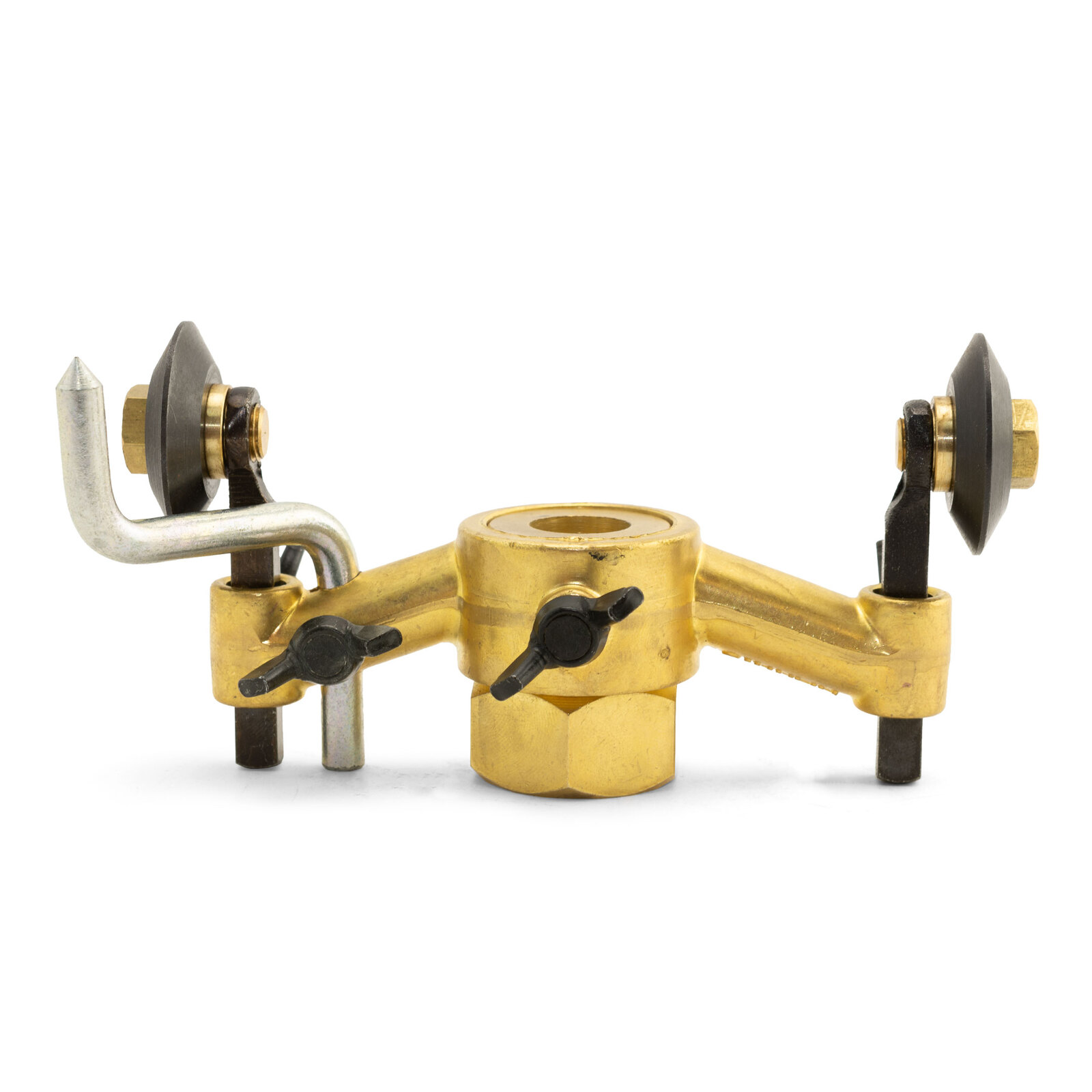

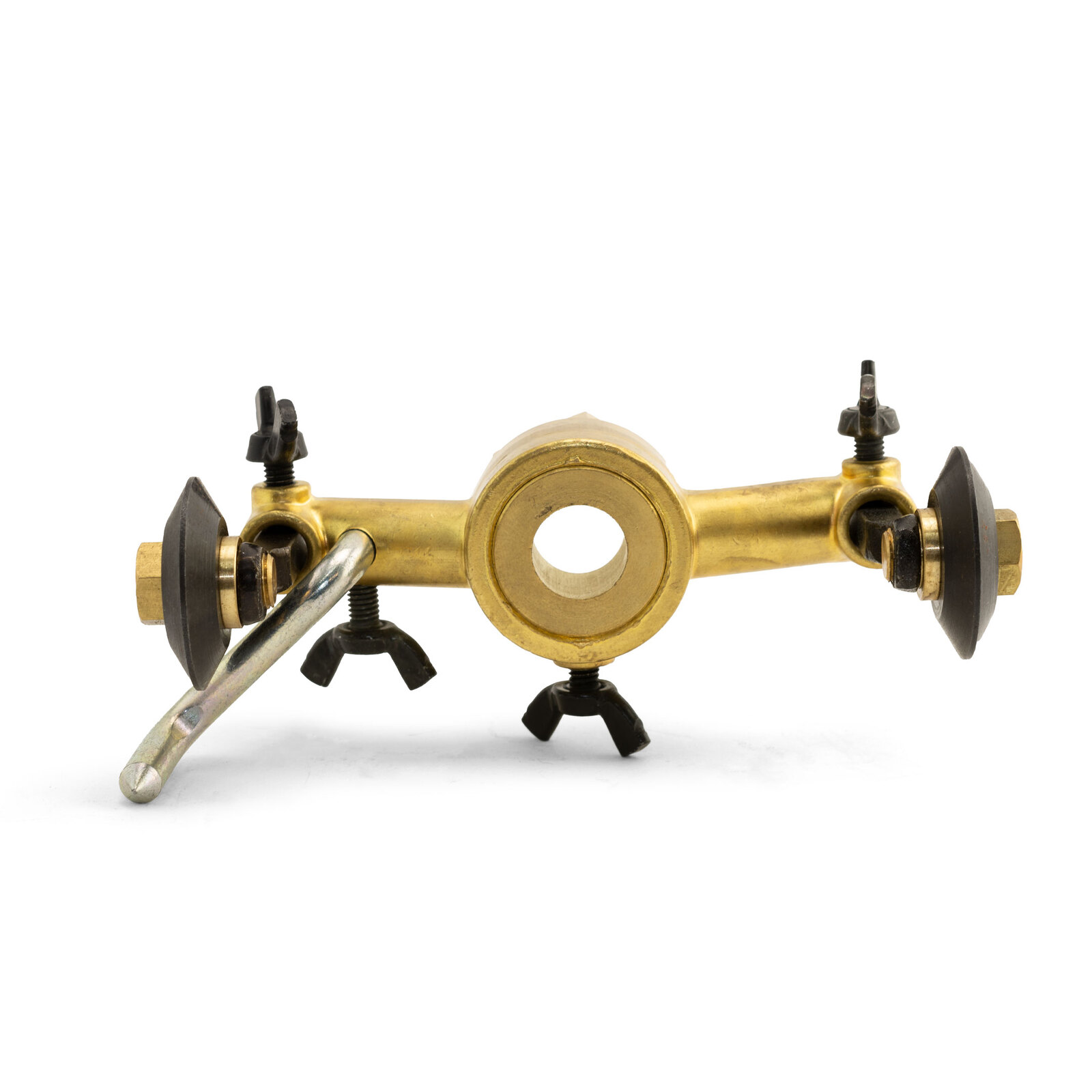

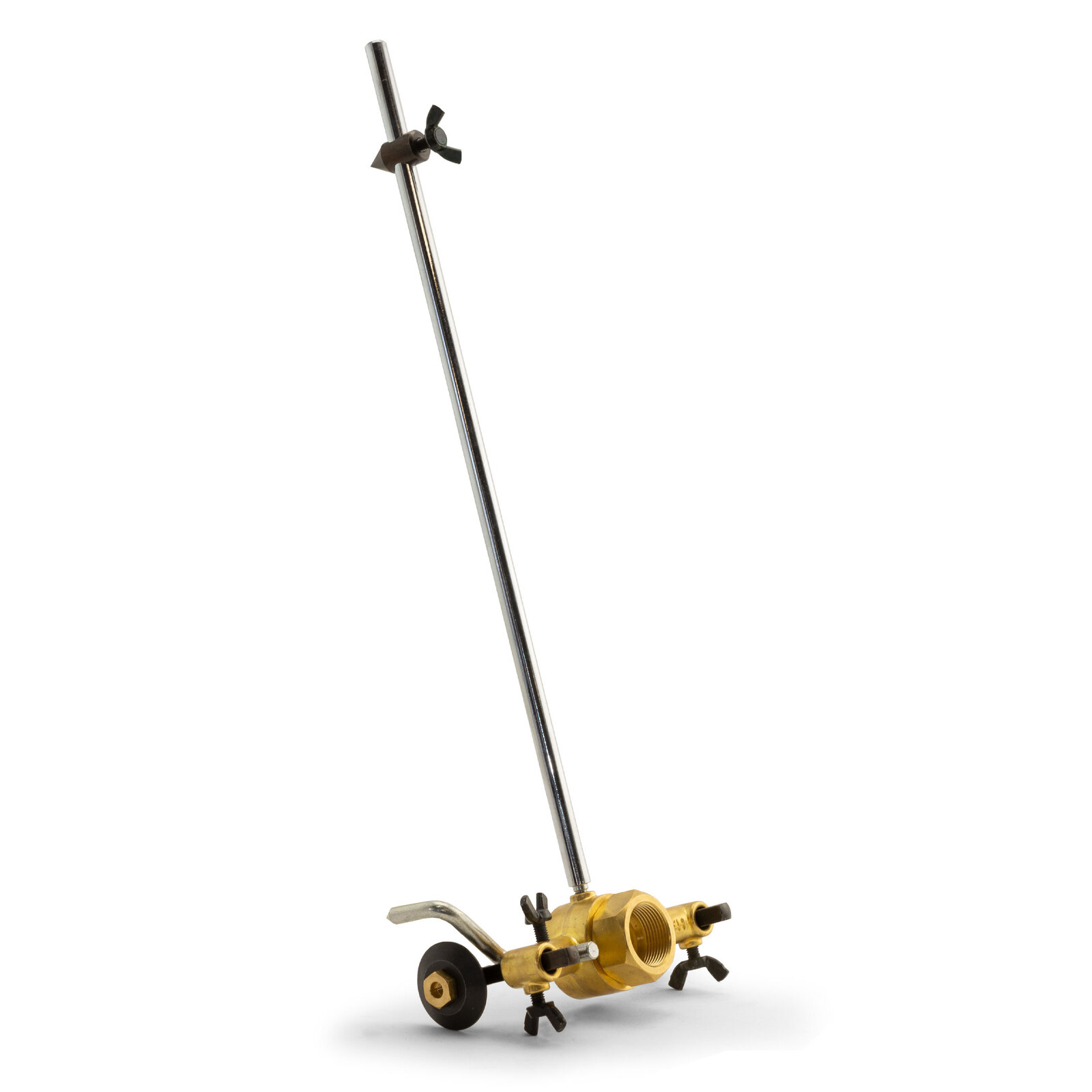

Harris Circle Guide Cutter
Harris® Circle Cutting Attachment is designed for cutting circles up to 30" diameter and straight-line cutting. It comes with adjustable wheels and provides quality cuts.
Features:
- For cutting circles up to 30 in diameter, as well as straight line burning
- A swivel nut permits circle cutting without tangling hoses

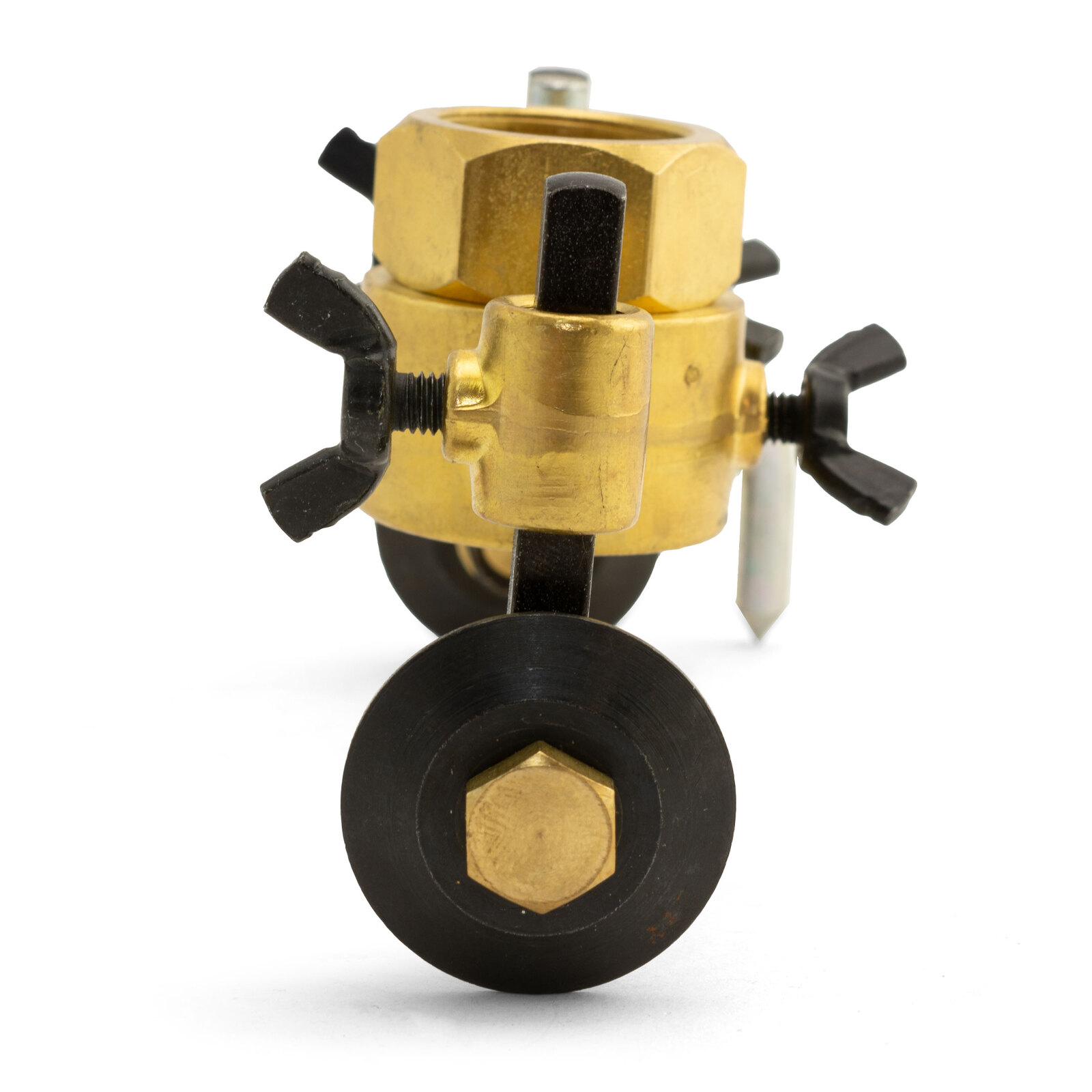

- Wheels are adjustable for individual torch height
- The R-69-3B makes better quality cuts with hand torches possible
- Not for use with Pro Series equipment, Model 36 cutting attachment or Model 880 cutting torch
- Will suit the Harris 492 cutting torch
Dimensions:

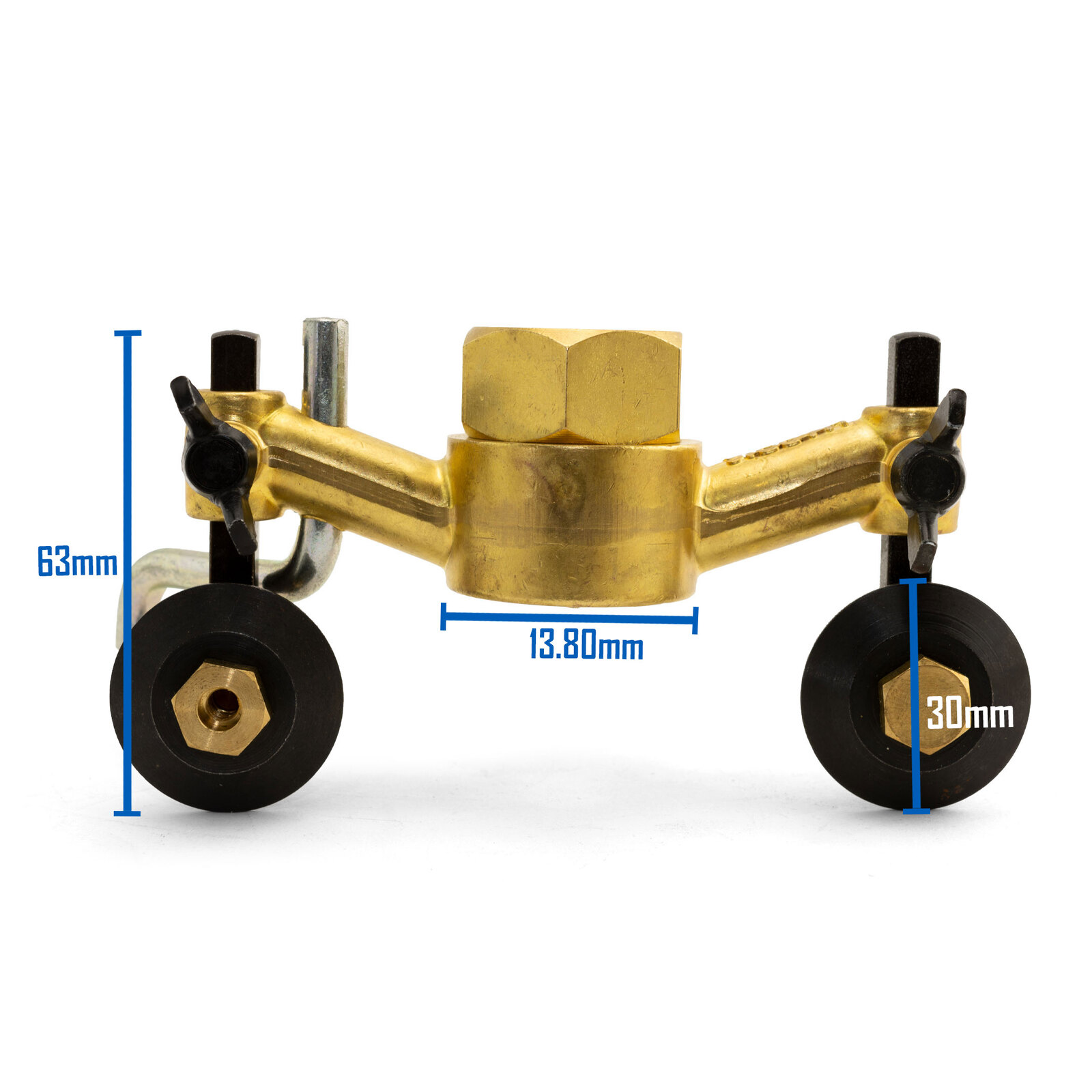

- 13.80mm Cutting side inner diameter

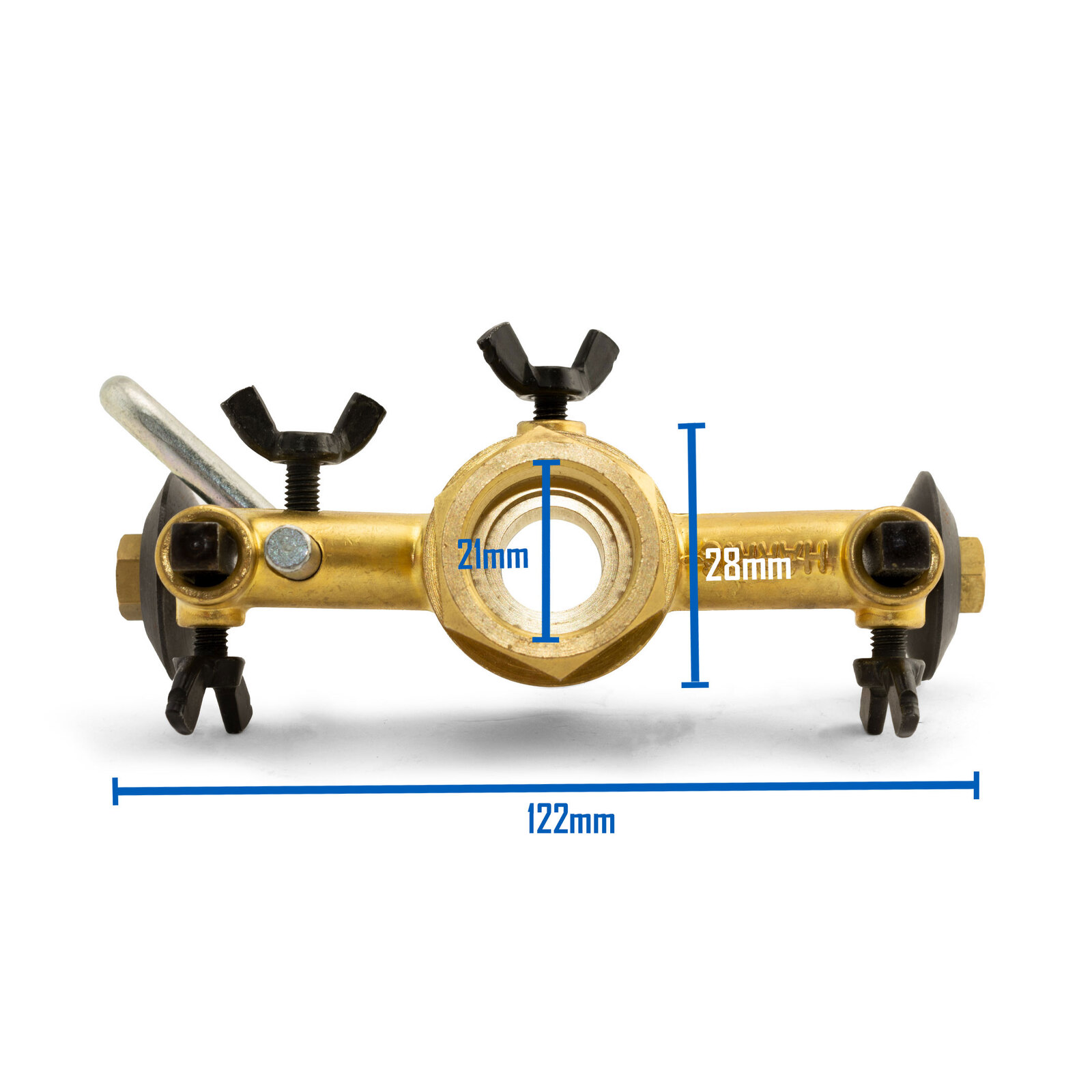

- 28mm Mounting nut outer diameter
- 63mm Overall height
- 122mm Overall width

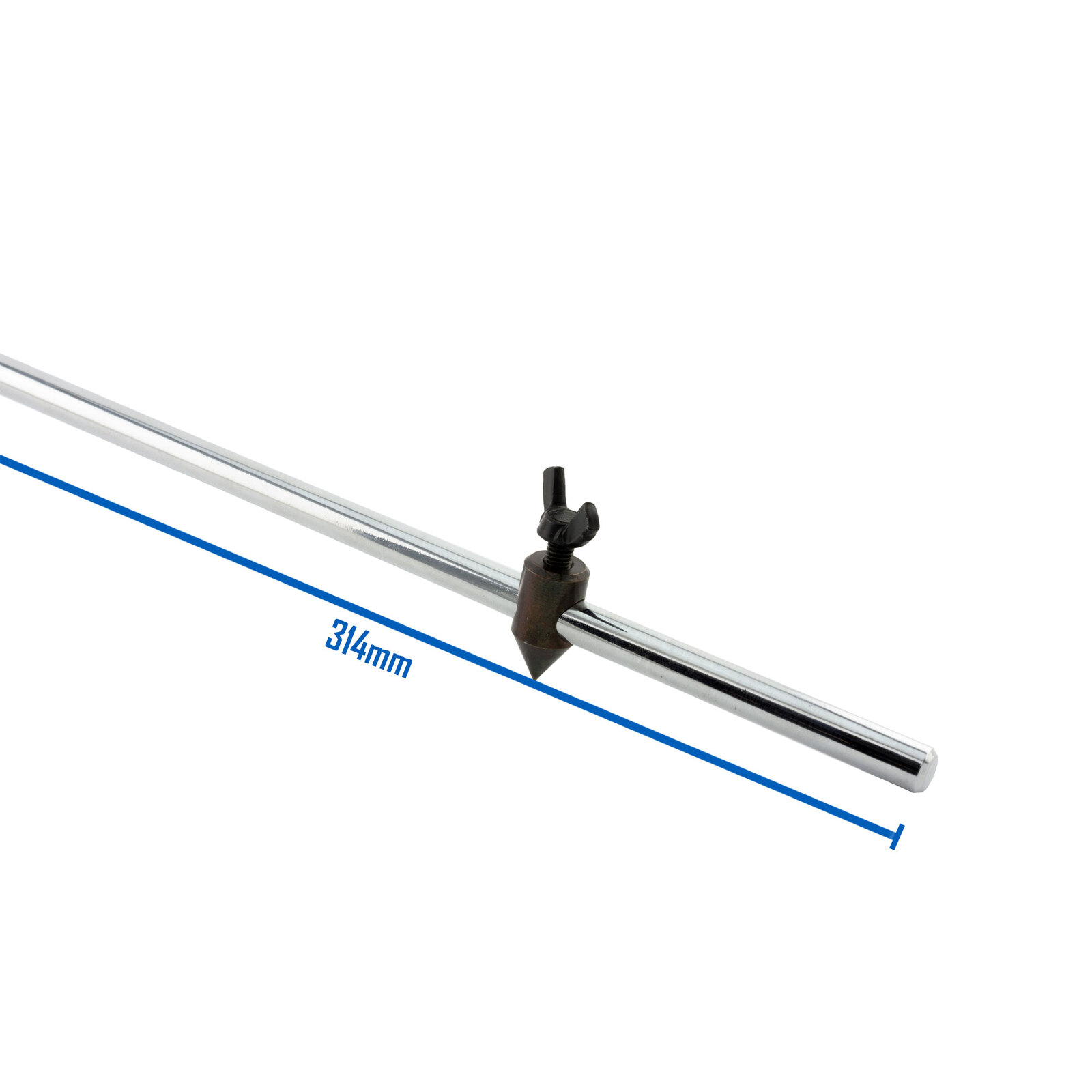

- 314mm Radius bar
- 21mm Tip nut inner diameter
- 30mm Wheel width
(IR693B)
SKU | IR693B |
Brand | Harris |
Shipping Weight | 0.4500kg |
Shipping Width | 0.200m |
Shipping Height | 0.050m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
