Kemppi Minarc Evo 180 Amp MMAW | STICK | TIG | Caddy DC Welder

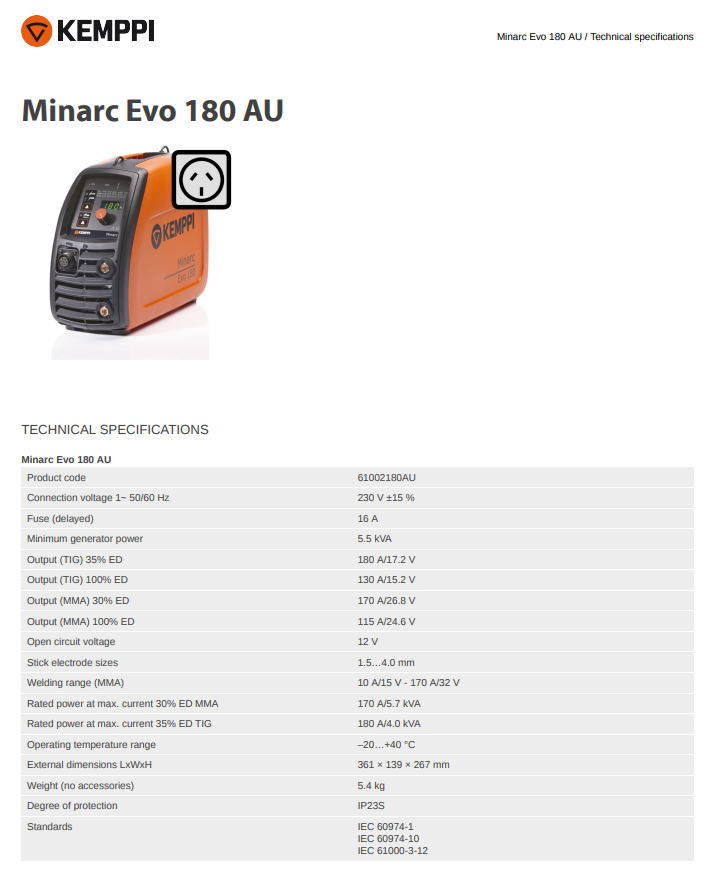

Minarc Evo 180 AU

• Product code 61002180AU
• Connection voltage 1~ 50/60 Hz 230 V ±15 %
• Fuse (delayed) 16 A
• Minimum generator power 5.5 kVA
• Output (TIG) 35% ED 180 A/17.2 V
• Output (TIG) 100% ED 130 A/15.2 V
• Output (MMA) 30% ED 170 A/26.8 V
• Output (MMA) 100% ED 115 A/24.6 V
• Open circuit voltage 12 V
• Stick electrode sizes 1.5…4.0 mm
• Welding range (MMA) 10 A/15 V - 170 A/32 V
• Rated power at max. current 30% ED MMA 170 A/5.7 kVA
• Rated power at max. current 35% ED TIG 180 A/4.0 kVA
• Operating temperature range –20…+40 °C
• External dimensions LxWxH 361 × 139 × 267 mm
• Weight (no accessories) 5.4 kg
• Degree of protection IP23S
• Standards IEC 60974-1 IEC 60974-10 IEC 61000-3-12
• Comes with 3m arclead set (Electrode holder and earth)

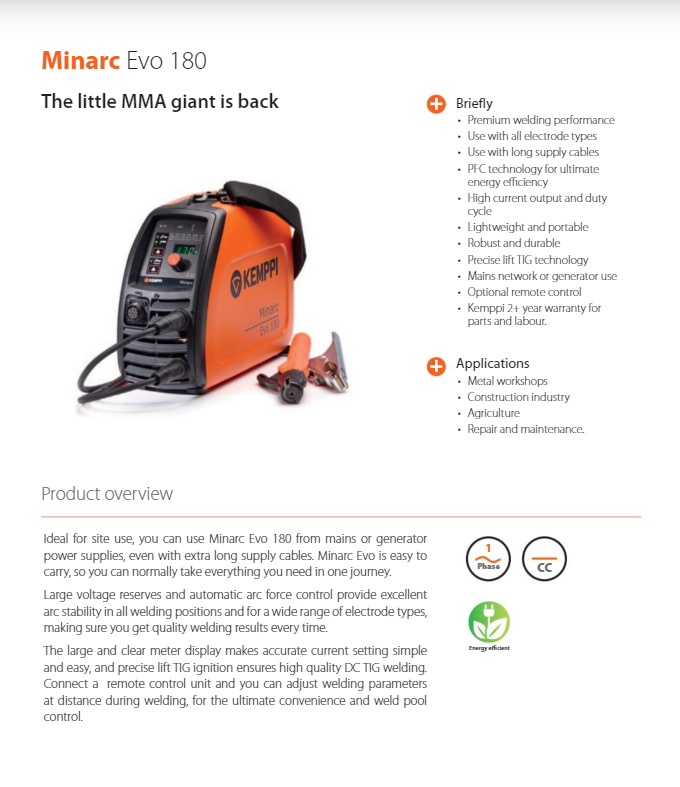

Outstanding welding performance

Every element of the Minarc Evo 180 is designed to meet the needs of the professional welder on the move. It delivers outstanding welding quality plus arc ignition. Available for MMA and TIG processes, it combines maximum welding power with high-energy efficiency thanks to the integration of PFC and inverter power technologies. Lightweight and flexible, the Minarc Evo 180 can be used with mains or generator power supplies as well as with long supply cables.

Large voltage reserves and automatic arc force control

These features provide excellent arc stability in all welding positions and for a wide range of electrode types, making sure you get quality welding results every time.

The large clear meter display

This makes accurate current setting simple and easy, and precise lift TIG ignition ensures high quality DC TIG welding. Connect Minarc Evo's remote-control option and you can adjust welding parameters at a distance during welding, for the ultimate convenience and weld pool control.

Features

• Can be powered from the mains or generator power supply, even via extra long supply cables, thus ideal for on-site use.
• Easy to carry, so you can carry everything you need in one journey.
• Excellent arc stability in all welding positions and for a wide range of electrode types up to 4 mm electrodes, with large voltage reserves and automatic arc force control
• The capability to use with mains or portable power generators ensures that you always have power supply options
• Built for the welder on the move. The power source is housed in an impact resistant plastic casing • Safe to use in damp or humid welding environments thanks to reduced Open Circuit Voltage (90 volts or lower)
• Save time by welding for longer, due to the reduced need for machine cooling breaks
• Reliable arc ignition reduces wasted time and increases welding quality
• A single machine covers a wide range of welding applications
• Easy to transport and carry onsite with a fast one-man setup
