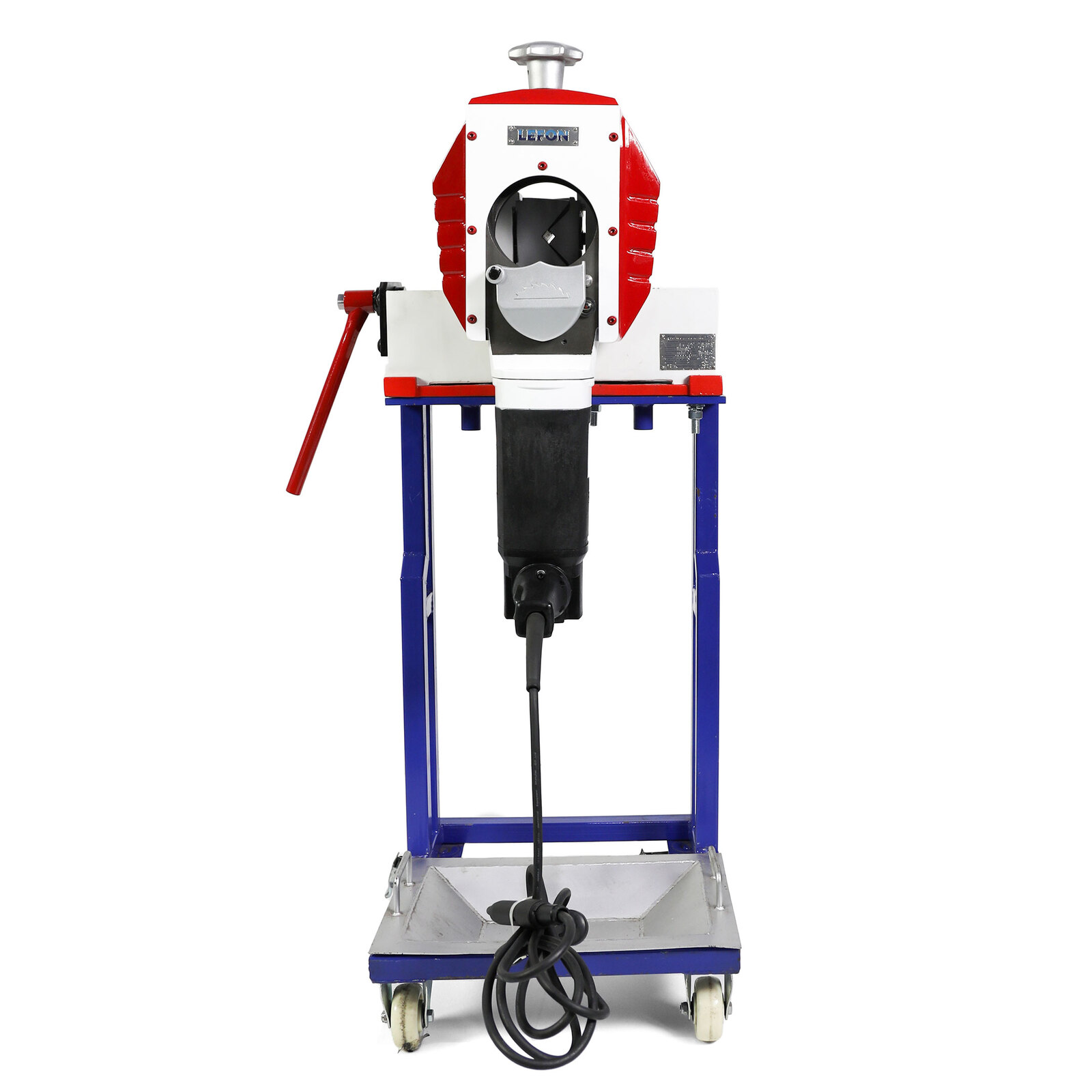

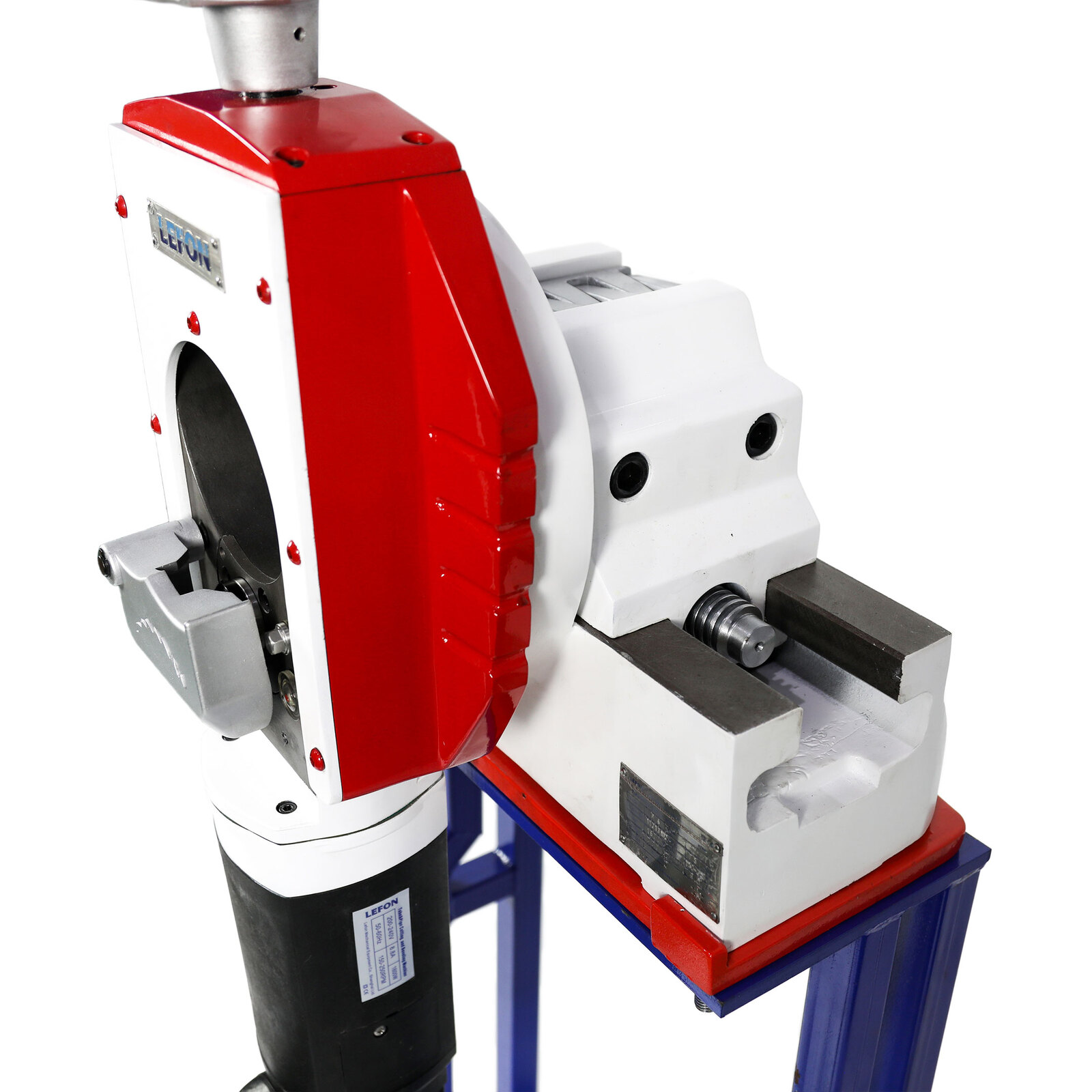

Lefon R4 Pipe Saw / Cutter - Orbital Bevelling Cutting Machine

Hampdon Industrial stocks the industry leading Lefon range of orbital pipe saws. LEFON Orbital Pipe Saws are the cost effective and reliable solution to square cut and bevel almost all types of metal pipe. Lefon orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding.

• Model Number R4 (GF4 equivalent part number)
• Cuts ½ inch to 4 inch pipes (19mm – 120mm) 1.0mm to 7mm thickness
• Weight 75kg
• 150 – 250rpm of blade
• 1600W power output 100-220V / 50-60Hz
• Manufactured to CE and ISO standards
• Application, Stainless, Low and unalloyed, Casting materials, non-ferrous metal, Copper, aluminium and plastic pipes
• Precise right angle cut
• Cold cut to prevent thermal distortion
• Fast pipe clamping, deformation-free clamping system
• Easy set up regardless of the diameter
• Easy execution of the cut
• Just a few seconds to finish the cut with one single rotation
• Simultaneous cutting and beveling with beveling blade mounted
• Cutting speed regulation suitable for each wall thickness pipe
• Please note: Zip financing is charged at an additional 6% on this item.
• This machine doesn't come with a stand
• Use with XDP 2000 cutting fluid found in our store.  Part number 81210
• A skilled Operator using our European made HSS blades, with the correct lubrication can get at least 150 x 2" schedule 40 stainless steel pipe cuts with 1 blade
• Part number for blades are below
• 63mm x 1.6mm TIALN Coated 64 Teeth. Part number - HSS63x1.6x64T
• 63mm x 1.6mm - TIALN Coated 64 Teeth Part number - HSS68x1.6x44T
• 68mm x 2.0mm - TIALN Coated 72 Teeth Cut and Bevel Blade 30 Degree - Part number 30DEGCB

Whats in the box?

• 1 x One base plate
• 1 x Cutting machine
• 3 x Three standard blades
• 1 x One ring spanner
• 2 x Two hexagon socket head wrenches
• 1 x One tube of Lefon saw blade lubricant
• 1 x One operations manual
• 1 x One spare parts list
