Lefon R8 Pipe Saw / Cutter - Orbital Bevelling Cutting Machine

Hampdon Industrial stocks the industry-leading Lefon range of orbital pipe saws. LEFON Orbital Pipe Saws are a cost-effective and reliable solution to square cut and bevel almost all types of metal pipe. Lefon orbital pipe saws deliver a precise, square and clean-cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding.

• Model Number: R8 (GF8 equivalent part number)

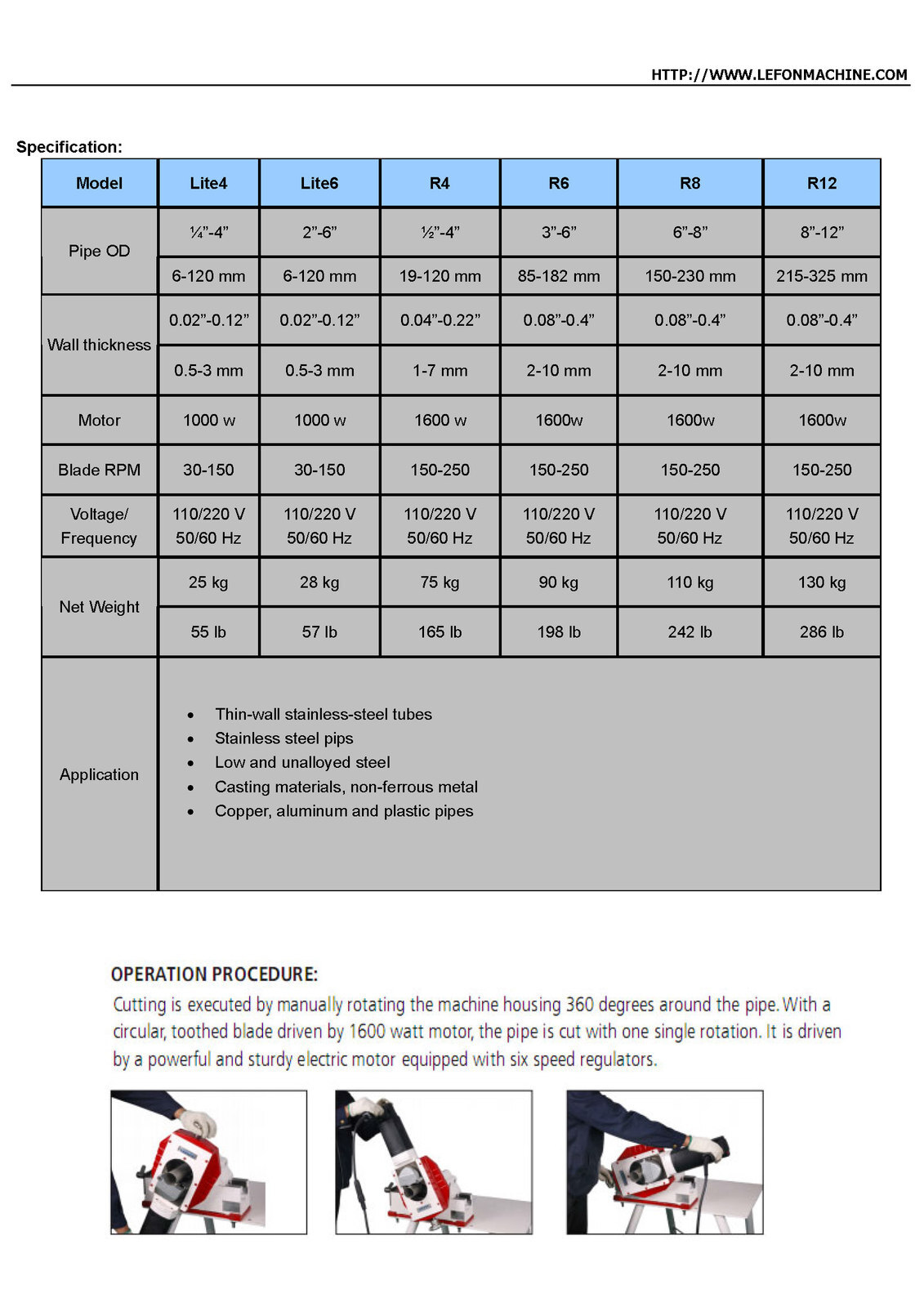

• Cuts 6 inch to 8 inch pipes (150mm –230mm) 2.0mm to 10mm thickness
• Weight 110kg
• 150 – 250rpm of blade
• 1600W power output100-220V / 50-60Hz

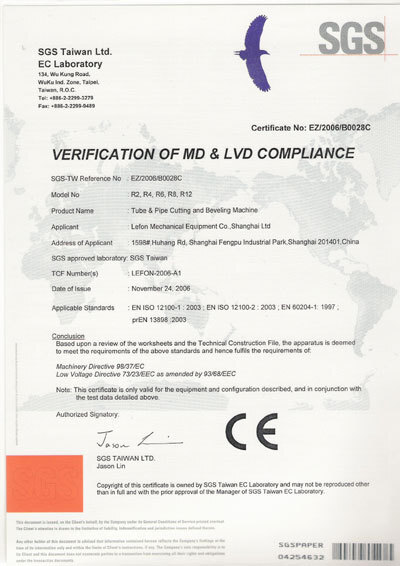

• Manufactured to CE and ISO standards
• Application, Stainless, Low and unalloyed, Casting materials, non-ferrous metal, Copper, aluminum and plastic pipes
• Precise right angle cut
• Cold cut to prevent thermal distortion

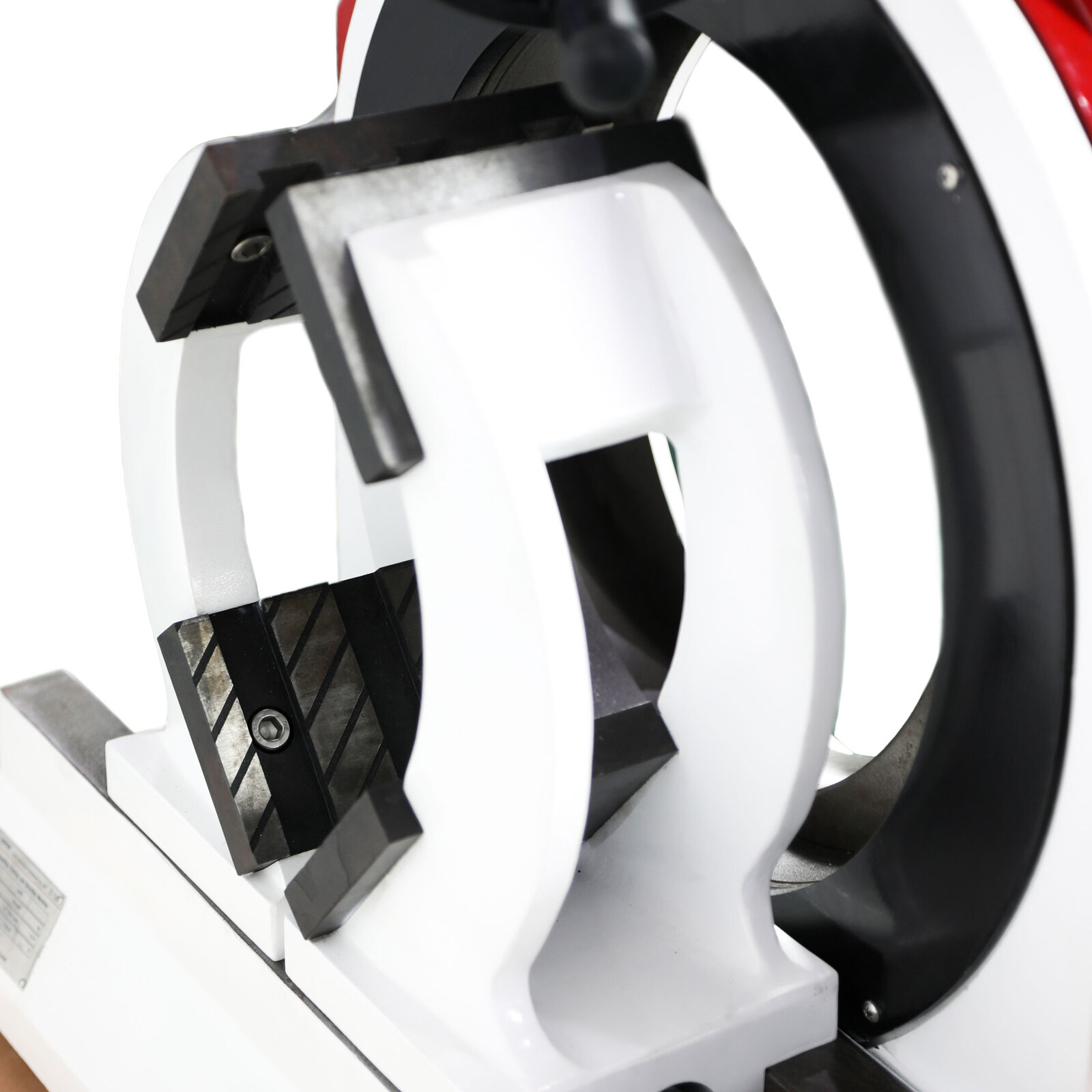

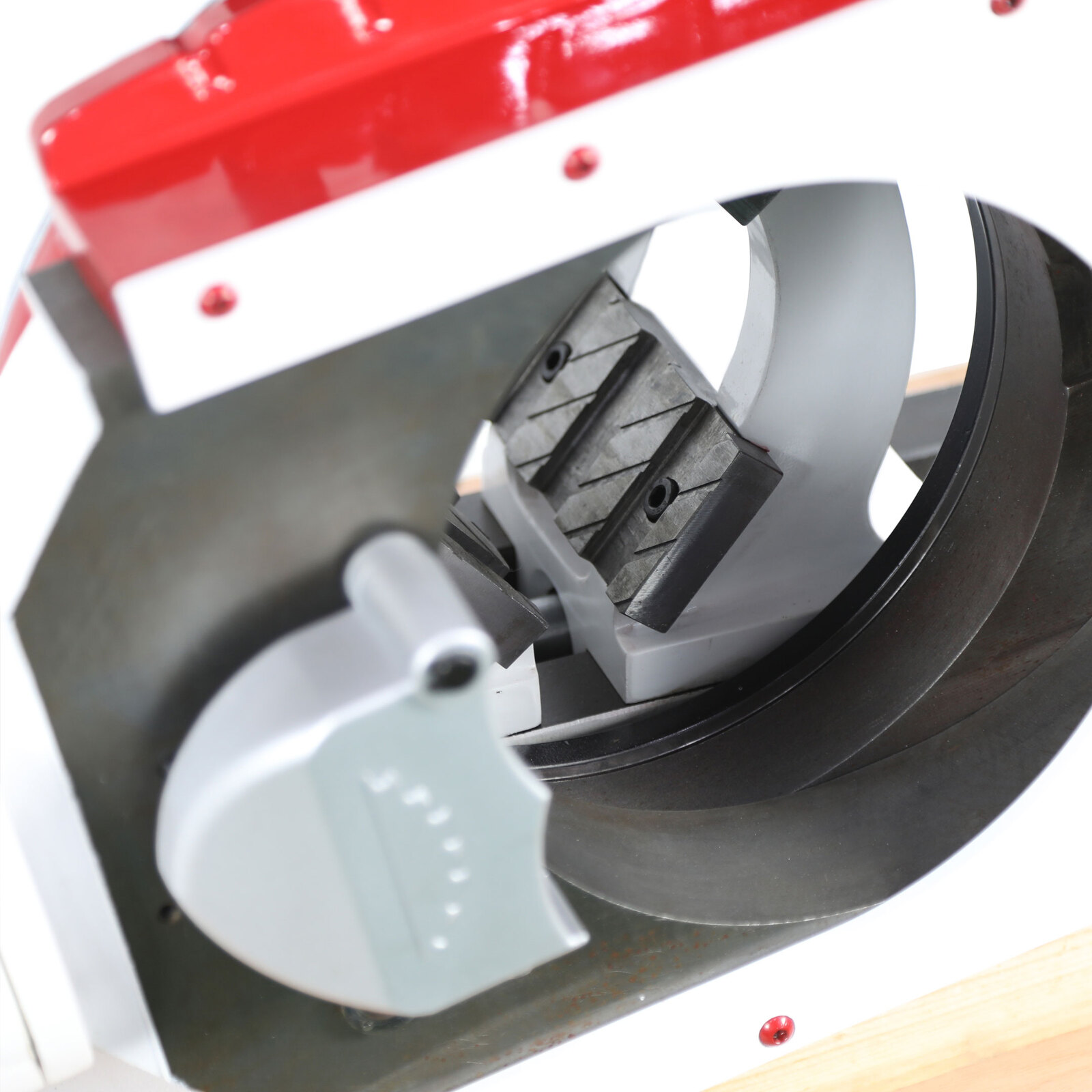

• Fast pipe clamping, deformation-free clamping system
• Easy set up regardless of the diameter
• Easy execution of the cut
• Just a few seconds to finish the cut with one single rotation
• Simultaneous cutting and beveling with beveling blade mounted
• Cutting speed regulation suitable for each wall thickness pipe

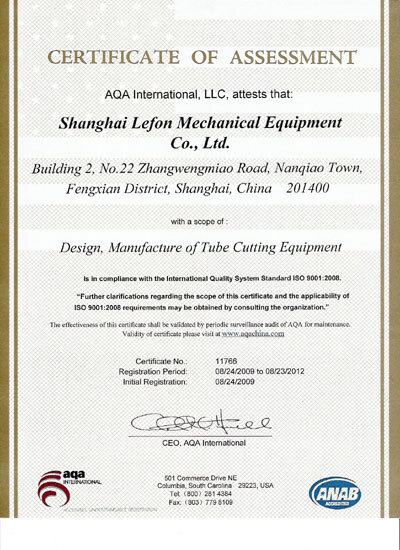

• Manufactured to CE and ISO standards
• Please note: Zip financing is charged at an additional 6% on this item.
• This machine doesn't come with a stand
• A skilled Operator using our European made HSS blades, with the correct lubrication can get at least 150 x 2" schedule 40 stainless steel pipe cuts with 1 blade
• Part number for blades are below
• 63mm x 1.6mm TIALN Coated 64 Teeth. Part number - HSS63x1.6x64T
• 63mm x 1.6mm - TIALN Coated 64 Teeth Part number - HSS68x1.6x44T
• 68mm x 2.0mm - TIALN Coated 72 Teeth Cut and Bevel Blade 30 Degree - Part number 30DEGCB

Whats in the Box?

• 1 x One base plate
• 2 x Cutting machine
• 3 x Three standard blades
• 1 x One ring spanner
• 2 x Two hexagon socket head wrenches
• 1 x One tube of Lefon saw blade lubricant
• 1 x One operations manual
• 1 x One spare parts list
