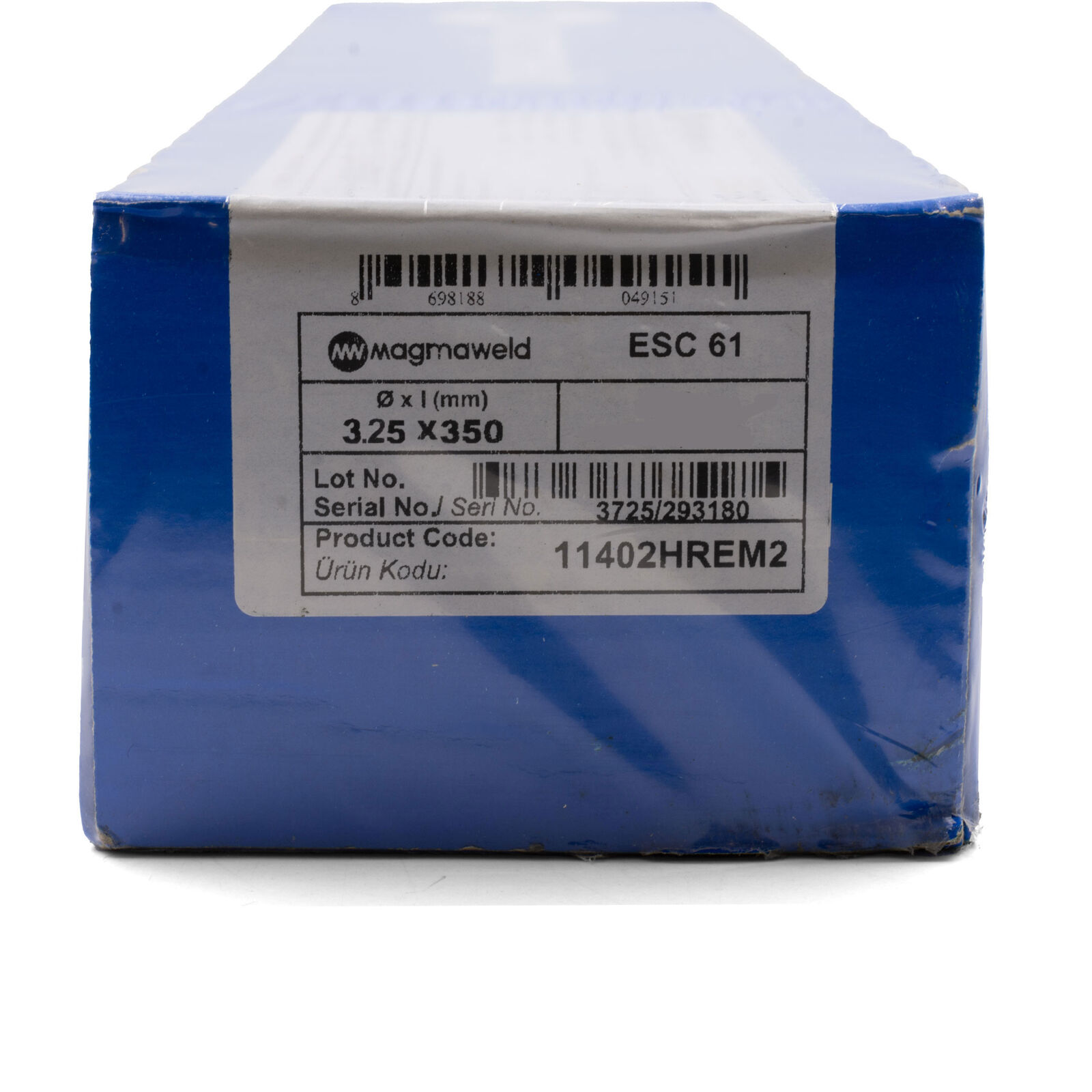

MAGMAWELD 6011 - General Purpose GP Cellulous 3.2mm Stick Electrodes - 400g Pack

General Purpose Cellulous Electrodes

$25.00
RRP $31.25
SAVE $6.25 (20%)

AfterPay More info.

Make 4 payments of $6.25 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $10.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Hampdon Industrial stocks the premium range of Magmaweld Cellulosic Stick Electrodes. ESC 61 is a general-purpose electrode that offers outstanding joining characteristics, particularly for applications with wide gaps due to poor fit-up, "Cellulose" flux coating increases burn off & imparts deep penetration.

Features:

  • Made in Turkey
  • 3.2mm thickness diameter
  • 350mm length
  • 400g weight
  • 23 Sticks Approximate
  • Product code – 11402NREM2
  • Stick code – ESC 61
  • Market-leading Magmaweld brand
  • Industrial Quality
  • For Storage & Re-Drying Information: Don't redry
  • Hampdon Part #: 6011-3.2



Properties and Applications:

Medium coated, cellulosic electrode, especially designed for use in AC, as well as in DC. Due to its high penetration, it is suitable for root pass and fill passes in vertical down direction. Used in shipbuilding, storage vessels, boilers, pipeline constructions, assembly and repair works in mild steels, steel casting, galvanized sheets and machinery parts. AC or DCEN (-) is ideal in root passes and AC or DCEP (+) is recommended for fill and cap passes in vertical down direction.



Manufactured to international standards:

  • AWS/ASME SFA - 5.1
  • E6011
  • EN ISO 2560 – A
  • E 35 2 C 21



Approvals & Certificates:

  • CWB
  • CE

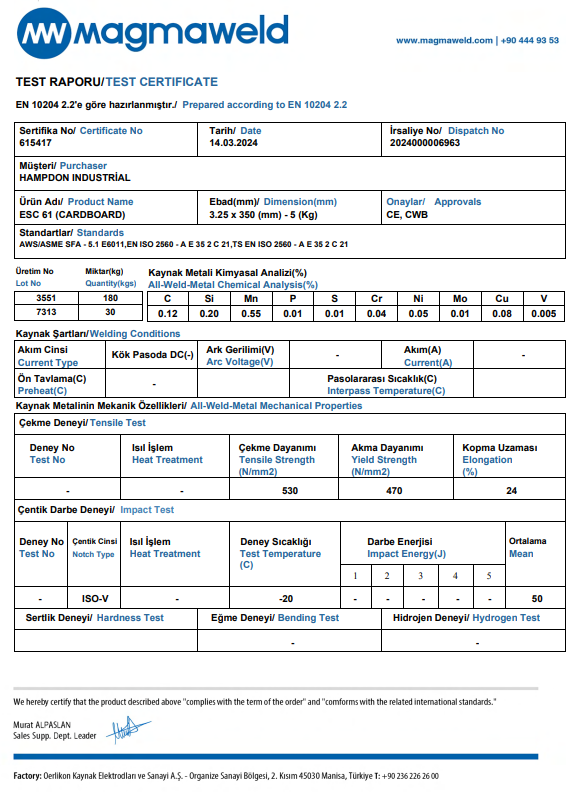

Typical Chemical Values of Weld Metal

Type of Analysis

C

Si

Mn

P

S

Cr

Ni

Mo

Cu

V

Weld Deposit

0.12

0.20

0.55

0.01

0.01

0.04

0.05

0.01

0.08

0.005



Typical Mechanical Values of Weld Metal(%)

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

470

530

24

-20°C → 50



Welding Position Applications:

  • PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
  • PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
  • PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
  • PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
  • PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
  • PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
  • PG - 3G Position: This refers to a groove weld performed on the vertical surface of a plate in the vertical position.

(6011-3.2)

SKU 6011-3.2
Brand Magmaweld
Shipping Weight 0.4900kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.004000000m3

12 Months Warranty. If you change your mind, or are not happy with the product, Please return the item to us within 30 days for a full refund.
