Hampdon Industrial stocks the premium range of Magmaweld Cellulosic Stick Electrodes. ESC 61 is a general-purpose electrode that offers outstanding joining characteristics, particularly for applications with wide gaps due to poor fit-up, "Cellulose" flux coating increases burn off & imparts deep penetration.

Features:

Made in Turkey
3.2mm thickness diameter
350mm length
5kg weight
181 Sticks Approximate

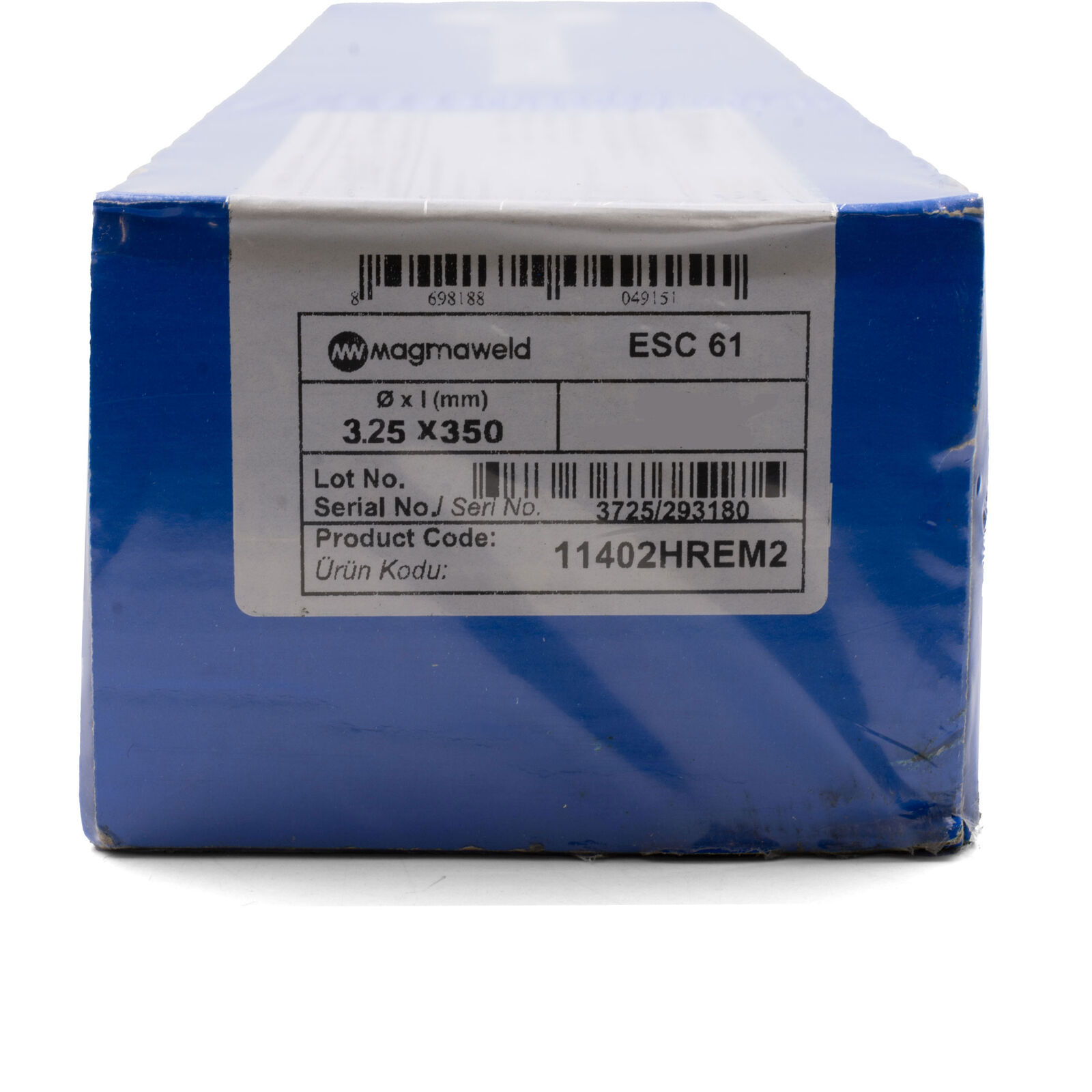

Product code – 11402NREM2
Stick code – ESC 61
Market-leading Magmaweld brand
Industrial Quality
For Storage & Re-Drying Information: Don't redry
Hampdon Part #: 6011-3.2-5.0

Properties and Applications:

Medium coated, cellulosic electrode, especially designed for use in AC, as well as in DC. Due to its high penetration, it is suitable for root pass and fill passes in vertical down direction. Used in shipbuilding, storage vessels, boilers, pipeline constructions, assembly and repair works in mild steels, steel casting, galvanized sheets and machinery parts. AC or DCEN (-) is ideal in root passes and AC or DCEP (+) is recommended for fill and cap passes in vertical down direction.

Manufactured to international standards:

AWS/ASME SFA - 5.1
E6011
EN ISO 2560 – A
E 35 2 C 21

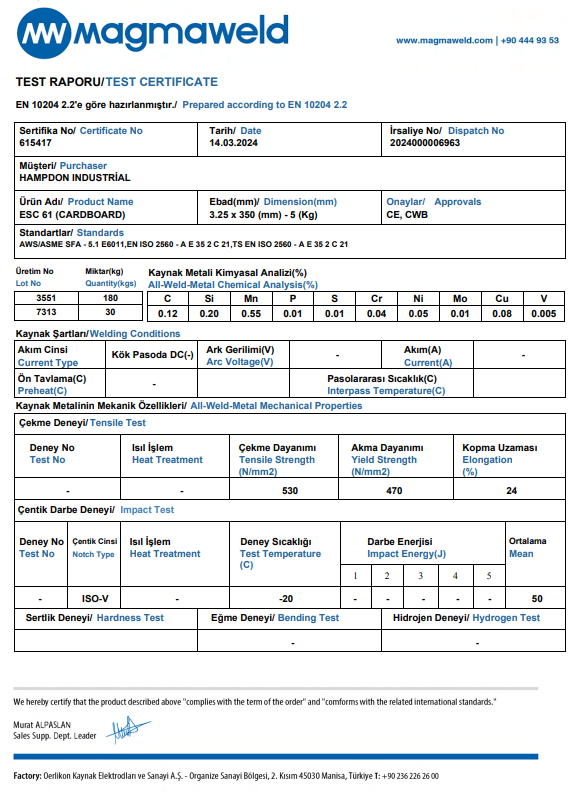

Approvals & Certificates:

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn
Weld Deposit	0.12	0.20	0.55

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	470	530	24	-20°C → 50

Welding Position Applications:

PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
PG - 3G Position: This refers to a groove weld performed on the vertical surface of a plate in the vertical position.
