MAGMAWELD 7024 - High Speed 3.2mm Stick Electrodes - 18KGPack Jetweld Style Rods

Jetweld Style Rods

$239.00
RRP $330.00
SAVE $91.00 (28%)

AfterPay More info.

Make 4 payments of $59.75 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $50.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Hampdon Industrial stocks the premium range of Magmaweld Rutile & Basic Electrodes.. E7024 is an iron powder, rutile coated electrode designed for high speed, single pass horizontal and flat fillet welding of mild steel. This electrode provides greater deposition efficiency and better physical properties than E7014 electrodes. E7024 offers a quiet stable arc and produces weld deposits with low spatter, free of undercuts and a "self-removing” slag. Bead appearance is superb. This electrode may be used with AC or DC (straight or reverse polarity).

Features:

  • Made in Turkey
  • 3.2mm thickness diameter
  • 450mm length
  • 18kg weight
  • 246 Sticks Approximate
  • Product code – 11120PSEM2
  • Stick code – ESH 160R
  • Market-leading Magmaweld brand
  • Industrial Quality
  • For Storage & Re-Drying Information: Generally not required. If required, redry for 1 hour at 110°C.
  • Equivelent to Jetweld, Speed stick, and Jet stick
  • Hampdon Part # 7024-3.2-18KG



Properties and Applications:

Suitable for welding of large sections and fillets in shipbuilding with it's 165% recovery. Produces very smooth, concave and clean welds, merging into base metal without undercuts. Suitable for welding prepainted plates. Easy arc striking and restriking. Slag is self-releasing in most cases



Manufactured to international standards:

  • AWS/ASME SFA - 5.
  • E7024
  • EN ISO 2560 – A
  • E 42 A RR 73



Approvals & Certificates:

  • CE
  • TUV

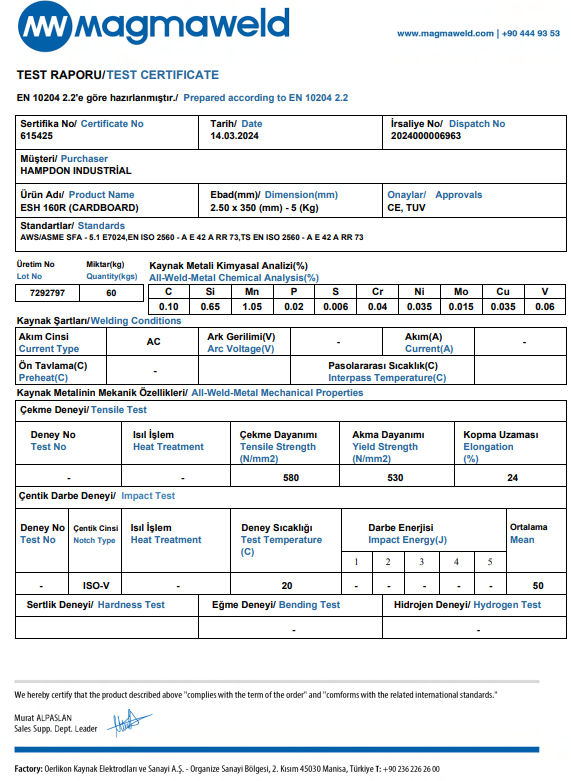

Typical Chemical Values of Weld Metal

Type of Analysis

C

Si

Mn

Weld Deposit

0.10

0.65

1.05



Typical Mechanical Values of Weld Metal(%)

Test Condition

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

530

580

24

20°C → 50



Welding Position Applications:

  • PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
  • PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.

(7024-3.2-18KG)

SKU 7024-3.2-18KG
Brand Magmaweld
Shipping Weight 20.0000kg
Shipping Width 0.050m
Shipping Height 0.150m
Shipping Length 0.380m
