Pyrex Glass TIG cup combo 8 cup value kit 1.0mm - WP17/18/26

Hampdon Pyrex / Borosilicate style glass cups.

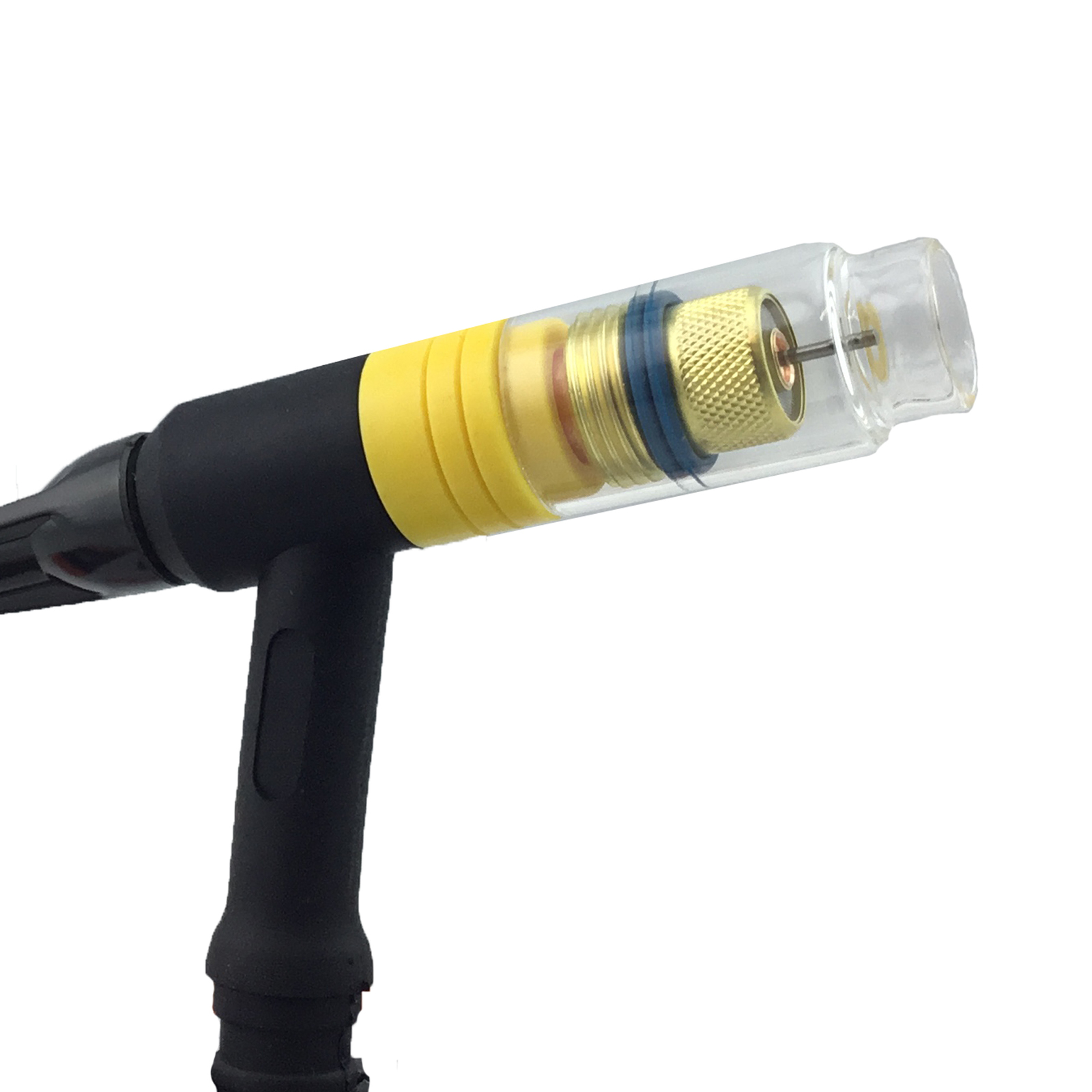

This kit will bolt onto and standard WP / SR 17 / 18 and 26 TIG head found on most machines on the market.

These cups provide great visibility when welding compared to the standard pink ceramic cups. Great for when you are learning to TIG for the seasoned professional looking for that extra visibility.

Designed and manufactured here in Australia.

After noticing that many other designs use custom collet bodies, we decided to design a cup that fits on standard gas lens TIG equipment found on most TIG torches which have been the standard for years and will be for many more to come.

These cups are compatible with standard gear available from any good welding stores.

Compatible with gas lens collet bodies. 45V24, 45V25, 45V26, 45V27, 45V28 and 45V29

This kit is complete, ready to get started. Check our other listings for the same kit in different collet bodies to suit other diameter tungsten’s.

All parts in this kit are available individually in our store in vale bulk packs. (Just search for the part numbers below)

*Recommended that no more than 130amps be used when welding with these cups.

To suit 1.0mm tungstens.

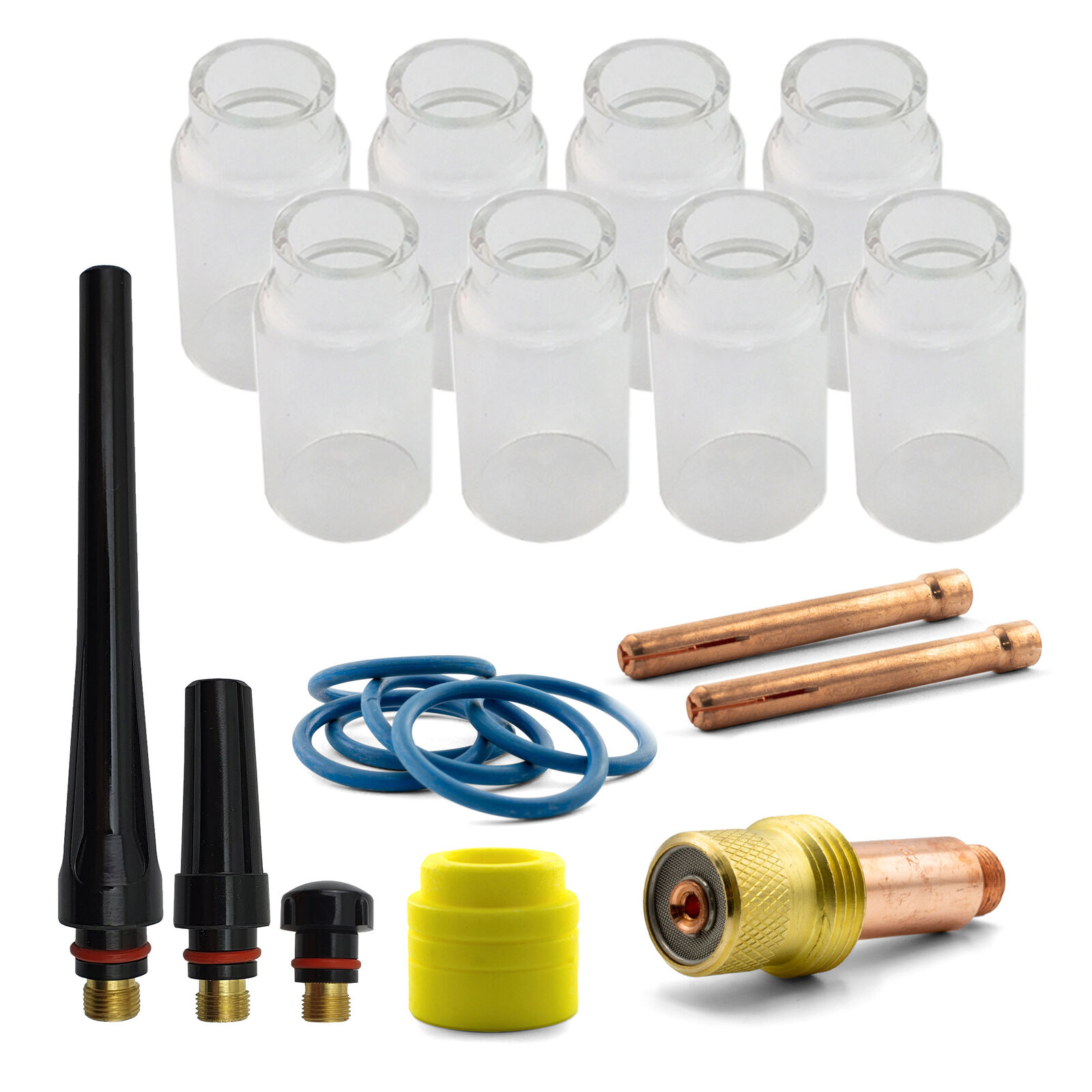

This kit contains

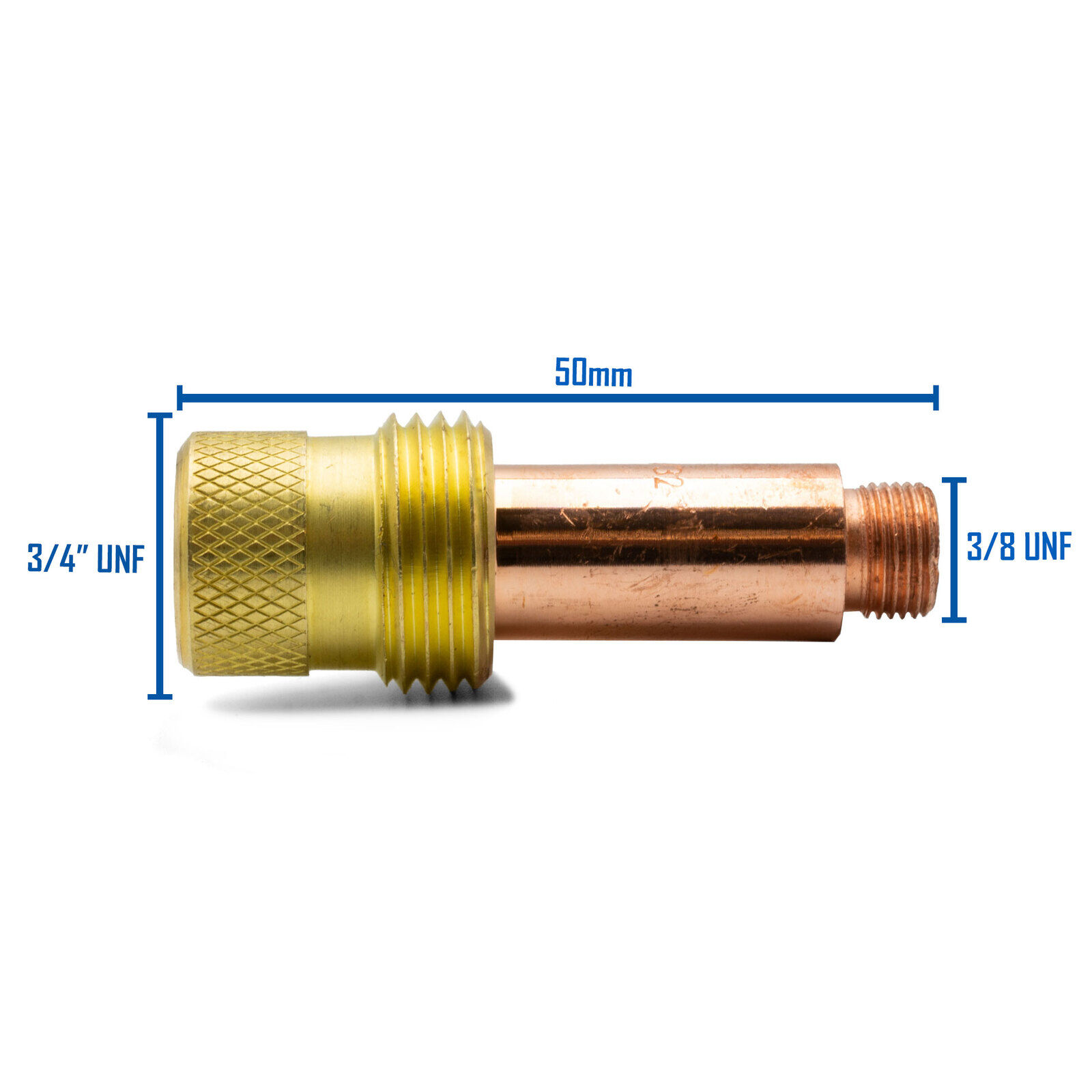

1 x  1.0mm collet body (45V24)

4 x 13mm bore Pyrex cups (Pyrex-54N14)

4 x 19mm bore Pyrex cups (Pyrex-54N19)

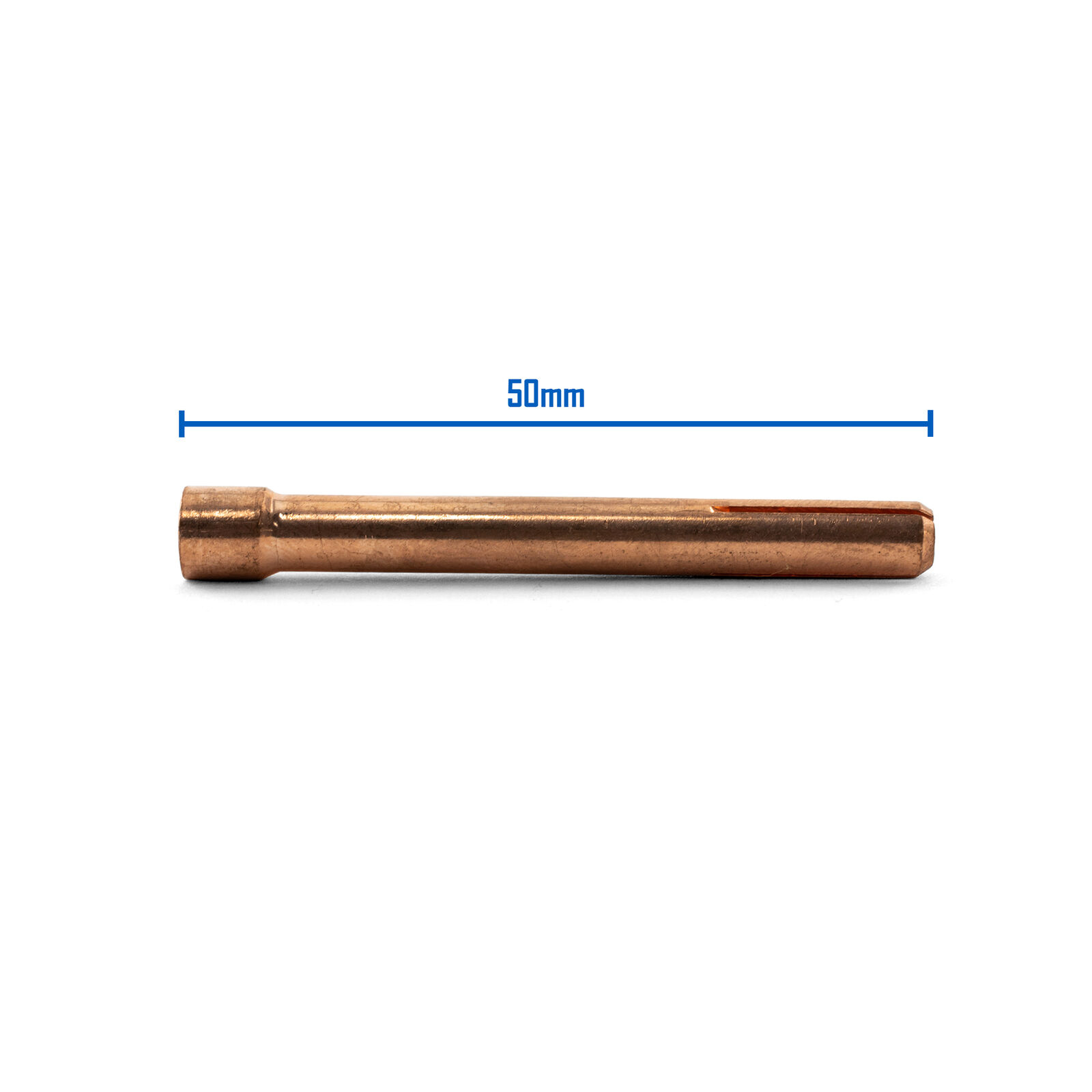

2 x 1.0mm collets (10N22)

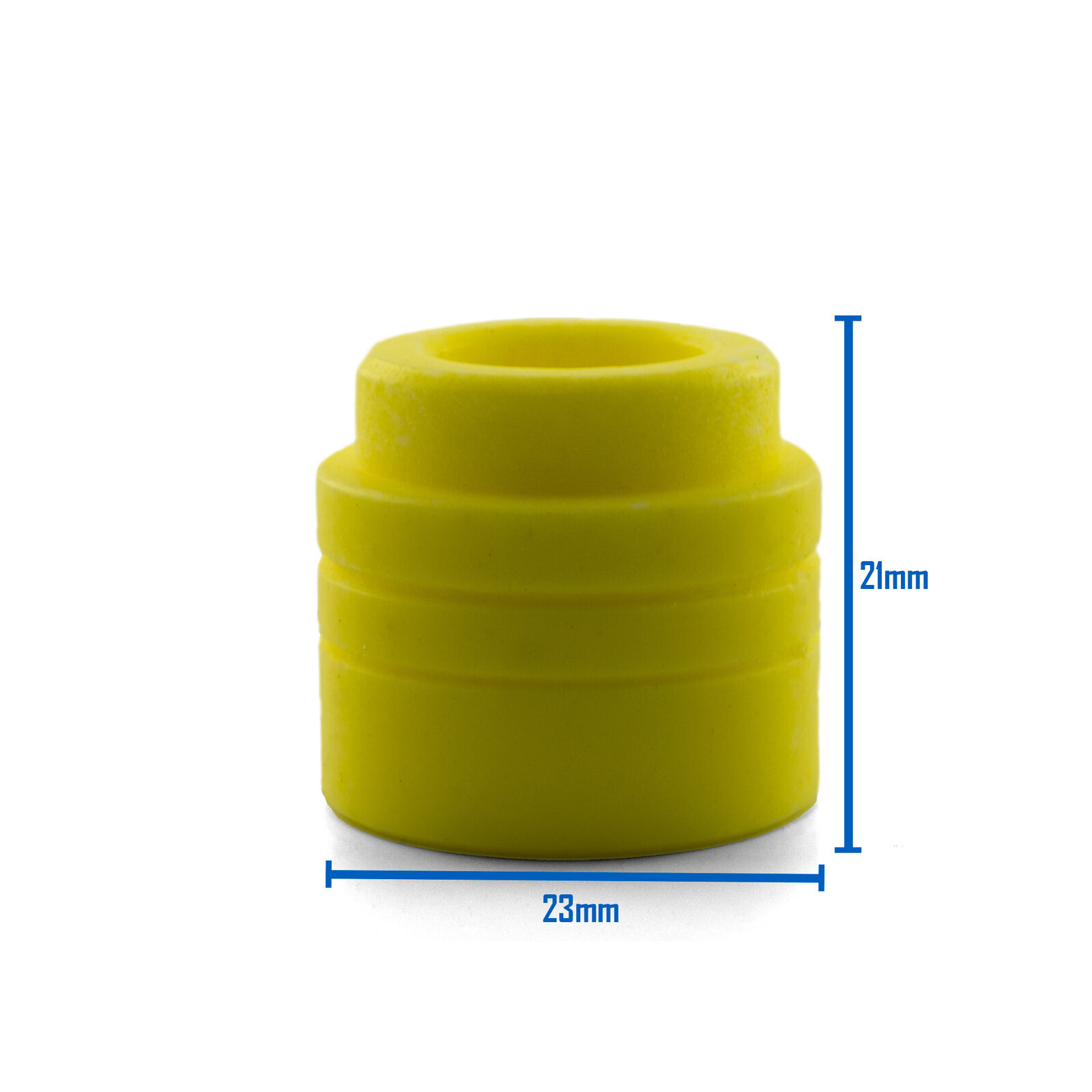

1 x  insulator (18CG01)

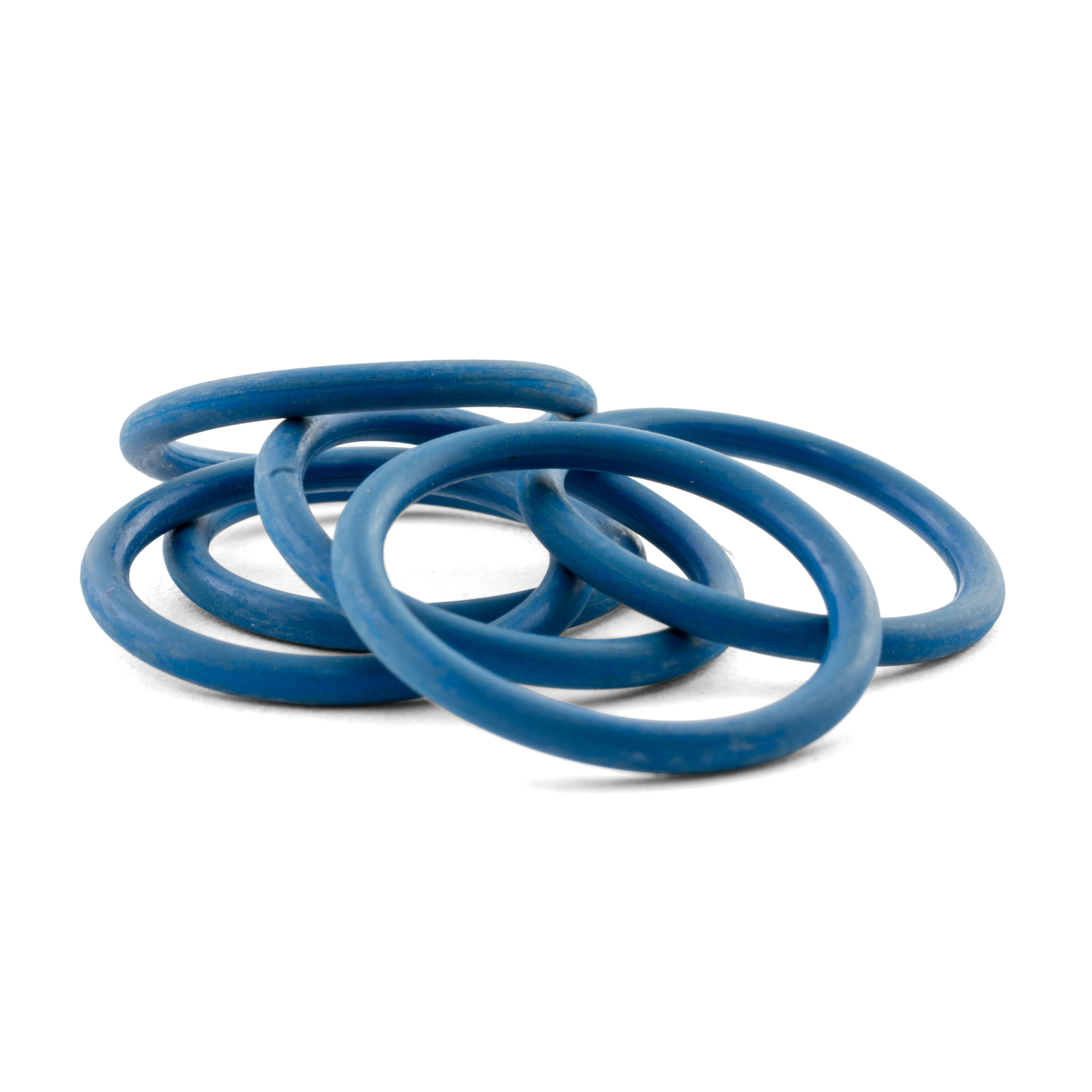

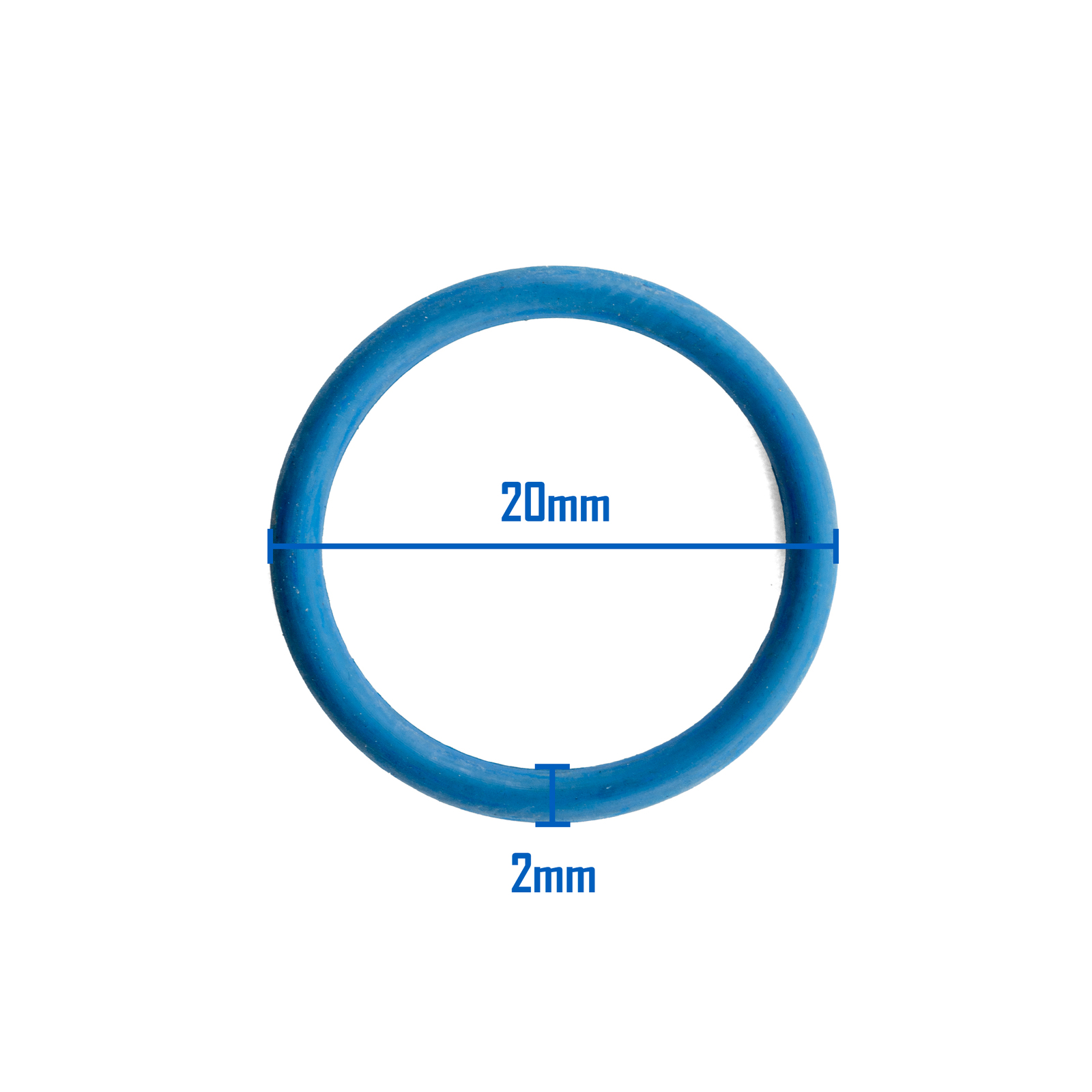

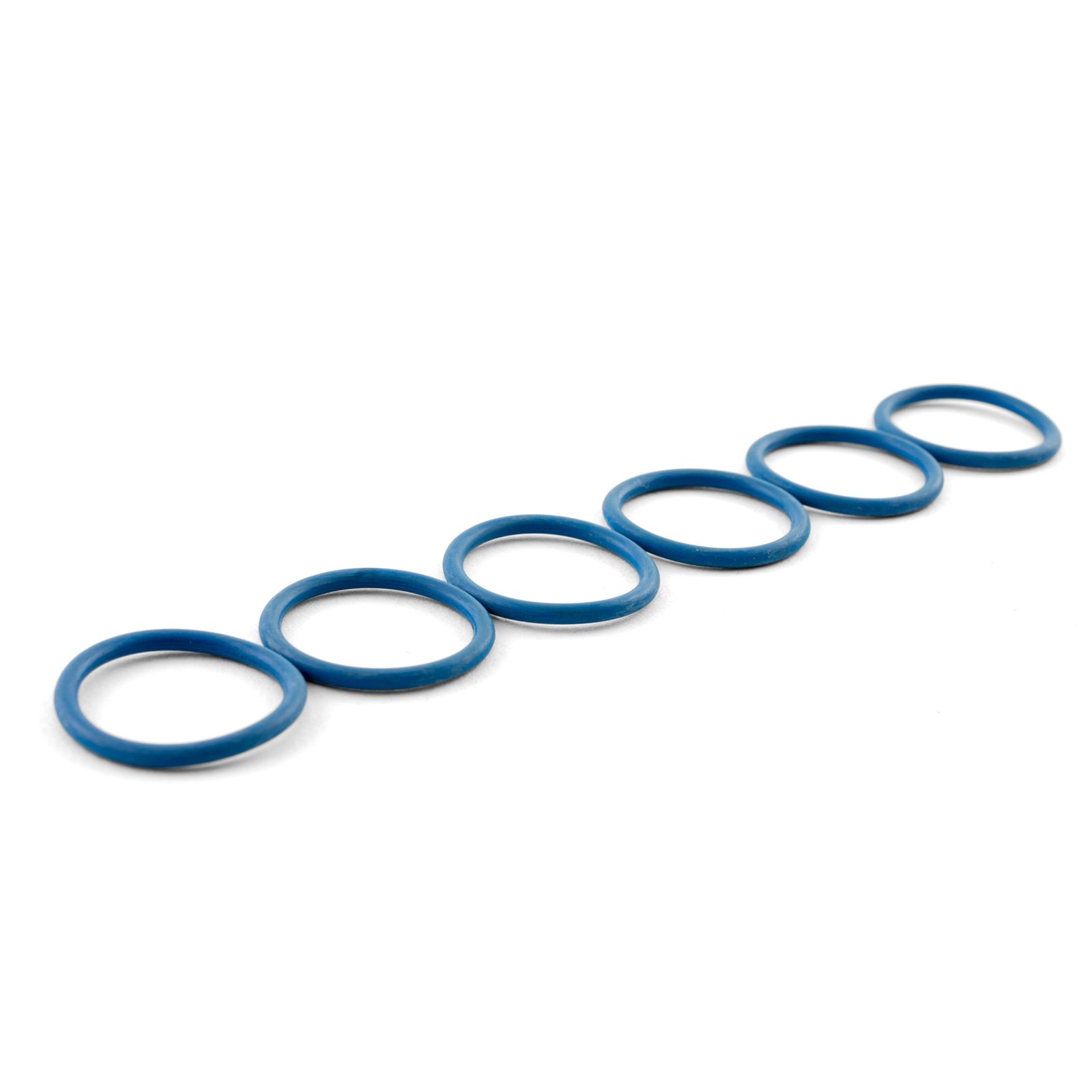

6 x O Rings (7127R)

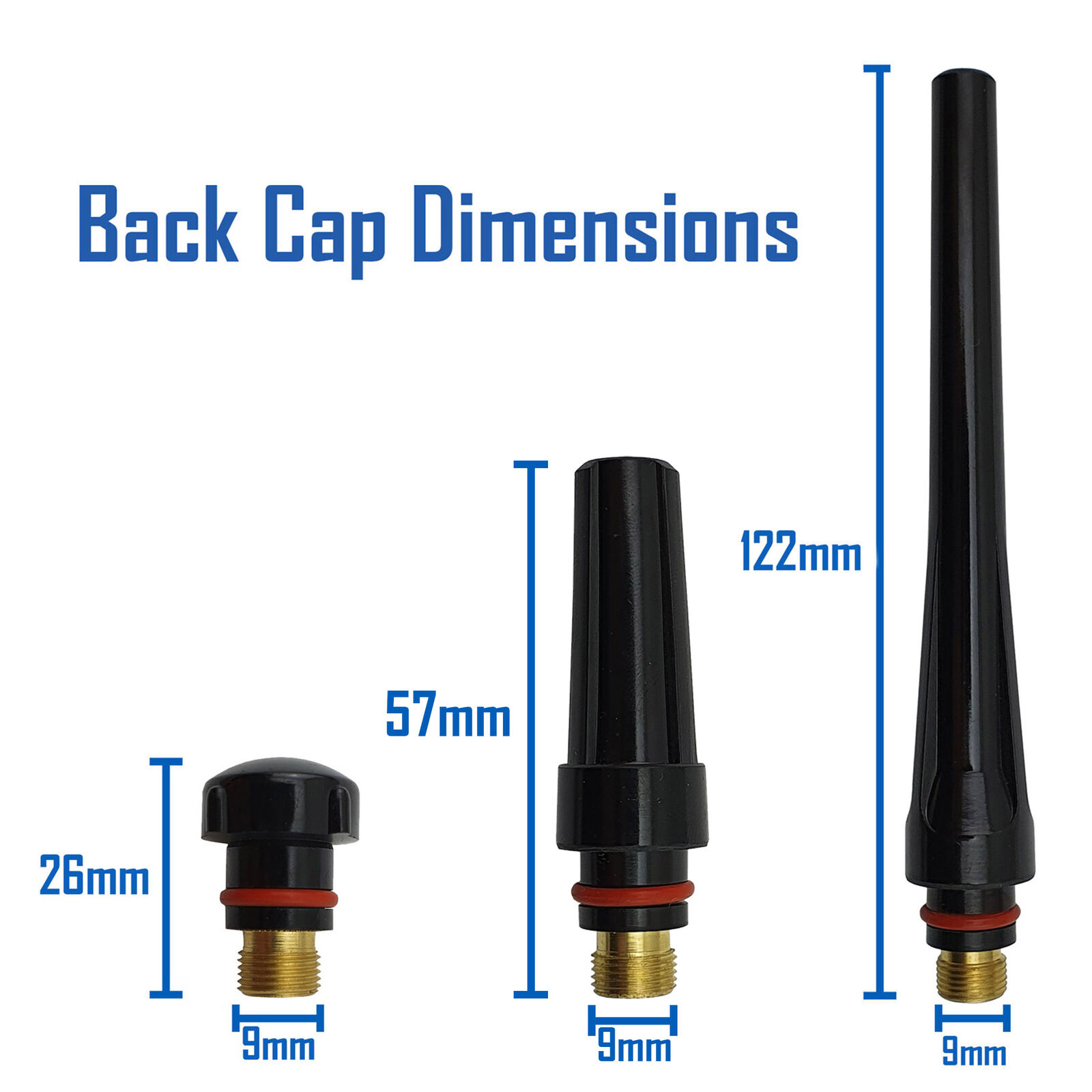

1 x Long back cap (57Y02)

1 x Medium Back cap (57Y05)

1x  Short back cap (57Y04)
