TIG Gas Lens Saver Collet Body 15 Piece Kit - 1.6mm Large Diameter - WP17|18|26

TIG Gas Lens Saver Collet Body 15 Piece Kit - 1.6mm Large Diameter - WP17|18|26

Hampdon Industrial offers a Premium TIG Gas Lens Collet Body kit. These collet body kits are designed to save gas by providing a more even and consistent gas flow. Purchasing this kit individually would cost over $140.00, but opting for the kit form eliminates the hassle of buying individual parts and provides great savings.

Manufactured from higher quality copper than OEM, these collet bodies are suitable for 17, 18, and 26 series TIG torches. In comparison to competitor products, Parweld gas lens collet bodies feature additional mesh layers, resulting in a longer lifespan and better gas distribution.

Replacing the standard collet body with a gas lens collet body is one of the most effective improvements you can make to enhance the performance of your torch. The gas lens version is an upgraded collet body consisting of a series of concentric, layered screens with varying mesh, specifically engineered to improve shield gas coverage. These screens create a laminar gas flow, optimizing the coverage of the weld zone and eliminating turbulence, which can draw in contaminants from the surrounding air.

Features:

• To suit 1.6mm Tungstens
• Gas Lens Style
• Price per Kit
• To suit 17 / 18 / 26 style torches (WP or SR)
• High-quality mesh prevents foreign material from sticking and clogging
• Parweld Gas lens collet bodies have additional mesh layers which allow better even gas flow
• 3/8 UNF Lower thread
• 1" UNF Upper thread

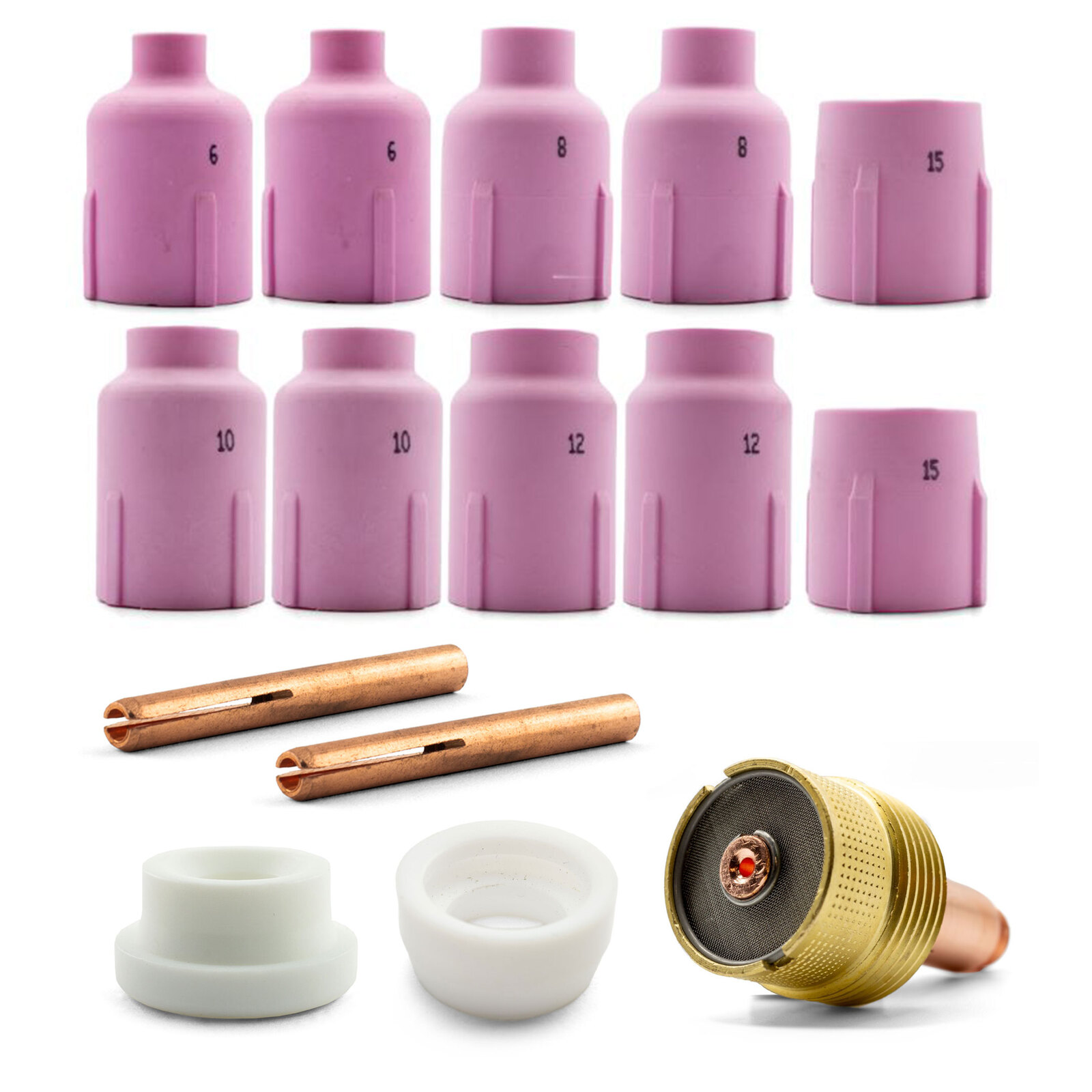

Kit Includes:

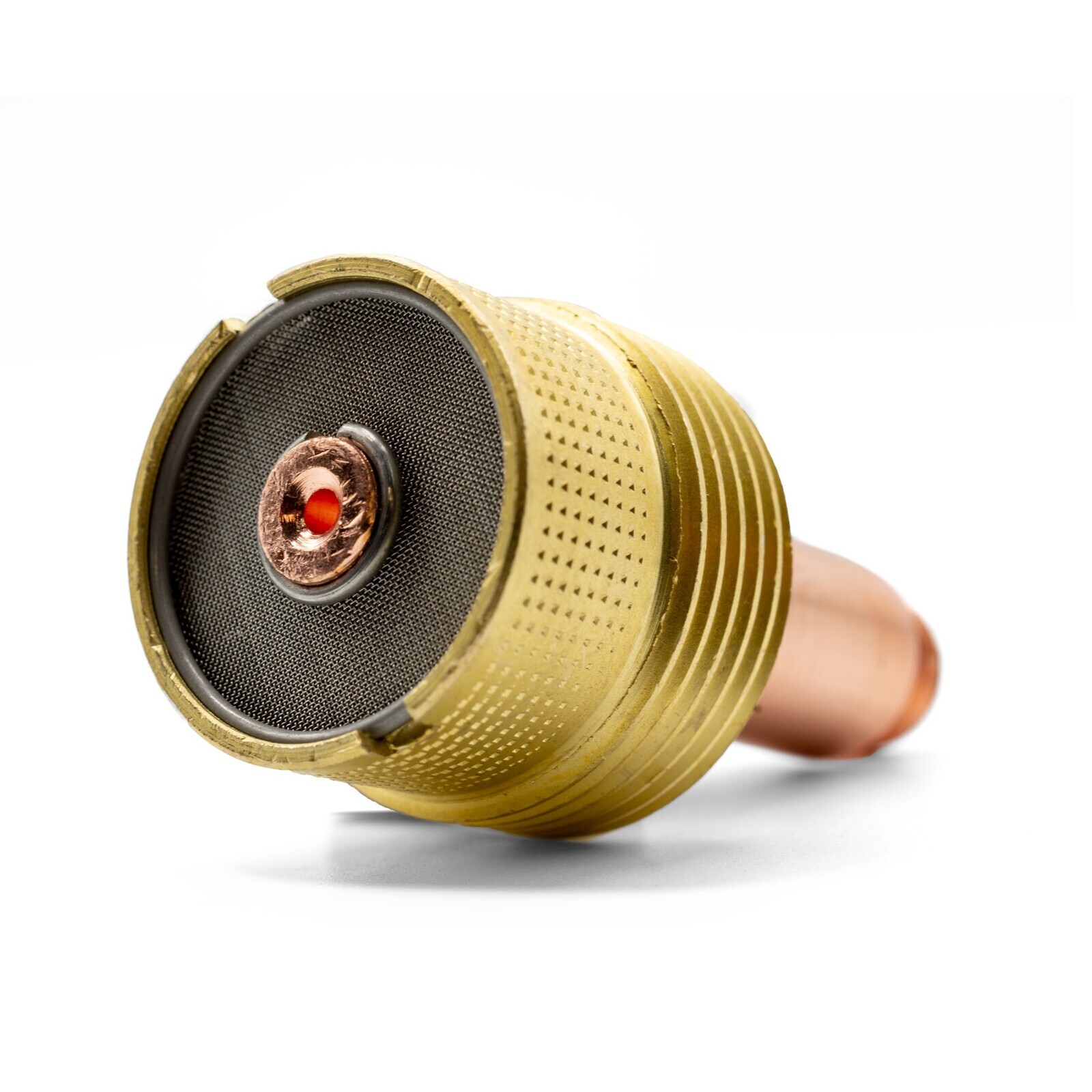

• 1 x 45V116 1.6mm Large Collet Body
• 1 x 18CG TIG Insulator Standard Gasket

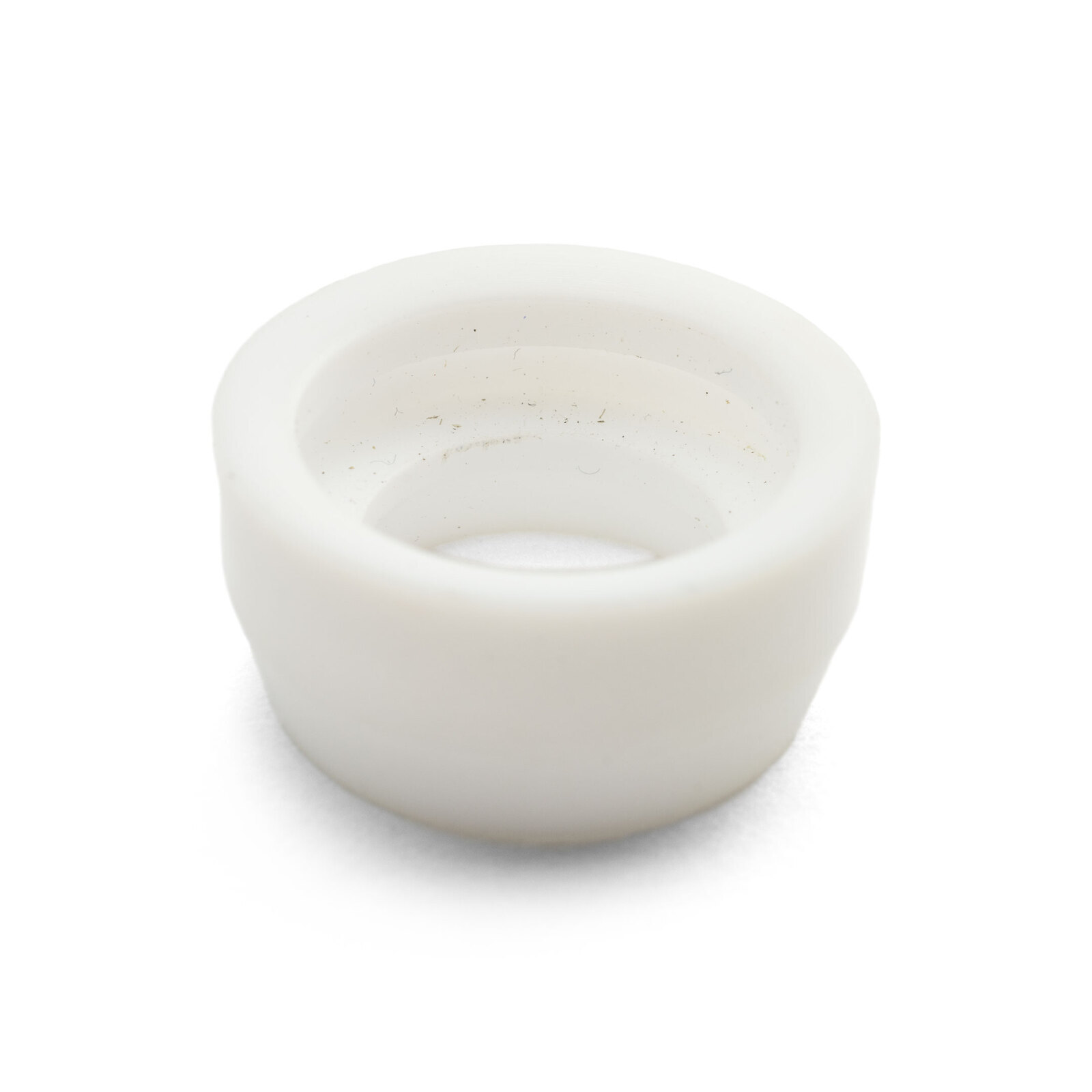

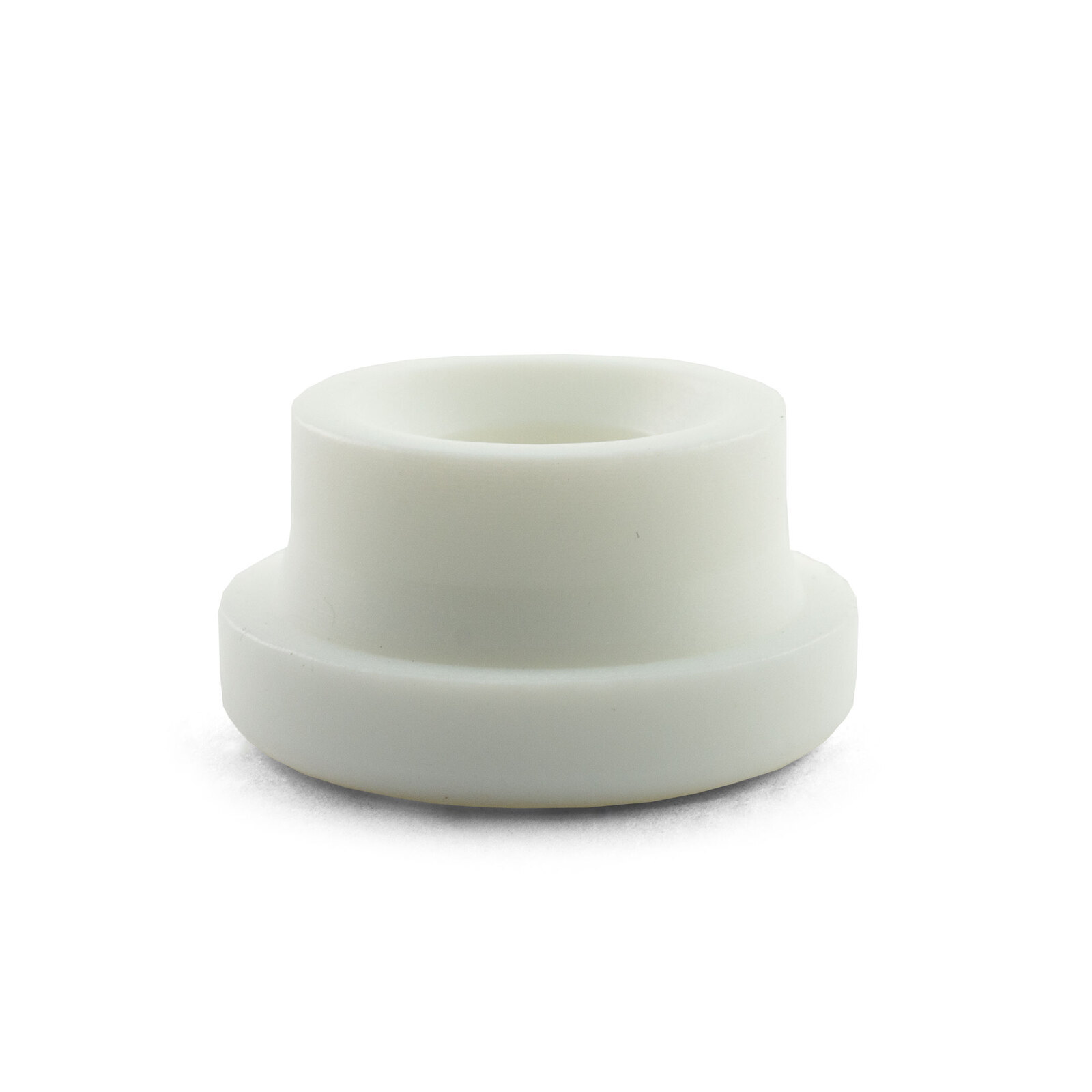

• 1 x 54N63 TIG Insulator

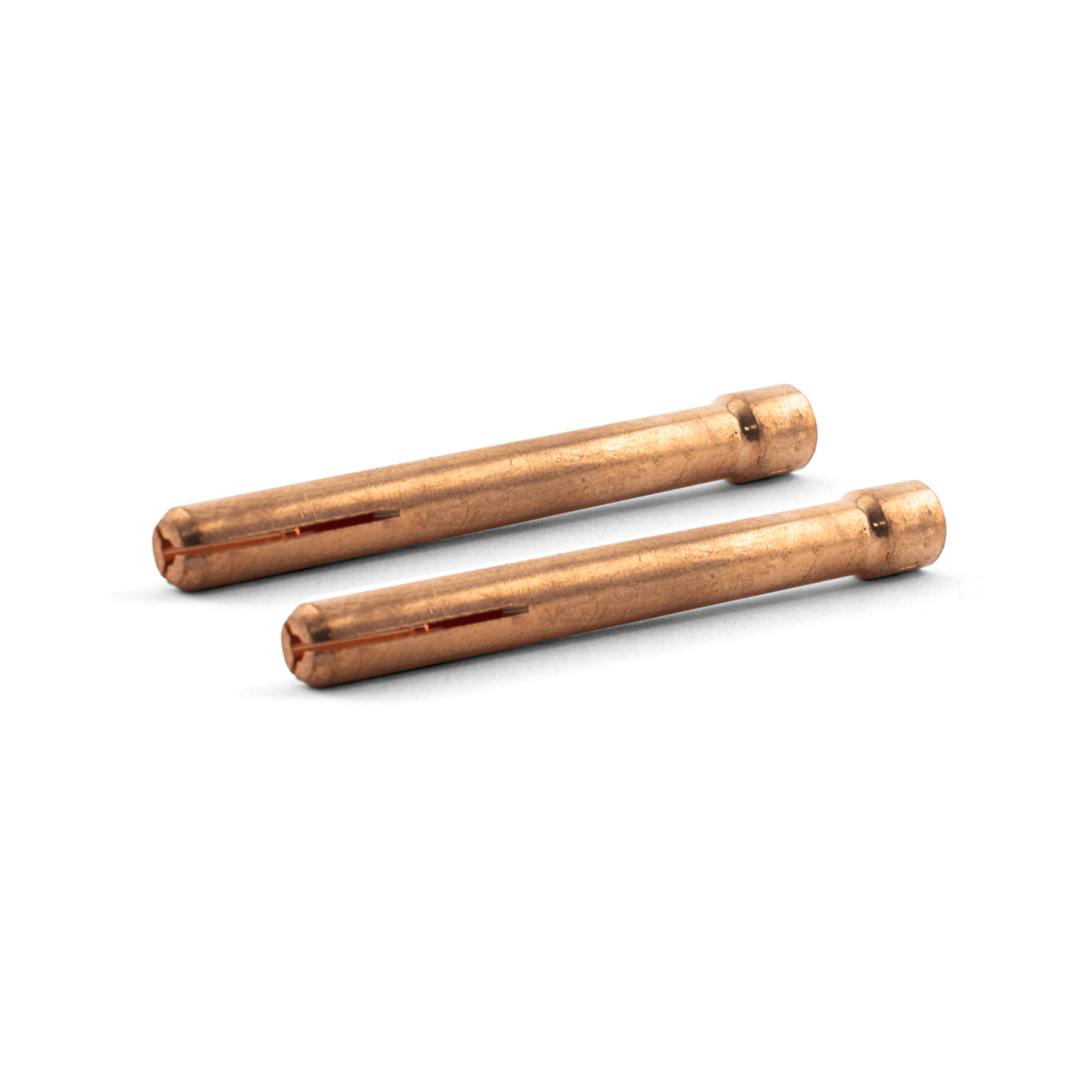

• 2 x 10N23 1.6mm Collets

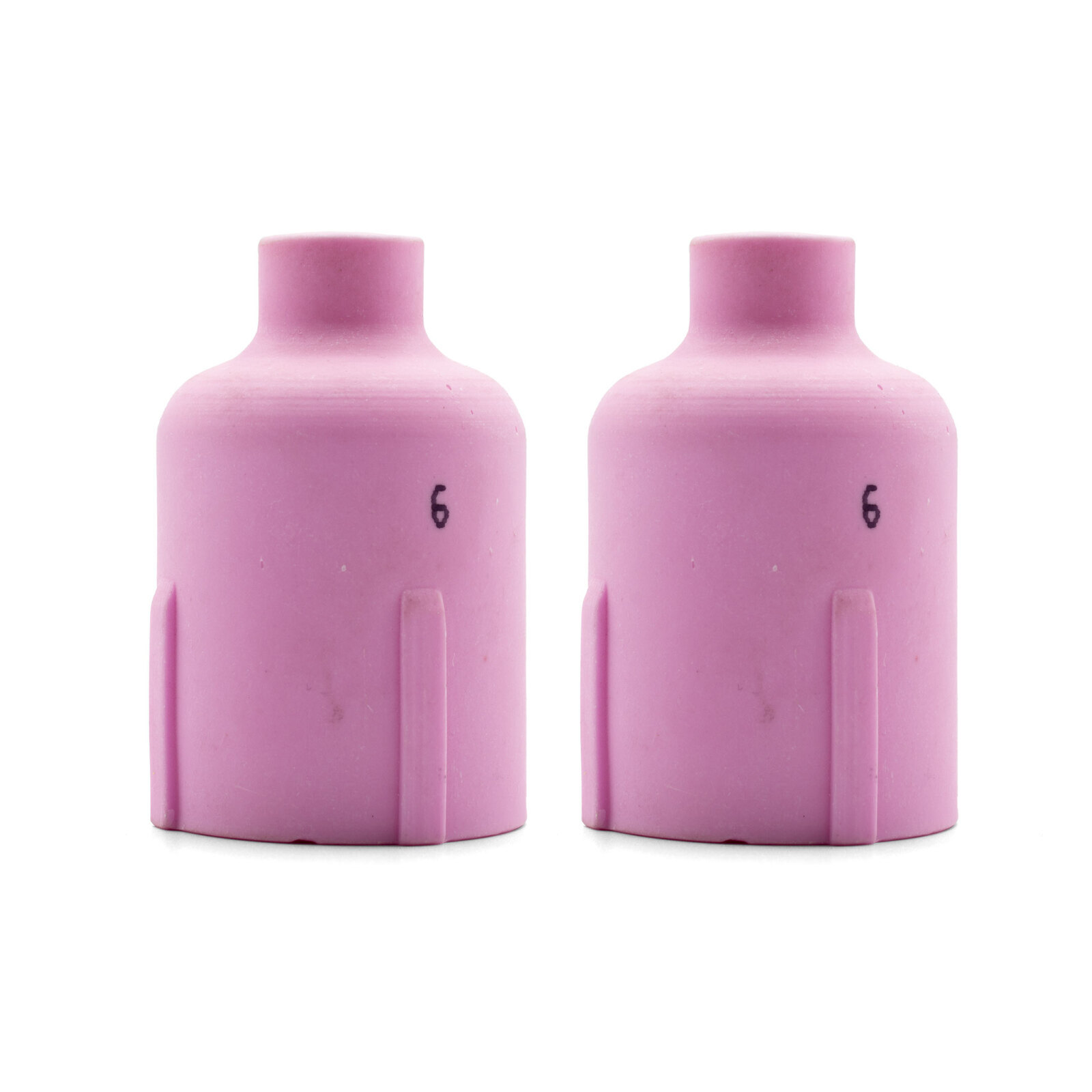

• 2 x 57N75 #6 Large Diameter Cups

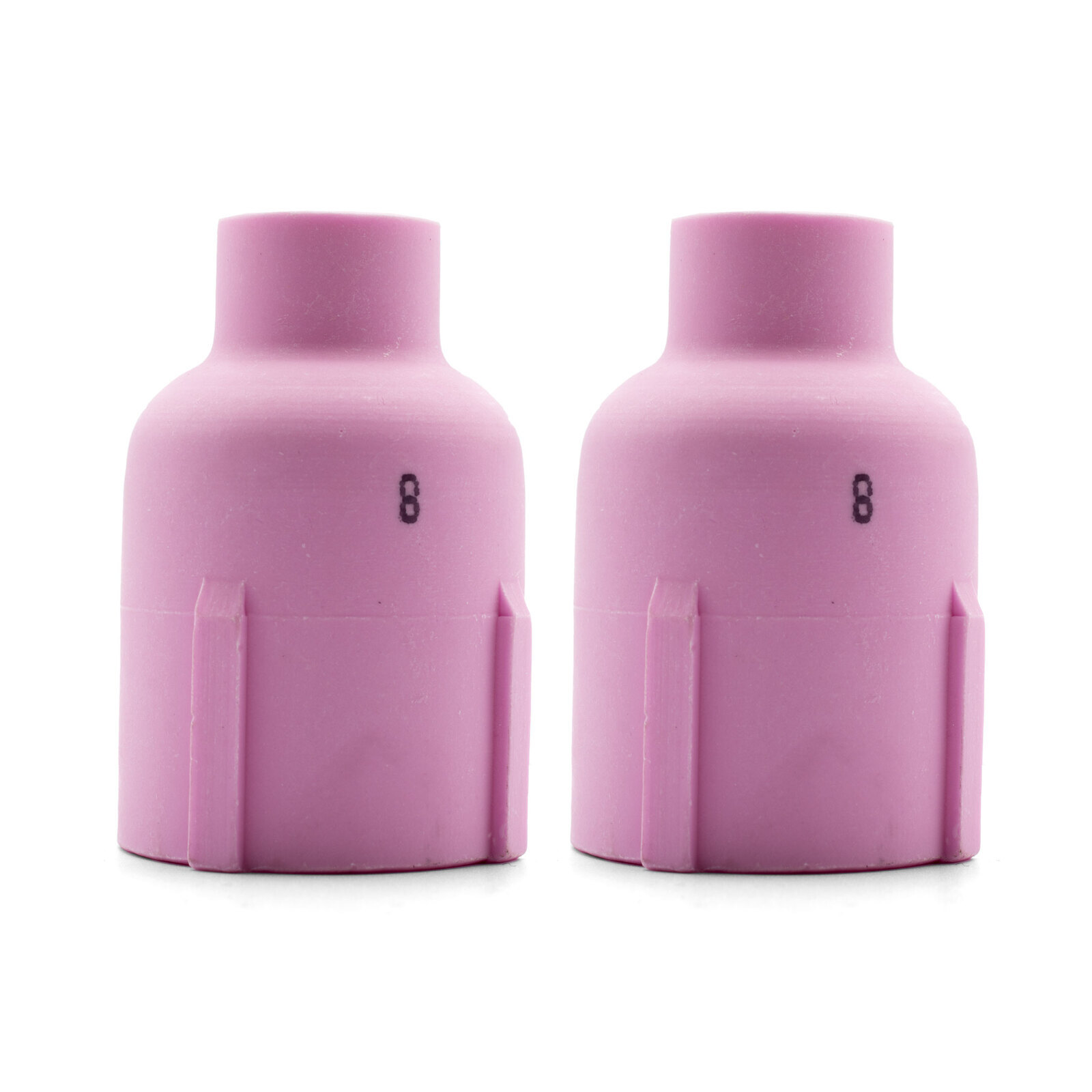

• 2 x 57N74 #8 Large Diameter Cups

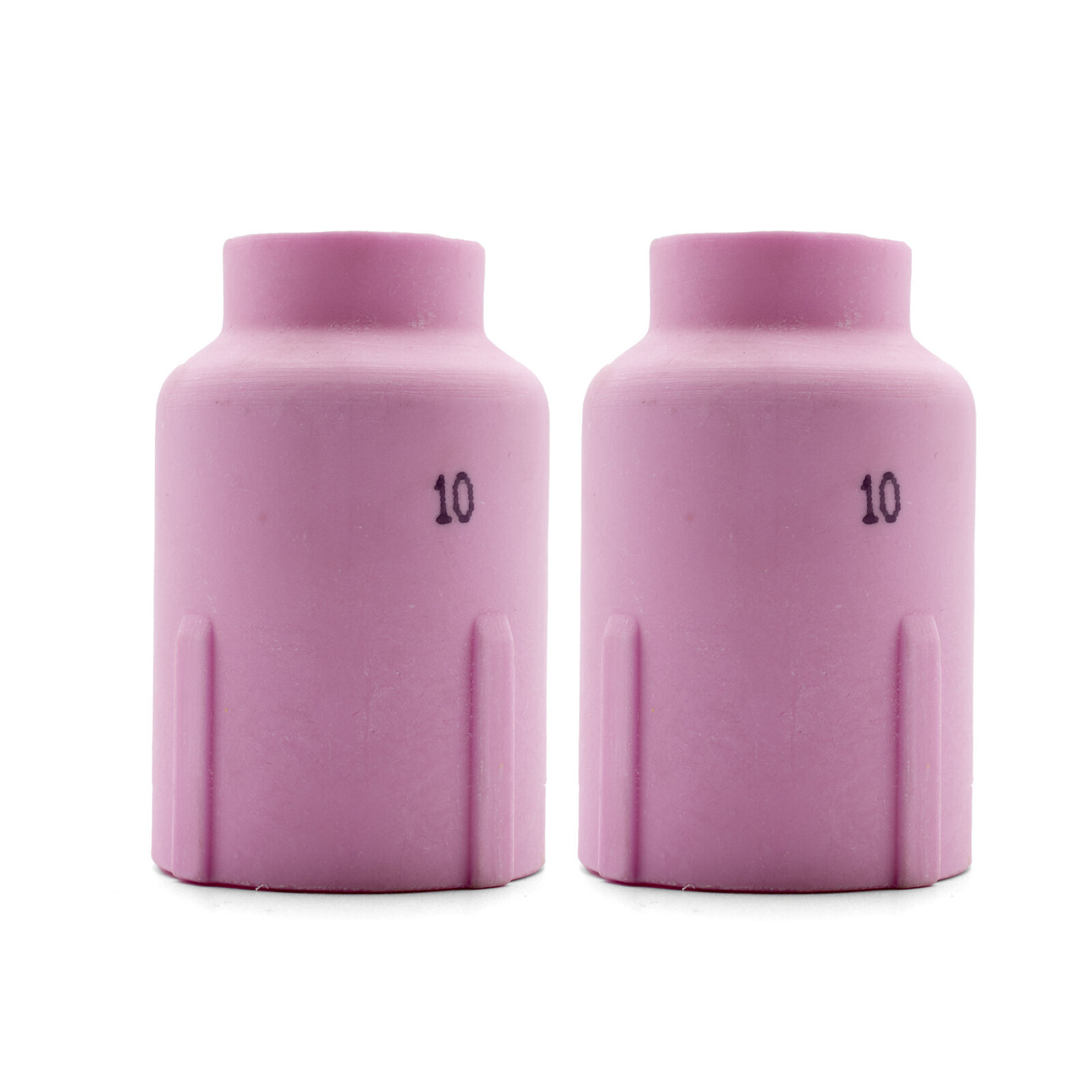

• 2 x 53N88 #10 Large Diameter Cups

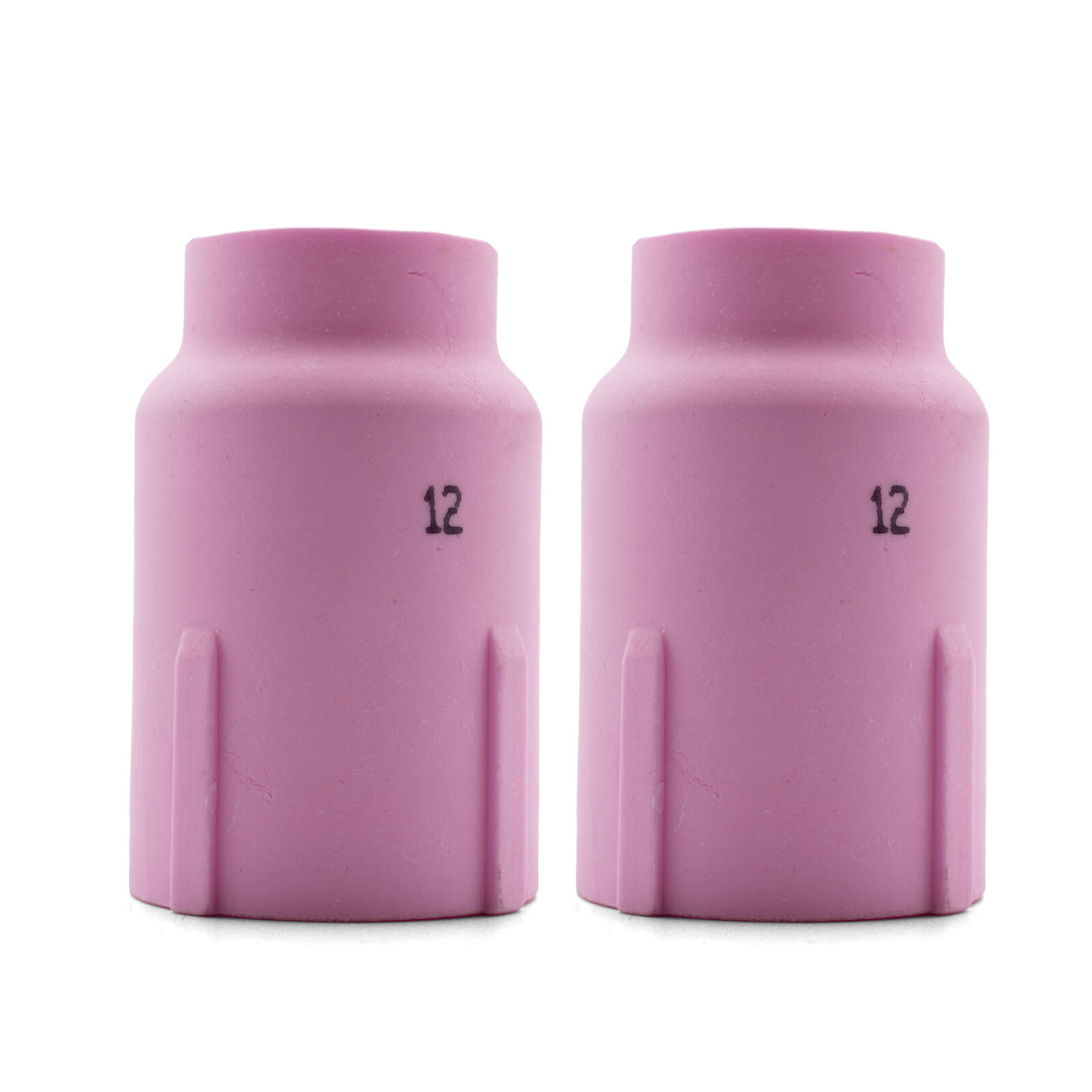

• 2 x 53N87 #12 Large Diameter Cups

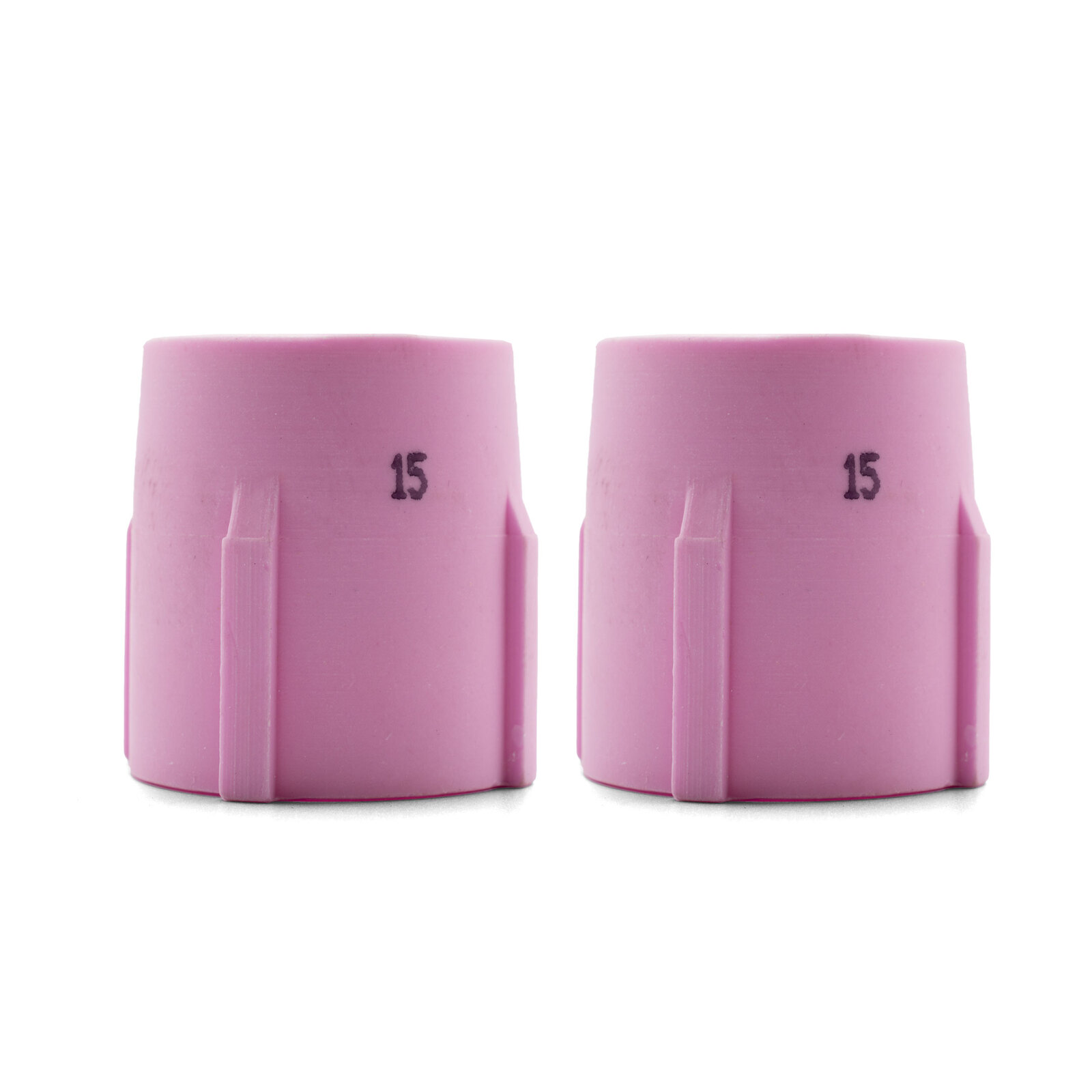

• 2 x 53N89 #15 Large Diameter Cups
