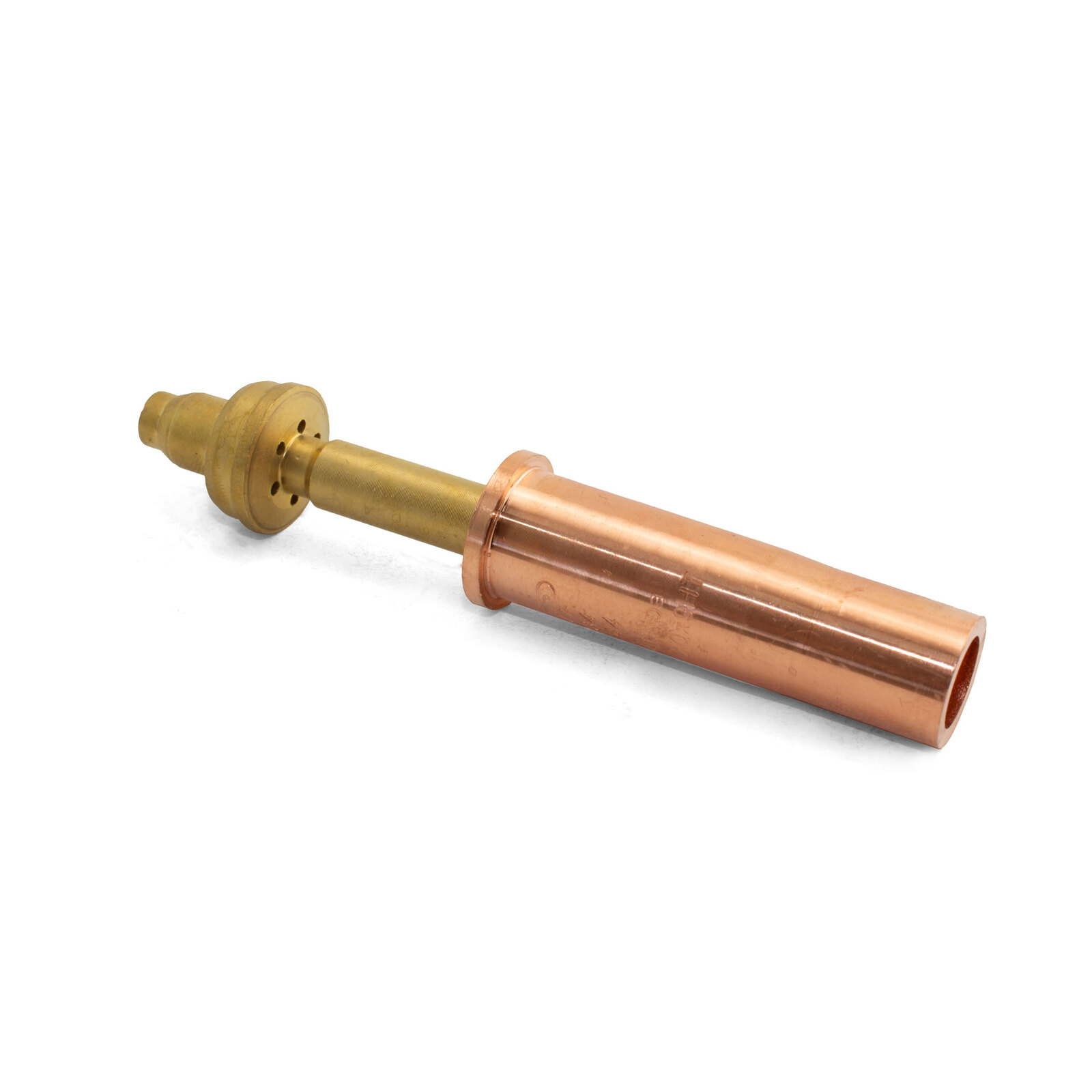

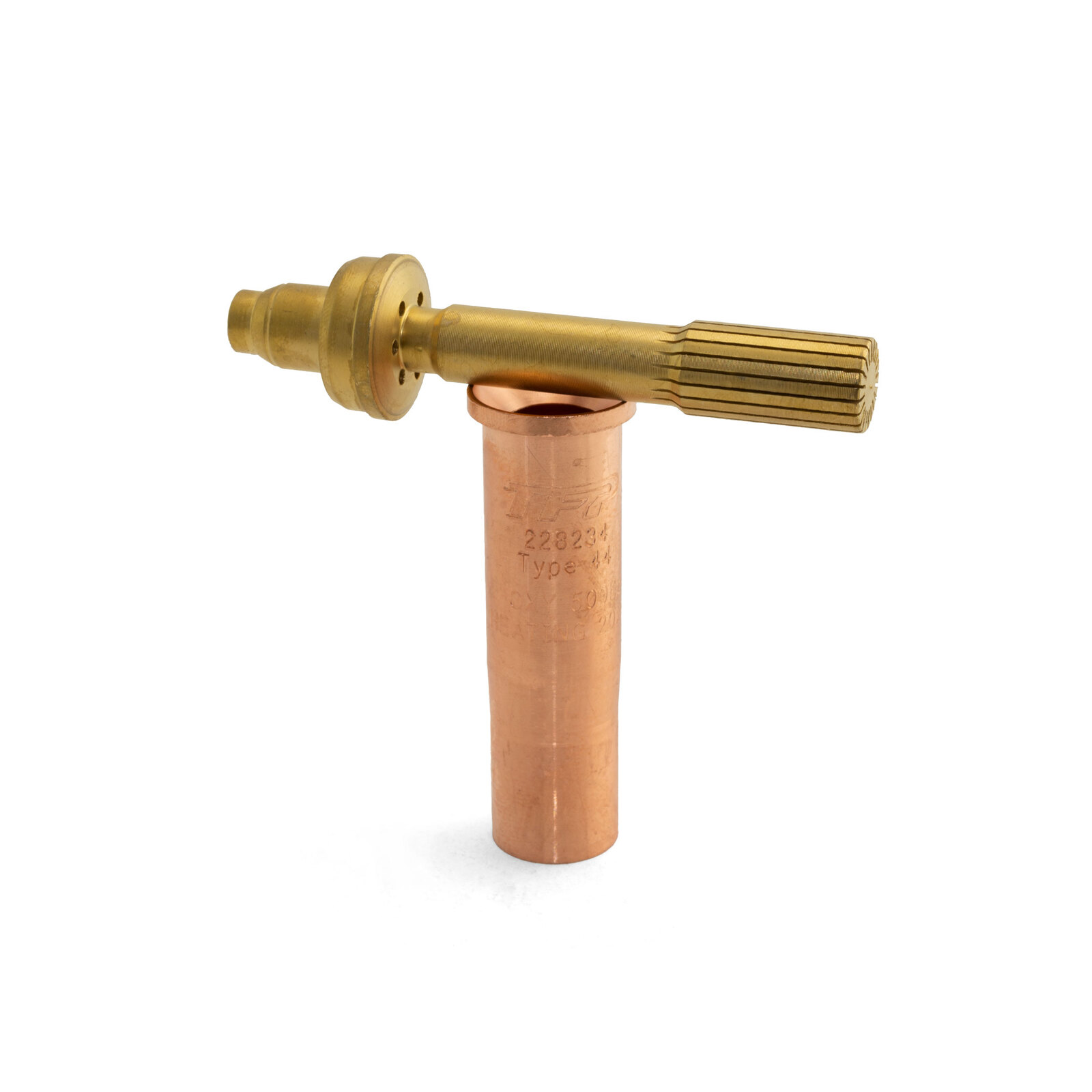

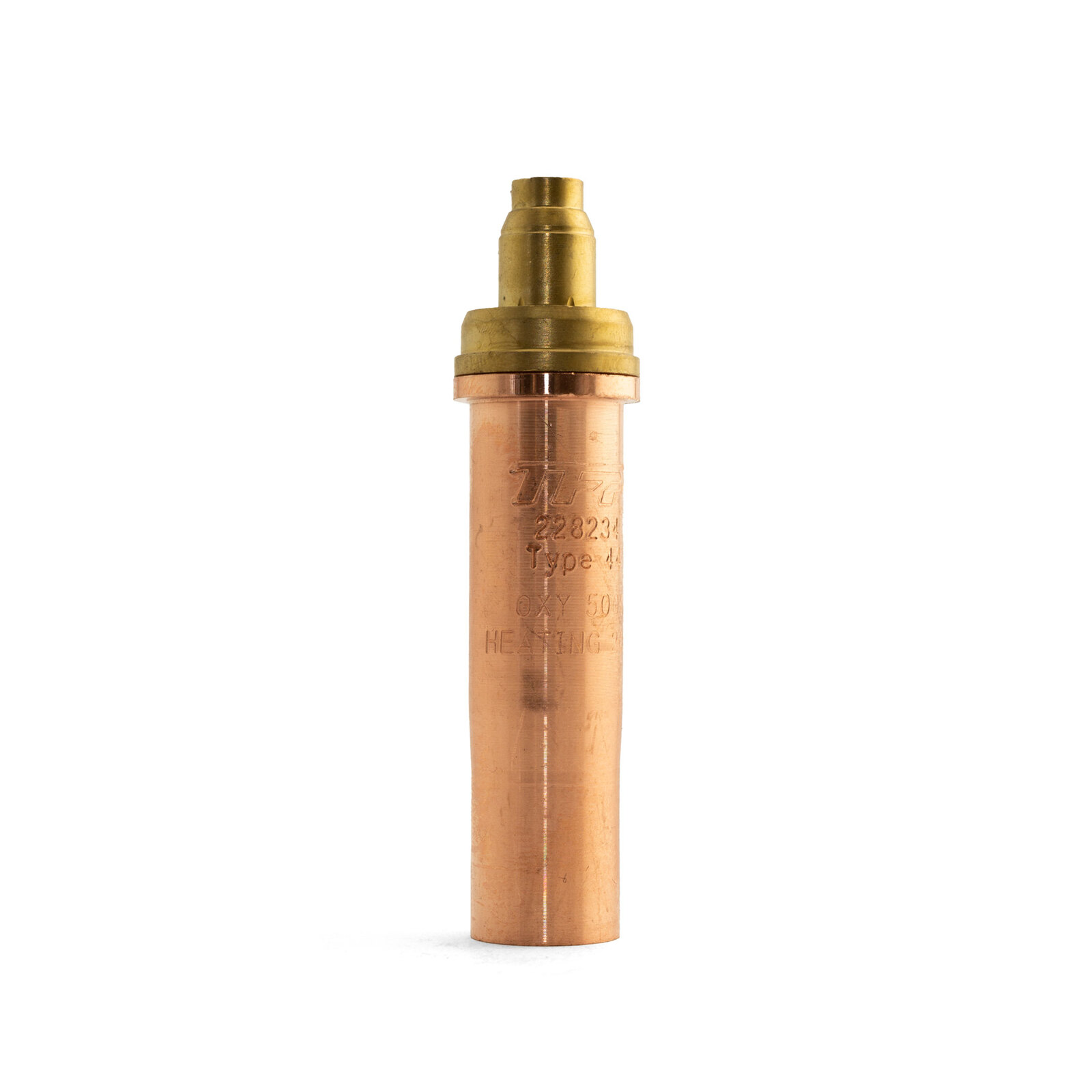

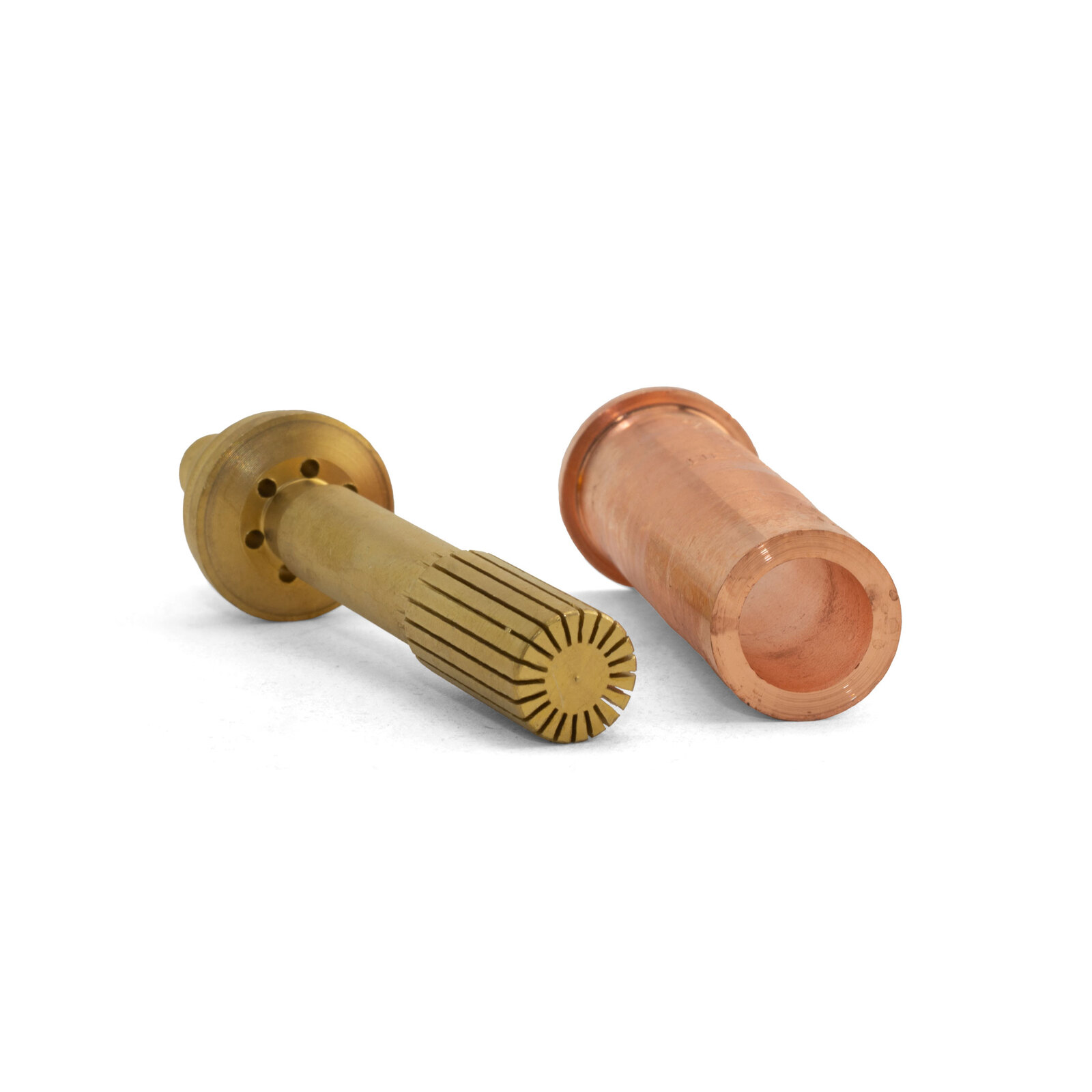

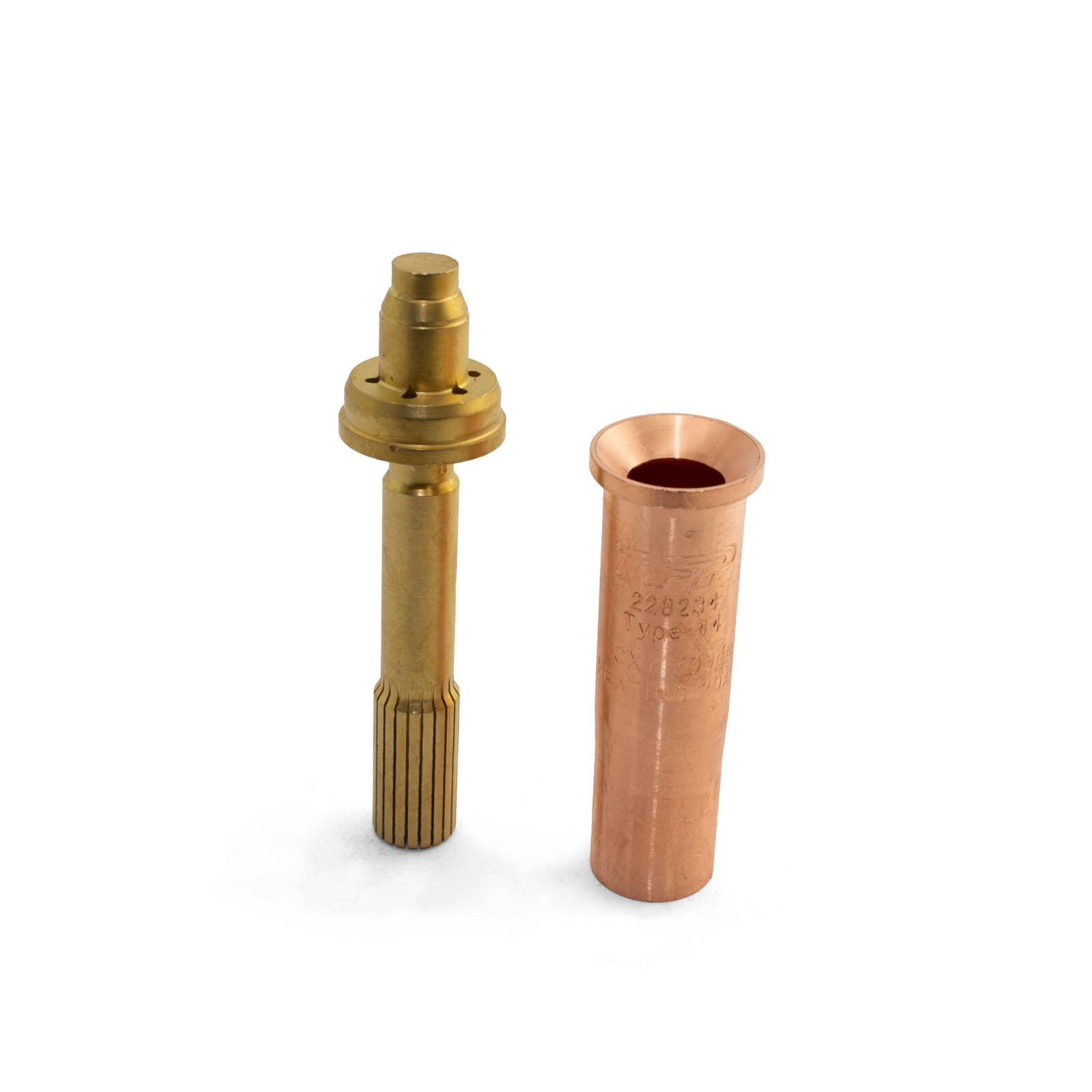

Type 44 Size 20 Oxy/LPG Heating Tip - Suits Comet Cutting Torch

The Heating Tip is designed to deliver constant high heat with the mixture of oxygen and LPG.

Features:

Delivers concentrated high-temperature heat
Heavy-duty copper construction
Compact simple design for ease of cleaning

Specifications:

Type: OXY/LPG
Tip Size: 20 x 9HT
Pressure (OXY): 500 kPa
Pressure (LPG): 100 kPa
Gas Consumption (OXY): 48 L/min
Gas Consumption (ACET): -
Gas Consumption (LPG): 12 L/min
Heat Output: 40 Mj/hr
Cigweld equivalent part no. 306034

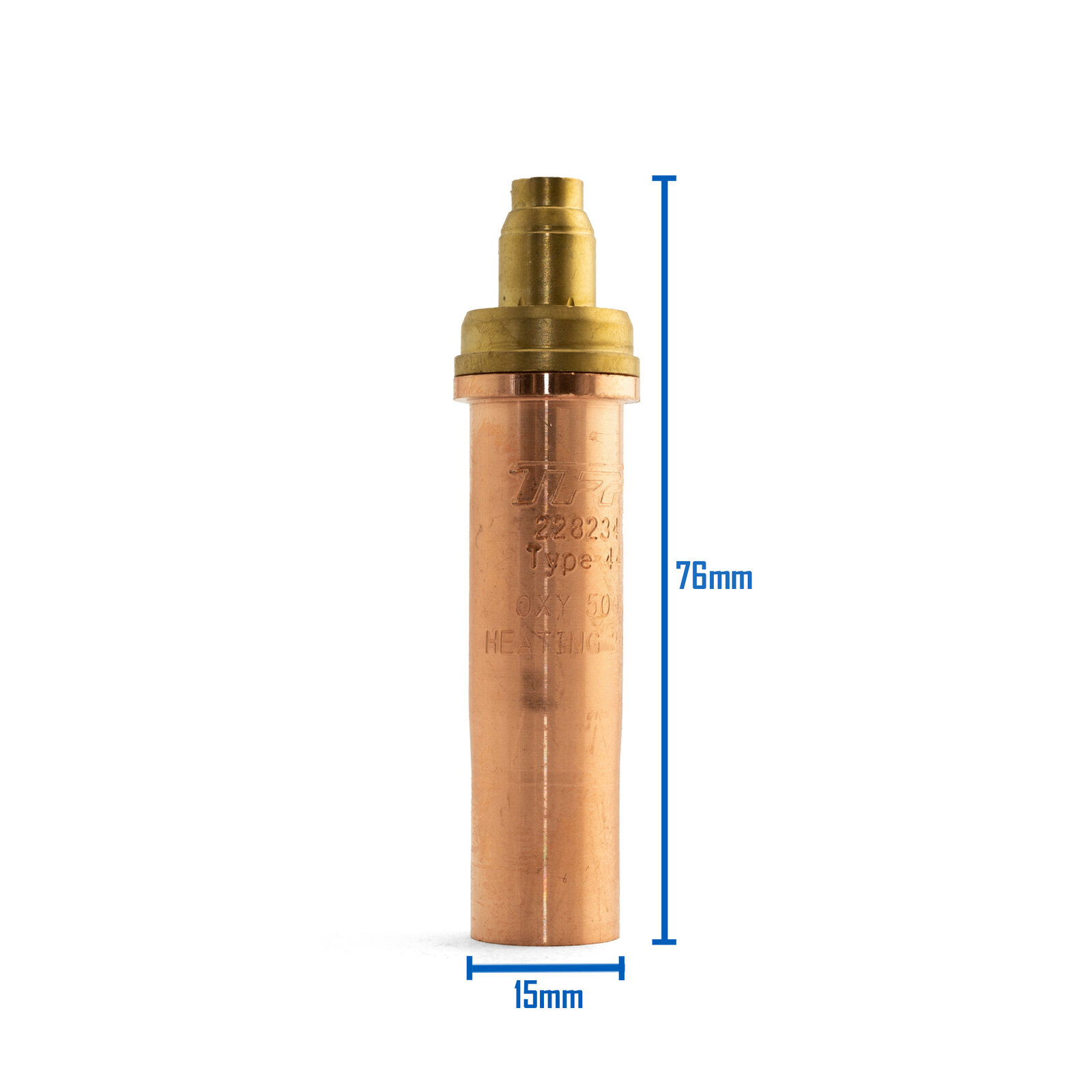

Dimensions:

15mm width
76.5mm length

(228234)

SKU	228234
Brand	Tradeflame
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.100m
Shipping Cubic	0.001000000m3
