UltraBond 3.2mm Aluminium Brazing Rod - 30 Stick Pack

A flux cored aluminium rod used with the gas flame process. For work on aluminium & its alloys with a silicon content less than 5%.

Ideal for hobbyists, repairs & maintenance.

Features

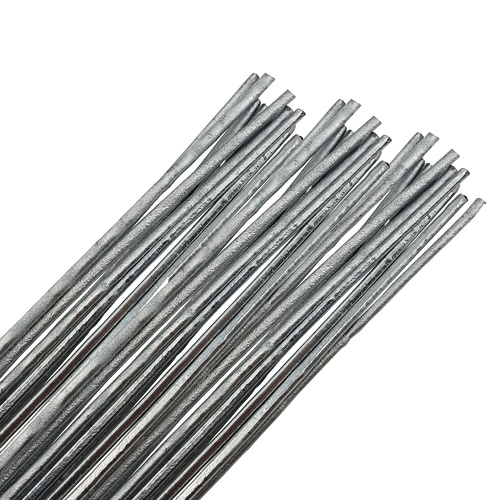

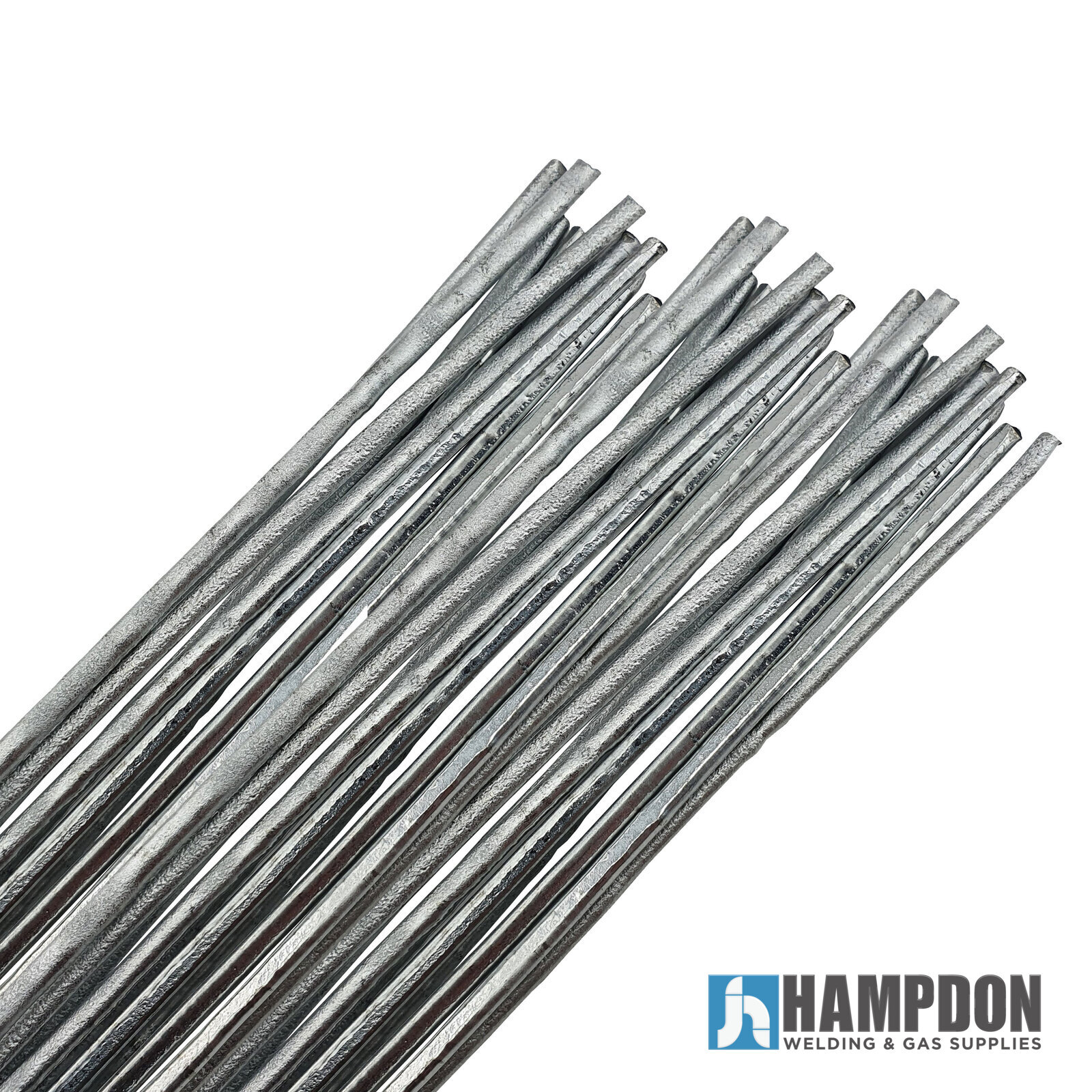

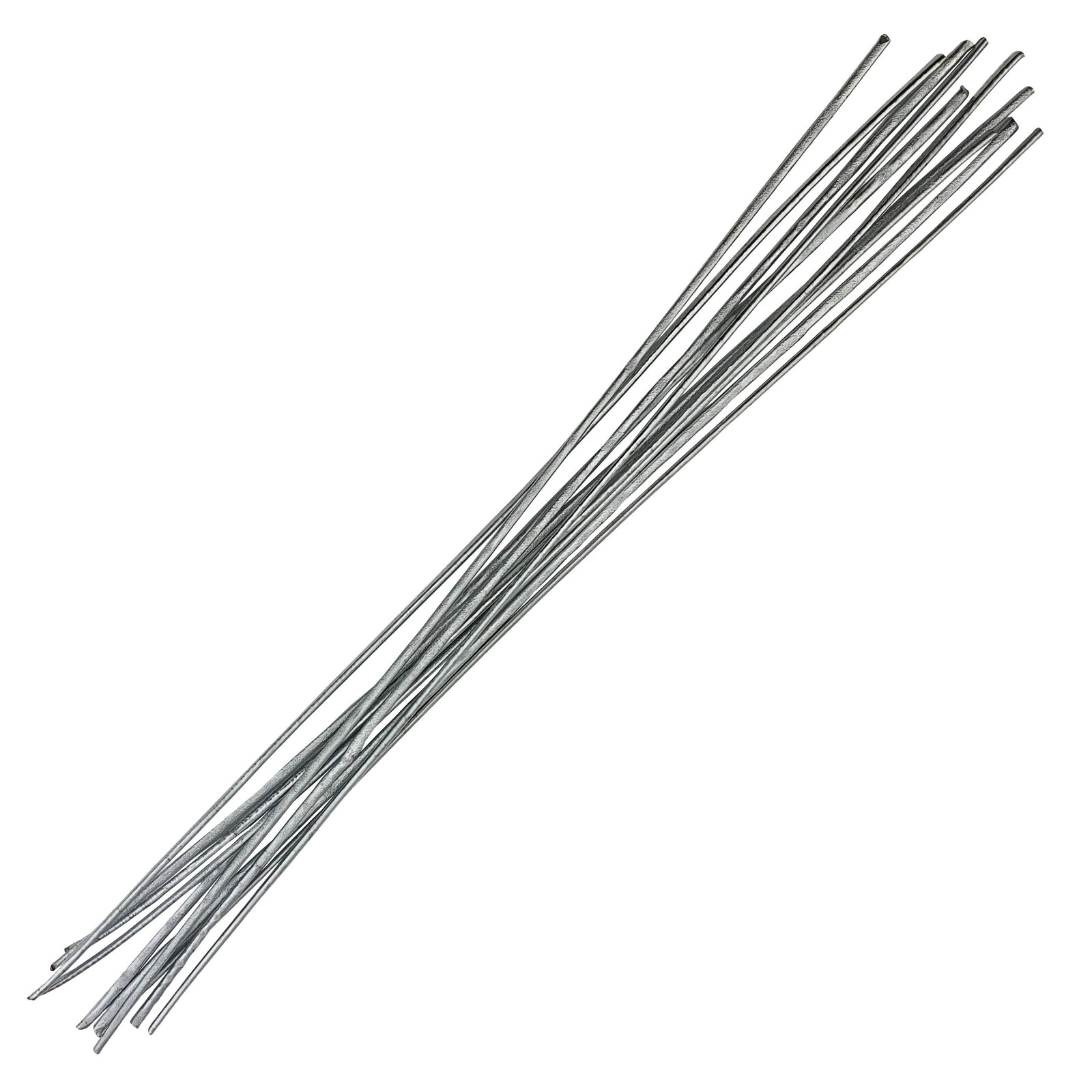

• 30 Sticks

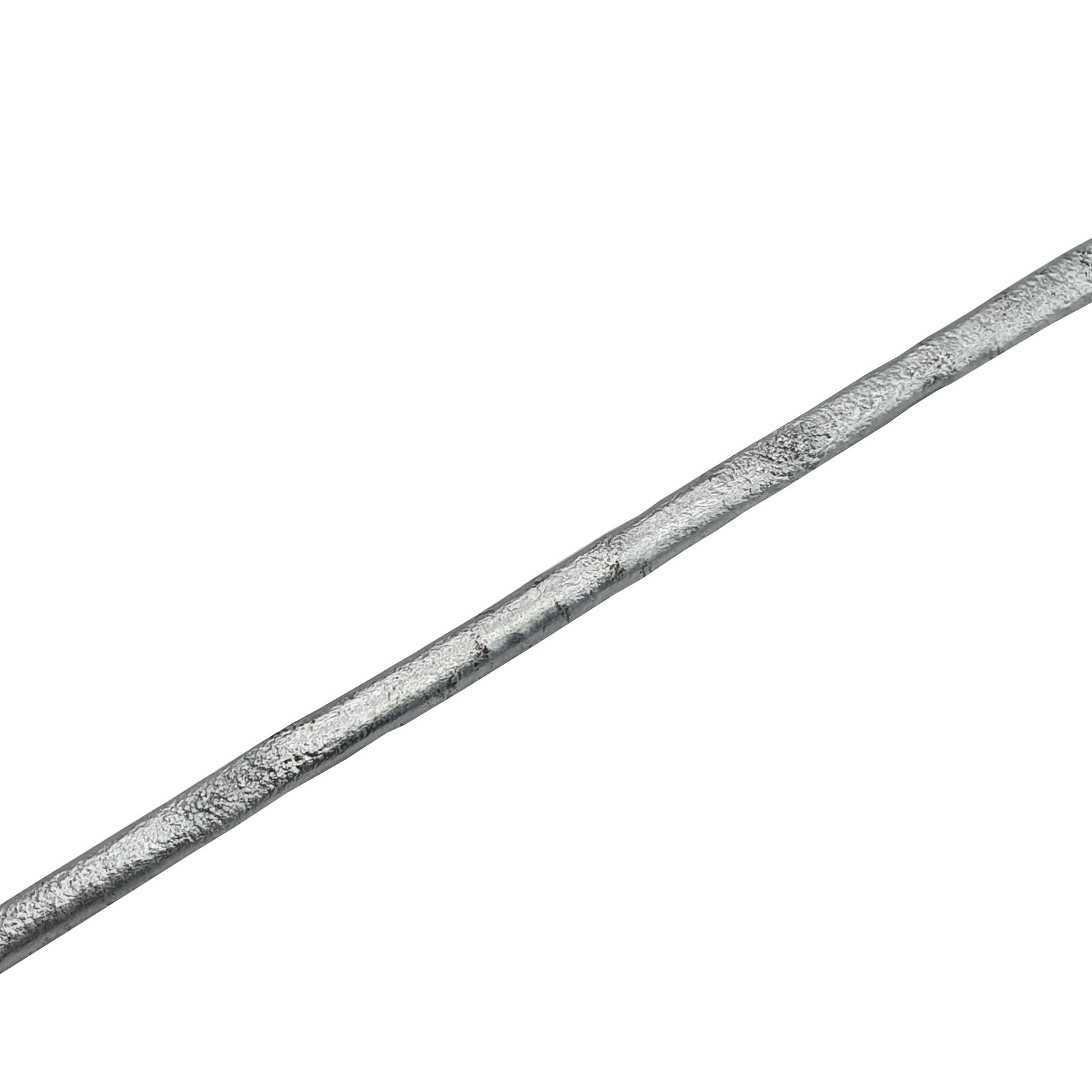

• Flux cored

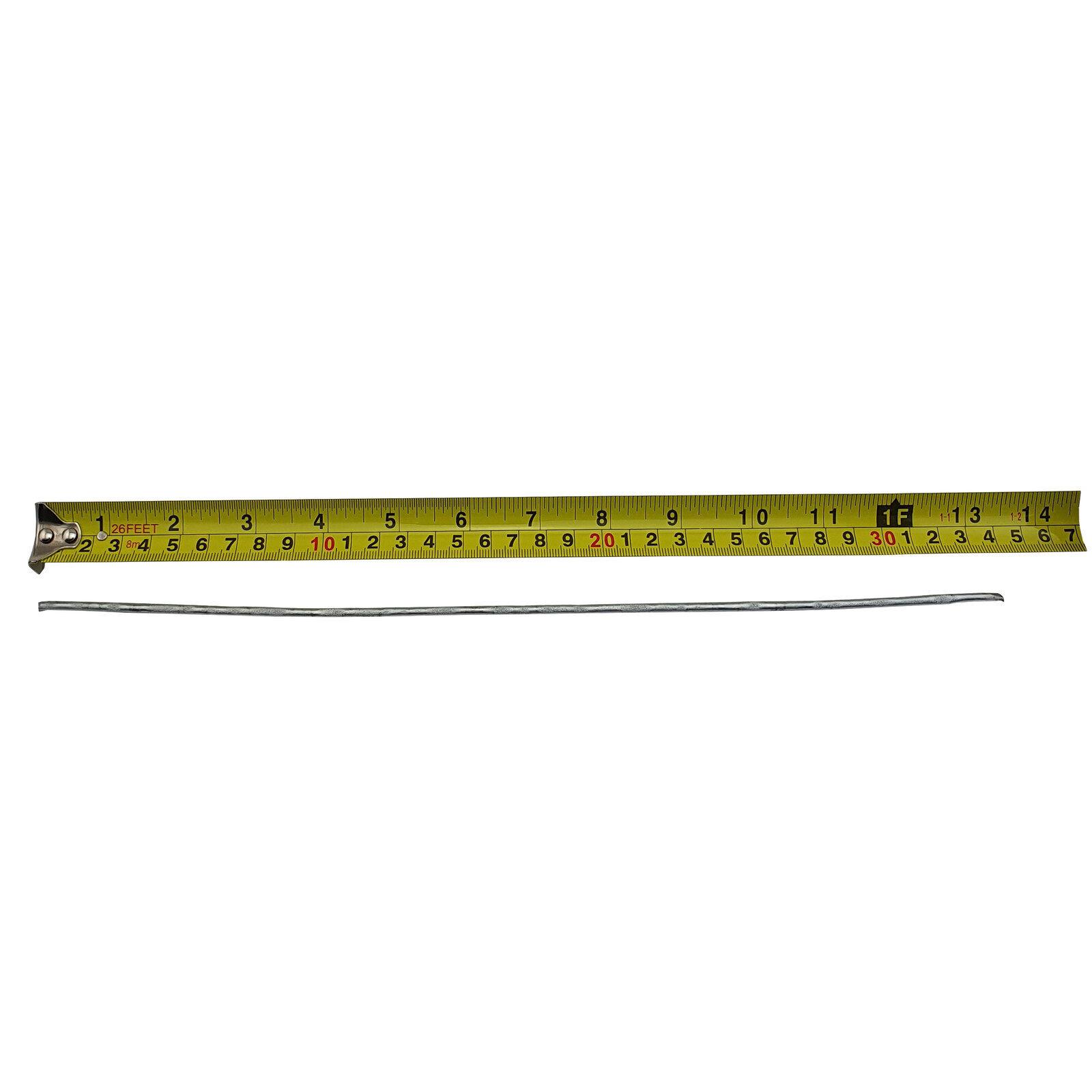

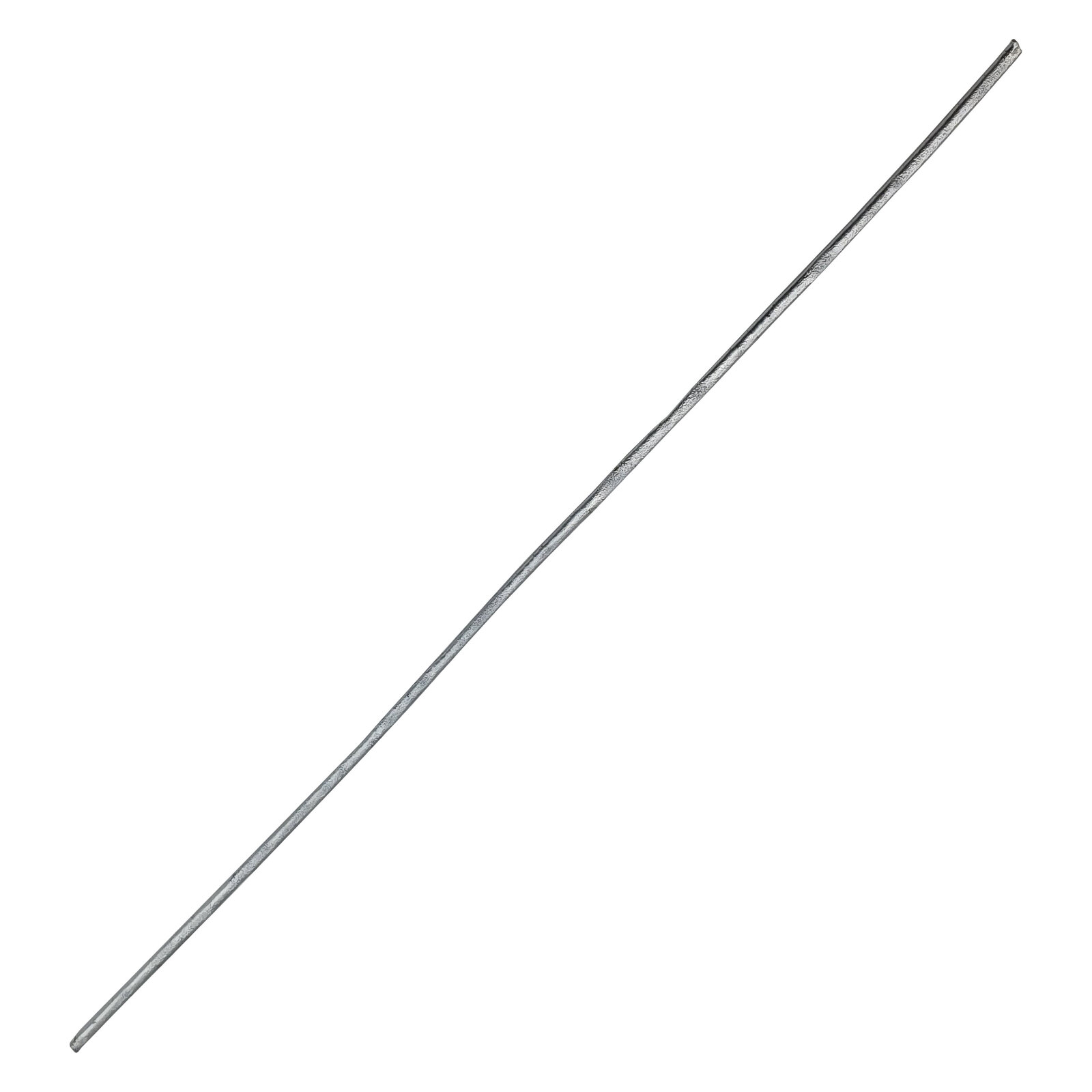

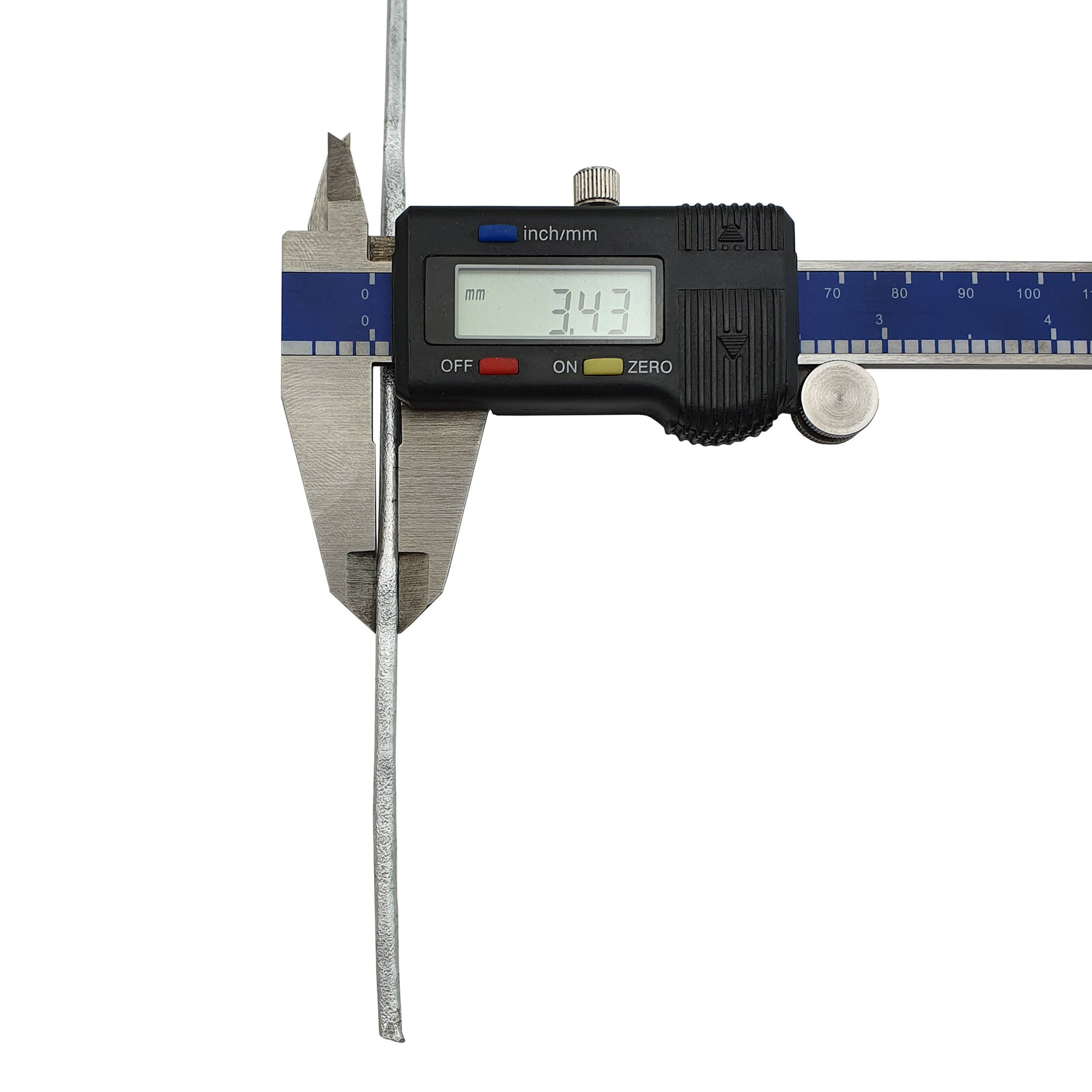

• Roughly 35cm Long and 3.2mm Thick (Diameter of the rods may vary due to the flux coating process but does not affect performance)
• Will Braze Aluminium, Aluminium Cast, Brass, Copper and Bronze
• Can be used with Oxy / Acetylene, Oxy / LPG, MAPP gas and other heating torches
• Can be used with the TS8000 Trigger Start Heating Torch (UW1C020-0006)
• Melting Point - 380°C
• Made in Australia
• Equivalent to Durafix brazing rods

Applications

• Industrial repair and maintenance applications
• Light Aluminium fabrication
• Home repairs and maintenance
• Aluminium extrusions

Die Cast

These directions also apply to pot metal, white metal and pewter. The puddling technique is used. Clean the base metal thoroughly and clamp the piece securely. File or grind the area to be repaired, then clean with a stainless or brass brush. Heat the metal and rod together and blend. Use a backing when possible to protect your piece. Since Ultra Bond and the base metal melt at similar temperatures you will be welding, the rod and the base metal at the same time. If you have not worked with die cast before, practise on a scrap piece before you begin.

Galvanised Steel and Zincalum

Follow the cleaning, thinning and welding steps described earlier. You are not welding steel, but rather the coasting. This will not work on rusted metal.

MAG Alloys

Weld similar to aluminium. Heat base metal, tin Ultra Bond and weld. If Ultra Bond foams on base metal the magnesium content is too high and will not weld. Keep heat low. Use neutral burning flame on all mag alloys.
