UNIMIG 165 VIPER Multi Synergic MIG/TIG/STICK Welder - U11006K

Part # U11006K

$729.00

AfterPay More info.

Make 4 payments of $182.25 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $14.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

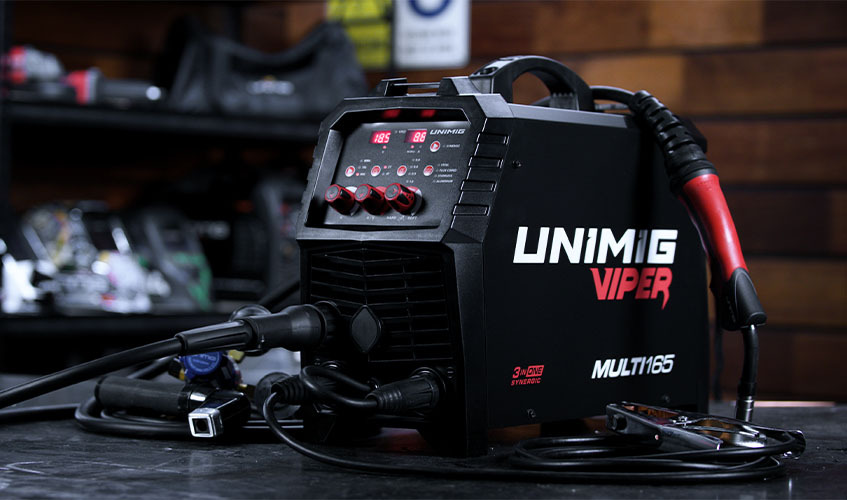

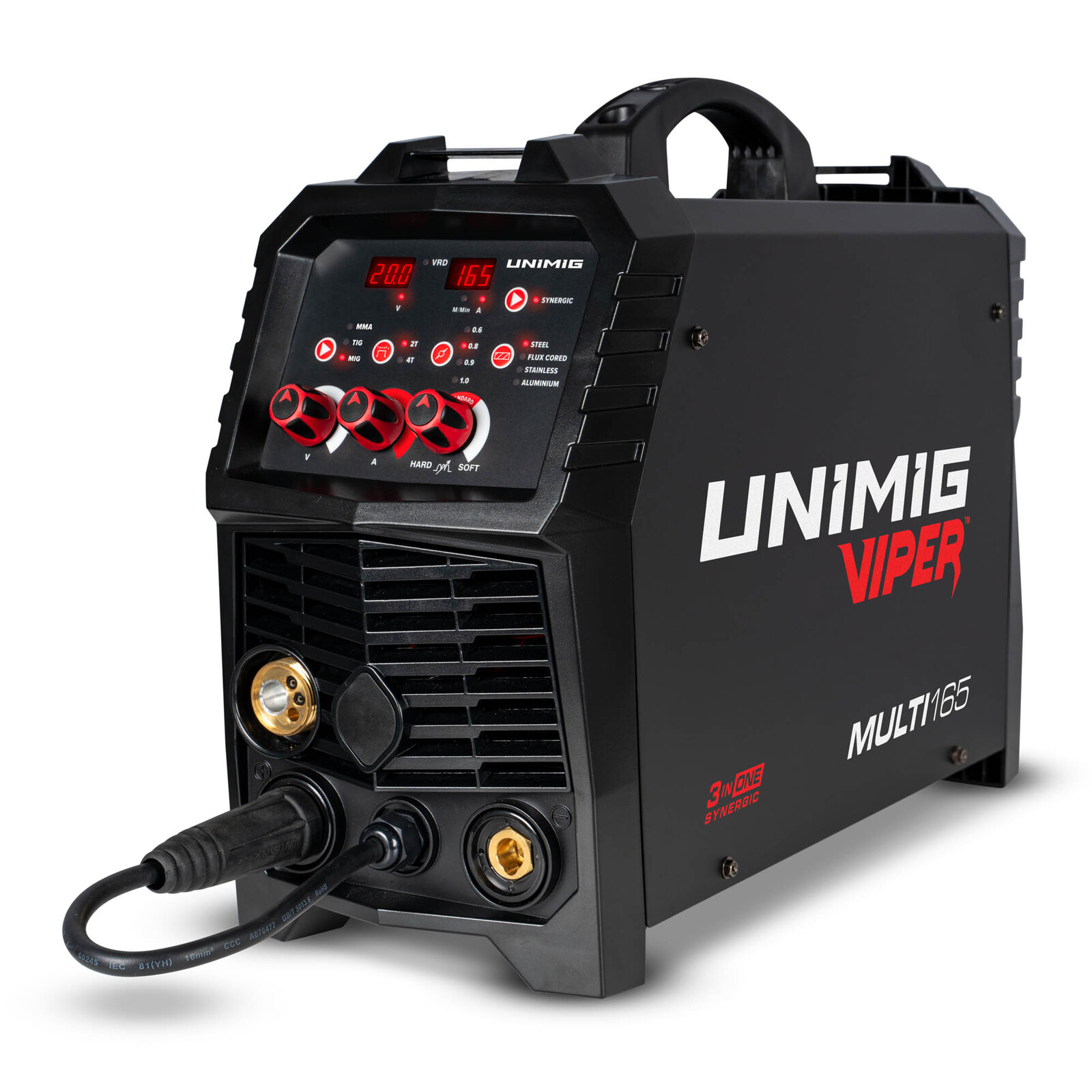

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

Key Features:

  • Synergic MIG Control - The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and wire type, and adjust your amperage to suit your work piece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.
  • Gas & Gasless MIG - This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.
  • Multi-Process Welding - This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.
  • 10 AMP Plug - Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
  • Lightweight & Portable - Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.

Machine Specifications:

  • Product Number: U11006K
  • Wire Drive: Standard
  • VRD: Yes
  • Wire Inch: Yes
  • Inductance Control: Yes
  • Thermal Overload Protection: Yes
  • Primary Input Voltage: 240V Single Phase
  • Supply Plug: 10 AMP
  • Ieff (A): 10.0
  • Rated Output: 30A/15.5V - 165A/22.3V
  • No Load Voltage (V): 64
  • Protection Class: IP21S
  • Insulation Class: H
  • Minimum Generator (kVA): 9.0
  • Dinse Connector: 35/50
  • Standard: AS/NZ60974-1
  • Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

MIG Specifications:

  • MIG Welding Current Range: 30-165A
  • MIG Duty Cycle @ 40°C: 10% @ 165A / 60% @ 68A / 100% @ 52A
  • MIG Wire Size Range: 0.6-0.9mm
  • MIG Wire Spool Size: 1kg / 5kg
  • MIG Welding Thickness Range: 1-8mm
  • Drive Roller Size: 30/10

TIG Specifications:

  • TIG Function Type: DC Lift Arc
  • TIG Welding Current Range: 20-160A
  • TIG Duty Cycle @ 40°C: 10% @ 160A / 60% @ 65A / 100% @ 50A
  • TIG Welding Thickness Range: 1-6mm

STICK Specifications:

  • Stick Welding Current Range: 20-140A
  • Stick Duty Cycle @ 40°C: 10% @ 140A / 60% @ 58A / 100% @ 45A
  • Stick Electrode Range: 2.5-3.2mm
  • Stick Welding Thickness Range: 2-8mm

Size and Weight:

  • Dimensions (mm): 513x206x391mm
  • Weight (kg): 9.8kg

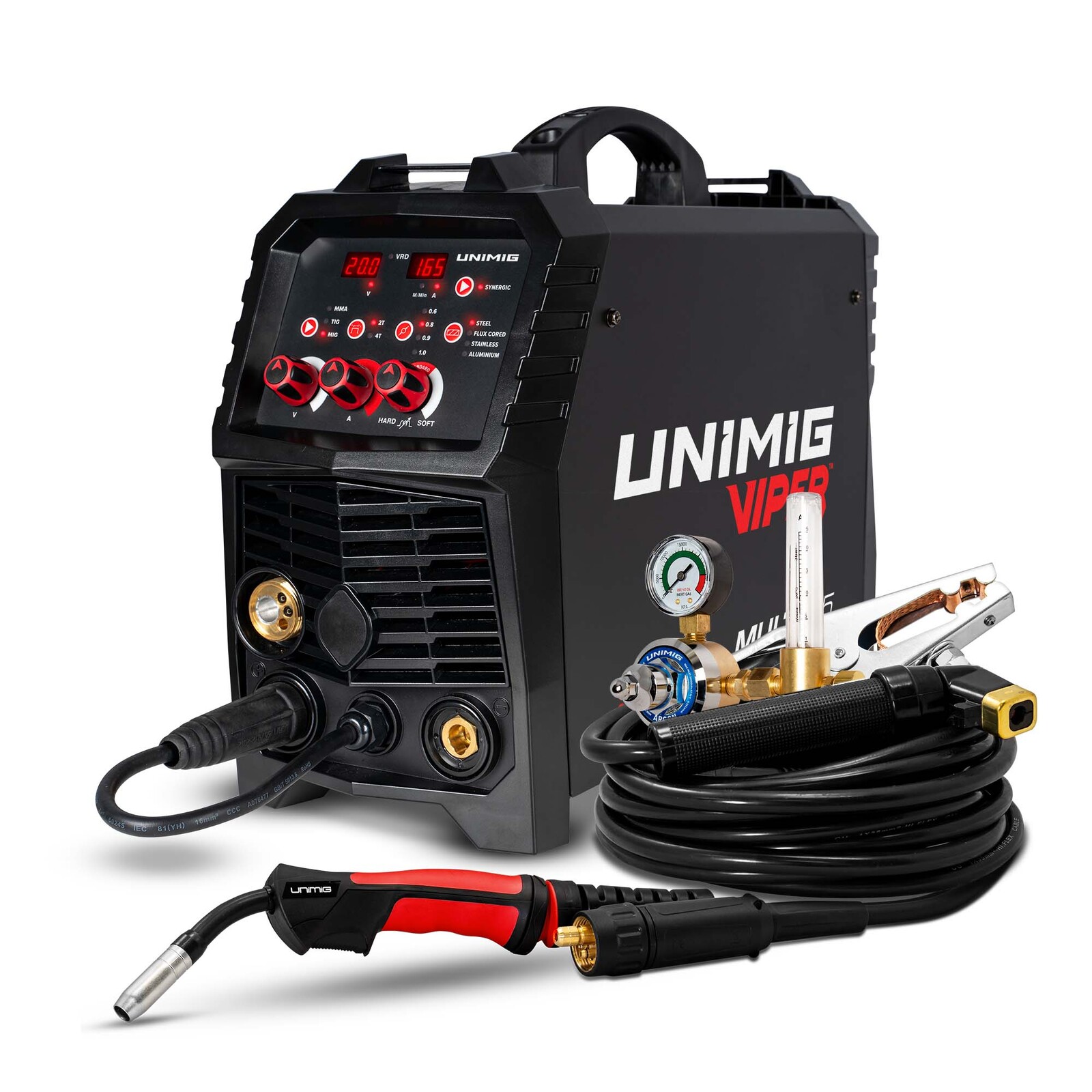

The UNIMIG Viper Multi 165 Welder is packaged ready to weld and includes:

  • VIPER MULTI 165 MIG/TIG/STICK Welder
  • 3m SB15 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 300 Amp Earth Clamp & Lead
  • Argon Flowmeter
  • 2m Gas Hose Complete with fittings
  • Operating Manual

** Product comes with a nationally recognised 2 year warranty through any UNIMIG Dealer **



(U11006K)

SKU U11006K
Brand UNIMIG
Shipping Weight 21.5000kg
Shipping Width 0.330m
Shipping Height 0.350m
Shipping Length 0.750m
Unit Of Measure ea

** Product comes with a nationally recognised 2 year warranty through any UNIMIG Dealer **

Be The First To Review This Product!

Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

  • VIPER MULTI 165 MIG/TIG/STICK Welder
  • 3m SB15 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 300 Amp Earth Clamp & Lead
  • Argon Flowmeter
  • 2m Gas Hose Complete with fittings
  • Operating Manual
