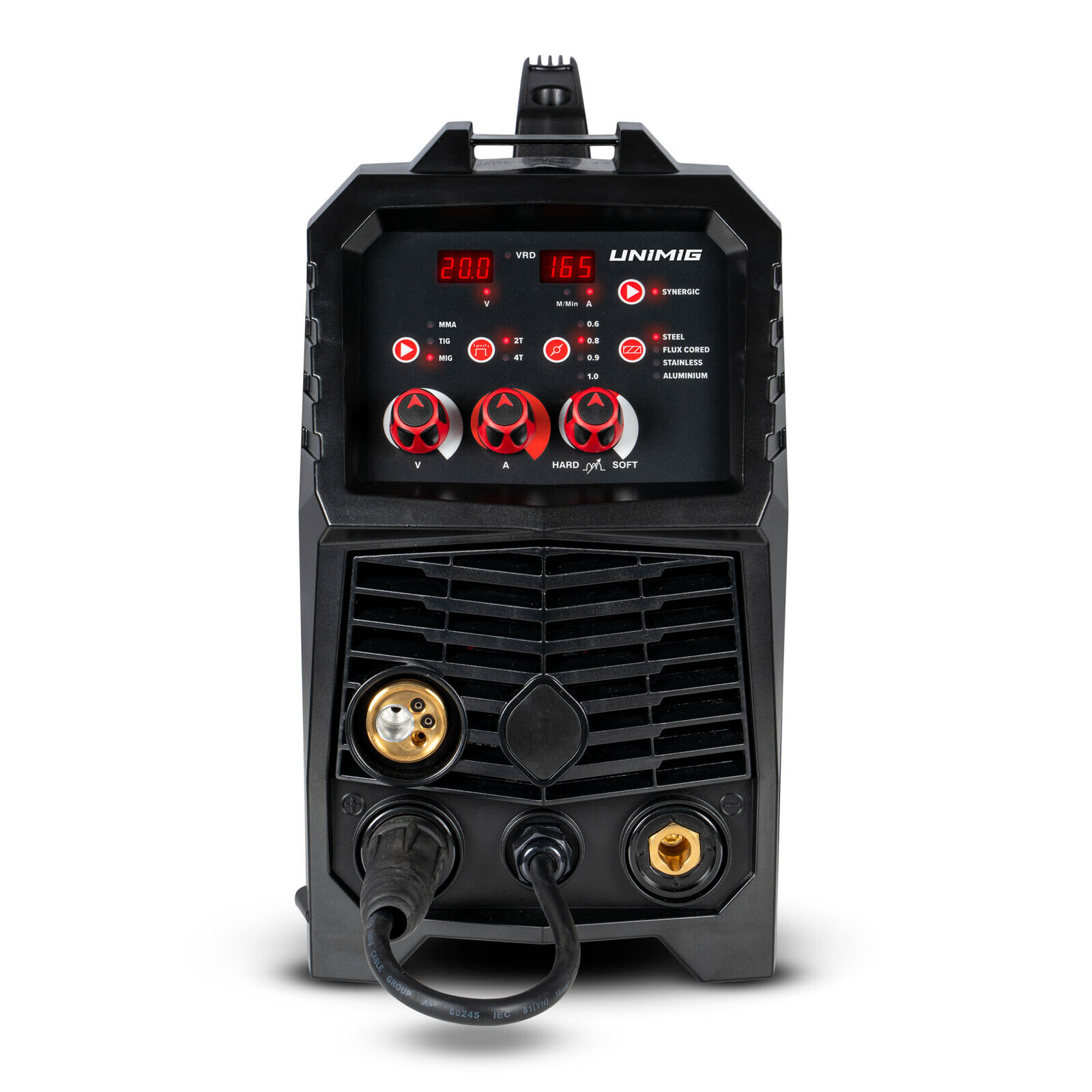

UNIMIG Viper 165 Gasless MIG Welding Combo - U11006K

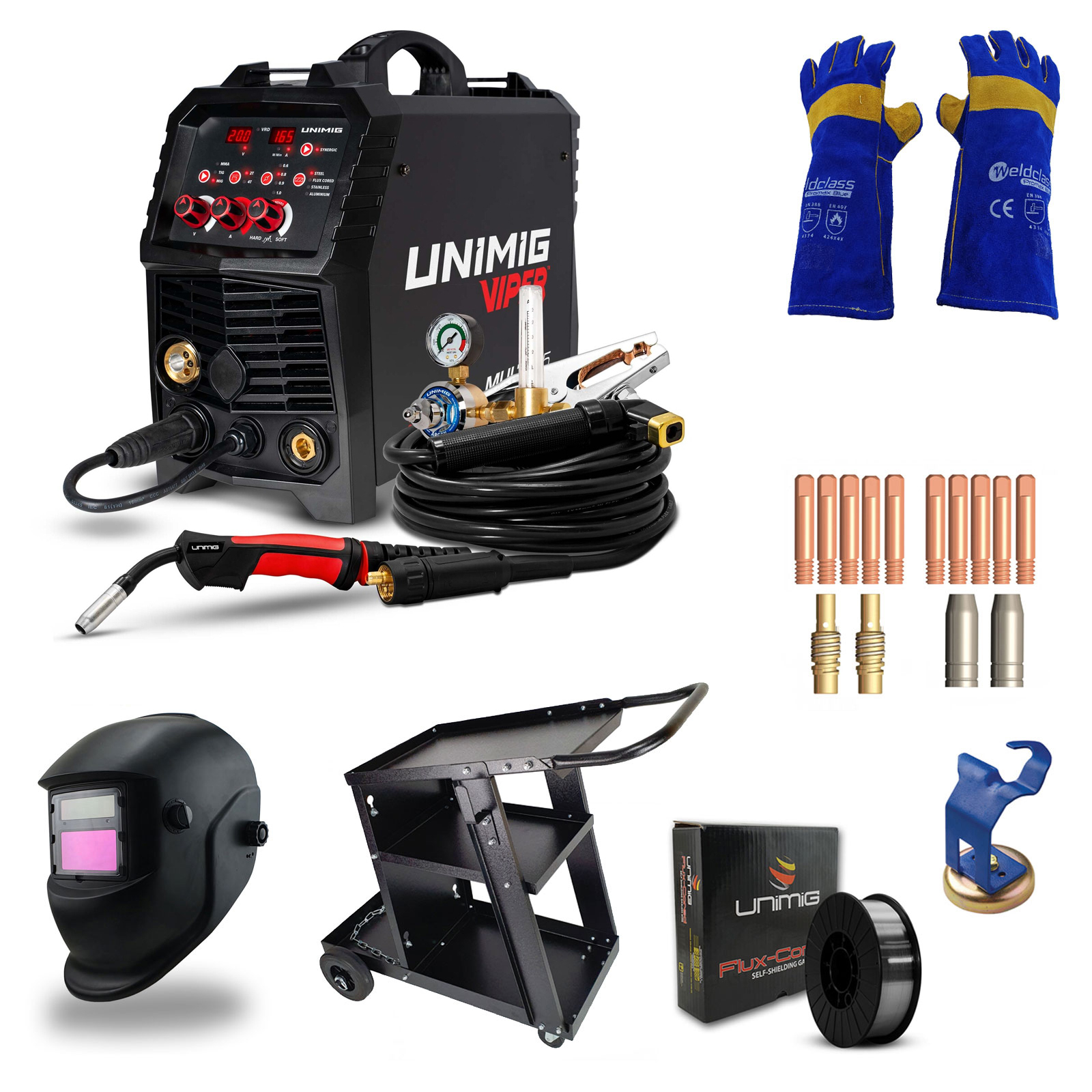

The Value Pack comes with a Bonus:

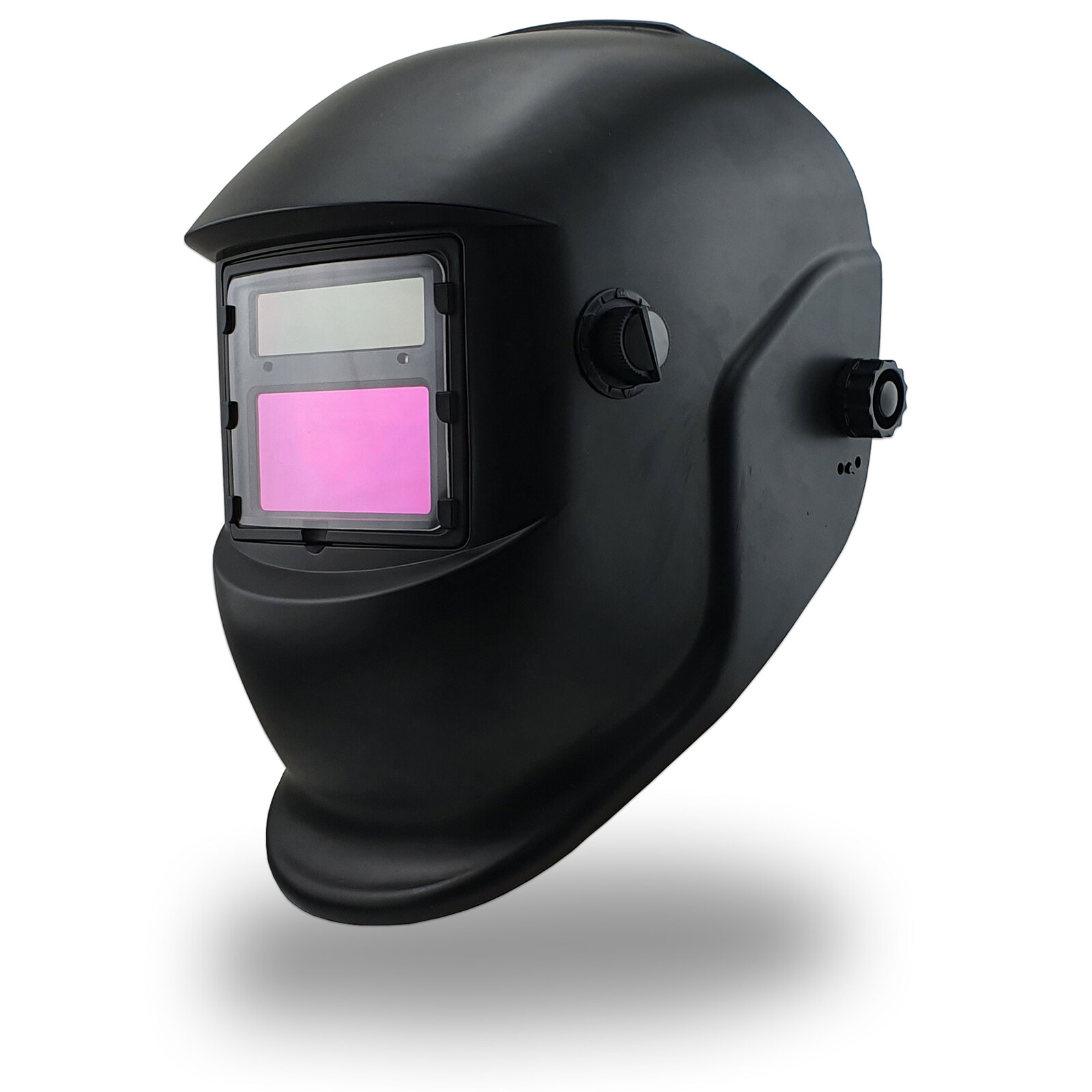

• UWELD Auto-Darkening Welding Helmet
• MIG Stand
• Heavy-Duty MIG Welding Gloves

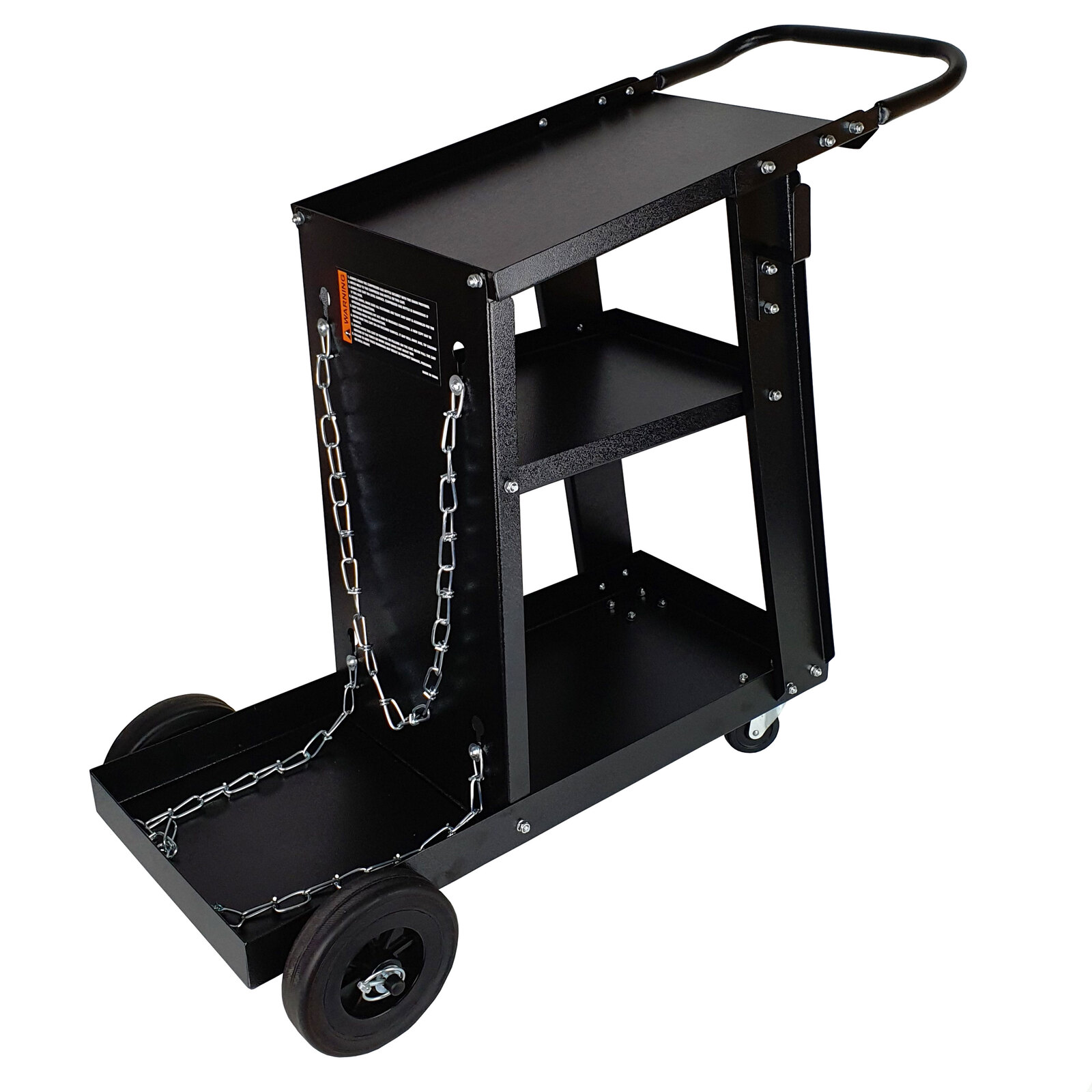

• Welder / Bottle Trolley

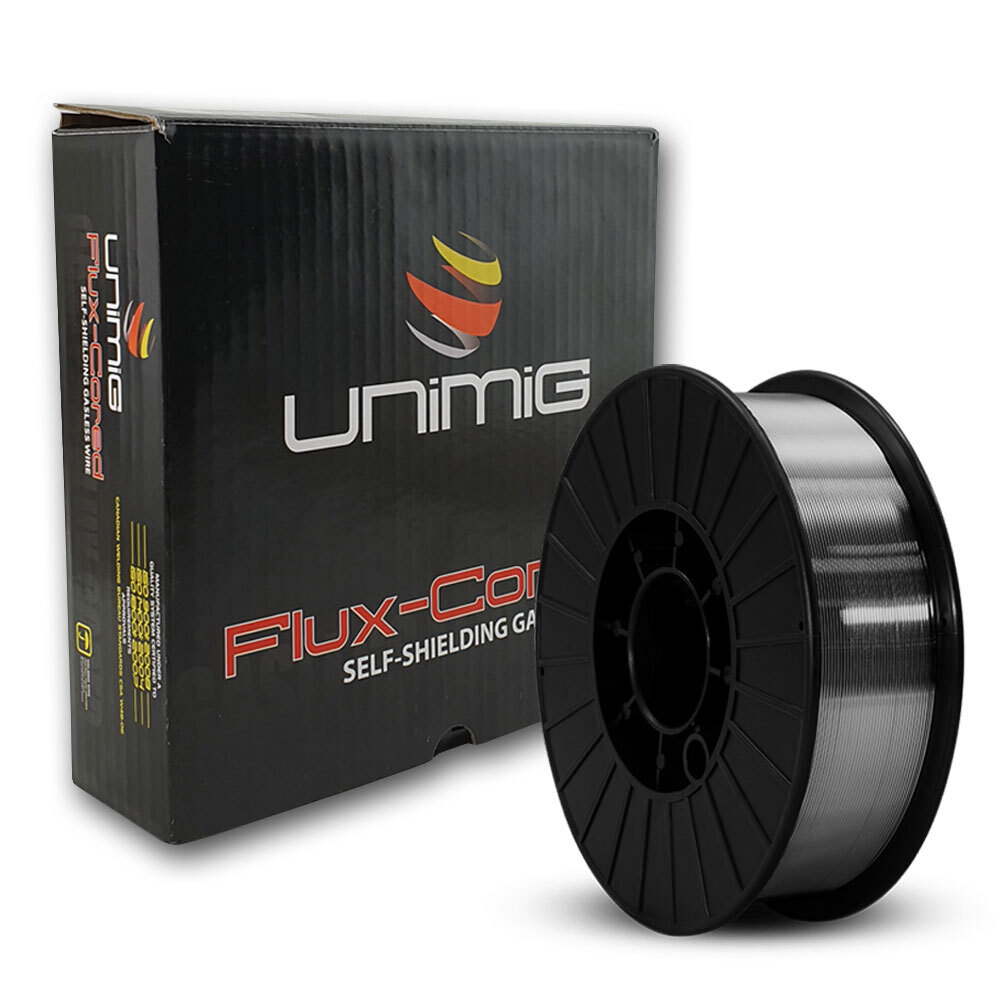

• 5kg of 0.9mm Gasless Wire
• 14 Piece Consumable Kit
• Plus the VIPER 165 - U11006K
• ONLY $30 extra for EXPRESS SHIPPING anywhere in Australia.

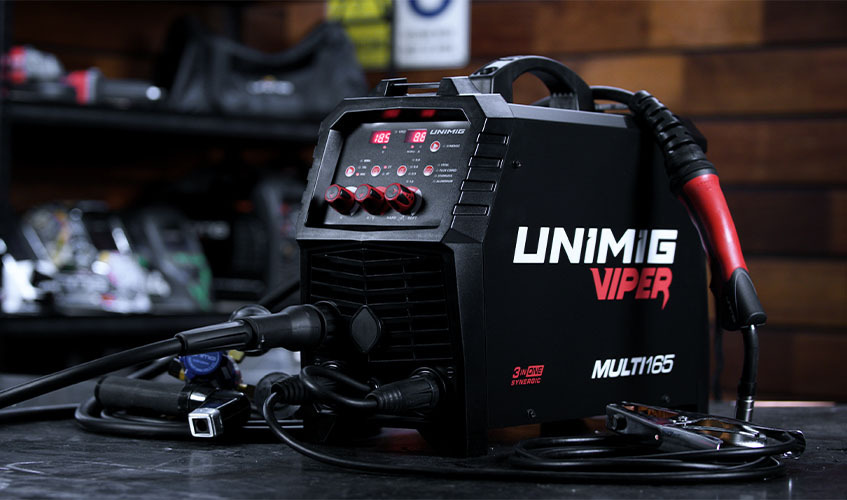

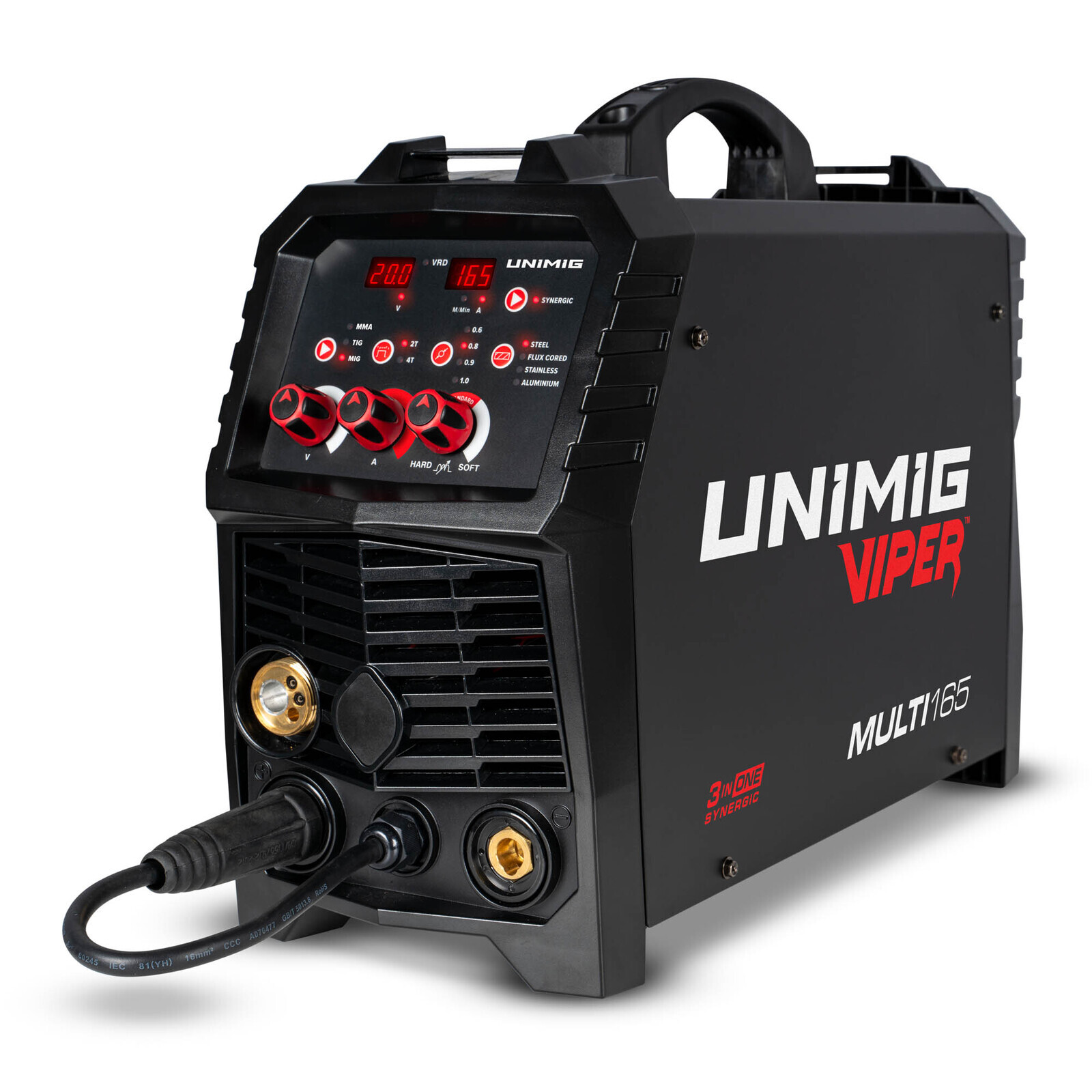

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

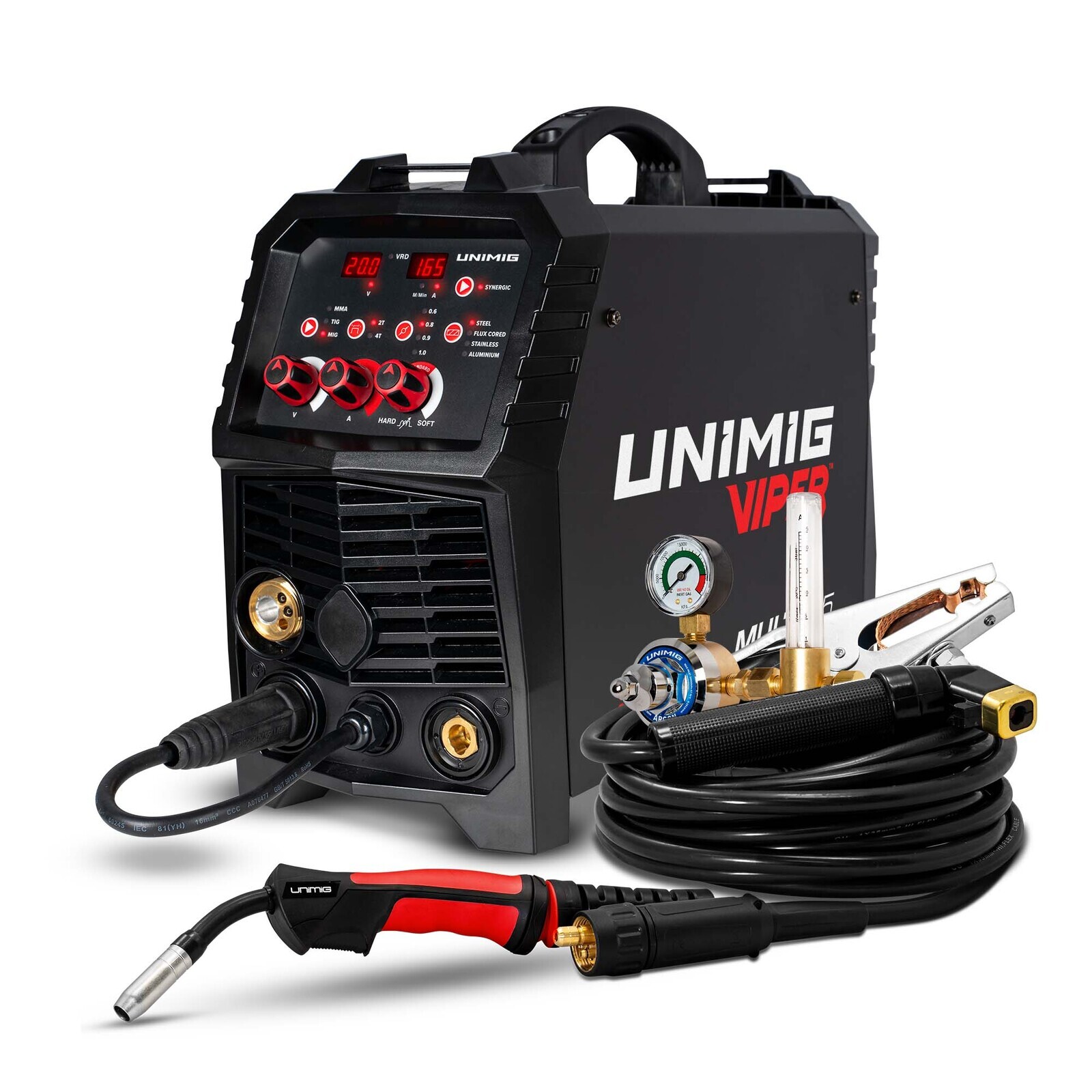

PACKAGE CONTENTS

• VIPER MULTI 165 MIG/TIG/STICK Welder
• 3m SB15 MIG Torch
• 3m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• Argon Flowmeter
• 2m Gas Hose Complete with fittings
• Operating Manual
•
• MACHINE SPECIFICATIONS
• PRIMARY INPUT VOLTAGE - 240V Single Phase
• SUPPLY PLUG - 10 AMP
• Ieff (A) - 10.0
• RATED OUTPUT - 30A/15.5V - 165A/22.3V
• NO LOAD VOLTAGE (V) - 64
• PROTECTION CLASS - IP21S
• INSULATION CLASS - H
• MINIMUM GENERATOR (kVA) - 9.0
• DINSE CONNECTOR - 35/50
• STANDARD - AS/NZ60974-1
• SUITABLE MATERIAL - Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• WARRANTY (Years) - 2

• MIG SPECIFICATIONS

• MIG WELDING CURRENT RANGE - 30-165A
• MIG DUTY CYCLE @ 40°C - 10% @ 165A / 60% @ 68A / 100% @ 52A
• MIG WIRE SIZE RANGE - 0.6-1.0mm
• MIG WIRE SPOOL SIZE - 1kg / 5kg
• MIG WELDING THICKNESS RANGE - 1-8mm
• DRIVE ROLLER SIZE - 30/10

• TIG SPECIFICATIONS

• TIG FUNCTION TYPE - DC Lift Arc
• TIG WELDING CURRENT RANGE - 20-160A
• TIG DUTY CYCLE @ 40°C - 10% @ 160A / 60% @ 65A / 100% @ 50A
• TIG WELDING THICKNESS RANGE - 1-6mm

• STICK SPECIFICATIONS

• STICK WELDING CURRENT RANGE - 20-140A
• STICK DUTY CYCLE @ 40°C - 10% @ 140A / 60% @ 58A / 100% @ 45A
• STICK ELECTRODE RANGE - 2.5-3.2mm
• STICK WELDING THICKNESS RANGE - 2-8mm

• SIZE & WEIGHT

• DIMENSIONS (mm) - 513x206x391mm
• WEIGHT (kg) - 9.8kg

• MACHINE FEATURES

• WIRE DRIVE - Standard
• VRD - Yes
• WIRE INCH - Yes
• INDUCTANCE CONTROL - Yes
• THERMAL OVERLOAD PROTECTION - Yes
