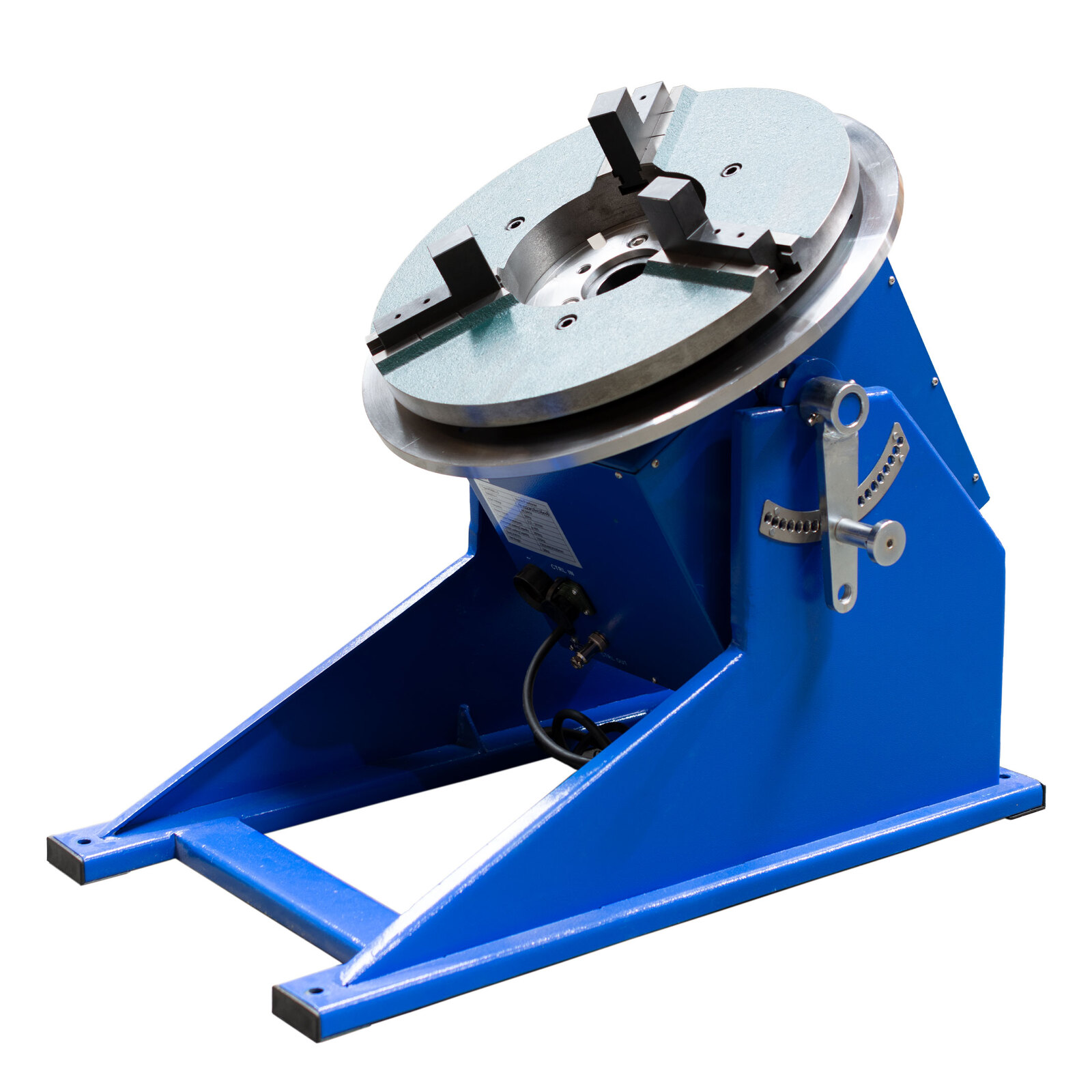

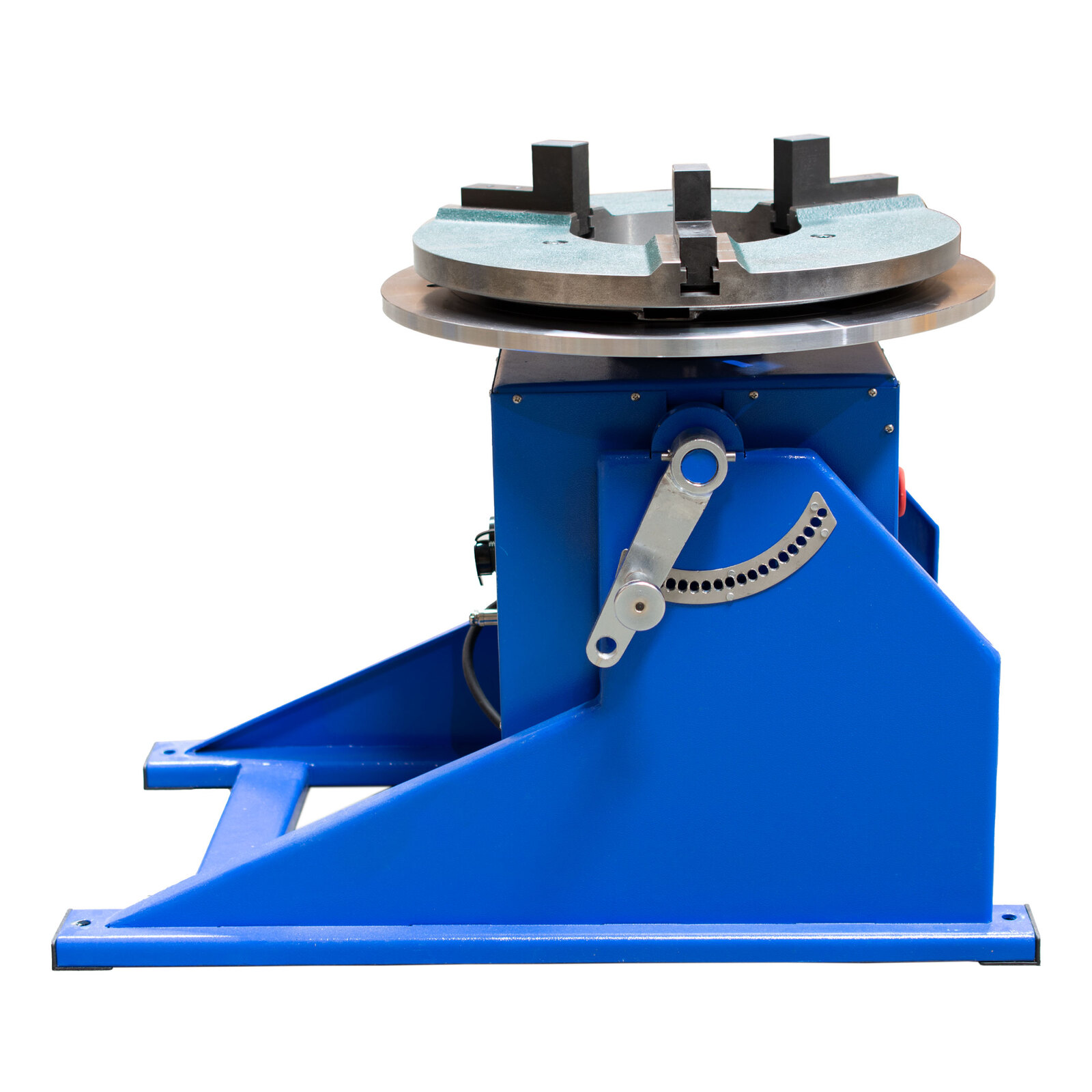

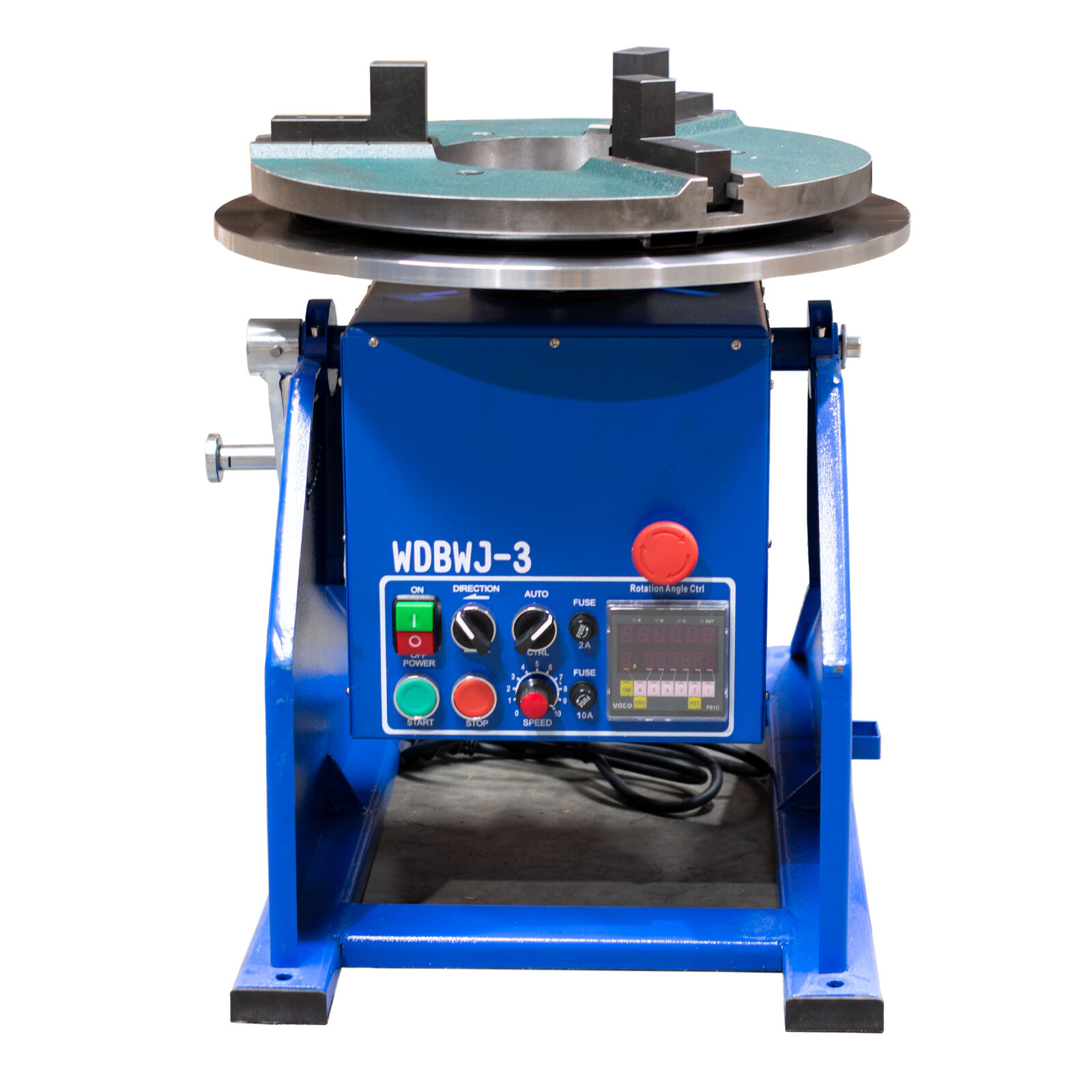

Welding positioner machine is a type of automatic positioner. It works in MIG/MAG,CO2 and TIG welding source, making a set of special circumferential automatic welding system.This system is suitable for circumferential welding accessory of automobile and autobike, also suitable for the making of metal parts which need a mass of circumferential welding.
Main Capability Characteristics:

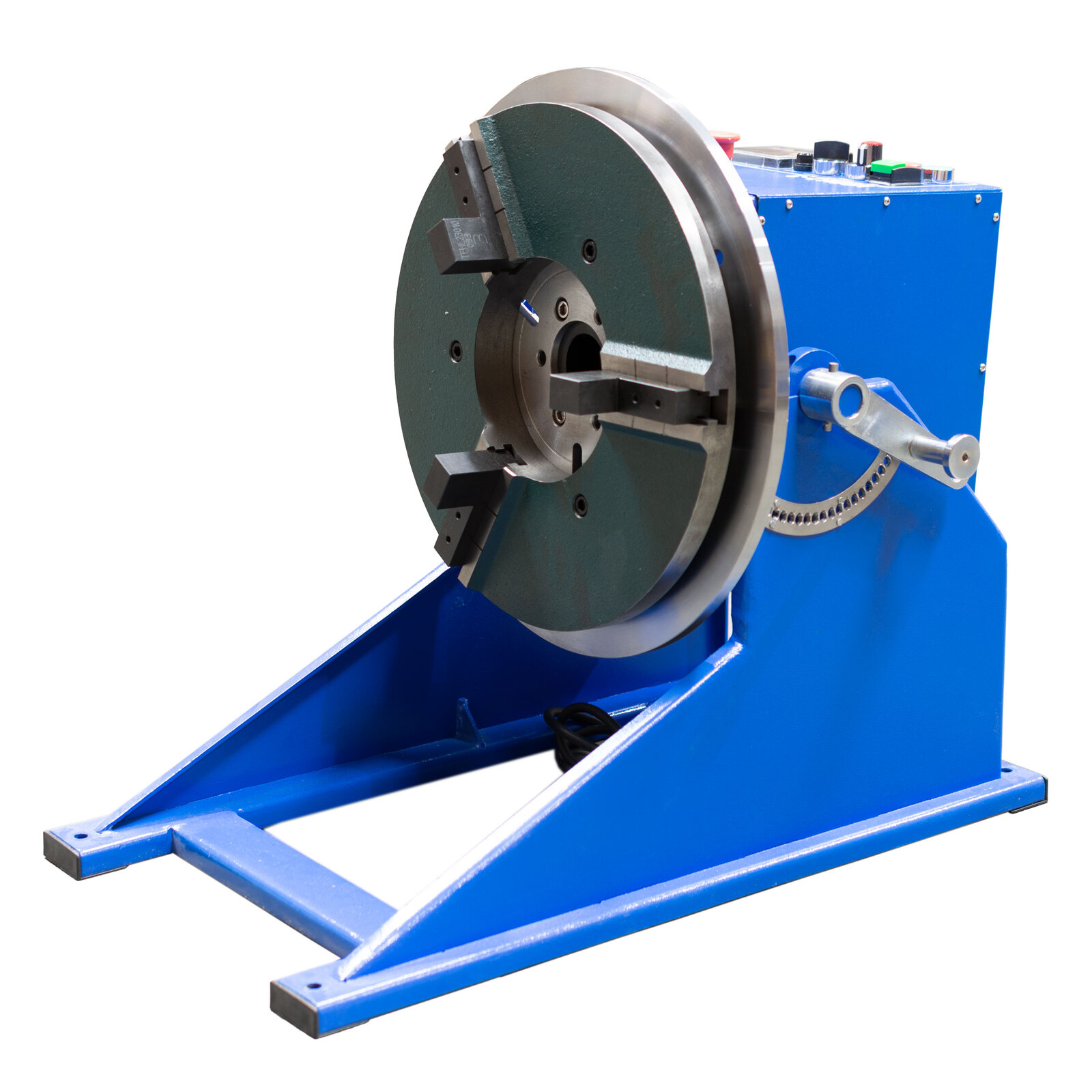

- The headstock can be turned 90°. The principal axis can be turned in any direction to fit different angles.
- Driven by a DC motor, offering good performance and a large timing range, suitable for a wide range of workpieces.
- Equipped with a foot pedal switch for convenient operation.

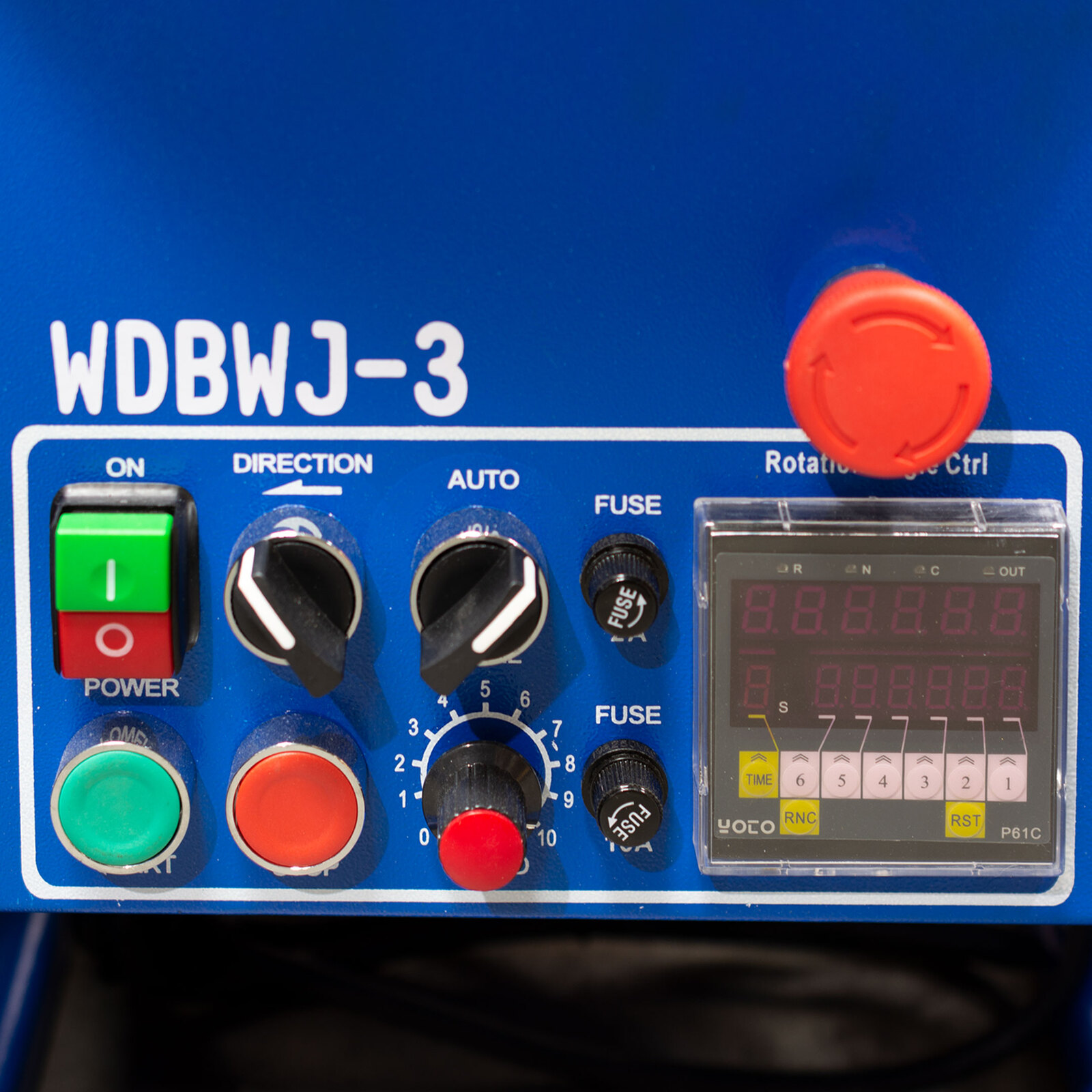

- Operated by one key: after debugging, simply press the welding key to initiate automatic welding.
- Includes an emergency stop function, allowing for urgent stops during special situations in the welding process.
- Features a welding speed display function to show the current running speed.
Technical Data:
- Input Voltage: AC220V
- Frequency: 50/60Hz
- Input Power: 0.3KVA

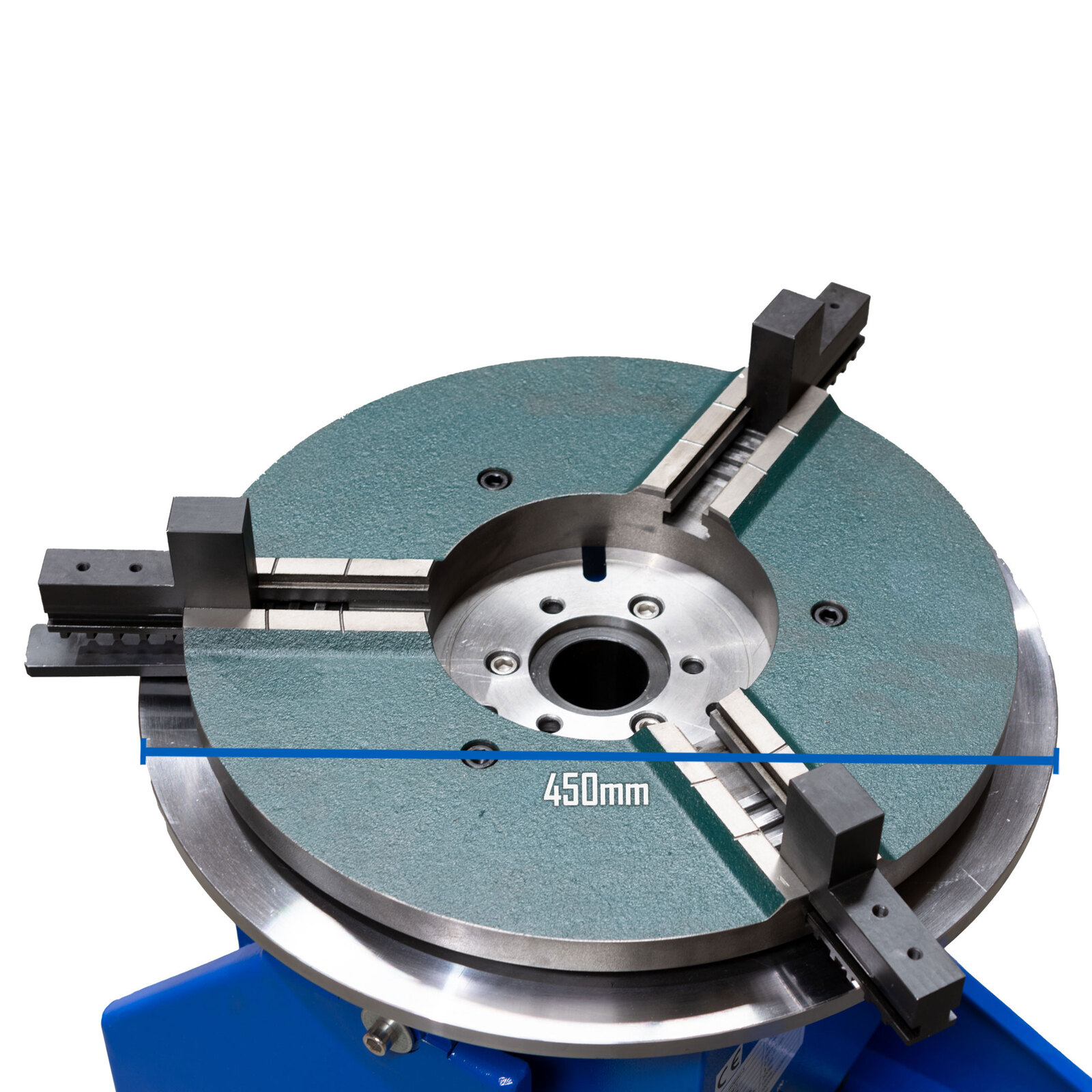

- Turntable Diameter: Φ450mm
- Rotate Speed: 0.2-2rpm
- Horizontal Loading Capacity: 300Kg
- Vertical Loading Capacity: 150Kg
- Size (LxWxH): 720x480x530mm
- Net Weight: 58Kg
- Angle Control: Manual
- Max Amp: 400A
- Protection Rank: IP21S
- Center Bore Diameter: Φ45mm
Dimensions:
- 400mm turntable plate (green)
- 450mm turntable base (silver)
- 48mm center bore
(Rotator300kg)
SKU | Rotator300kg |
Brand | COBRA |
Unit Of Measure | ea |
