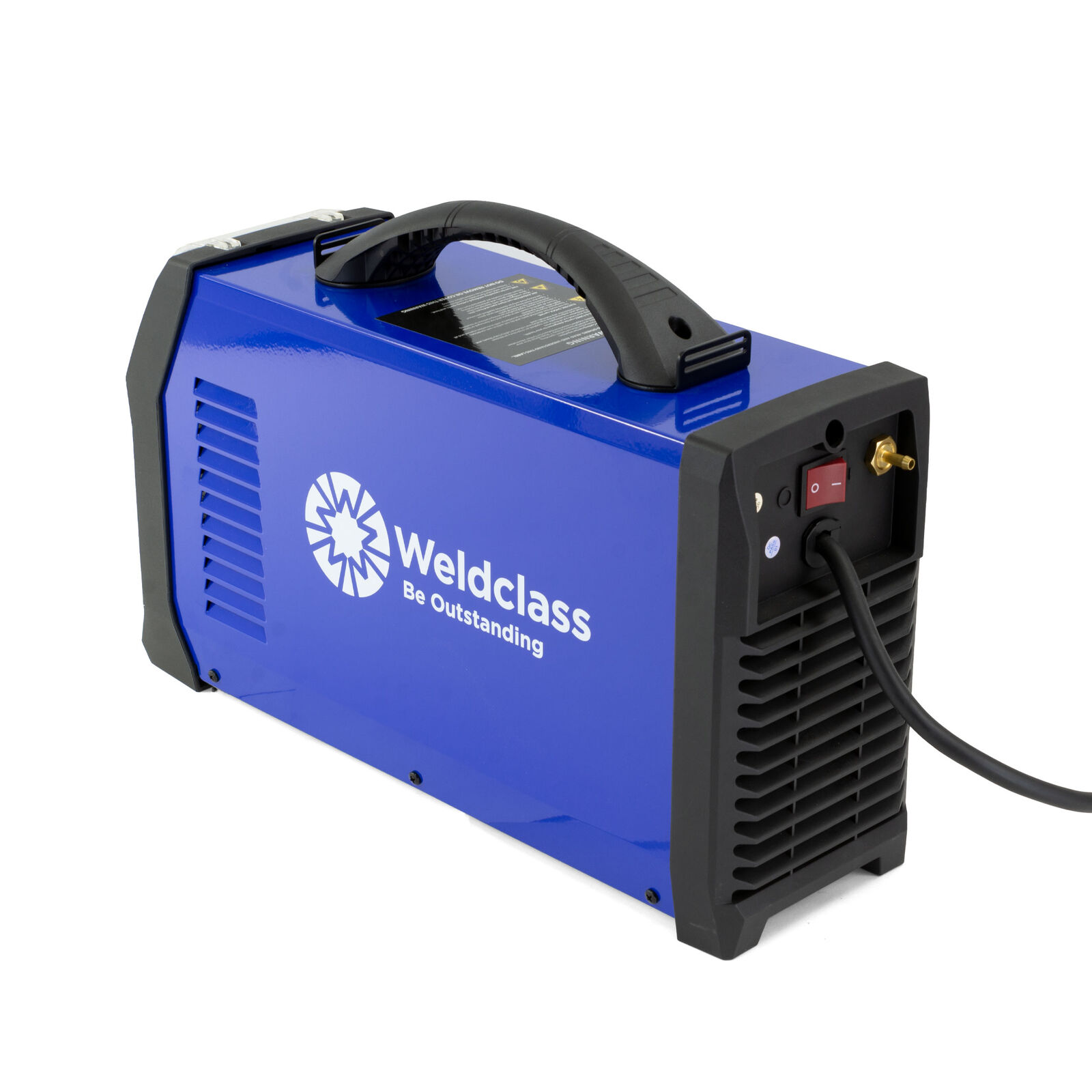

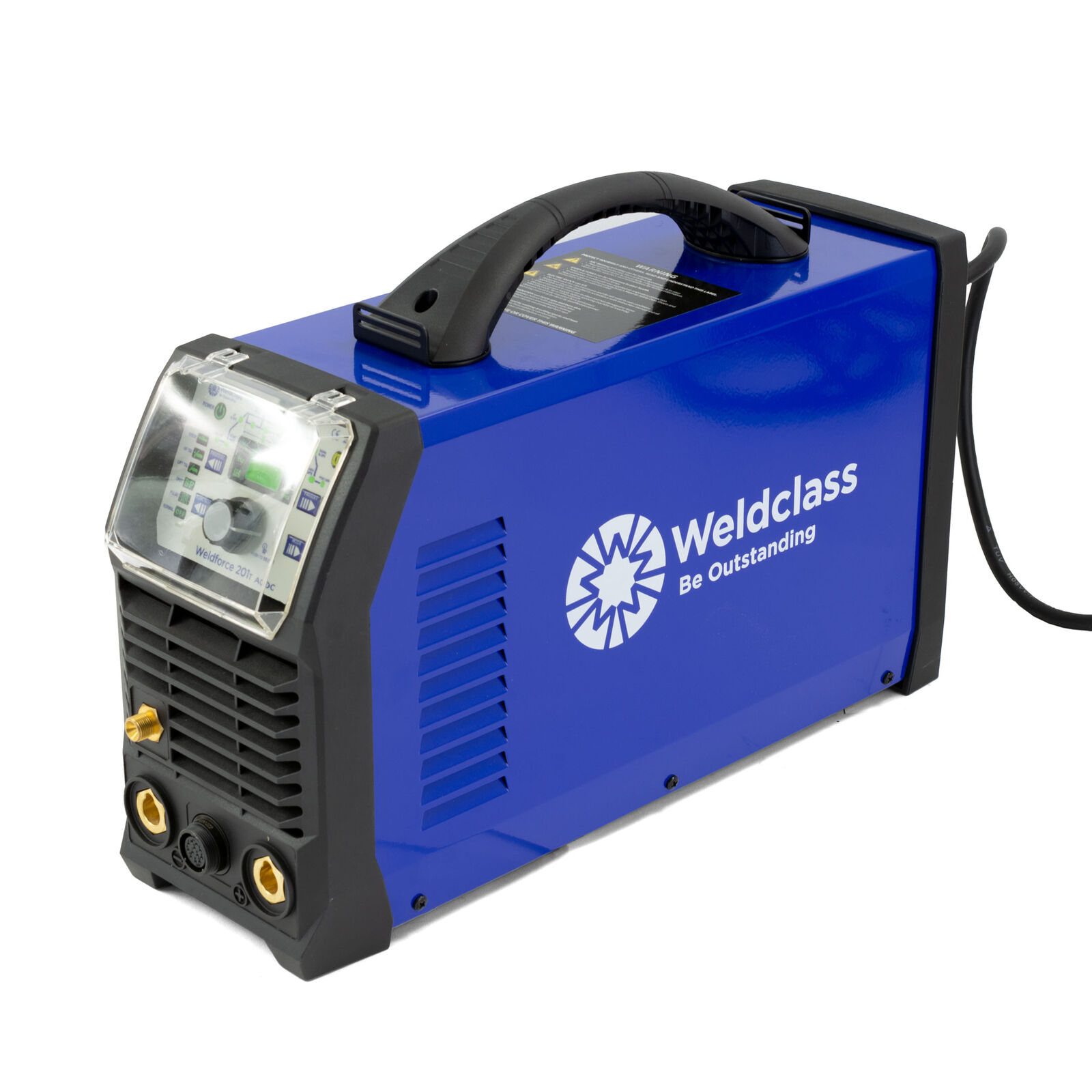

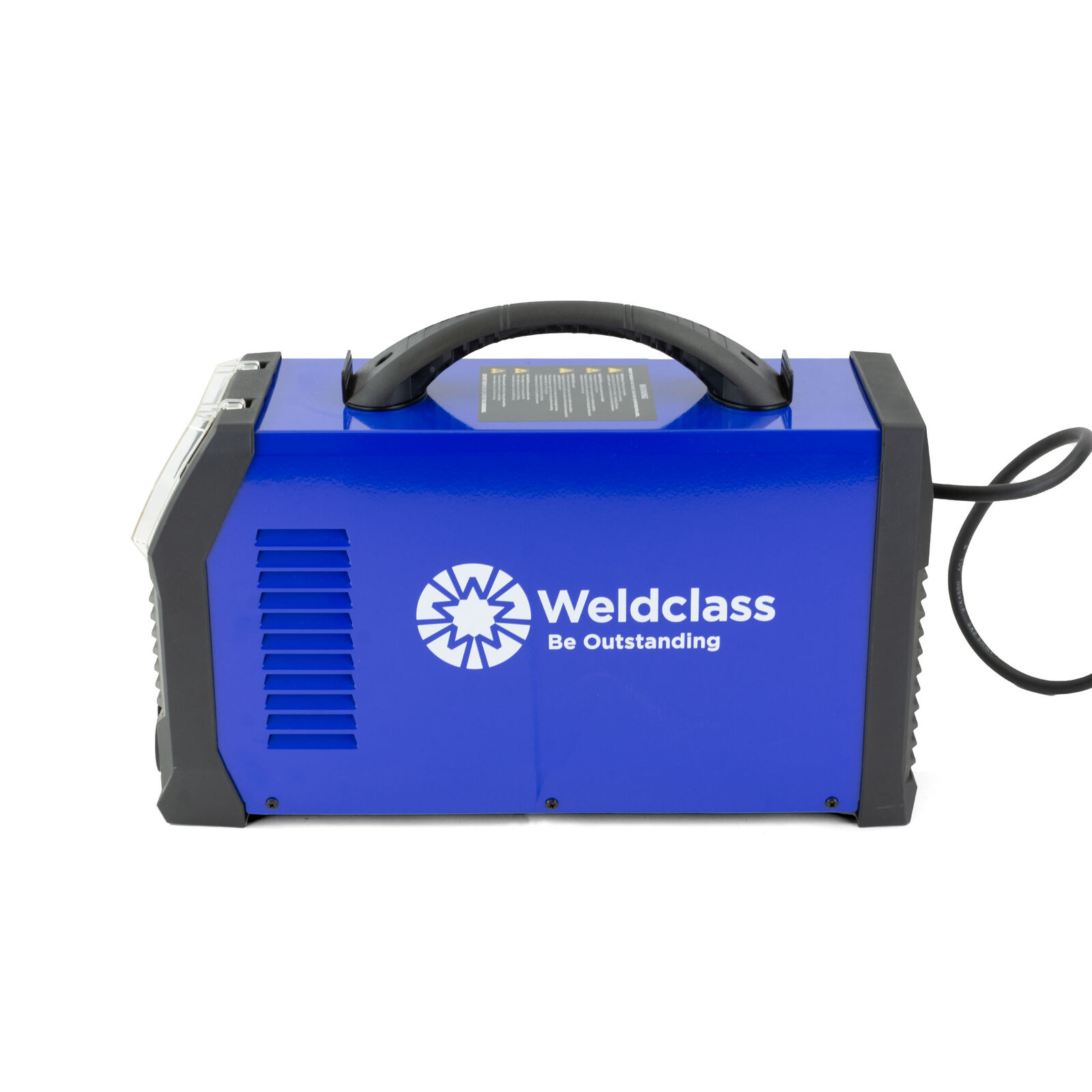

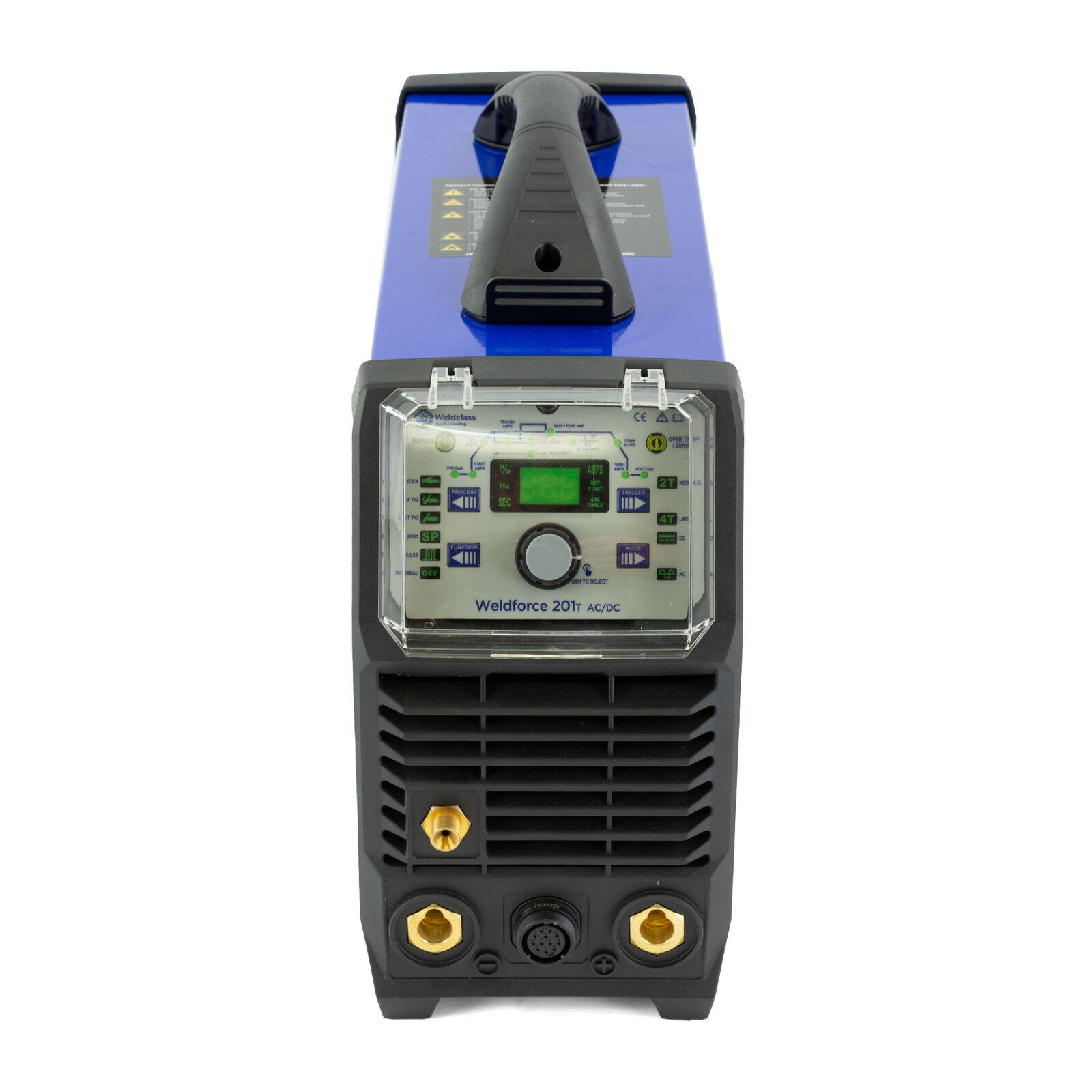

Weldclass 200 Amp ACDC TIG Welder - FORCE 201T AC/DC Pulse - WF-06172

Weldclass 200 Amp ACDC TIG Welder - FORCE 201T AC/DC Pulse - WF-06172

Now available with 7-year warranty.
If you're looking for the best TIG welding results on Aluminium, Steel, Stainless and more... the 201T is here to help! An Impressive 200A @ 30% output (AC TIG), very compact & portable, weighing just 8kg. Controls include; choice of HF or Lift-Arc ignition, pulse frequency and width adjustment, slop-up & slope-down, pre-gas & post-gas, AC Square-wave & balance controls, remote current adjustment on TIG torch handle, optional foot control... plus impressive Stick/MMA performance with capacity to run up to 4mm electrodes. Comes with: 8m #26 (200A) TIG torch, gas regulator, 4m earth & stick leads, shoulder strap, cable strap to keep your leads tidy and a long 3m power input lead with 15A plug fitted.

FUNCTIONS

• TIG (AC/DC)
• Stick / MMA

AT A GLANCE:

• 200A max output (AC) @ 30% duty cycle
• Weld up to 3.2mm (max tungsten size)
• Fitted with 15A 240V plug
• Professional TIG welding of Aluminium, Mild Steel, Stainless & more


KEY FEATURES:

• Market leading 7-year warranty*
• Weighs only 8kg - compact, robust & lightweight

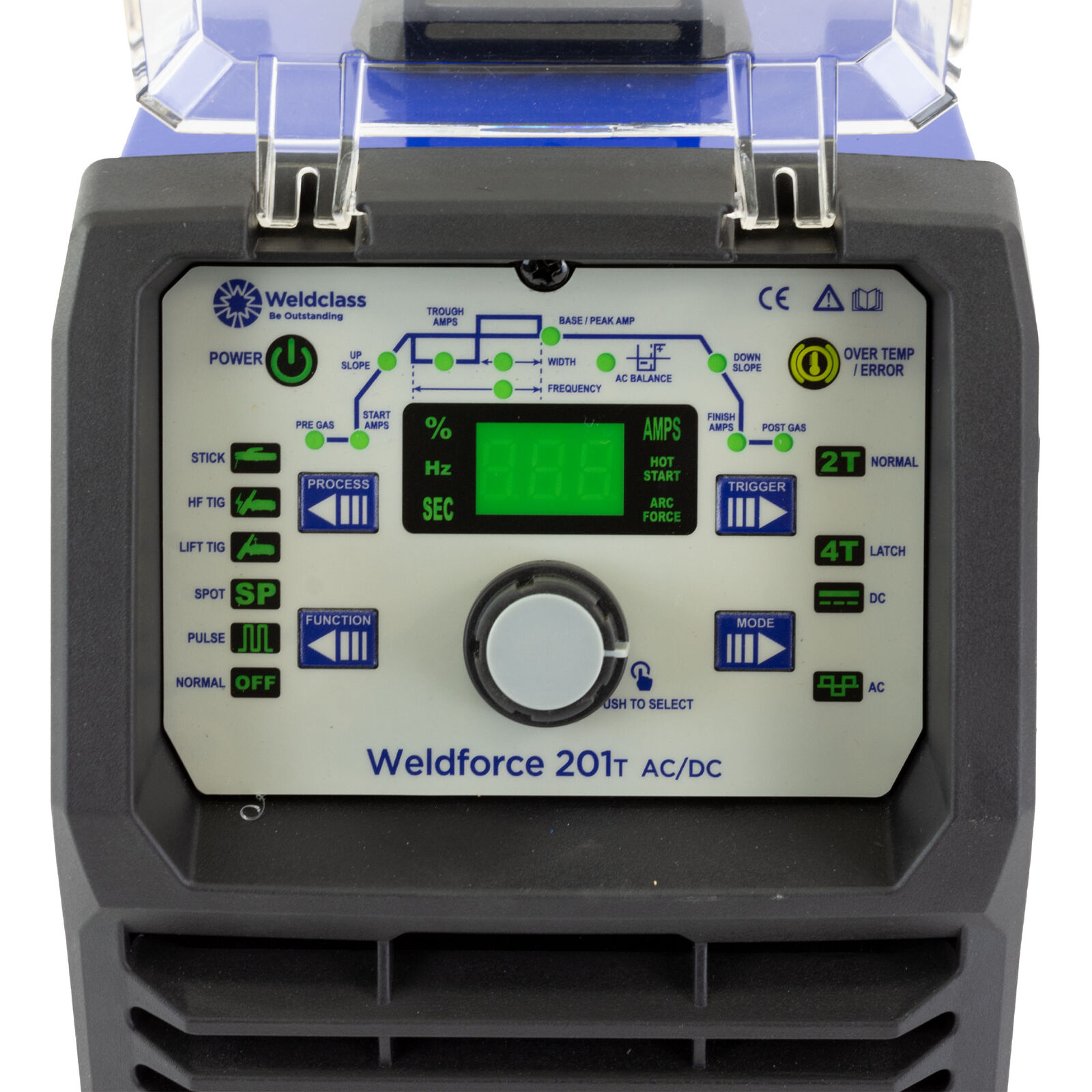

• LCD Digital Controls
• IP23 Protection - superior resistance to moisture & particles
• Generator Compatible - min 8kva, ideal 10kva+
• Stressed-Tested - to 440V & over-specified componentry for reliability
• Optional Foot Control (part no WC-06236)


FUNCTIONS:

• HF or Lift Arc Ignition
• Pulse Frequency Adjustment 0.2 – 200Hz
• Pulse Width Adjustment
• Slope Up/Down Adjustments 0-10s
• Pre Gas Adjustment 0-2s
• Post-Gas Adjustment 0-10s
• AC Balance Adjustment: -5 (25% / max penetration) to +5 (50% / max cleaning)
• AC Frequency 50Hz

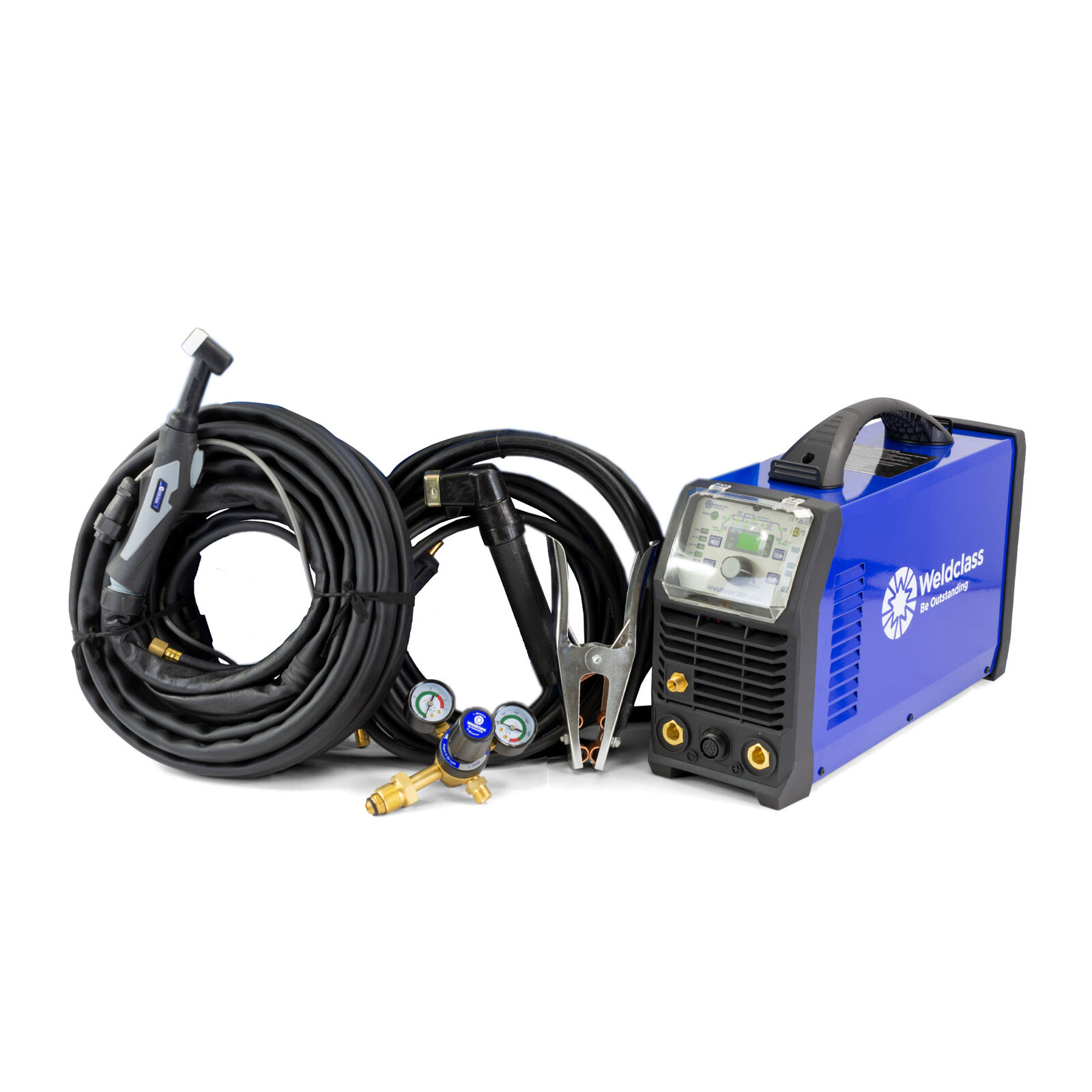

INCLUDES:

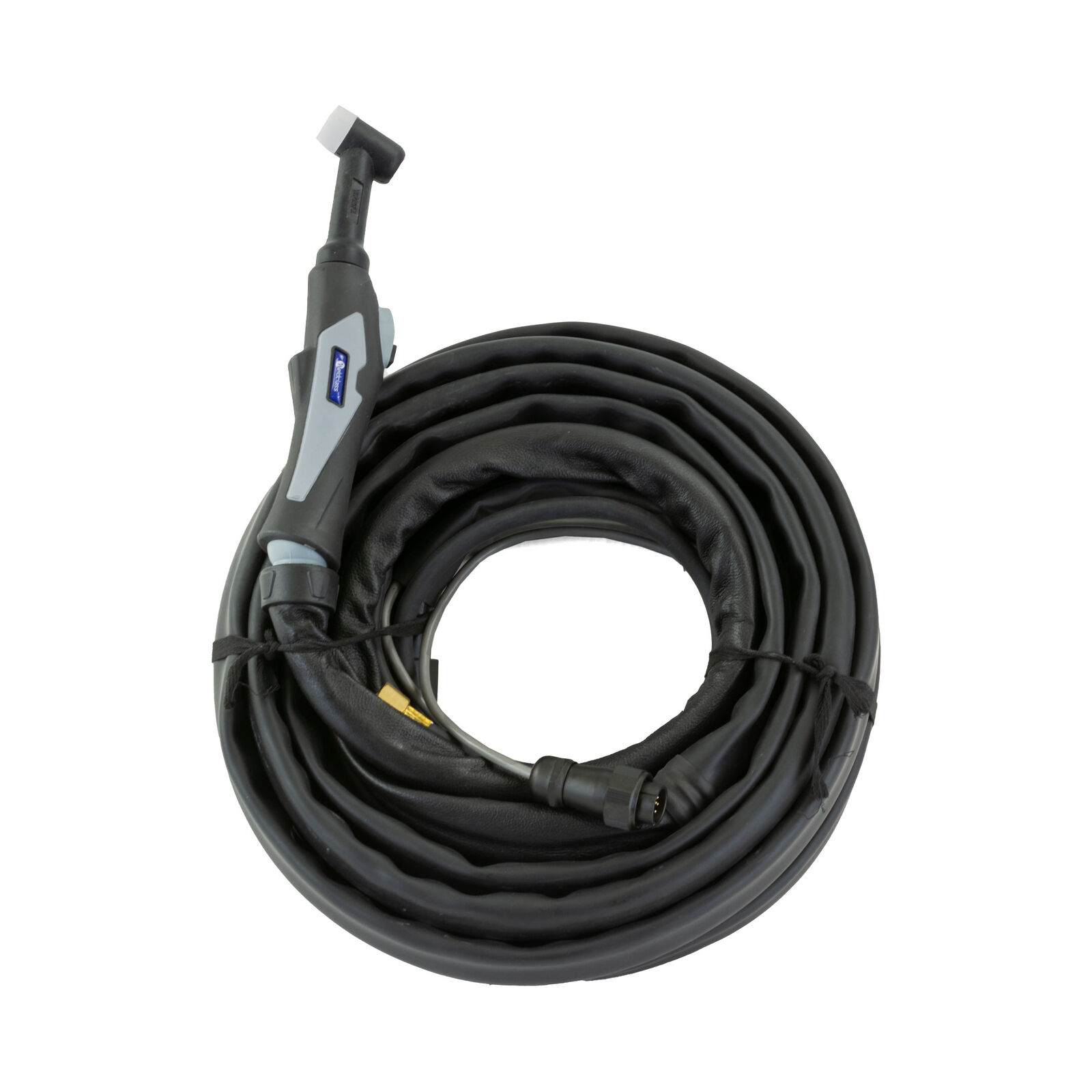

• TIG Torch #26 Flexi 8m (remote control)

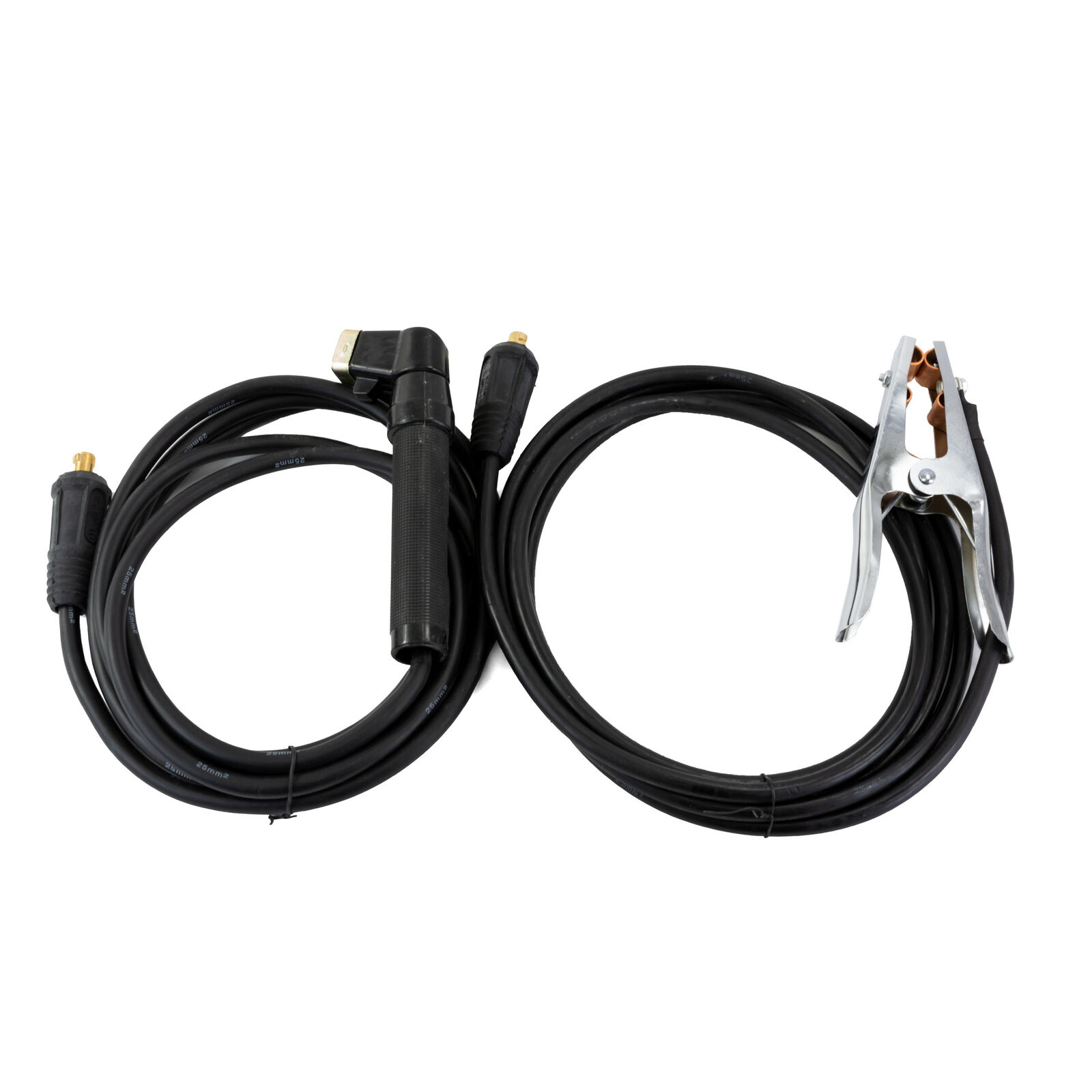

• Earth Lead 4m
• Stick Lead 4m

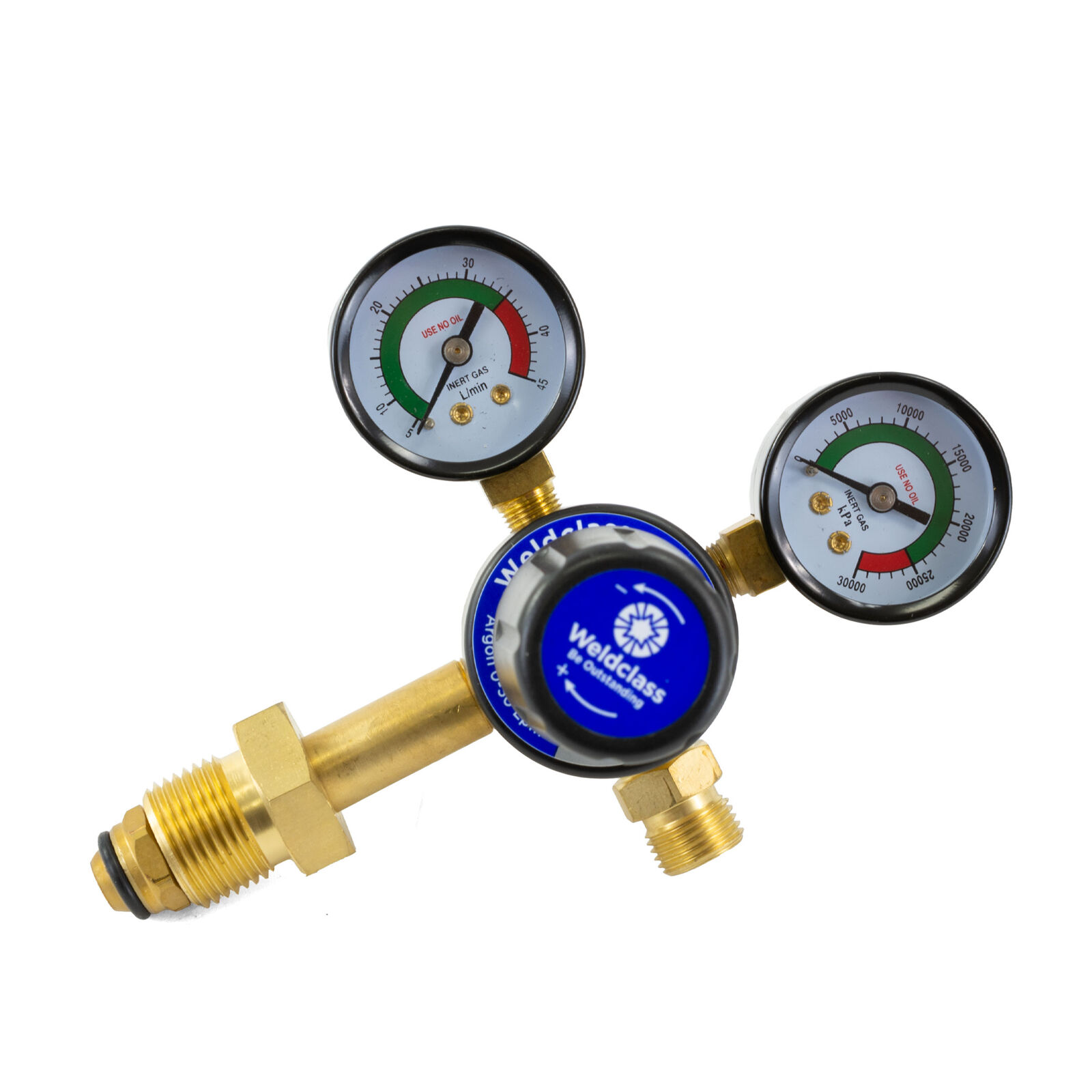

• Gas Regulator
• Shoulder Strap
• Cable Strap
• Long Power Input Lead 3m
• Parts Kit & Tungstens - 1.6, 2.4, 3.2mm


OPTIONAL ACCESSORIES & COMMON SPARE PARTS:

• Foot Controller (part no WC-06236)
• T100 Welding Trolley (part no WC-06235)
• TIG Torch #17 150A (part no WC-06244)
  Note machine is supplied as standard with #26 200A torch. If #17 torch is preferred, this should be ordered as a seperate item.
• TIG Torch #18 Water-Cooled (part no WC-01808)
  Note machine is supplied as standard with #26 200A torch. If #18 torch is preferred, this should be ordered as a seperate item. Water-cooler unit required (not currently offered by Weldclass).
• TIG Torch Spares (26 series)
• Tungsten Electrodes

*Standard warranty 2 years, with extended 7 year warranty available if registered online after purchase, click here for details.
