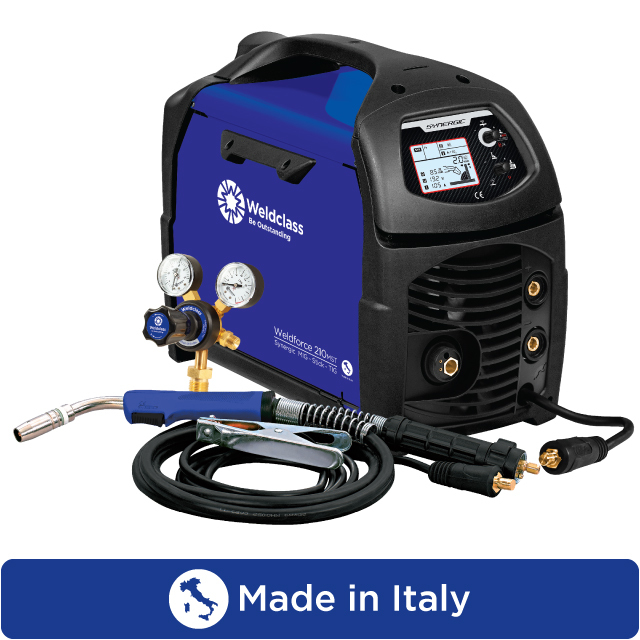

Weldclass 210MST MIG/STICK/TIG Inverter Welder

Weldclass Weldforce 210MST Mig / Stick / Tig Inverter Welder

Designed and manufactured in Europe, there's a lot more to the Weldclass 210MST than first meets the eye. Large LCD display screen with very intuitive & easy to use functions. Impressive MIG output of up to 210 amps for welding up to 10mm steel, dual input modes to allow use on 10A plug (fitted) or 15A plug, leading 4-year warranty and 30-day money-back satisfaction guarantee are just the start.

Choice of 4 welding modes; manual MIG, synergic MIG (select wire type & material thickness and the machine takes care of the settings - easy!), Stick/MMA or lift-arc TIG. Plus an interactive LCD screen controls, VRD safety feature and generator compatibility - all in a compact 10kg package.

The machine comes with European-made 4m heavy-duty 250A Euro-fit MIG torch, gas regulator, drive rollers for solid & gasless wires, 3m earth lead & 10A plug fitted. Handy reference guide sticker printed inside the door of the welder for easy settings reference.

FUNCTIONS

• Manual MIG (Gas / Gasless) - Voltage and wire-speed adjusted manually
• Synergic MIG (Gas / Gasless) - Set wire type/size & material thickness and the machine will set parameters automatically
• Stick / MMA
• TIG (Lift-Arc)

AT A GLANCE:

• Made in Europe
• 210A max MIG output
• Welds up to 10mm Mild Steel (max MIG capacity)
• Fitted with 10A 240V plug*

KEY FEATURES:

• Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
• Leading 4-year warranty**
• 30-day Money Back Guarantee***
• Dual Input Modes to allow use with either 10A plug (fitted) or 15A plug (optional)*
• LCD display - Interactive & easy to use
• Manual or Synergic MIG controls (enter wire type/size & material thickness and the machine will set parameters automatically)
• 26+ MIG Programs - for welding with different wires & materials
• Very compact and portable weighs 10kg
• Takes 1kg (D100mm) or 5kg (D200mm) spools
• Generator Compatible - min 7kva, ideal 10+kva
• VRD function for safe & compliant Stick/MMA welding
• MIG Adjustments include: Inductance, Soft Start, Burnback, Post-Gas Time, 2T/4T Trigger, Spot Weld Time
• Stick/MMA Adjustments include: Hot-Start %, Arc-Force %

APPLICATION & CAPABILITY INFO

• MIG welding <210A in 15A mode, or <170A in 10A mode, with solid mild steel (0.6-1.0mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.0mm), aluminium (0.8-1.0mm), & bronze/brazing (0.8-1.0mm) wires
• Stick/MMA welding <150A in 15A mode, or <130A in 10A mode, with most types of common electrodes (2.0-3.2mm), including steel, stainless steel, hard facing & more
• TIG welding (DC lift-arc) <150A in 15A mode, or <130A in 10A mode, of steel, stainless, copper & chrome molly up to 3mm max thickness (NOT suitable for TIG welding of aluminium - this requires AC/DC TIG capability, such as the Weldforce 202T)

INCLUDES:

• MIG Torch H/Duty BZL 25 4m (made in Europe)
• Gas Regulator (made in Europe)
• Earth Lead 3m
• Driver Roller for 0.6/0.8/0.9mm steel/solid wire
• Driver Roller for 0.8/0.9/1.2mm gasless wire

OPTIONAL ACCESSORIES:

• Stick welding lead
• TIG Torch 17V 4m
• T100 Welding Trolley (# WC-06235)

COMMON SPARE PARTS:

• MIG Torch Spares (BZL 25)
• Drive Rollers
